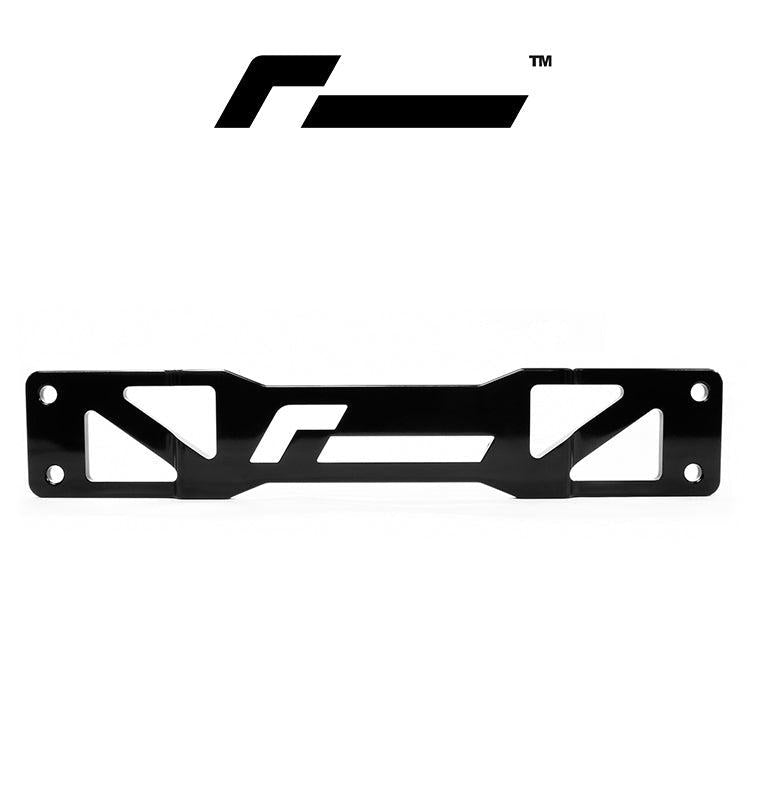

RacingLine Underbody Tunnel Brace For MQB- CENTRE TUNNEL BRACE FWD ONLY
RacingLine Underbody Tunnel Brace For MQB- CENTRE TUNNEL BRACE FWD ONLY is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
RacingLine Underbody Tunnel Brace For MQB- CENTRE TUNNEL BRACE FWD ...
These two intricately designed MQB Billet Underbody Tunnel Braces mount under the body to help fight body flex. This improves rigidity to help refine the handling, whilst also providing valuable extra clearance for larger diameter exhaust system.
WHAT DO THEY DO?
MQB cars rely on thin stamped-steel OE tunnel braces underneath in an attempt to reinforce the body’s weaker points and limit chassis flex under demanding loads.
Our new Billet Underbody Braces replace these weak braces with intricately machined aluminium replacements, greatly improving stiffness, giving much better exhaust clearance and even look great!
CNC Machined from a solid billet of 6061-T6 Aluminium, each brace has been engineered to remove unnecessary material whilst still increasing rigidity.
With any 3″ diameter exhaust system, the OE brace gives insufficient clearance. So rather than removing the tunnel brace, our new Rear Tunnel Brace at last gives you the option to replace it, giving you the clearance you need plus maintaining crucial body stiffness.
Despite adding stiffness, this improved dynamic performance comes without sacrificing any ride quality or introducing any additional noise, vibration, or harshness into the cabin.
The brace designs mean that installation is simple, using existing body mounting points with no drilling or trim removal required, ensuring fitment is completely reversible.
We offer two braces – a Centre and a Rear Tunnel Brace. Owners of FWD cars can fit both, AWD cars can only fit the Rear Tunnel Brace.
CONFIRMED APPLICATIONS
CENTRE TUNNEL BRACE (FWD)
ONLY FOR FWD MQB MODELS
VWR810004
REAR TUNNEL BRACE (FWD & AWD)
FOR ALL MQB MODELS
VWR810005
Drive a Front-Wheel Drive MQB car? Good news – you can fit both of the Underbody Tunnel Braces on your car (or either one).
If your car is All-Wheel Drive MQB, then only the Rear Tunnel Brace will fit on your car.
Please note: Rear Tunnel Brace does not fit Tiguan R when fitted with Akrapovic Exhaust
>
VW Golf 8 & 8.5
2020+
>
VW Golf 7 & 7.5
2013-2020
>
VW Passat B8
2015+
>
VW Arteon
2017+
>
VW T-Roc
2017+
>
VW Tiguan II
2016+
>
VW Jetta / GLI 7
2018+
>
Audi S3 8Y & 8Y.2
2020+
>
Audi A3 8Y & 8Y.2
2020+
>
Audi S3 8V
2013-2020
>
Audi A3 8V
2013-2020
>
Audi RS3 2.5 TFSI 8Y & 8Y.2
2021+
>
Audi RS3 2.5 TFSI 8V.2 evo
2017-2020
>
Audi RS3 2.5 TFSI 8V
2015-2017
>
Audi TT 3 8S
2014+
>
Audi TTRS 2.5 TFSI 8S
2017+
>
Audi SQ2
2018+
>
Audi Q2
2017+
>
Audi RSQ3 F3
2019+
>
Cupra Leon 4 & 4.5 FW
2020+
>
SEAT Leon III 5F
2015-2020
>
Cupra Formentor VZ5 2.5 TFSI
2020+
>
Cupra Formentor
2020+
>
Cupra Ateca
2018+
>
SEAT Tarraco 2.0 TSI
2018+
>
Skoda Octavia IV NX
2020+
>
Skoda Octavia III 5E
2014-2020
>
Skoda Superb III 3V
2015+
Weight 2 kg
Dimensions 30 × 25 × 20 cm
This product is compatible with the following vehicles:
Year Make Model Engine
Year Make Model Engine
2013 - 2017 Volkswagen Golf (MK7) 2.0 TURBO (EA888 GEN 3) - GTI
2013 - 2017 Volkswagen Golf (MK7) 2.0 TURBO (EA888 GEN 3) - GTI 40TH
2013 - 2017 Volkswagen Golf (MK7) 2.0 TURBO (EA888 GEN 3) - R
2013 - 2017 Volkswagen Golf (MK7) 2.0 TURBO (EA888 GEN 3) - WAGON
2013 - 2019 Skoda Octavia (5E) 2.0 TURBO (EA888 GEN 3)
2013 - 2020 Audi S3 (8V) 2.0 TURBO (EA888 GEN 3)
2017 - 2019 Skoda Superb (3V) 2.0 TURBO (EA888 GEN 3)
2017 - 2019 Volkswagen Arteon 2.0 TURBO (EA888 GEN 3)
2018 - 2020 Volkswagen Golf (MK7.5) 2.0 TURBO (EA888 GEN 3) - GTI
2018 - 2020 Volkswagen Golf (MK7.5) 2.0 TURBO (EA888 GEN 3) - R
2018 - 2020 Volkswagen Golf (MK7.5) 2.0 TURBO (EA888 GEN 3) - R Wagon
2019 - 2020 Volkswagen Golf (MK7.5) 2.0 TURBO (EA888 GEN 3) - GTI TCR
2021 - 2024 Skoda Octavia (NX) RS (180KW) EA888.3
2021 - 2024 Volkswagen Golf (MK8) 2.0 TURBO (EA888.3) - GTI (AU Spec)
2021 - 2024 Volkswagen Tiguan 2.0 TURBO - 162KW
2022 - 2024 Cupra Formentor 2.0 VZx (228kW)
2022 - 2024 Volkswagen Tiguan 2.0 TURBO (EA888.4) - R
