RacingLine Height Adjustable Lowering Links Audi C7 C8 Air Suspension- C7 Platform
RacingLine Height Adjustable Lowering Links Audi C7 C8 Air Suspension- C7 Platform is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
MASSIVE RANGE
Over 20,000 performance & automotive SKUs for European, JDM, American, Korean and more
NATIONWIDE FAST SHIPPING
Quick dispatch across Australia with reliable tracked delivery
AUSSIE SUPPORT & EXPERTISE
Local customer service and technical assistance from our team of enthusiasts
RacingLine Height Adjustable Lowering Links Audi C7 C8 Air Suspensi...
Audi C7 / C8 Air Suspension
Height Adjustable
Lowering Links
Lowering your air-suspension Audi couldn’t be easier with the RacingLine Height Adjustable Lowering Links.
What do they do?
RacingLine’s Height Adjustable Lowering Links allow you to set the precise ride height you want on your air-suspension Audi. The result? A more aggressive, dynamic look with a lower centre of gravity, enhancing vehicle dynamics and aesthetics but without compromising comfort or ride quality.
A wide range of adjustment gives a maximum vehicle lowering of up to 50mm / 2” front and rear.
Set your perfect ride height in situ on the vehicle without repeated removal/refit between adjustments. Just a turn of the link body adjusts each corner of the car one at a time.
High quality joints with rubber boots ensure long-lasting maintenance-free operation, whatever the weather & road conditions.
Fully compatible with your factory air suspension system, with no faults, coding or reprogramming required. Simple, quick fitment in minutes that’s fully reversible.
How do they work?
The OEM factory suspension level sensors rely on non-adjustable plastic links at each corner to tell the car’s on-board computer exactly how the car is sitting. Replacing these with our Height Adjustable Lowering Links allow you to accurately override what the sensors are reading on the car, giving you full control of your ride height.
By working hand in hand with the factory suspension potentiometer, different link lengths change the angle that the suspension level sensor reads. As nothing else is changed, this retains all the factory suspension features, functionality and quality without the need for any reprogramming or fitting expensive suspension components.
As the Air Suspension’s full functionality is retained, the exact drop will vary between modes on the MMI ride height selection – and still retains the ‘raise’ functionality for when you need that bit of extra clearance.
Product
Dimensions.
Front Link Dimensional Range:
90-110MM (MEASURED END TO END)
Stock Height link length: 103mm
Shorten Link to Lower Car
Rear Link Dimensional Range:
140MM-160MM (MEASURED END TO END)
Stock Height link length: 145mm
Lengthen Link to Lower Car
What’s
Included.

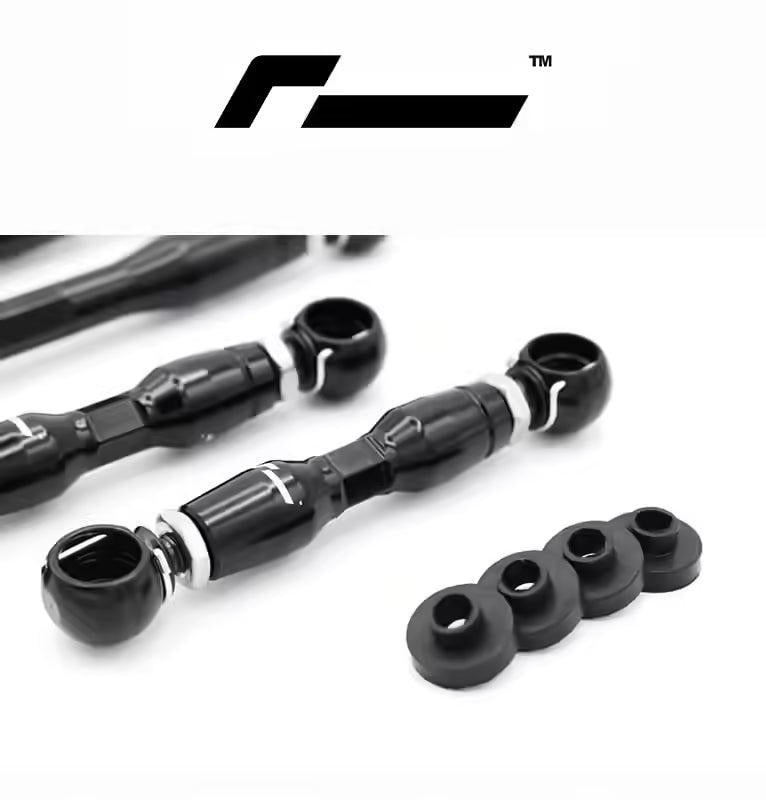

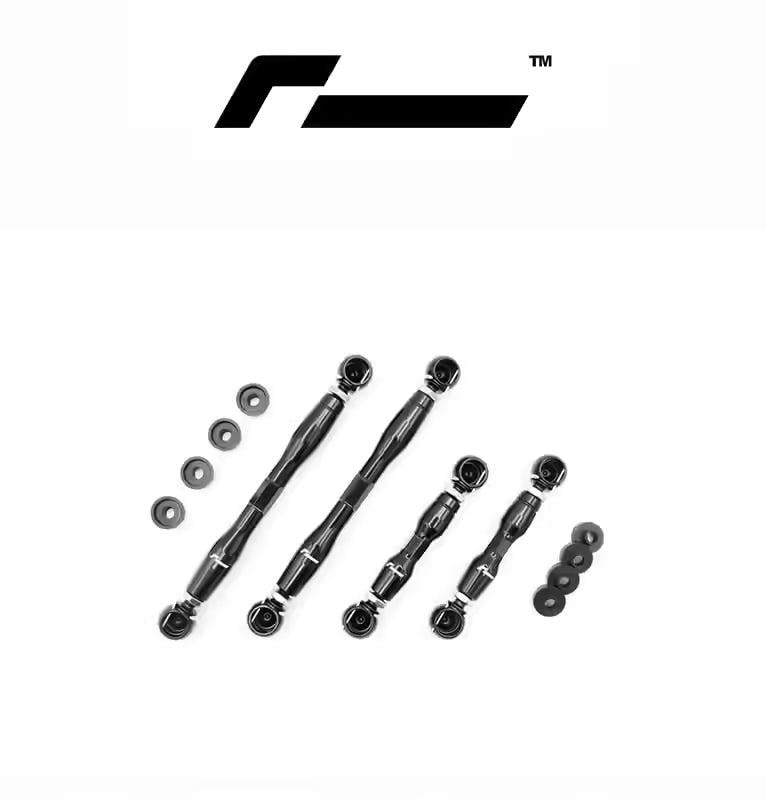

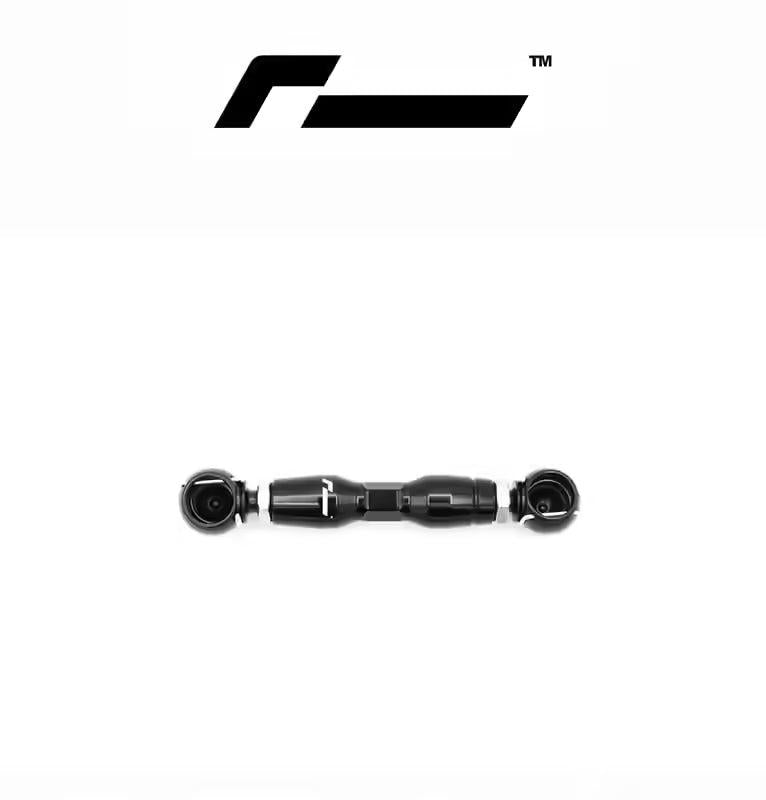

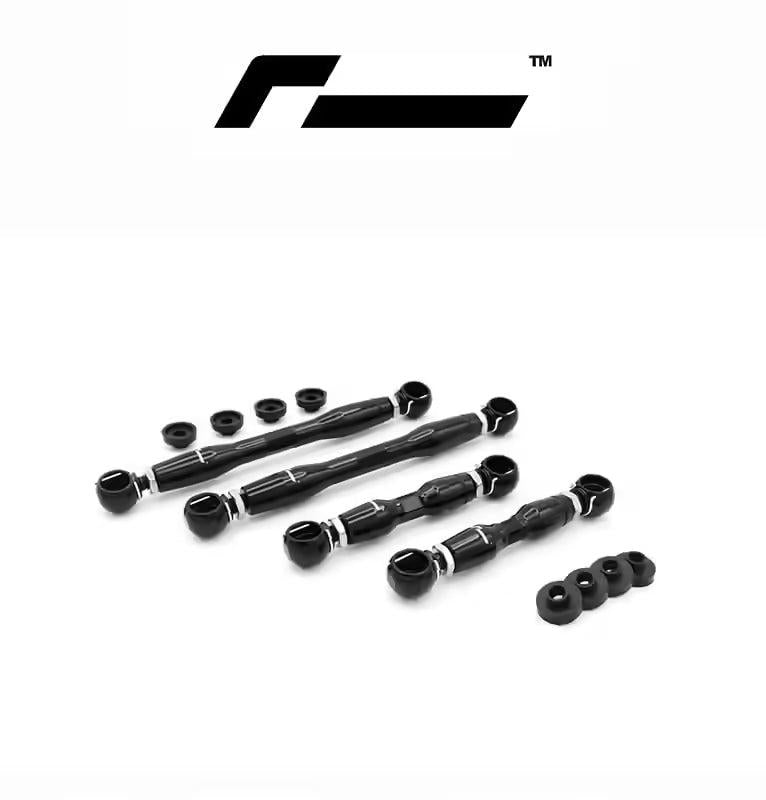

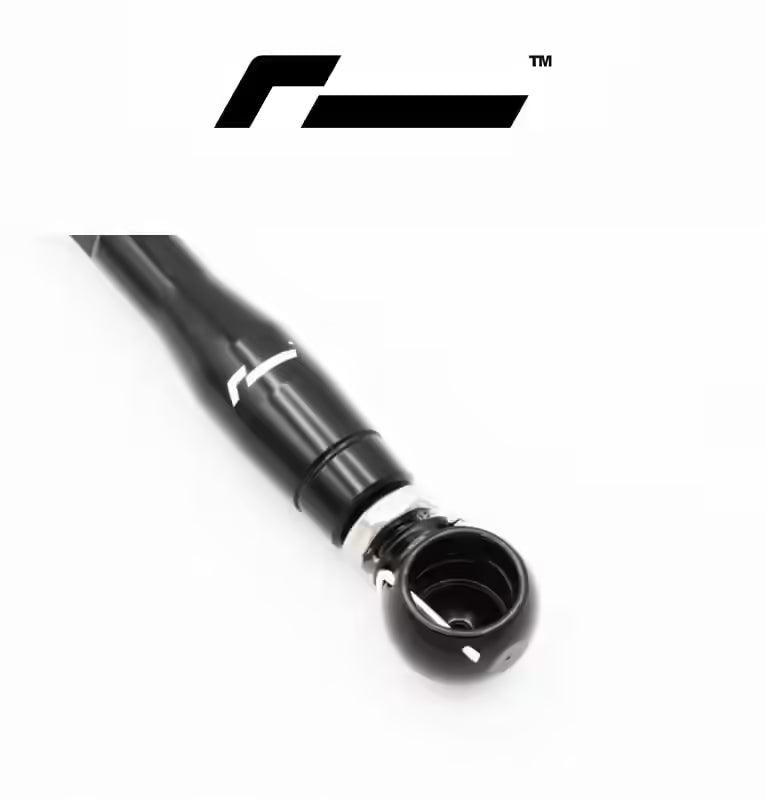

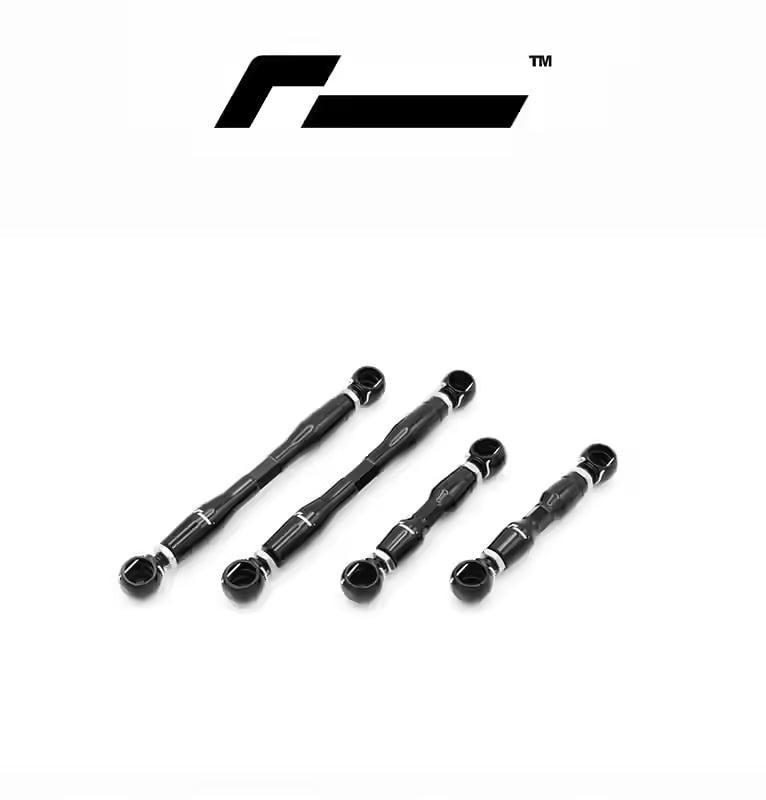

4x Billet Aluminum Adjuster Rods

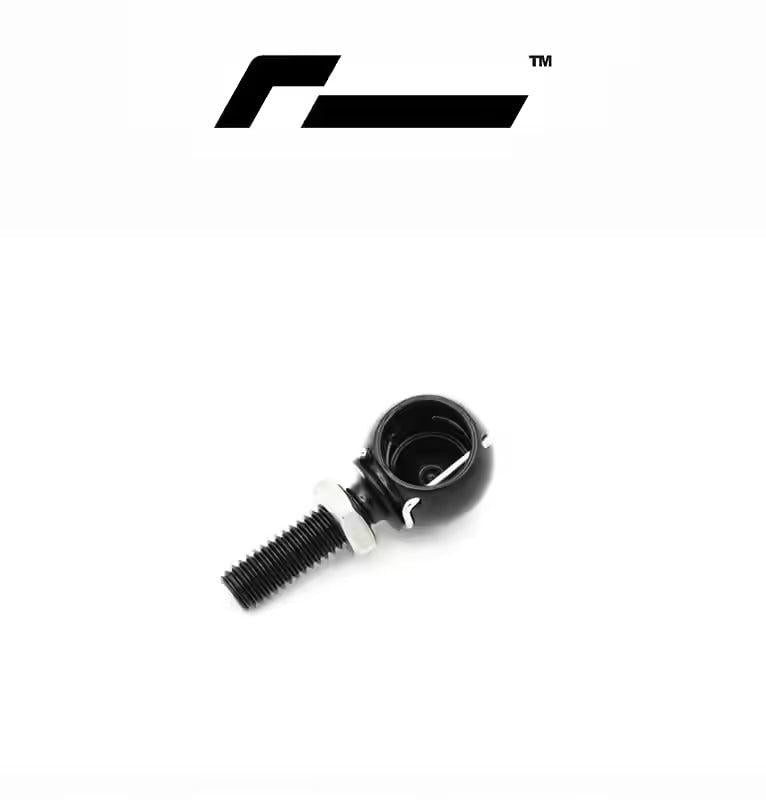

4x Ball Joint – RH Threads
4x Ball Joint – LH Threads

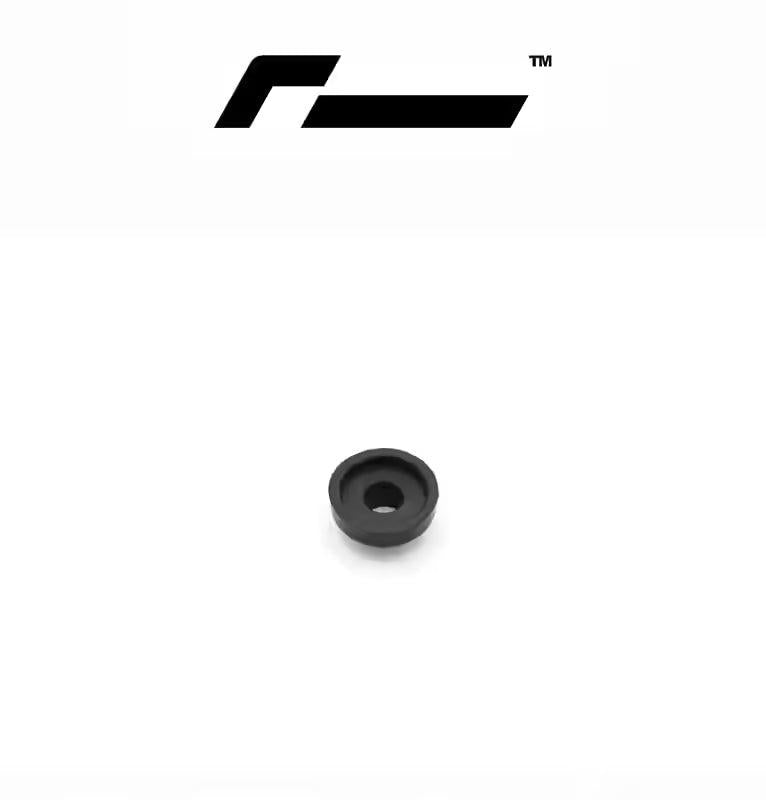

8x Dust Seals
Confirmed applications.
The following models with factory Air Suspension:
VWR436000
>
Audi A6 / S6 / RS6 C7 4G
2011-2018
>
Audi A7 / S7 / RS7 C7 4G
2011-2018
>
Audi A8 / S8 D4
2010-2017
>
Audi Q7 4L
2009-2015
VWR436001
>
Audi SQ5
2017+
>
Audi A6 / S6 / RS6 C8 4K
2018+
>
Audi A7 / S7 / RS7 C8 4K
2018+
>
Audi RSQ8 / SQ8 / Q8 4M8
2018+
>
Audi Q7 / SQ7 4M
2016-2019
>
Audi Q7 / SQ7 4M.5
2020+
>
Audi E-tron Quattro MLB
2019+
>
Porsche Cayenne
2019+
>
Lamborghini Urus
2018-2021
>
Bentley Bentayga
2016-2021
Weight 0.3 kg
Dimensions 23 × 20 × 2 cm
This product is compatible with the following vehicles:
Year Make Model Engine
Year Make Model Engine
2018 - 2019 Audi RS6 (C7) 4.0 V8 BITURBO
2020 - 2021 Audi RS6 (C8) 4.0 V8
2020 - 2021 Audi RS7 (C8) 4.0 V8
