RacingLine 2.0 TSI MQB DSG Oil Cooler- DQ381 7 SPEED
RacingLine 2.0 TSI MQB DSG Oil Cooler- DQ381 7 SPEED is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
RacingLine 2.0 TSI MQB DSG Oil Cooler- DQ381 7 SPEED
For DQ 250 6-speed and DQ381 7-speed
It’s not just your engine oil that you need to protect. Your DSG gearbox is very susceptible to overheating, leading to protection mode that reduces engine power and eventually prevents gear selection.
And the higher your power, the harder you drive, the more important it is to protect it with the RacingLine 2.0 TSI DSG Oil Cooler.
WHY FIT A DSG OIL COOLER KIT?
Our unique DSG Oil Cooler Kit is an essential fit for any hard-driven MQB 2.0 TSI car running high power levels or in hot climates. It’s a complete ready to install package, using a clever sandwich plate design for straightforward and completely reliable installation.
Transferring more power and torque through the DSG gearbox generates ever more heat to dissipate. Significantly increased oil temperatures means only one thing: a decrease in the ability for your DSG box to stay properly cooled, eventually causing power drop and gear selection issues.
Under hard driving, the factory DSG oil/water cooler is easily overwhelmed. Problems start to occur when oil cannot dissipate its collected heat fast enough and the oil begins to thin and degrade – losing its lubrication properties.
When this happens, the DSG will protect itself and begin to lower the engine torque, increase shift times and eventually loose gear selection.
The RacingLine kit solves this problem: by adding in an additional air/oil cooler positioned right in the airflow at the front of the car, oil temperatures are reduced by around 15 – 20 degrees centigrade (of course dependant on how the car is being used, ambient temps and state of tune).
The kit uses a clever design which retains the factory oil/water cooling and adds to it with the thermostatically-controlled front-mounted cooler – doubling up your cooling capability when it’s needed with less heat transfer into the water system.
Only when the oil exceeds normal temperatures, the thermostat opens. Oil temperature then drops significantly as it is pumped through the densely packed fins of the 10-row cooler’s large surface area mounted right in the cool airflow.
DSG COOLER FITMENT.
As you’d expect, the RacingLine DSG Oil Cooler is a beautifully detailed complete kit, developed exclusively for MQB cars with either DQ250 6-speed or DQ381 7speed DSG gearbox.
The system is designed for straightforward fitting and ultimate reliability. Everything needed for perfect fitment is included.
Unlike other DSG oil cooler kits, the RacingLine package keeps the oil/water cooler and adds to it with the oil/air cooler
10 row stacked-plate oil cooler radiator, flowed to obtain maximum heat dissipation without undue pressure drop
Optimum front mounted location behind left side front lower grill aperture with all necessary brackets and fixing kit supplied
210 Series stainless steel, nylon braided feed and return lines run past the chassis leg into the bumper cavity, then connecting to the oil cooler core
DOUBLE COOLING.
Our DSG Cooler design is a unique design: it retains the factory oil/water gearbox cooling system, plus adds our oil/air cooling as well. Why?
The DSG oil will still quickly warm up from the hot water in the engine’s coolant system, reaching full operating temperature as soon as possible.
But that’s where the problem begins on a hard-driven car. The hot engine coolant will now have little to no cooling effect on the DSG oil, and gearbox temps start to rise rapidly.
That’s the point at which our sophisticated thermostatic control valve inside the adaptor block will then divert hot oil out to the new 10-row cooler located in the cool fresh air flow.
After the cooled transmission oil returns from the cooler, it carries less heat to be absorbed into the engine coolant system – helping control all the temperatures under the bonnet.

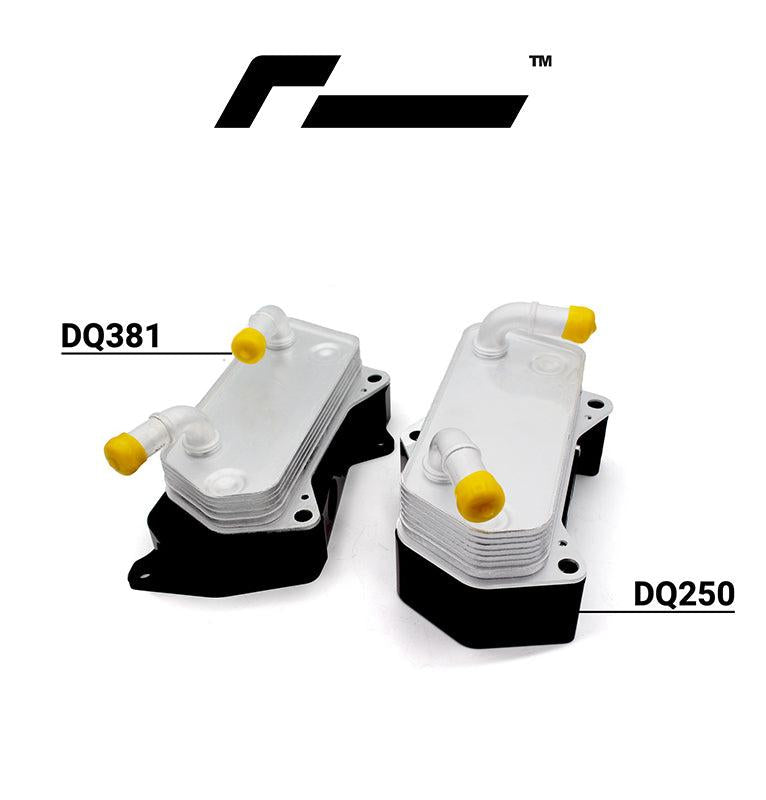

Our replacement oil/water cooler (that’s the silver part in the picture) is lower in height than the factory one. So the total height of both parts still fits perfectly under the battery location above it.
WHAT’S IN THE KIT?
Oil cooler mounting brackets
AN10 210 series Nylon braided feed and return line
Billet CNC thermostatic adaptor block
Replacement, low-profile oil/water cooler
AN10 10-row oil/air cooler core
Fitting kit containing all necessary nuts, bolts, washers and rubber mounting bobbins
WHAT’S THE PROBLEM ON TRACK?
When oil temperature reaches 138°C/280°F, the DSG’s control system initiates a reduction in engine torque, meaning a serious drop in performance.
Carry on driving, and if temperatures then rise above 145°C/293°F, your DSG clutches no longer get the fluid pressure they require and you loose drive altogether as the box goes into a safety mode.
If you’re in a hot climate this can happen after only about 15 minutes at the track – meaning a long wait while your gearbox cools down again.
CONFIRMED APPLICATIONS
VWR29G7250 / DQ250 6-SPEED GEARBOXES ONLY
VWR29DQ381 / DQ381 7-SPEED GEARBOXES ONLY
VW Golf 7 & 7.5 GTI & Clubsport 2013-2020
VW Golf 7 & 7.5 R 2013-2020
VW Golf 7 & 7.5 1.8 TSI 2013-2020
VW Passat 2.0 TSI B8 2015+
VW Arteon 2.0 TSI 2017+
VW T-Roc R 2.0 TSI 2019+
VW Tiguan II 2.0 TSI 2016+
Audi S3 8V 2013-2020
Audi A3 2.0 TSI / 1.8 TSI 8V 2013-2020
Audi TT 3 2.0 TSI 8S 2014+
Audi TTS 3 2.0 TSI 8S 2015+
Audi SQ2 2018+
Skoda Octavia III vRS 2.0 TSI 5E 2014-2020
Skoda Superb III 1.8 / 2.0 TSI 3V 2015-2020
Weight 6 kg
Dimensions 60 × 40 × 35 cm
This product is compatible with the following vehicles:
Year Make Model Engine
Year Make Model Engine
2013 - 2015 Volkswagen Passat (B7) 2.0 TURBO (EA888 GEN 3)
2013 - 2017 Volkswagen Golf (MK7) 2.0 TURBO (EA888 GEN 3) - GTI
2013 - 2017 Volkswagen Golf (MK7) 2.0 TURBO (EA888 GEN 3) - R
2013 - 2020 Audi S3 (8V) 2.0 TURBO (EA888 GEN 3)
2014 - 2018 Audi TT (8S) 2.0 TURBO (EA888 GEN 3)
2015 - 2018 Audi TTS (8S) 2.0 TURBO (EA888 GEN 3)
2016 - 2021 Volkswagen Passat (B8) 2.0 TURBO (EA888 GEN 3)
2017 - 2019 Volkswagen Arteon 2.0 TURBO (EA888 GEN 3)
2019 Skoda Octavia (5E) 2.0 TURBO (EA888 GEN 3)
2019 - 2020 Volkswagen Golf (MK7.5) 2.0 TURBO (EA888 GEN 3) - GTI
2019 - 2020 Volkswagen Golf (MK7.5) 2.0 TURBO (EA888 GEN 3) - GTI TCR
2019 - 2020 Volkswagen Golf (MK7.5) 2.0 TURBO (EA888 GEN 3) - R
2019 - 2020 Volkswagen Golf (MK7.5) 2.0 TURBO (EA888 GEN 3) - R Wagon
2020 Skoda Octavia (NX) RS (180KW) EA888.3
2023 Skoda Octavia (NX) RS (180KW) EA888.3
