RacingLine Oil Cooler Kit – Universal MQB and ‘Evo’ fitment
RacingLine Oil Cooler Kit – Universal MQB and ‘Evo’ fitment is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
RacingLine Oil Cooler Kit – Universal MQB and ‘Evo’ fitment
Our much-anticipated Oil Cooler Kit is an essential fit for any hard-driven MQB or MQB ‘Evo’ 2.0 TSI car running high power levels or in hot climates. It’s a complete ready to install package, using a clever sandwich plate design for straightforward and reliable installation.
Adding power to these TSI engines generates more heat to disperse. Significantly increased oil temperatures means only one thing: a decrease in the ability for your engine to stay properly lubricated. At the same time, it’s really important not to over-cool the oil; our 10-row kit is perfect.
Under hard driving, the stock oil cooler is easily overwhelmed. Failures start to occur when oil cannot dissipate its collected heat fast enough and the oil begins to thin and degrade – losing its lubrication properties.
The RacingLine kit solves this problem: by adding in an additional air to oil cooler positioned right in the airflow in the front of the car, oil temperatures are reduced by around 15 – 20 degrees centigrade (of course dependant on how the car is being used, ambient temps and state of tune).
Our kit retains the factory oil to water cooler and adds to it with the front-mounted cooler – doubling up your cooling capability with less heat transfer into the water system.
As the oil moves away from the heat inside the engine, its temperature drops significantly as it is pumped through the densely packed fins of the 10-row cooler’s large surface area mounted right in the cool airflow.
Supplied as a complete kit with every part ready for straightforward install.
HIGH EFFICIENCY COOLER
Our 10-row stacked plate design efficiently forces the hot oil through a series of aluminium pressed plates. Heat dissipates as cold air moves across the plates.
PRESSURE CONTROL
Our unique sandwich plate oil take-off includes a clever internal pressure-control valve control to direct oil flow through the cooler at correct flow/volume.
PRECISION MACHINED
Precision machined billet components utilising
the latest 5 Axis CNC machines for perfect accuracy, first time, every time.
210 SERIES BRAIDED HOSE
Our oil lines feature an attractive outer nylon braid strengthened by a stainless steel inner weave for maximum resilience. Protective external sheath avoids any rubbing damage in use.
COLD AIR LOCATION
The front-mount location brackets of the RacingLine cooler kit places it in the optimum airflow and ensures that oil temperature drops and excess heat is funnelled out efficiently.
HIGH-FLOW FILTER
The kit includes a pretty special high-flowing oil filter. Made from stainless steel micronic filter cloth with magnetic pre-filtering, capable of flowing 5x more oil than the factory paper filter.
As you’d expect, the RacingLine Oil Cooler is a beautifully detailed complete kit, developed exclusively for the EA888.3 engine.
The system is designed for straightforward fitting and ultimate reliability. Everything needed for perfect fitment is included.
Unlike some oil cooler kits, with the RacingLine Performance kit there is no need to remove the intake manifold to access oil galleries for a feed in and out of the engine.
Our clever oil filter adapter enables the oil cooler sandwich plate to be installed underneath the current oil filter housing on all EA888.3 engines – just screw off and replace.
This sandwich plate includes an integral pressure relief valving system to protect the system from pressure spikes.
10 row stacked-plate oil cooler radiator, flowed to obtain maximum heat dissipation without undue pressure drop.
Optimum front mounted location behind front lower grill aperture with all necessary brackets and fixing kit supplied.
210 Series stainless steel, nylon braided feed and return lines run past the chassis leg into the bumper cavity, then connecting to the oil cooler core.

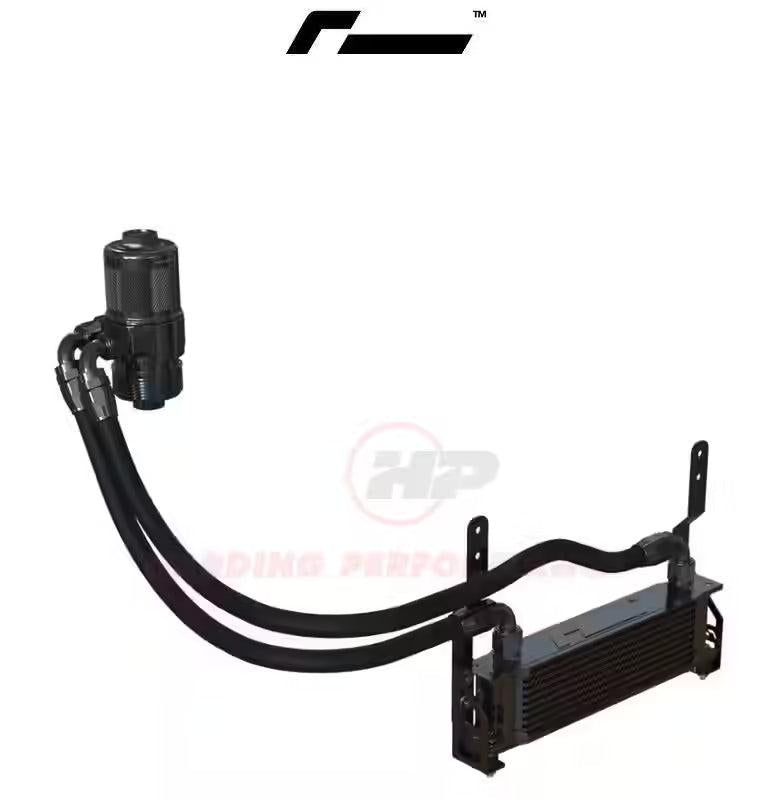

SO WHAT’S IN THE KIT?
AN10 210 series Nylon braided feed and return line.
Oil cooler mounting brackets
Billet CNC non-return sandwich plate.
Billet oil filter housing with removable drop in filter.
NOTE: 2015 AND OLDER CARS MAY ALSO REQUIRE FITMENT OF VWG PART 06L115678Q (A PLASTIC OIL STEM INSERT). THIS IS A RUNNING UPGRADE FROM VWG DEALERS SO MOST CARS WILL HAVE HAD THIS PART UPDATED DURING EARLIER OIL CHANGES.
VWR18G700
Confirmed Applications:
> VW Golf 8 GTI 2020+
> VW Golf 8 GTI Clubsport 2020+
> VW Golf 8 R 2020+
> VW Golf 7 & 7.5 GTI & Clubsport 2013-2020
> VW Golf 7 & 7.5 R 2013-2020
> VW Golf 7 & 7.5 1.8 TSI 2013-2020
> VW Passat 2.0 TSI B8 2015+
> VW Arteon 2.0 TSI 2017+
> VW T-Roc R 2.0 TSI 2019+
> VW Tiguan II 2.0 TSI 2016+
> VW Jetta / GLI 7 2018+
> Audi S3 8Y 2020+
> Audi A3 2.0 TSI 8Y 2020+
> Audi S3 8V 2013-2020
> Audi A3 2.0 TSI / 1.8 TSI 8V 2013-2020
> Audi TT 2.0 TSI 8S 2014+
> Audi TTS 2.0 TSI 8S 2015+
> Audi SQ2 2018+
> Cupra Leon IV FW 2020+
> SEAT Leon III Cupra 5F 2014-2020
> SEAT Leon III 1.8 TSI 5F 2014-2020
> Cupra Ateca 2018+
> Cupra Formentor 2020+
> Skoda Octavia IV vRS 2.0 TSI 245ps NX 2020+
> Skoda Octavia III vRS 2.0 TSI 5E2014-2020
> Skoda Superb III 1.8 / 2.0 TSI 3V 2015+
Weight 4.1 kg
Dimensions 43 × 32 × 16 cm
This product is compatible with the following vehicles:
Year Make Model Engine
Year Make Model Engine
2013 - 2015 Volkswagen Passat (B7) 2.0 TURBO (EA888 GEN 3)
2013 - 2017 Volkswagen Golf (MK7) 2.0 TURBO (EA888 GEN 3) - GTI
2013 - 2017 Volkswagen Golf (MK7) 2.0 TURBO (EA888 GEN 3) - GTI 40TH
2013 - 2017 Volkswagen Golf (MK7) 2.0 TURBO (EA888 GEN 3) - R
2013 - 2017 Volkswagen Golf (MK7) 2.0 TURBO (EA888 GEN 3) - WAGON
2013 - 2019 Audi S3 (8V) 2.0 TURBO (EA888 GEN 3)
2013 - 2019 Skoda Octavia (5E) 2.0 TURBO (EA888 GEN 3)
2014 - 2019 Audi S1 (8X) 2.0 TURBO (EA888 GEN 3)
2014 - 2019 Audi TT (8S) 2.0 TURBO (EA888 GEN 3)
2014 - 2019 Audi TTS (8S) 2.0 TURBO (EA888 GEN 3)
2016 - 2018 Volkswagen Tiguan 2.0 TURBO - 162KW
2016 - 2019 Skoda Superb (3V) 2.0 TURBO (EA888 GEN 3)
2016 - 2021 Volkswagen Passat (B8) 2.0 TURBO (EA888 GEN 3)
2017 - 2019 Volkswagen Arteon 2.0 TURBO (EA888 GEN 3)
2017 - 2020 Volkswagen Golf (MK7.5) 2.0 TURBO (EA888 GEN 3) - GTI
2017 - 2020 Volkswagen Golf (MK7.5) 2.0 TURBO (EA888 GEN 3) - R
2017 - 2020 Volkswagen Golf (MK7.5) 2.0 TURBO (EA888 GEN 3) - R Wagon
2019 - 2020 Volkswagen Golf (MK7.5) 2.0 TURBO (EA888 GEN 3) - GTI TCR
2021 Audi S3 (8Y) 2.0 TFSI - Hatch
2021 Volkswagen T-Roc 2.0 TURBO (EA888 GEN 3B)
2021 - 2023 Volkswagen Golf (MK8) 2.0 TURBO (EA888.4) - R Wagon
2021 - 2024 Skoda Octavia (NX) RS (180KW) EA888.3
2021 - 2024 Volkswagen Golf (MK8) 2.0 TURBO (EA888.3) - GTI (AU Spec)
2021 - 2024 Volkswagen Golf (MK8) 2.0 TURBO (EA888.4) - R
2021 - 2024 Volkswagen Tiguan 2.0 TURBO - 162KW
2022 - 2023 Audi S3 (8Y) 2.0 TFSI (EA888.4)
2022 - 2023 Cupra Formentor 2.0 VZx (228kW)
2022 - 2023 Cupra Leon 2.0 VZx (221.0kW)
2022 - 2023 Volkswagen T-Roc 2.0 TURBO (EA888.4) - R
2022 - 2024 Cupra Ateca 2.0 VZx (221kW)
2022 - 2024 Volkswagen Tiguan 2.0 TURBO (EA888.4) - R
