RacingLine Subframe Alignment Kit – MQB
The new MQB subframe Alignment Bolt Collar kit cuts out the huge factory tolerances for accurate alignment each time, every time.
WHAT’S THE PROBLEM?
The RacingLine Alignment Bolt Collar kit is a simple ‘why not’ upgrade to eliminate the challenges caused by large tolerances in the factory subframe mounts, both front and rear.
The OEM subframe design uses really oversized bolt holes – giving a wide range of adjustments to shuffle the whole assembly back and forth, side to side.
Whilst that may be ideal for dealers & repairers to lazily mask other misalignments in the chassis, it means that there are also huge opportunities for inaccuracy every time your subframes are refitted, not to mention the risk of the car’s alignment creeping out of tolerance with hard driving over time.
WHAT IT DOES.
Our precision-engineered, push-in Bolt Collars centralise the subframes by cutting out the huge hole tolerances, and perfectly centring the bolt locations every time you refit.
The result? With correct alignment, you’ll have more precise steering, sharper handling and braking responses every time.
By ensuring complete accuracy every time you refit your subframes, you’ll save time and cost by ensuring consistent, hassle-free alignment each time, every time.
With no need for alignments after refitting subframes in future, this really affordable upgrade will likely pay for itself many times over.
No additional NVH transfer into the car and no more creaking mounts.
PRECISION ENGINEERED FOR PERFECT PERFORMANCE.

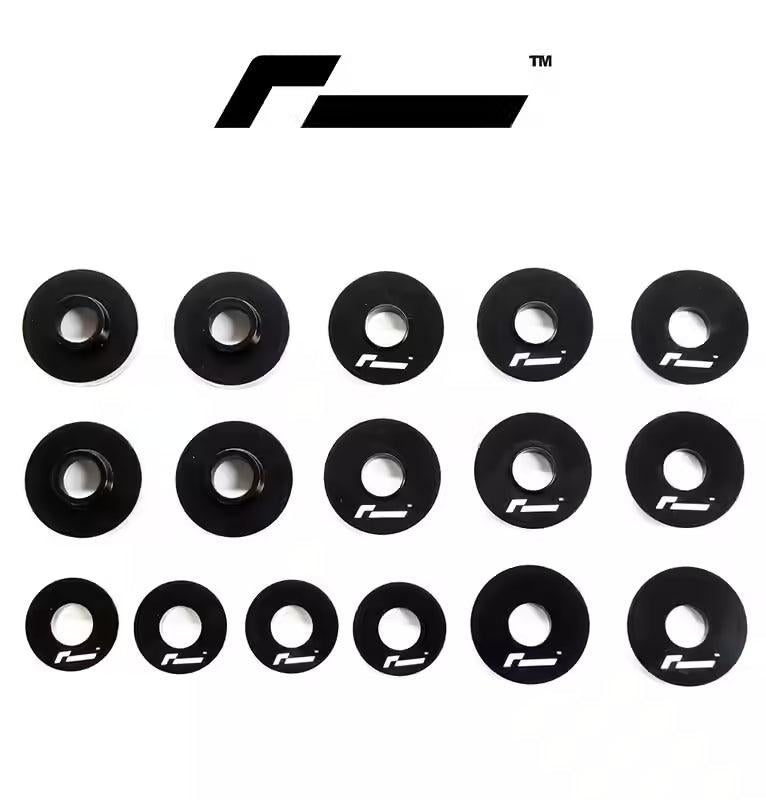

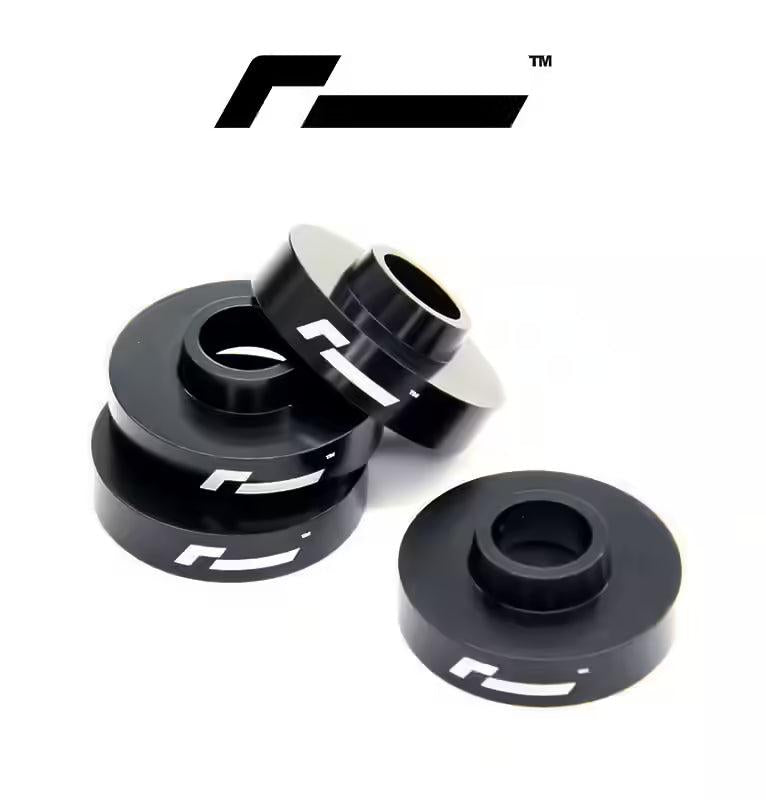

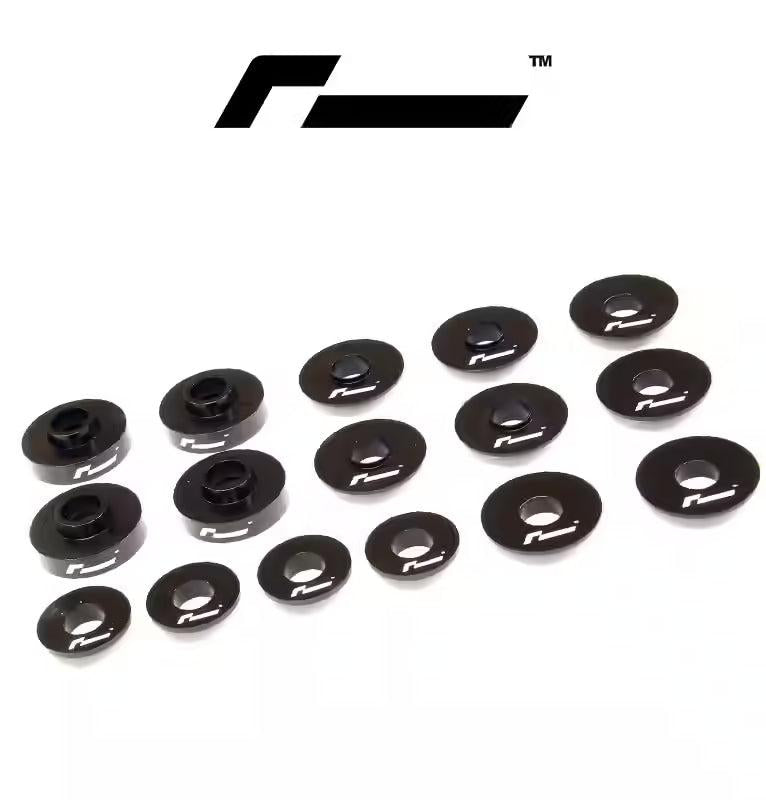

Full kit of 18x Bolt Collars for front and rear subframes
High quality T6061 billet aluminium construction
CNC construction, anodised gloss black to last
Precision machining means tighter alignment specs
Simple, quick push-in fitment into OEM subframes
No modification to subframe or car body is required, so fitment is completely reversible.
Confirmed Applications:
VWR150000
VW Golf 7 2013+ 5G
VW Golf 7 GTI 2013+ 5G
VW Golf 7 R 2013+ 5G
VW Passat 2.0 TSI B8 2015+ 3G
Audi A3 2013+ 8V
Audi S3 2013+ 8V
Audi TT III 2014+ 8S
Audi TTS III 2015+ 8S
Skoda Octavia III 2013+ 5E
Skoda Octavia vRS III 2014+ 5E
Skoda Superb 1.8 / 2.0 TSI 2015+ B8 3V
Weight 0.2 kg
Dimensions 16 × 14 × 6 cm
This product is compatible with the following vehicles:
Year Make Model Engine
Year Make Model Engine
2013 - 2015 Volkswagen Passat (B7) 2.0 TURBO (EA888 GEN 3)
2013 - 2017 Volkswagen Golf (MK7) 1.4 TURBO
2013 - 2017 Volkswagen Golf (MK7) 1.8 TURBO
2013 - 2017 Volkswagen Golf (MK7) 2.0 TDI
2013 - 2017 Volkswagen Golf (MK7) 2.0 TURBO (EA888 GEN 3) - GTI
2013 - 2017 Volkswagen Golf (MK7) 2.0 TURBO (EA888 GEN 3) - GTI 40TH
2013 - 2017 Volkswagen Golf (MK7) 2.0 TURBO (EA888 GEN 3) - R
2013 - 2017 Volkswagen Golf (MK7) 2.0 TURBO (EA888 GEN 3) - WAGON
2013 - 2018 Skoda Octavia (5E) 1.8 TURBO
2013 - 2019 Audi A3 (8V) 1.4 TURBO
2013 - 2019 Audi A3 (8V) 1.6 TDI
2013 - 2019 Audi A3 (8V) 1.8 TURBO
2013 - 2019 Audi A3 (8V) 2.0 TDI
2013 - 2019 Skoda Octavia (5E) 1.4 TURBO
2013 - 2019 Skoda Octavia (5E) 2.0 TDI
2013 - 2019 Skoda Octavia (5E) 2.0 TURBO (EA888 GEN 3)
2013 - 2020 Audi S3 (8V) 2.0 TURBO (EA888 GEN 3)
2014 - 2019 Audi TT (8S) 2.0 TURBO (EA888 GEN 3)
2014 - 2020 Audi TTS (8S) 2.0 TURBO (EA888 GEN 3)
2015 Skoda Superb (3T) 1.8 TURBO
2015 Skoda Superb (3T) 2.0 TDI
2015 Skoda Superb (3T) 2.0 TURBO (EA888)
2016 - 2018 Skoda Superb (3V) 1.8 TURBO
2016 - 2019 Skoda Superb (3V) 2.0 TDI
2016 - 2019 Volkswagen Passat (B8) 2.0 TDI
2016 - 2019 Volkswagen Passat (B8) 2.0 TDI BITURBO
2016 - 2020 Skoda Superb (3V) 2.0 TURBO (EA888 GEN 3)
2016 - 2021 Volkswagen Passat (B8) 2.0 TURBO (EA888 GEN 3)
2017 - 2018 Volkswagen Golf (MK7.5) 1.8 TURBO
2017 - 2020 Volkswagen Golf (MK7.5) 1.4 TURBO
2017 - 2020 Volkswagen Golf (MK7.5) 2.0 TDI
2017 - 2020 Volkswagen Golf (MK7.5) 2.0 TURBO (EA888 GEN 3) - GTI
2017 - 2020 Volkswagen Golf (MK7.5) 2.0 TURBO (EA888 GEN 3) - R
2017 - 2020 Volkswagen Golf (MK7.5) 2.0 TURBO (EA888 GEN 3) - R Wagon
2019 Skoda Octavia (5E) VRS 2.0T EVO Mk4
2019 - 2020 Volkswagen Golf (MK7.5) 2.0 TURBO (EA888 GEN 3) - GTI TCR
2020 Audi TT 40 TFSI
2020 Audi TT 45TFSI 2.0 TURBO
2020 - 2024 Skoda Octavia (NX) RS (180KW) EA888.3
2021 - 2023 Volkswagen Golf (MK8) 2.0 TURBO (EA888.4) - R Wagon
2021 - 2024 Volkswagen Golf (MK8) 2.0 TURBO (EA888.3) - GTI (AU Spec)
2021 - 2024 Volkswagen Golf (MK8) 2.0 TURBO (EA888.4) - R
2021 - 2024 Volkswagen Tiguan 2.0 TURBO - 162KW
2022 - 2024 Volkswagen Tiguan 2.0 TURBO (EA888.4) - R
