Racingline High Performance Intercooler & Boost Hoses
for MQB ‘EVO’ 2.0 TSI
Suits VW, Audi, Cupra, Skoda models
Delivering repeated cool intake air temperatures for your 2.0 TSI MQB ‘EVO’.
Again and again and again.
What
it does.
The factory intercooler on the 2.0 TSI MQB ‘EVO’ has proved to be unable to cope with the demands of higher power, hard driven cars, showing up as serious power losses during hard driving as air temperatures soar.

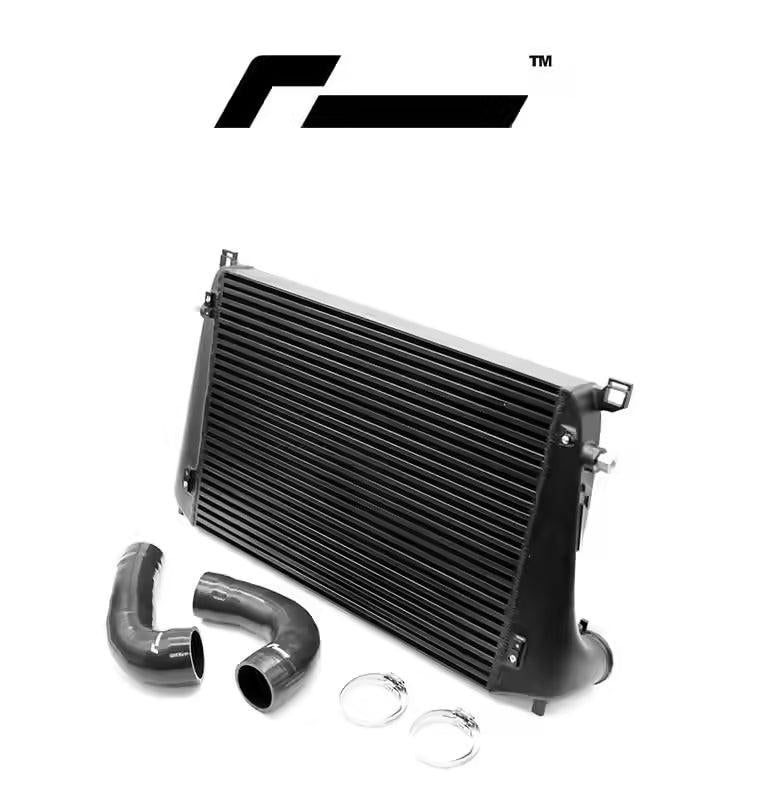

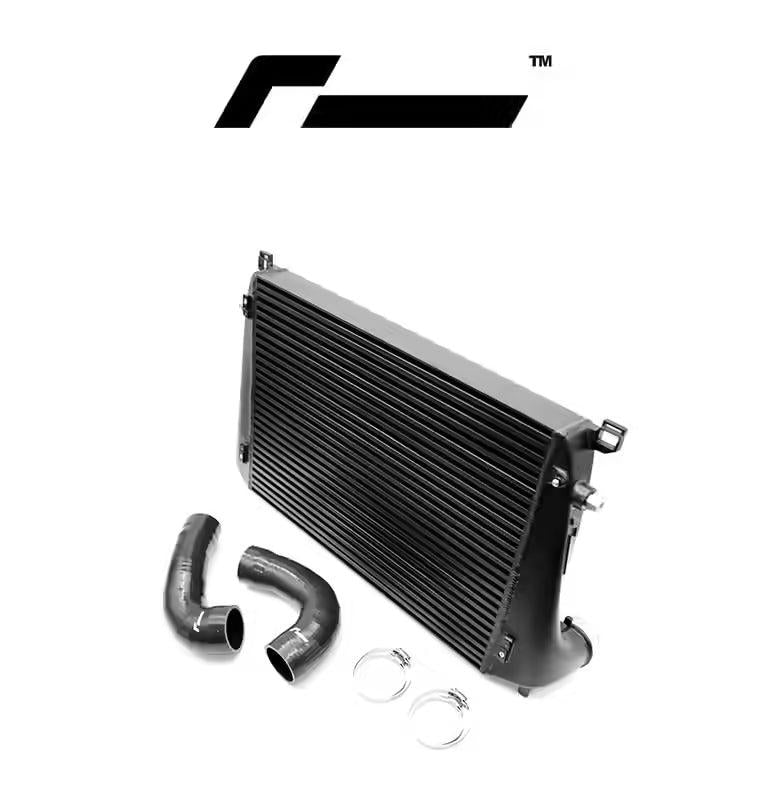

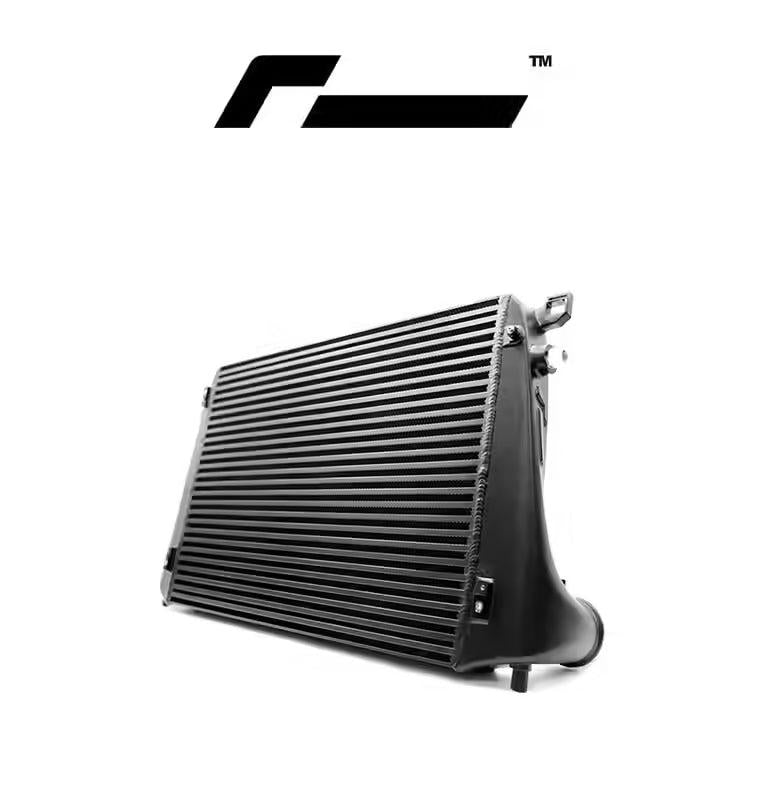

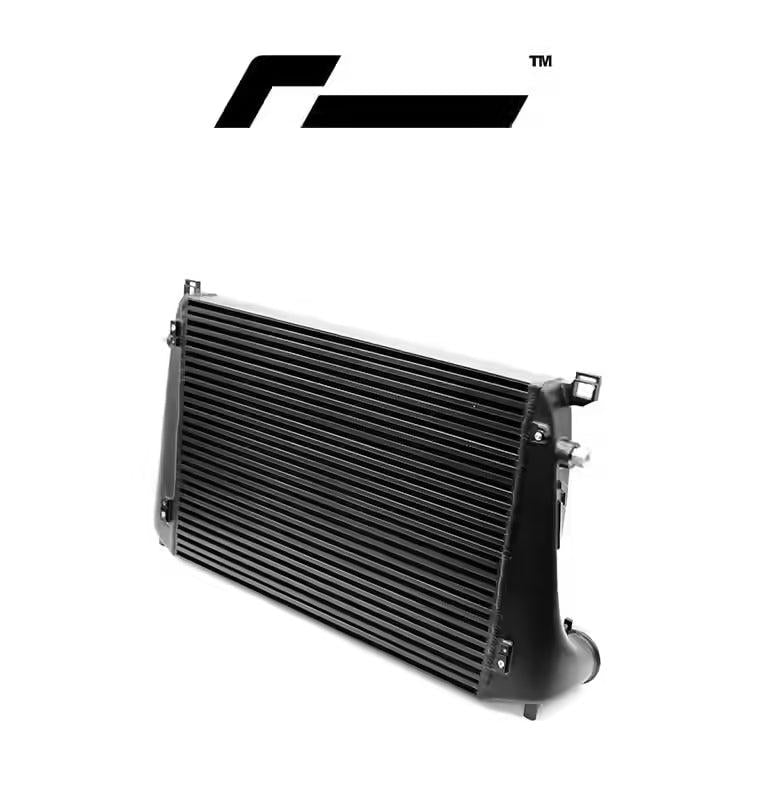

Our massive ‘plate & bar’ Intercooler System uses a huge core to give a 96% volume increase over the factory cooler – making it one of the best performing intercooler upgrade on offer for the 2.0 TSI gen.4.
By consistently reducing intake air temperatures (IAT), heat soak is minimised delivering increased performance again and again. No need for the recovery cool-down times needed for the production intercooler.
Our development focussed on finding the ‘sweet spot’ of maximum IAT cooling versus minimum pressure loss. This has allowed us to achieve increased size without increased lag.
Increased 70mm inlet and outlet sizes allow for higher flow versus the 60mm factory outlets, with matching Boost Hoses provided with the intercooler kit.
MAXIMUM CORE SIZE

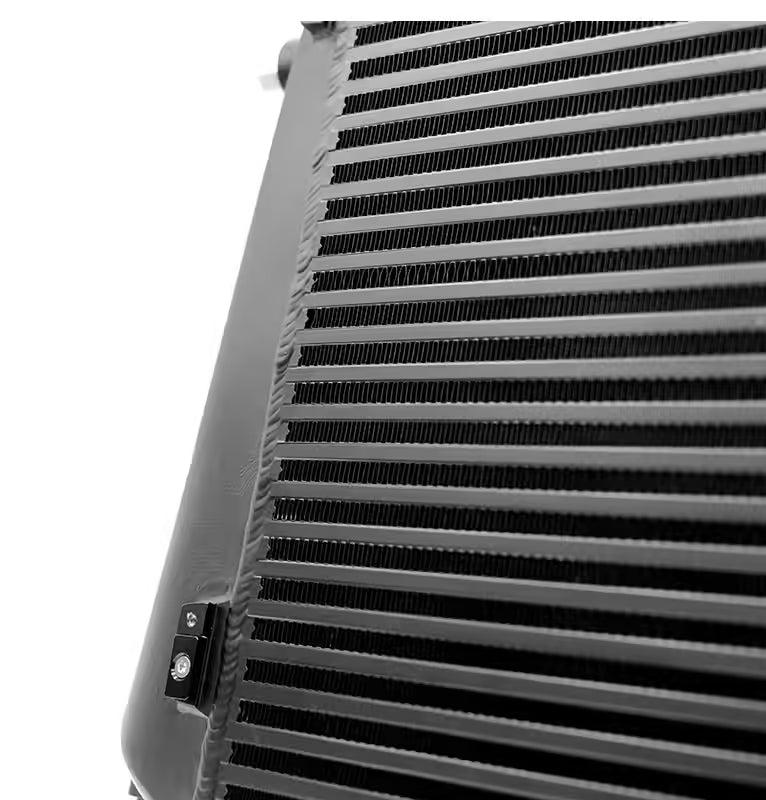

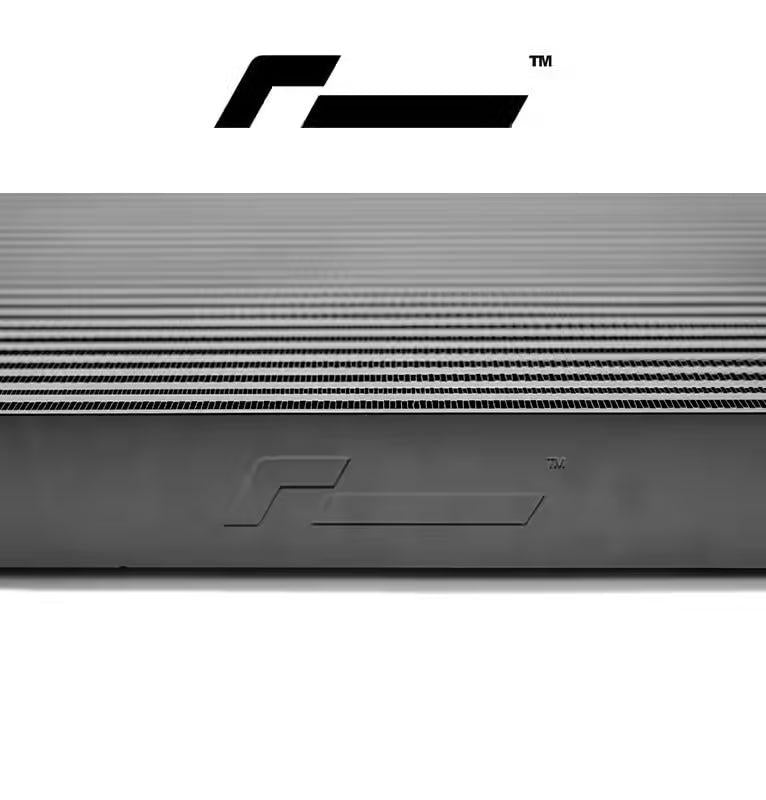

The massive ‘plate & bar’ intercooler unit features a high-speed core using extra tall internal tubes for maximum boost flow and a massive 96% increase in volume.
BOOST HOSES INCLUDED

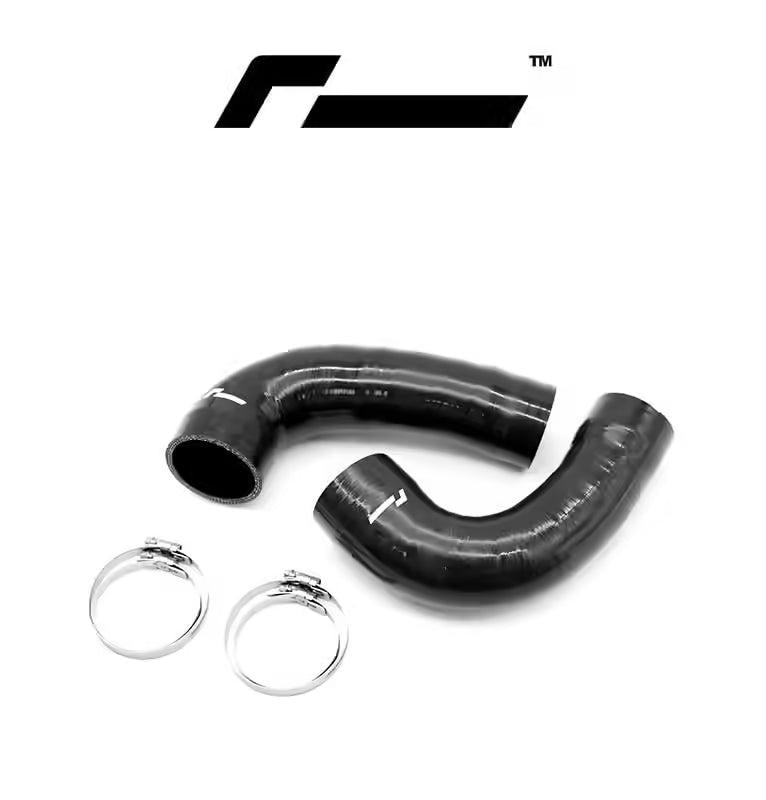

Internally-wired OEM fitment 70mm boost hoses are included, multi-ply to resist heat deformation and burst pressure. Supplied with stainless steel Mikalor-brand clamps.
FLOWED END TANKS

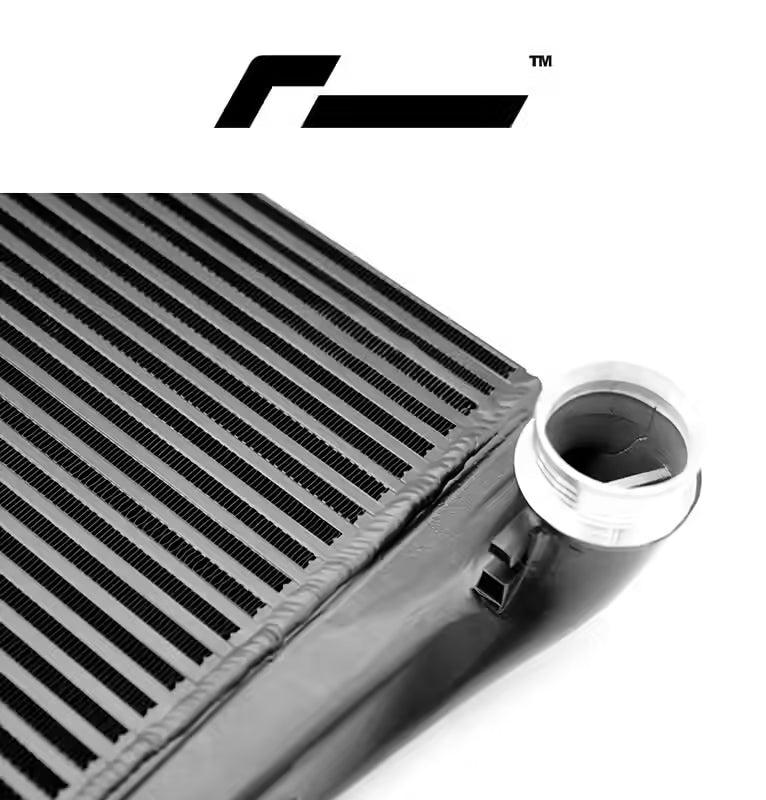

Cast construction end tanks for minimal turbulence and restriction use internal flow guides to divert airflow up and down across the entire core depth, with enlarged 70mm inlet & outlet.
Precision Engineered for Perfect Performance.
Giant core volume of 19,404,000mm³ vs 9,895,200mm³ for the factory cooler core
Internal flow guides to optimise internal air flow via cast end-tanks
Don’t confuse our ‘Plate & Bar’ construction with the cheaper, less-effective ‘Tube & Fin’ construction
Multi-ply, reinforced Boost Hoses are moulded with internal steps to maximise laminar airflow
Intercooler outlets are 70mm vs 60mm for the OE cooler for increased flow
Intercooler Performance.
It’s all about air intake temperatures.
The OEM factory intercooler on the 2.0 TSI MQB ‘Evo’ struggles with containing the all-important air intake temperatures, especially once power is upgraded.
So, intake air temperatures begin to rise rapidly, heat soak occurs, resulting in significant power losses the harder the car is used. The only way to recover the performance of the standard intercooler is to park the car for an hour.
The RacingLine Intercooler makes a great difference in controlling IAT temperatures, meaning that your power increases keep on delivering, run after run.
Intercooler Fitment
FITTING GUIDE >>
To accommodate the giant size of the RacingLine Intercooler, some light trimming of the black plastic radiator carrier is required.
This trimming is minimal on popular models such as the Golf mk8, but more may be required on some other MQB ‘Evo’ models.
For reference, fitment is designed for radiator carrier –
VW Part No. / 5H0 805 588 J
Confirmed applications.
2.0 TSI MQB Evo / EA888 Gen 4 engines only
VWR141000
>
VW Golf 8 GTI
2020+
>
VW Golf 8 GTI Clubsport
2020+
>
VW Golf 8 R
2020+
>
VW Arteon R 2.0 TSI 320ps
2020+
>
VW T-Roc R 2.0 TSI EA888.4
2021+
>
VW Tiguan II 2.0 TSI 245ps
2021+
>
VW Tiguan II R 2.0 TSI 320ps
2020+
>
Audi S3 8Y
2020+
>
Audi A3 2.0 TSI 8Y
2020+
>
Audi TT 45 TFSI 8S 245ps (EA888.4)
2021+
>
Audi SQ2 (facelift EA888.4)
2021+
>
Cupra Leon IV 300 TSI FW
2020+
>
Cupra Leon IV 245 TSI FW
2020+
>
Cupra Ateca 300ps (EA888.4)
2021+
>
Cupra Formentor 310ps
2020+
>
Cupra Formentor 245ps
2020+
>
SEAT Tarraco 2.0 TSI 245ps
2021+
>
Skoda Octavia IV vRS 2.0 TSI 245ps NX
2020+
>
Skoda Superb III 3V 2.0 TSI (facelift EA888.4)
2021+
>
Skoda Kodiaq vRS 2.0 TSI 245ps (EA888.4)
2021+
This product is compatible with the following vehicles:
Year Make Model Engine
Year Make Model Engine
2021 Audi S3 (8Y) 2.0 TFSI - Sedan
2021 - 2023 Volkswagen Golf (MK8) 2.0 TURBO (EA888.4) - R Wagon
2021 - 2024 Skoda Kodiaq 2.0 RS (180kW)
2021 - 2024 Volkswagen Arteon 2.0 TURBO (EA888.4) R Line
2021 - 2024 Volkswagen Golf (MK8) 2.0 TURBO (EA888.3) - GTI (AU Spec)
2021 - 2024 Volkswagen Golf (MK8) 2.0 TURBO (EA888.4) - R
2022 - 2023 Audi SQ2 2.0TFSI(OPF/GPF equipped)
2022 - 2024 Audi S3 (8Y)
2022 - 2024 Cupra Ateca 2.0 VZx (221kW)
2022 - 2024 Cupra Formentor 2.0 VZ (180kW)
2022 - 2024 Cupra Formentor 2.0 VZx (228kW)
2022 - 2024 Cupra Leon 2.0 VZ (180kW)
2022 - 2024 Cupra Leon 2.0 VZx (221.0kW)
2022 - 2024 Volkswagen T-Roc 2.0 TURBO (EA888.4) - R
2022 - 2024 Volkswagen Tiguan 2.0 TURBO (EA888.4) - R
2024 Audi SQ2 2.0TFSI (OPF/GPF equipped)
2025 Volkswagen Golf (MK8.5) 2.0 TURBO (EA888.4) - R
