RacingLine Upgraded Boost Pipe Kit EA888.4 MK8 Golf R, Formentor, Tiguan
RacingLine Upgraded Boost Pipe Kit EA888.4 MK8 Golf R, Formentor, Tiguan is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
RacingLine Upgraded Boost Pipe Kit EA888.4 MK8 Golf R, Formentor, T...
This 3-piece RacingLine GEN.4 Boost Pipe kit for 2.0TSI EA888.4 high-output Continental turbo MQB ‘Evo’ cars deliver smooth, uninterrupted airflow to increase power and torque, replacing the restrictive failure-prone factory boost pipes. By promoting increased airflow throughout the charge flow path, along with removing boost-leak weak points, performance and reliability gains are guaranteed!
The 3-piece Boost Pipe kit replaces the factory pipework between the turbocharger, the intercooler, and the throttle body with one-piece, mandrel-bent 6000 series aluminium tubes with thin wall 60mm OD for maximum smooth air flow. It’s by minimising the restrictions of the factory pipes and optimising the routing that this increased airflow is achieved. As well as giving enhanced turbocharger sound and faster spool, fitment of these Boost Pipes ensures that the turbo meets less resistance thus allowing it to perform more effectively – moving a larger volume of air and minimising turbulence.

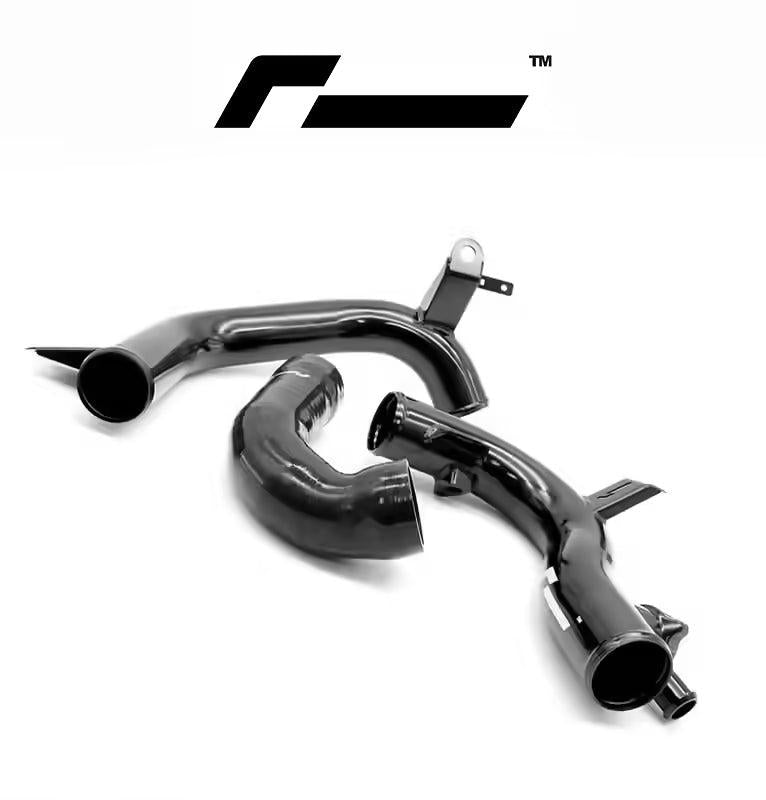

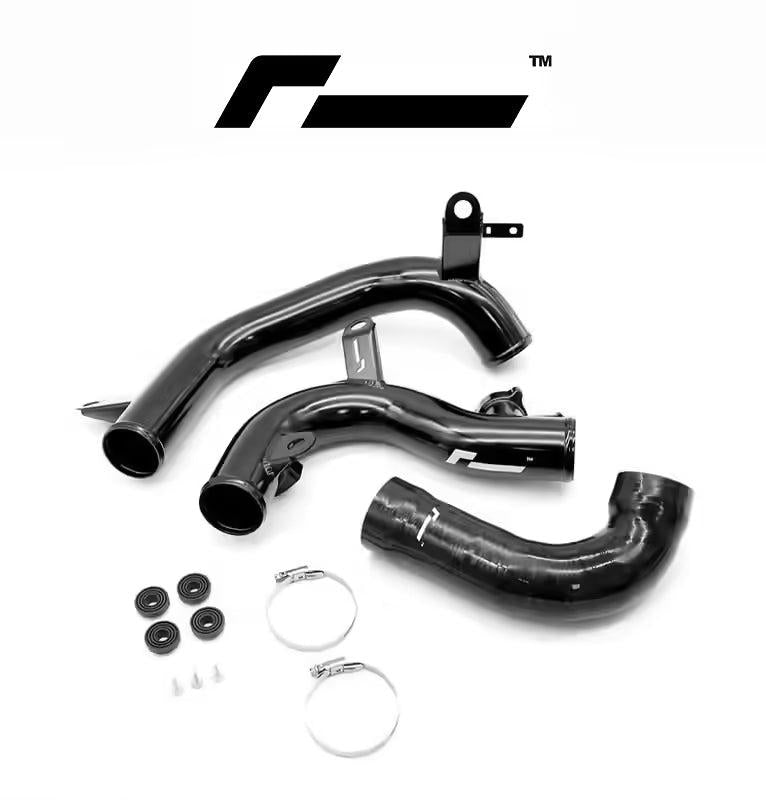

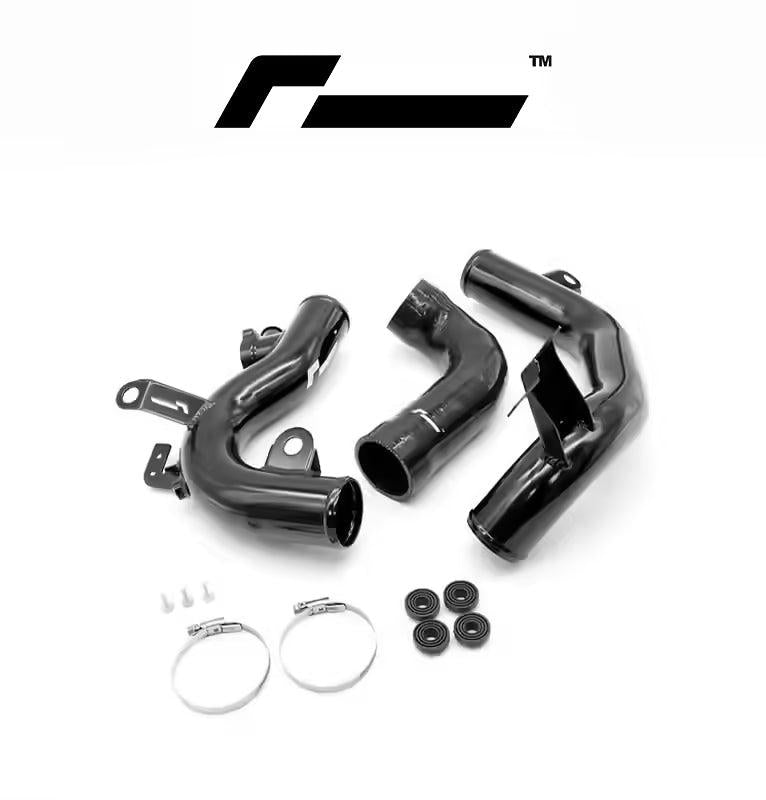

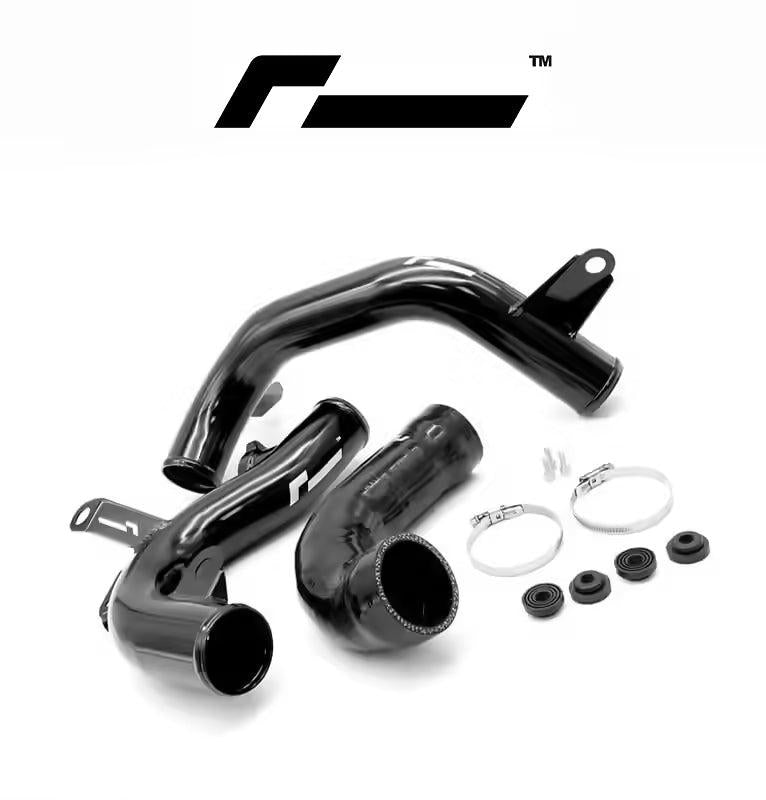

The RacingLine Boost Pipe Kit comprises three separate pieces. Two mandrel-bent hard-pipes for the turbo-intercooler and intercooler-throttle body chargepath, plus a reinforced turbo outlet Silicone Hose for the turbo outlet. The Boost Pipes themselves are formed from single piece, mandrel-bent 6000 series aluminium tube with thin wall 60mm OD. The silicone hose is hand-wound multi-ply over internal wire reinforcement, ensuring resistance to both heat and deformation. Meanwhile, barbed ends on the pipes ensure no risk of blow off, even under extreme boost pressure conditions. As you’d expect from RacingLine, each pipe is hand polished then anodised black with laser etched logos as the finishing touch – to look great in your engine bay, and stay looking great.

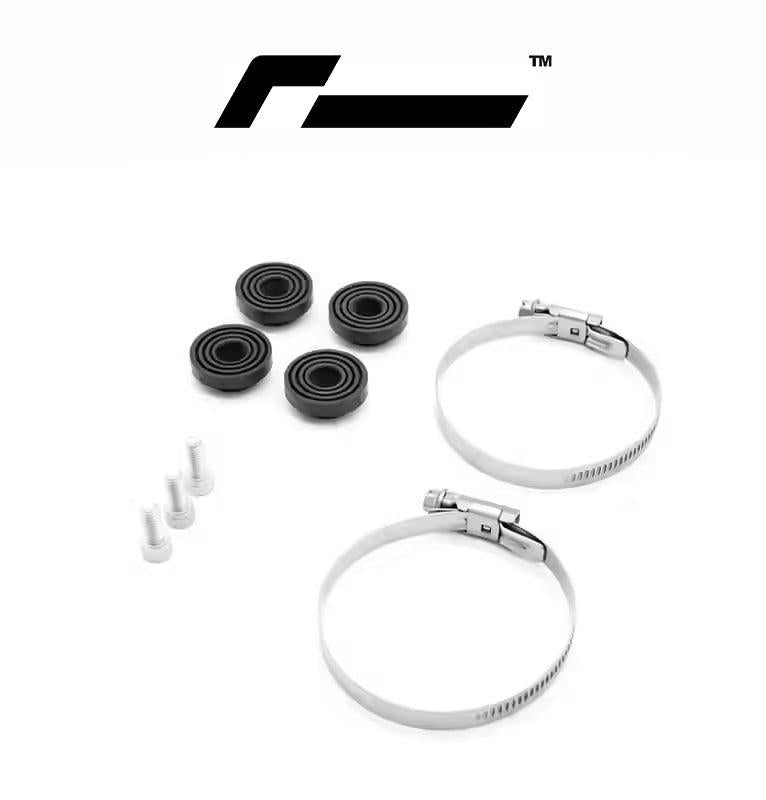

As with all RacingLine products, perfect fitment is a priority. So, all the mounting brackets are carefully TIG welded to ensure dimensional perfection. And within each kit, RacingLine include a stainless steel Mikalor-brand clamp, OEM rubber mounting bobbins and new bolts to make sure you achieve the perfect installation. Install is direct OEM-replacement and requires no additional drilling or cutting to fit – meaning install is fully reversible. Finally, the Boost Pipes can be used with either factory rubber hoses or, for best results we’d highly recommend pairing them with the RacingLine Gen.4 Boost Hose Kit (VWR140006)
APPLICATIONS:
2.0 TSI / EA888 Gen.4 engines
Continental Turbo 300-333PS
VWR140013
> VW Golf 8 & 8.5 R 2020+
> VW Golf 8 & 8.5 GTI Clubsport 2020+
> VW Arteon R 2.0 TSI 320ps 2020+
> VW T-Roc R 2.0 TSI 2019+
> VW Tiguan II R 2.0 TSI 320ps 2020+
> Audi S3 8Y & 8Y.2 2020+
> Audi TTS 2.0 TFSI 8S 320ps (EA888.4) 2021+
> Audi SQ2 (EA888.4) 2021+
> Cupra Leon 4 & 4.5 300 TSI FW 2020+
> Cupra Ateca 300ps (EA888.4) 2021+
> Cupra Formentor 310ps 2020+
> Skoda Superb III 3V 2.0 TSI (facelift EA888.4) 2021+
Weight 3 kg
Dimensions 68 × 34 × 21 cm
This product is compatible with the following vehicles:
Year Make Model Engine
Year Make Model Engine
2021 - 2023 Volkswagen Golf (MK8) 2.0 TURBO (EA888.4) - R Wagon
2021 - 2024 Volkswagen Golf (MK8) 2.0 TURBO (EA888.4) - R
2022 - 2023 Audi S3 (8Y) 2.0 TFSI (EA888.4)
2022 - 2023 Cupra Formentor 2.0 VZx (228kW)
2022 - 2023 Cupra Leon 2.0 VZx (221.0kW)
2022 - 2024 Cupra Ateca 2.0 VZx (221kW)
2022 - 2024 Volkswagen T-Roc 2.0 TURBO (EA888.4) - R
2022 - 2024 Volkswagen Tiguan 2.0 TURBO (EA888.4) - R
2025 Volkswagen Golf (MK8.5) 2.0 TURBO (EA888.4) - R
