RacingLine Turbo Inlet Elbow EA888.4- Tiguan R
RacingLine Turbo Inlet Elbow EA888.4- Tiguan R is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
MASSIVE RANGE
Over 20,000 performance & automotive SKUs for European, JDM, American, Korean and more
NATIONWIDE FAST SHIPPING
Quick dispatch across Australia with reliable tracked delivery
AUSSIE SUPPORT & EXPERTISE
Local customer service and technical assistance from our team of enthusiasts

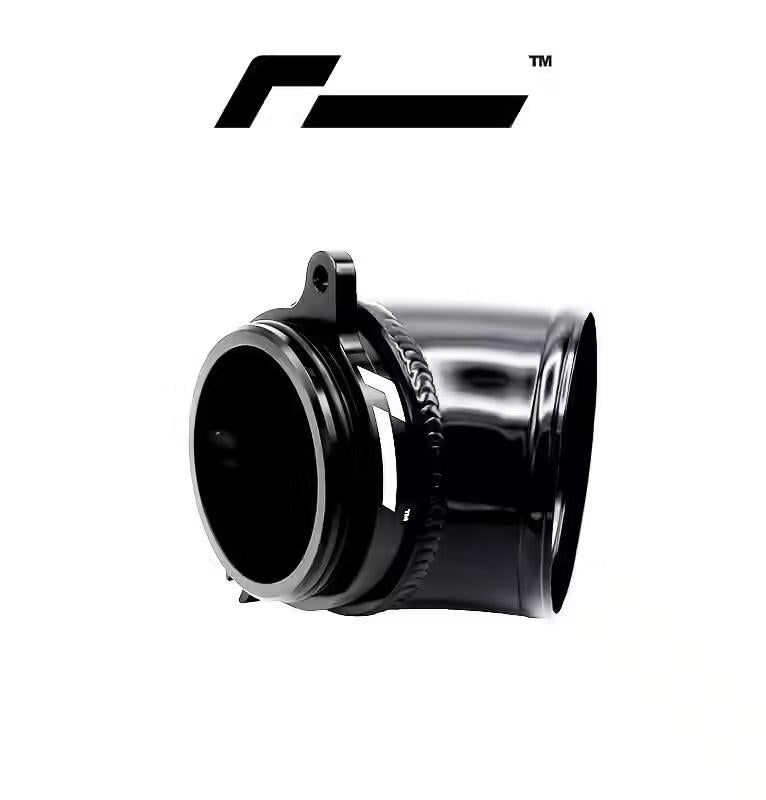

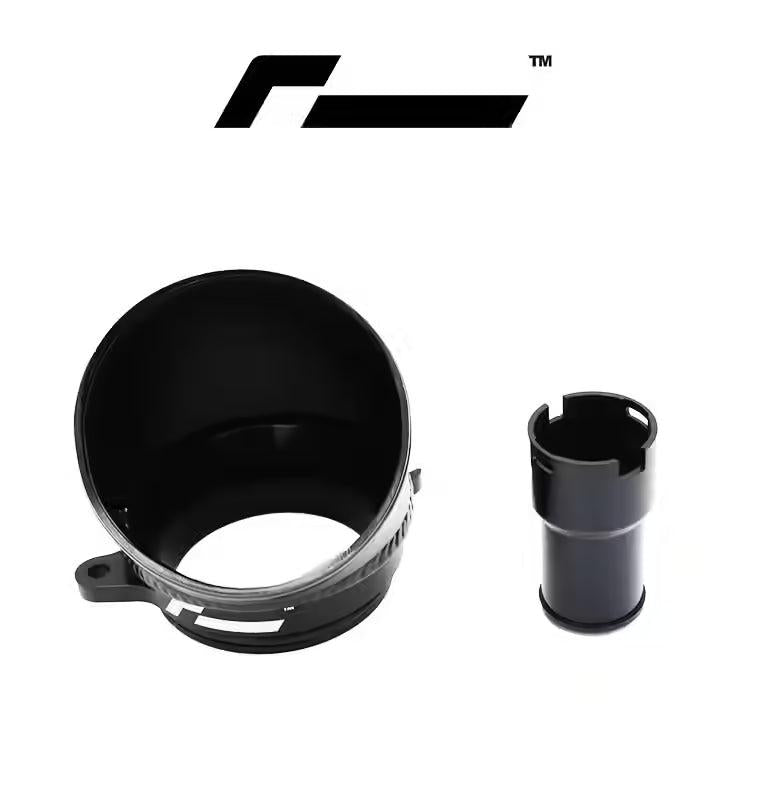

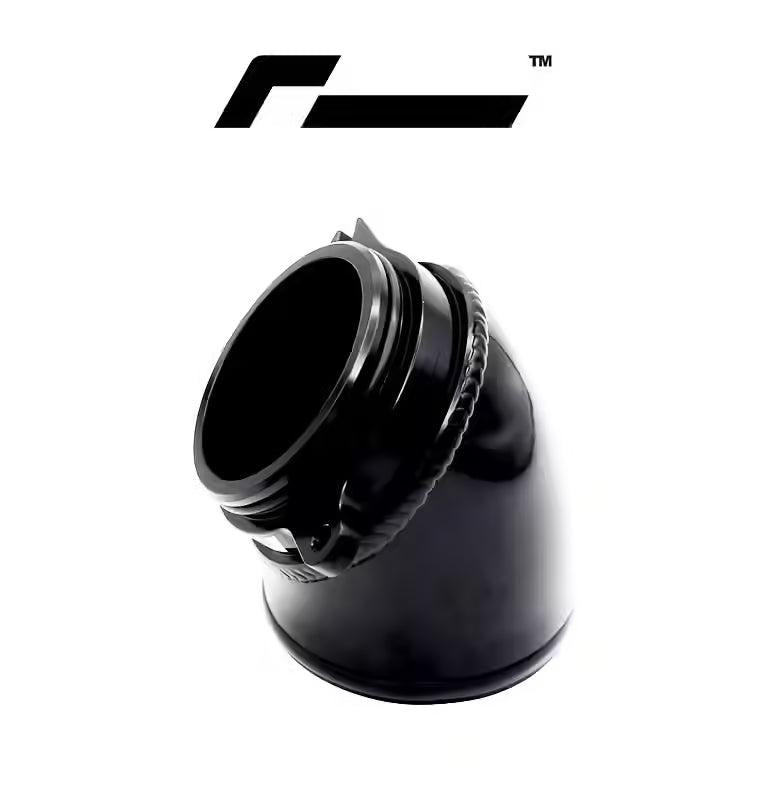

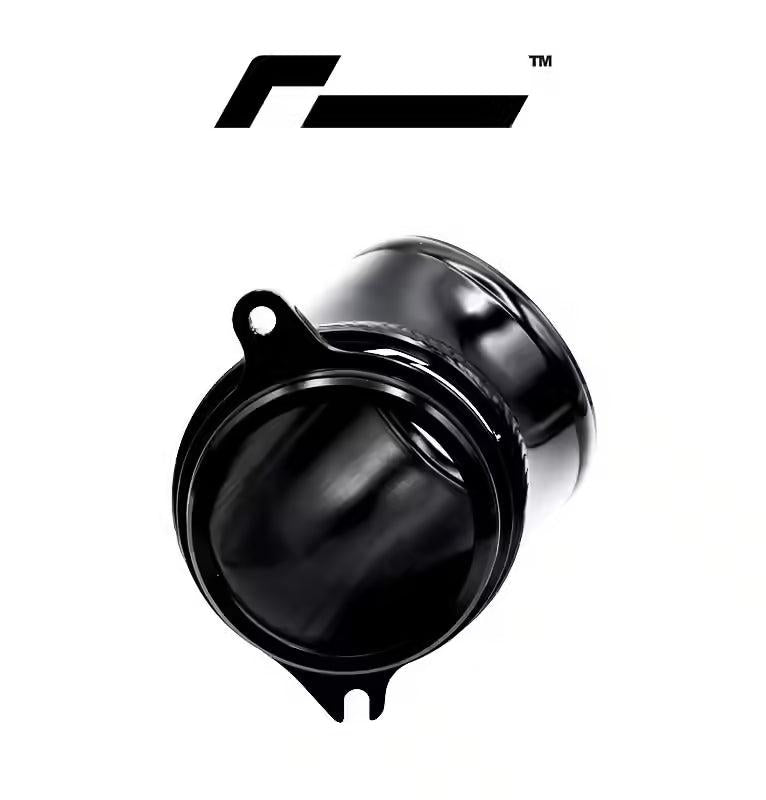

RacingLine Turbo Inlet Elbow EA888.4- Tiguan R
2.0 TSI EA888.4 Continental
Turbo Inlet System
Turbo 90 Inlet & Silicone Inlet Hose.
For VW, Audi, Cupra ‘higher output’ 300/310/320PS (Continental turbo) such as Golf 8 R, Tiguan R, Audi S3 8Y & Cupra Leon & Formentor VZx and many more.
Release power with the 2.0 TSI gen 4 Turbo Inlet System. A significantly enlarged airflow path from intake straight into turbo.
What the
turbo inlet system does.
Our new Turbo Inlet System for the 300-320PS MQB ‘EVO’ cars such as Golf 8R, Audi S3 8Y etc is a matched package of our much larger diameter, free flowing Turbo 90 Inlet paired with reinforced Silicone Turbo Inlet Hose for much higher airflow between intake and turbo.
› The factory inlet forces the airflow to pass through the restrictive plastic ‘bellows’ pipe, before tapering right down to run through a tight and restrictive plastic turbo inlet – in other words, terrible for flow.
› The RacingLine Turbo Inlet System replaces this pipework with a larger diameter smooth-flowing silicon hose mated to a larger diameter thin-wall free flowing intake elbow.

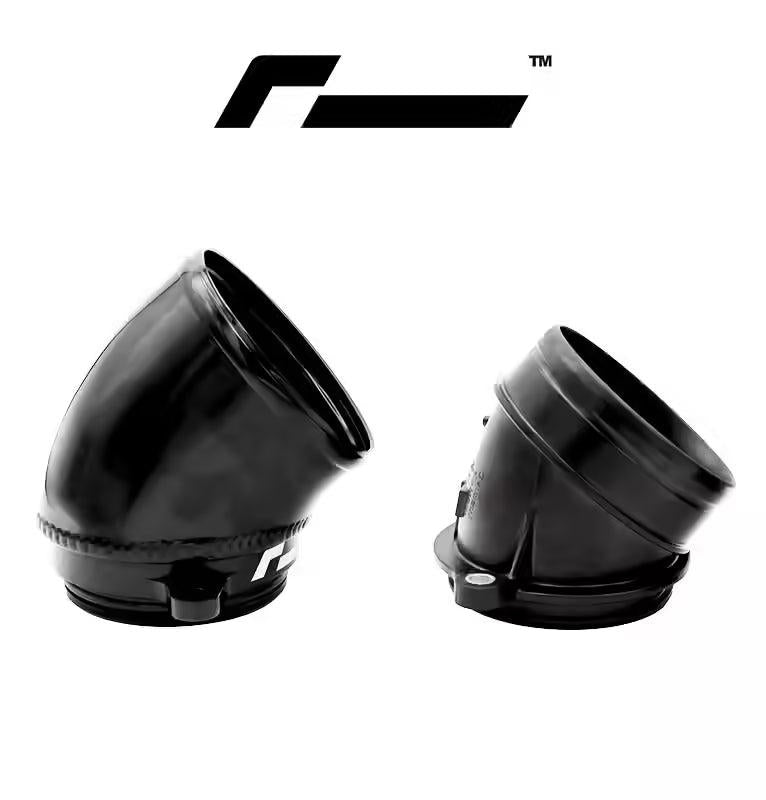

› The internal diameter of the Turbo 90 Inlet is massively increased from 74mm on the factory part right up to 84mm.
› It’s by combining the two parts of the kit that’s allowed us to enlarge the diameter of both the Inlet and the Hose so much – and so give the maximum possible gains.
› Put simply, without it, you’re wasting much of the potential of your high-flow intake system without fitting this Turbo Inlet System. An essential upgrade!
Release power with the 2.0 TSI gen 4 Turbo Inlet System. A significantly enlarged airflow path from intake straight into turbo.
For the Continental turbo (higher output) 300-320ps engines such as Mk8 Golf R, T Roc R, Tiguan R, S3 8Y, Formentor VZx, Leon VZx, Ateca VZx
WHAT THE TURBO INLET SYSTEM DOES?
Our new Turbo Inlet System for the 300-320PS MQB ‘EVO’ cars such as Mk8 Golf R, T Roc R, Tiguan R, S3 8Y, Formentor VZx, Leon VZx, Ateca VZx etc is a matched package of our much larger diameter, free flowing Turbo 90 Inlet paired with reinforced Silicone Turbo Inlet Hose for much higher airflow between intake and turbo.
The factory inlet forces the airflow to pass through the restrictive plastic ‘bellows’ pipe, before tapering right down to run through a tight and restrictive plastic turbo inlet – in other words, terrible for flow.
The RacingLine Turbo Inlet System replaces this pipework with a larger diameter smooth-flowing silicon hose mated to a larger diameter thin-wall free flowing intake elbow.
The internal diameter of the Turbo 90 Inlet is massively increased from 74mm on the factory part right up to 84mm.
It’s by combining the two parts of the kit that’s allowed us to enlarge the diameter of both the Inlet and the Hose so much – and so give the maximum possible gains.
Put simply, without it, you’re wasting much of the potential of your high-flow intake system without fitting this Turbo Inlet System. An essential upgrade!
PRODUCT FEATURES-
2mm Aluminium tube – thin walls to maximise internal diameter for best air flow

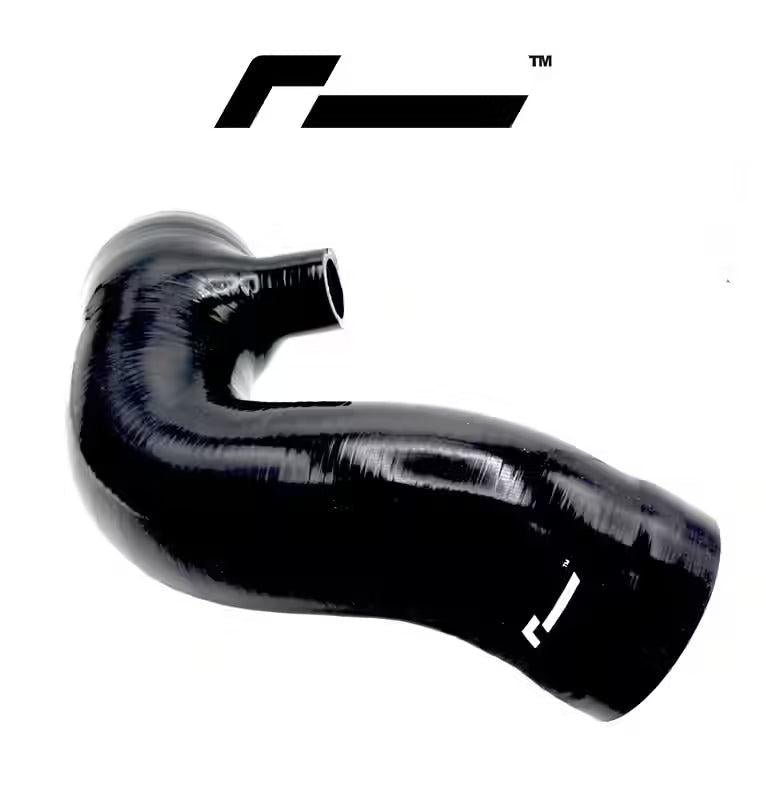

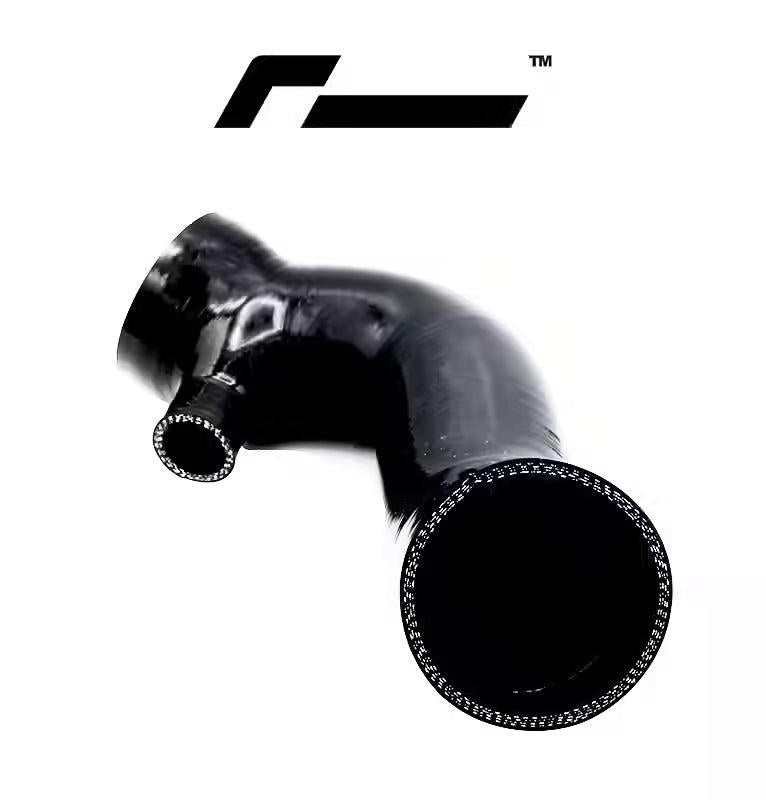

Internally stepped silicone to ensure smooth air flow transitions all the way from airbox to turbo outlet
Internal velocity stack design to optimise/maximise air flow into turbo inlet
OEM fitment and straight replacement for either OEM airbox or R600 EVO

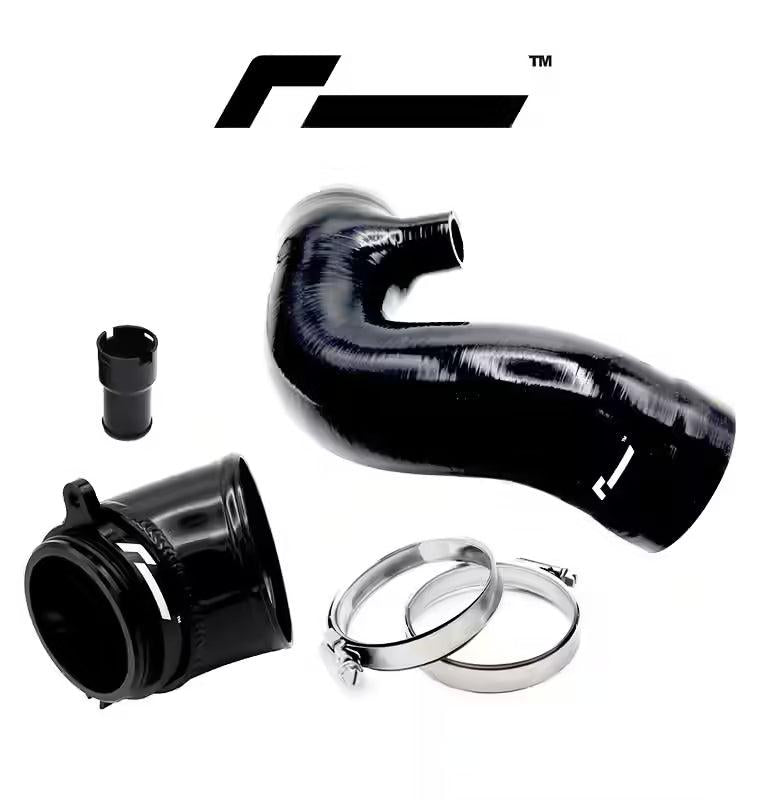

Kit comes with both silicone and turbo elbow to ensure the perfect fitment
Includes Viton sealing O-Rings
Includes all required stainless steel hose clips
CONFIRMED APPLICATIONS
For MQB Evo cars with the 300-320ps EA888.4 (Continental turbo) engines:
VWR120010
For Tiguan R ONLY with the 320ps EA888.4 (Continental turbo) engines:
VWR120012
>
VW Golf 8 & 8.5 R
2020+
>
VW Arteon R 2.0 TSI 320ps
2020+
>
VW T-Roc R 2.0 TSI EA888.4
2021+
>
VW Tiguan II R 2.0 TSI 320ps
2020+
>
Audi S3 8Y & 8Y.2
2020+
>
Audi TTS 2.0 TFSI 8S 320ps (EA888.4)
2021+
>
Audi SQ2 (facelift EA888.4)
2021+
>
Cupra Leon 4 & 4.5 300 TSI FW
2020+
>
Cupra Ateca 300ps (EA888.4)
2021+
>
Cupra Formentor 310ps
2020+
>
Skoda Superb III 3V 2.0 TSI (facelift EA888.4)
2021+
Weight 2 kg
Dimensions 42 × 27 × 16 cm
This product is compatible with the following vehicles:
Year Make Model Engine
Year Make Model Engine
2021 - 2023 Volkswagen Golf (MK8) 2.0 TURBO (EA888.4) - R Wagon
2021 - 2024 Volkswagen Golf (MK8) 2.0 TURBO (EA888.4) - R
2022 - 2023 Audi S3 (8Y) 2.0 TFSI (EA888.4)
2022 - 2023 Cupra Formentor 2.0 VZx (228kW)
2022 - 2023 Cupra Leon 2.0 VZx (221.0kW)
2022 - 2024 Cupra Ateca 2.0 VZx (221kW)
2022 - 2024 Volkswagen T-Roc 2.0 TURBO (EA888.4) - R
2022 - 2024 Volkswagen Tiguan 2.0 TURBO (EA888.4) - R
2025 Volkswagen Golf (MK8.5) 2.0 TURBO (EA888.4) - R
