Ohlins TTX40 MkII Universal Motorsport Damper External Reservoir SINGLE - NO SPRING
Ohlins TTX40 MkII Universal Motorsport Damper External Reservoir SINGLE - NO SPRING is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
MASSIVE RANGE
Over 20,000 performance & automotive SKUs for European, JDM, American, Korean and more
NATIONWIDE FAST SHIPPING
Quick dispatch across Australia with reliable tracked delivery
AUSSIE SUPPORT & EXPERTISE
Local customer service and technical assistance from our team of enthusiasts
Ohlins TTX40 MkII Universal Motorsport Damper External Reservoir SI...

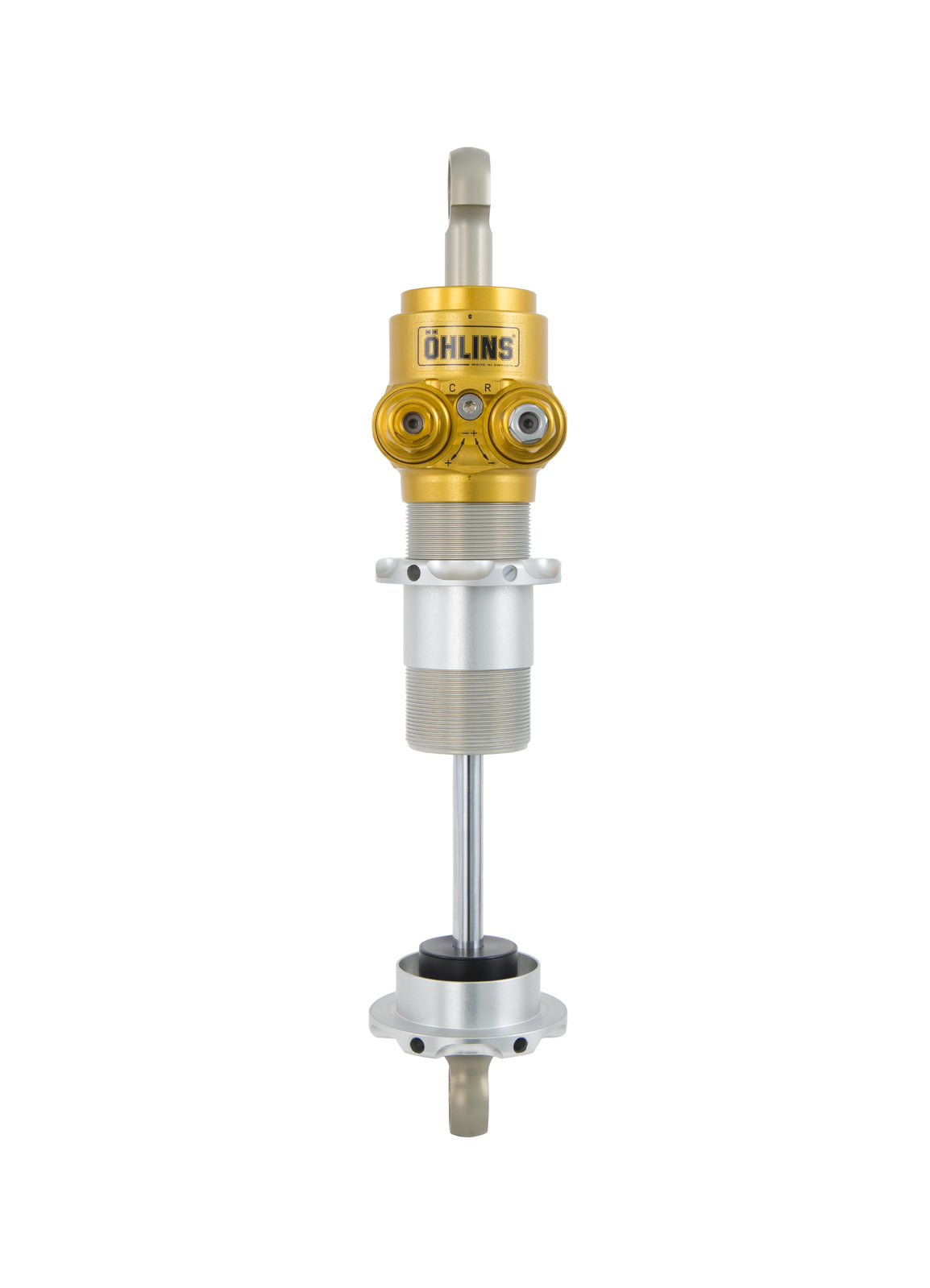

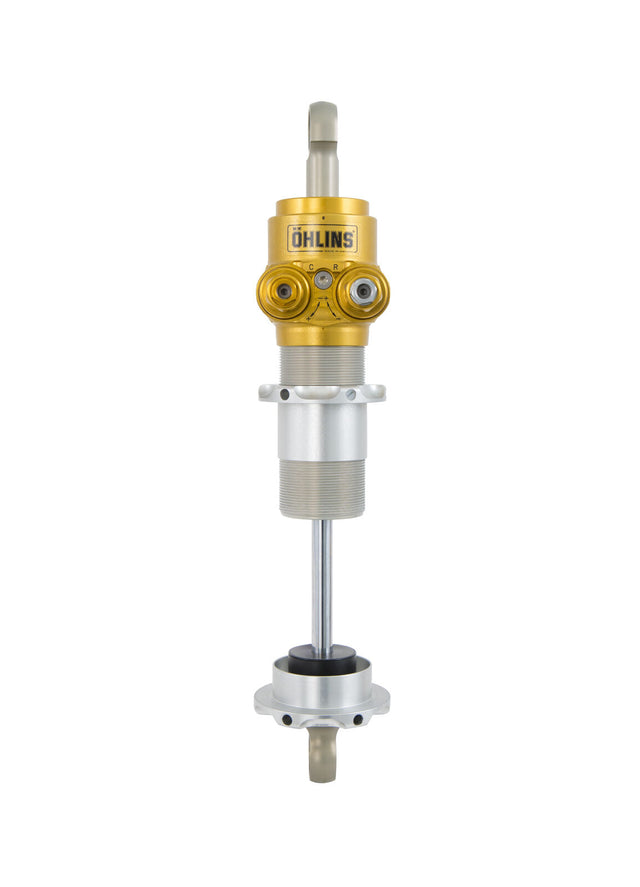

The TTX 40 twin tube damper features a 40 mm solid piston and a through rod shaft which eliminates the requirement of an external reservoir. The design is fully pressure balanced with a positive pressure build-up throughout the adjustment range, eliminating the risk for cavitation as well as enabling the use of low gas pressure, keeping the internal friction low. The top eye can easily be re-clocked without opening the damper.

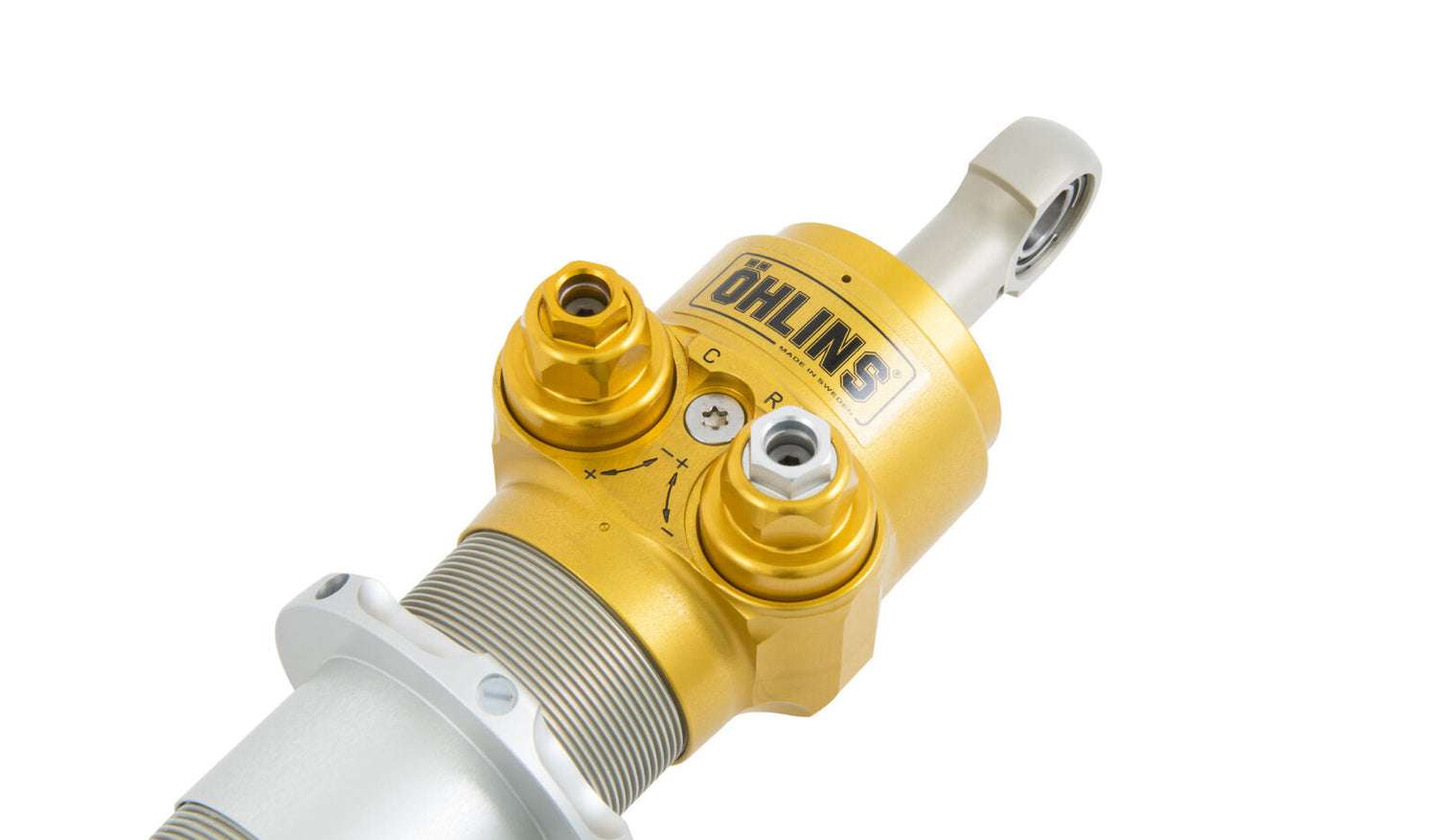

The TTX 40 is a fully independent 4-way adjustable damper. The shock also comes with a Valve Reference Program. This computer model of a dyno will allow you to find damping curves without a dynamometer. It reduces building time tremendously and allow exact damping adjustment out in the pit lane.
Available with a external blow-off piston kit. The advantage with this kit is that it reduces peak loads. This makes driving over curbs smoother, saves tires and reduces the risk of getting flat tires. The damper can be modified to suit most of the different types of racing cars and covers a wide range of car types and models.
Features:
• TTX-technology
• 40 mm solid piston
• 4-way adjusted, compression and rebound
• Top level racing damper
• Valve Reference Program
• Available with internal and external blow-off kit
• Available in different lengths
• Possible to upgrade with high frequency piston
Notes:
• Sold Individually
• Sold Without Springs
