Öhlins Road & Track Coilovers – Toyota GR Corolla (2023+)
Part Number: TOS MX00S1 | Fitment: Toyota GR Corolla 2023+
Engineered specifically for the Toyota GR Corolla, the Öhlins Road & Track kit brings legendary suspension expertise to one of the most exciting hot hatches on the market. Built on Öhlins' proprietary Dual Flow Valve (DFV) technology with a 1-way 25-click compression and rebound adjuster, this kit lets you effortlessly fine-tune your GR Corolla's suspension to match your driving style — from daily commuting to full track attack.
The kit is supplied as a complete car set from the factory with springs included. No cancellation kit is required, and the kit uses OE top mounts for a clean, direct fitment.
Vehicle Fitment
Toyota GR Corolla |
2023 to present |
Technical Specifications
Part Number |
TOS MX00S1 |
Technology |
DFV — Dual Flow Valve |
Damping Adjustment |
1-way — 25-click compression & rebound adjuster |
Front Damper Type |
McPherson strut — monotube upside-down |
Rear Damper Type |
Aluminium monotube shock absorber |
Front Spring Rate |
90 N/mm (Part No. 49180-27) — included |
Rear Spring Rate |
90 N/mm (Part No. 47020-27) — included |
Recommended Lowering |
Approx. 25mm below standard (front & rear) |
Top Mounts |
Use with original OE top mounts |
Cancellation Kit |
Not required |
Springs Included |
Yes — complete car set supplied from factory |
Rebuildable |
Yes — rebuildable for custom tuning |
Corrosion Testing |
ISO 9227 salt spray tested |
Warranty |
2-year limited warranty |

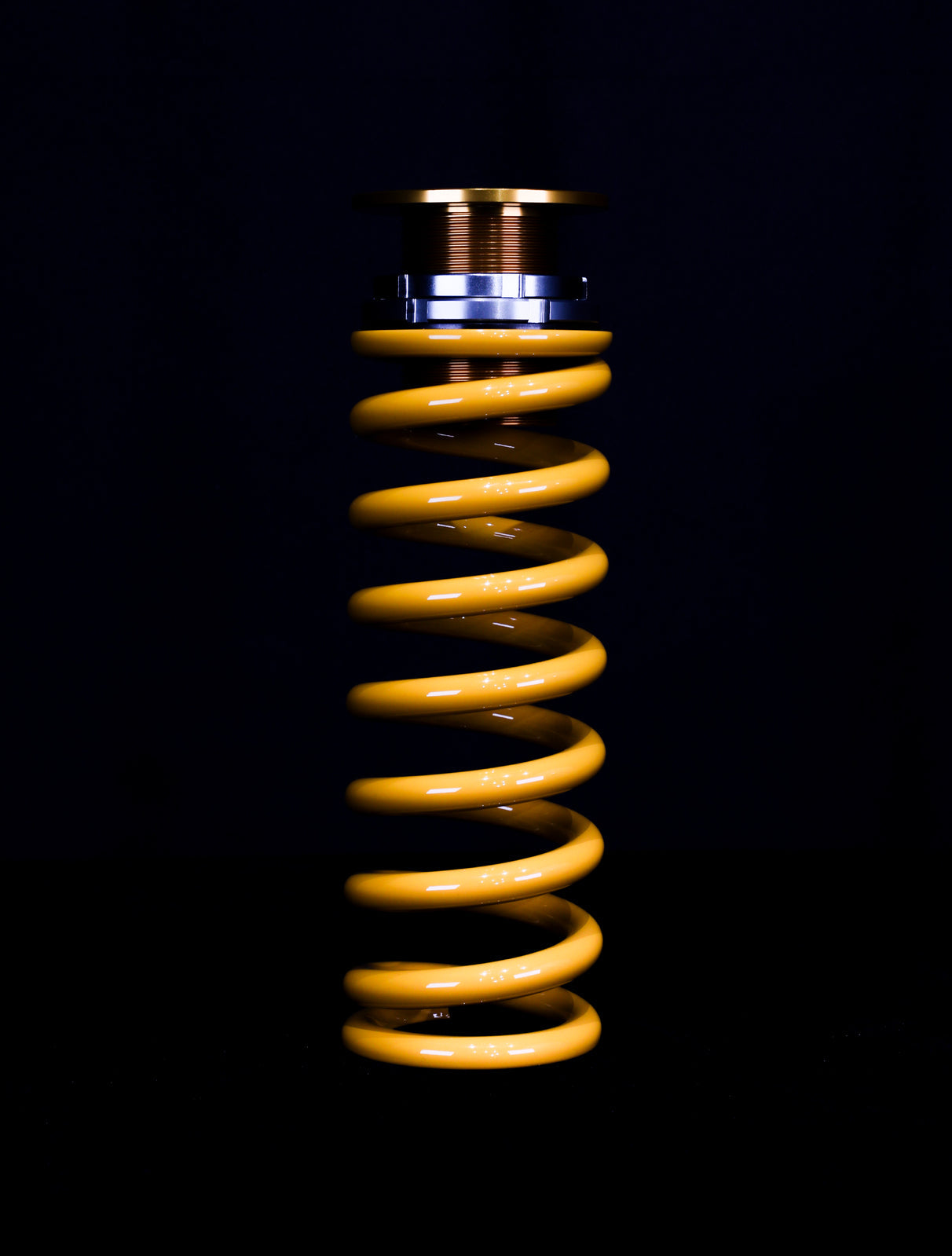

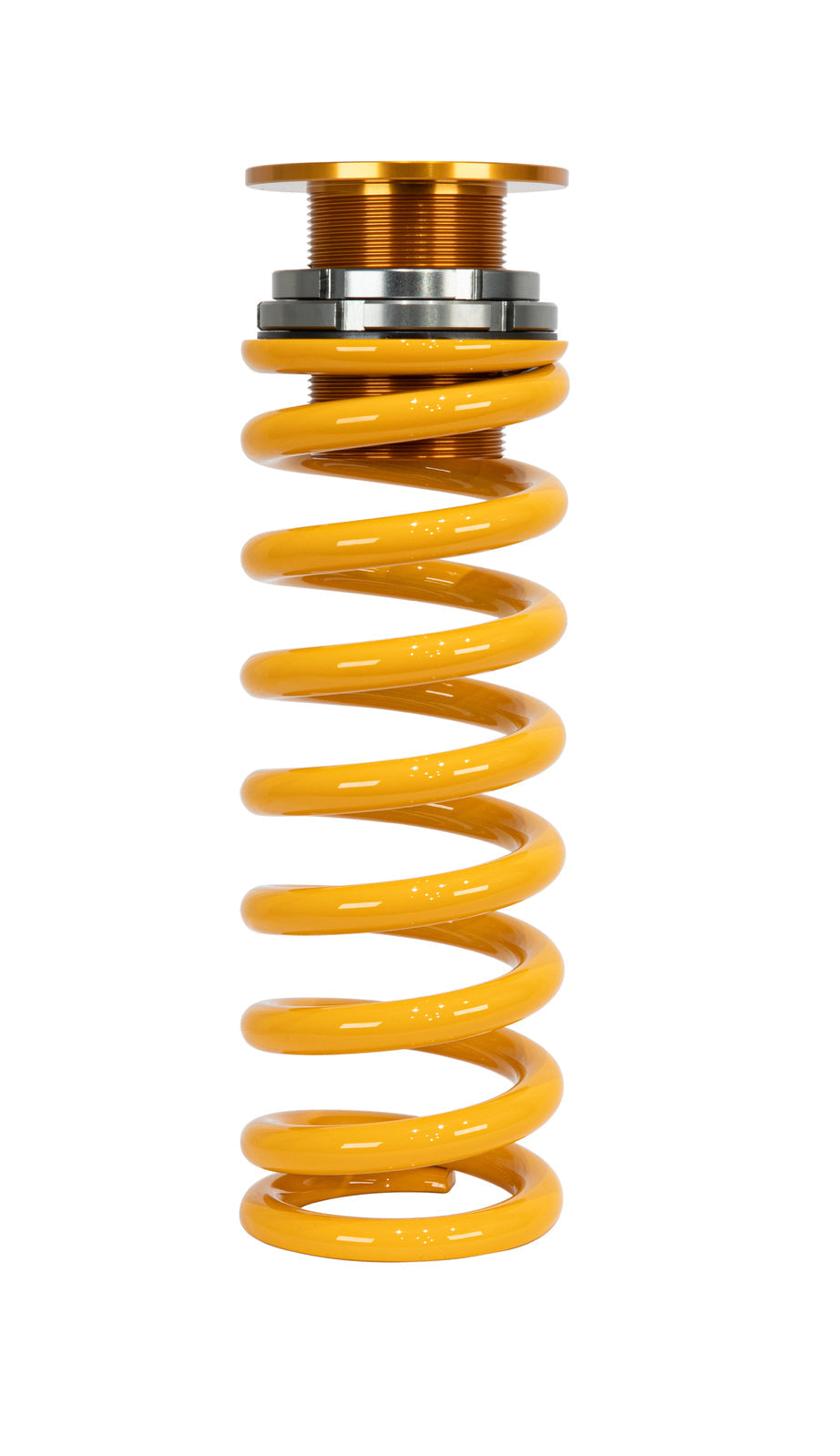

Included Springs
Position
Part No
Spring Rate
Front |
49180-27 |
90 N/mm |
Rear |
47020-27 |
90 N/mm |
General Features
• DFV technology (Dual Flow Valve) — Öhlins' proprietary damping system
• 1-way 25-click compression and rebound adjuster
• Individual height adjustment
• Rebuildable dampers for custom tuning
• Corrosion salt spray tested (ISO 9227)
• 2-year warranty

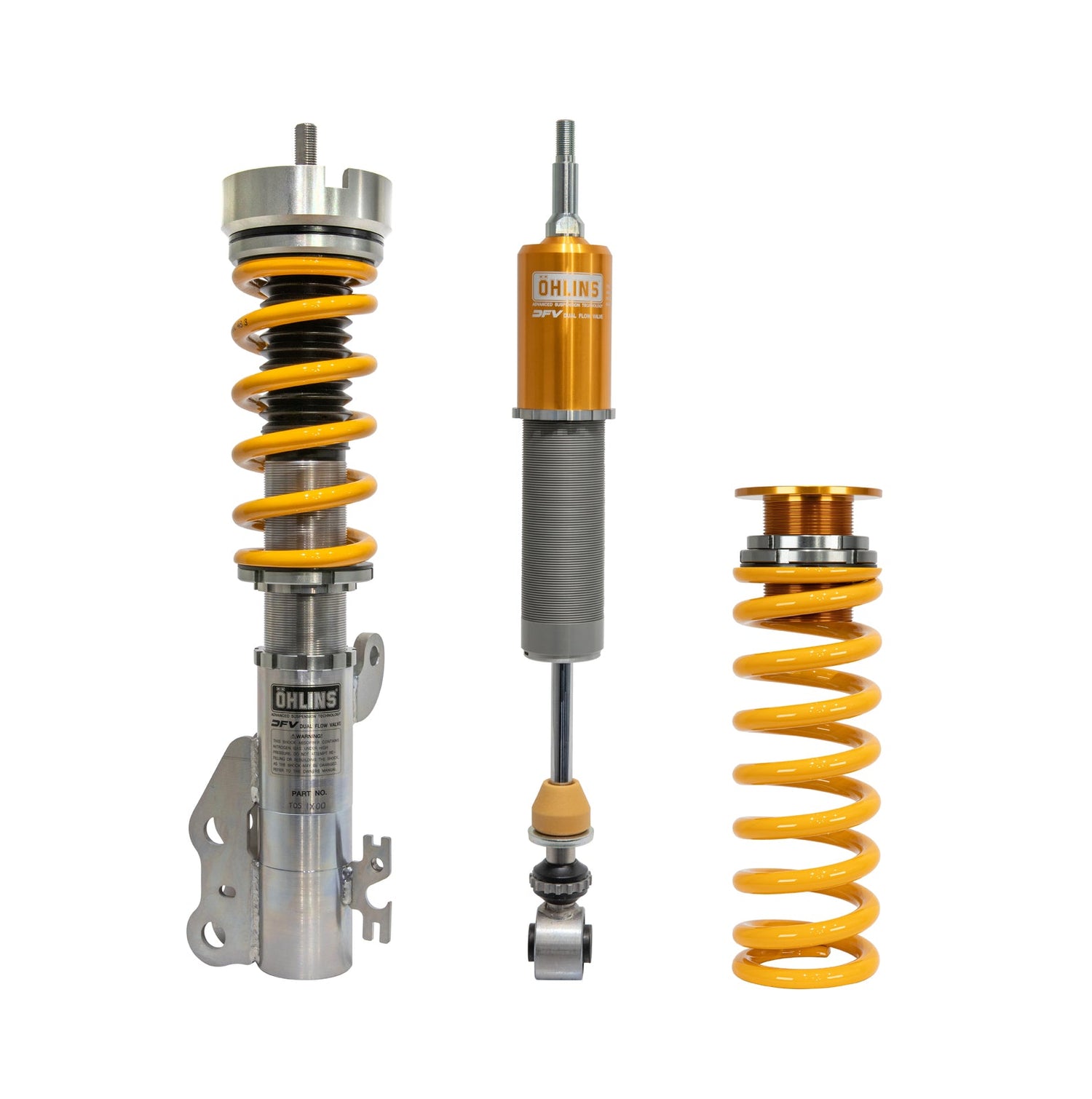

• Front & rear springs included — complete car set
Front Features

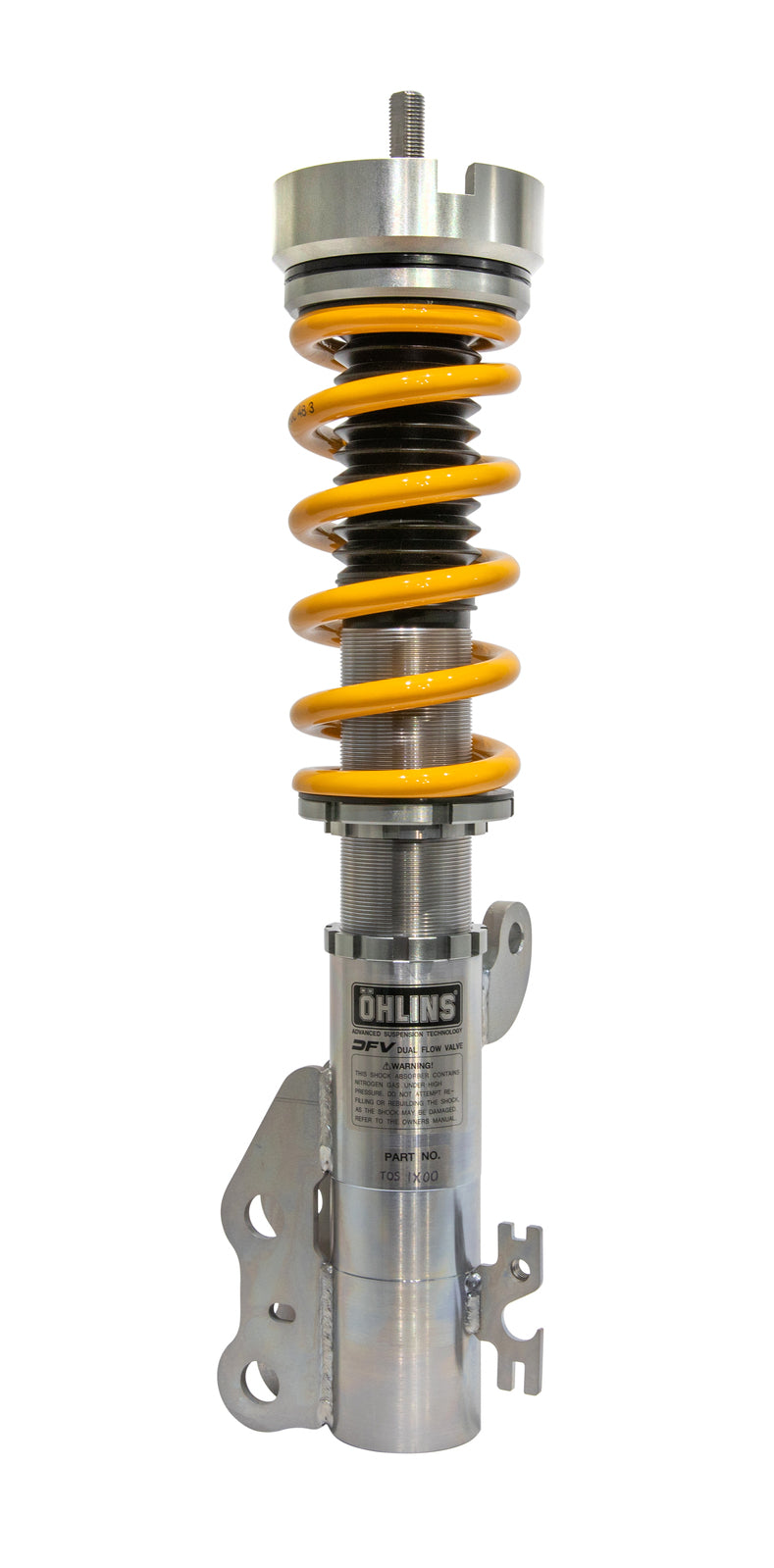

• McPherson strut — monotube upside-down technology
• Spring preload adjuster
• Height adjustable — 25mm lower than standard is our recommended ride height
• Spring rate 90 N/mm — included
• Use with original top mounts
Rear Features

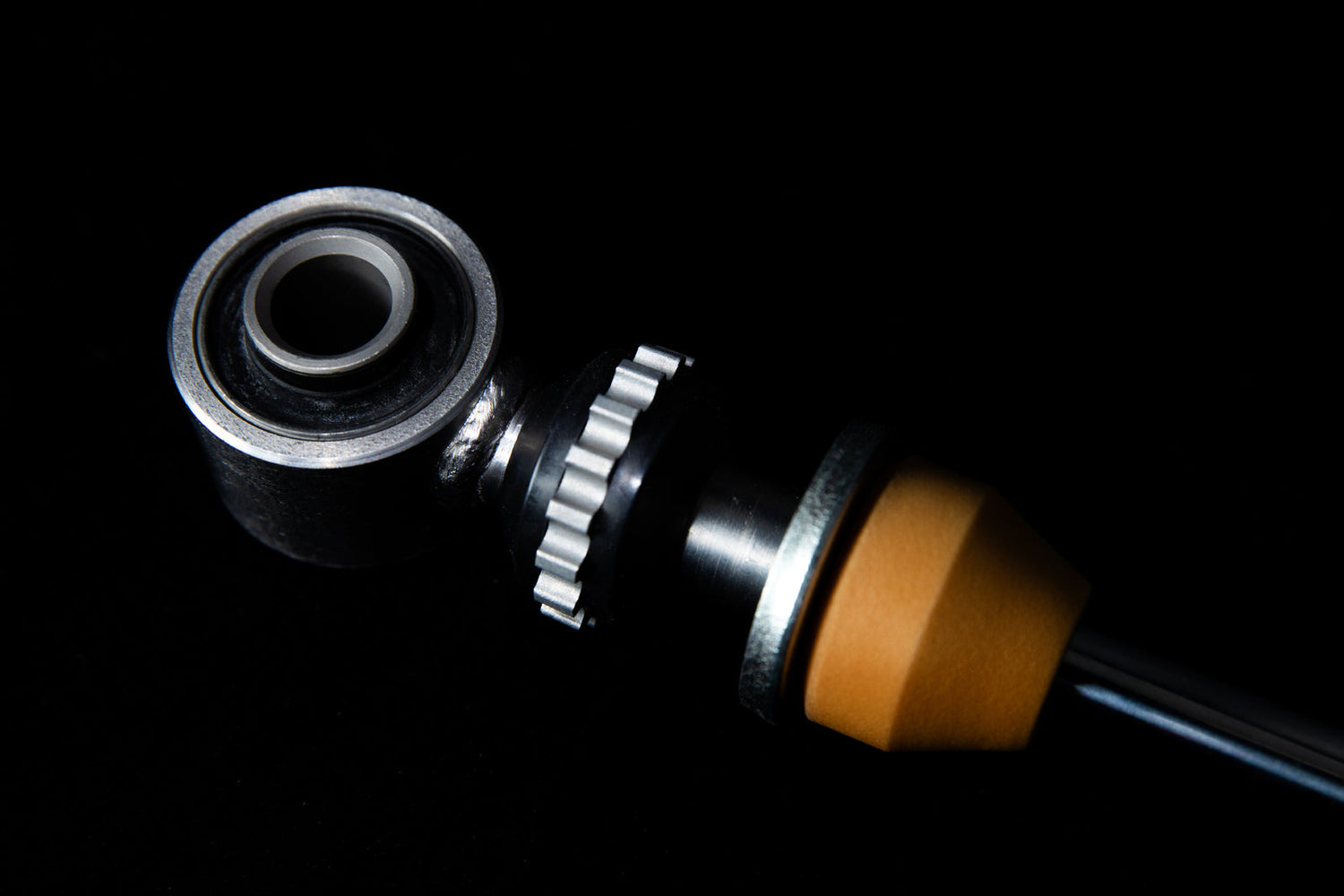

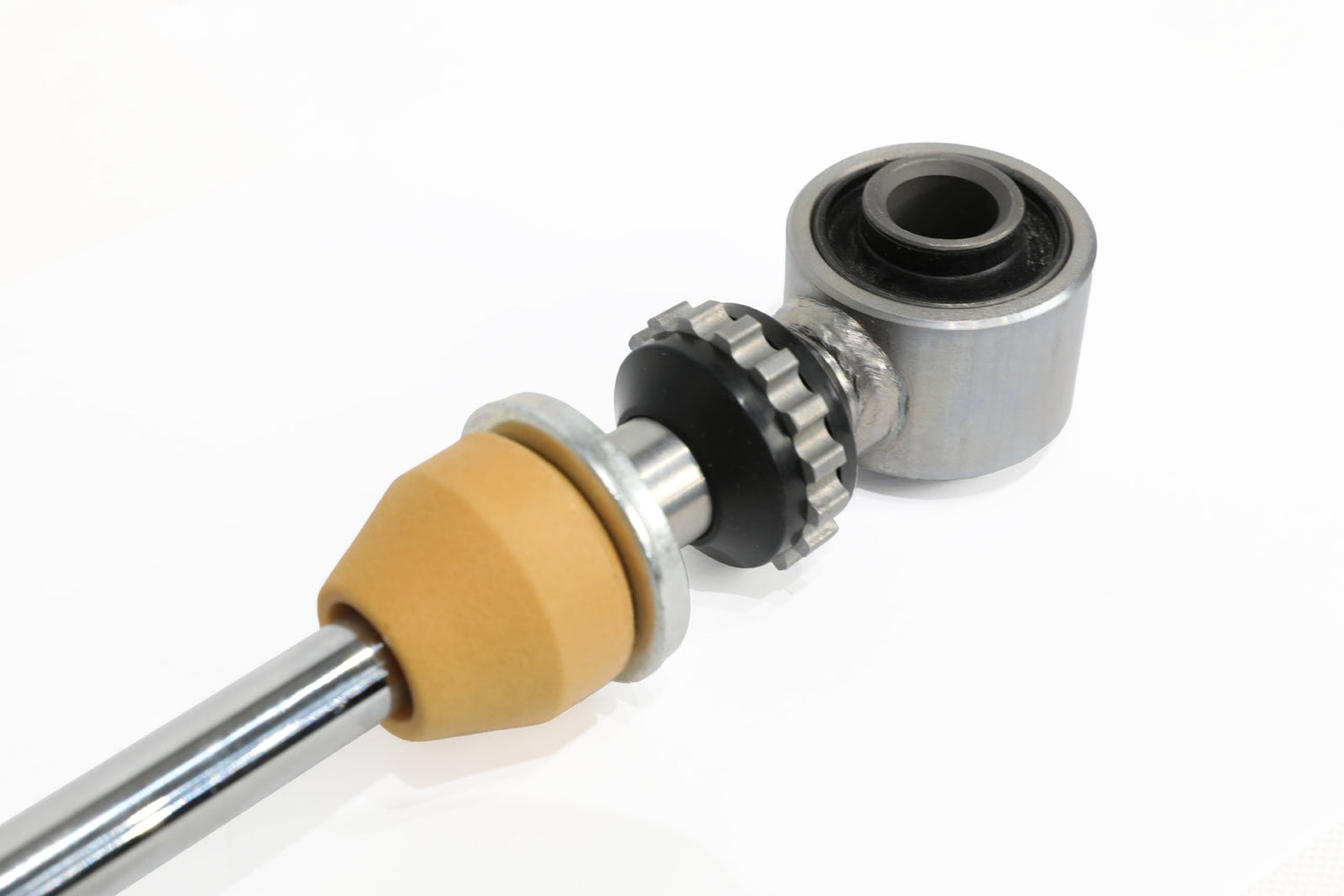

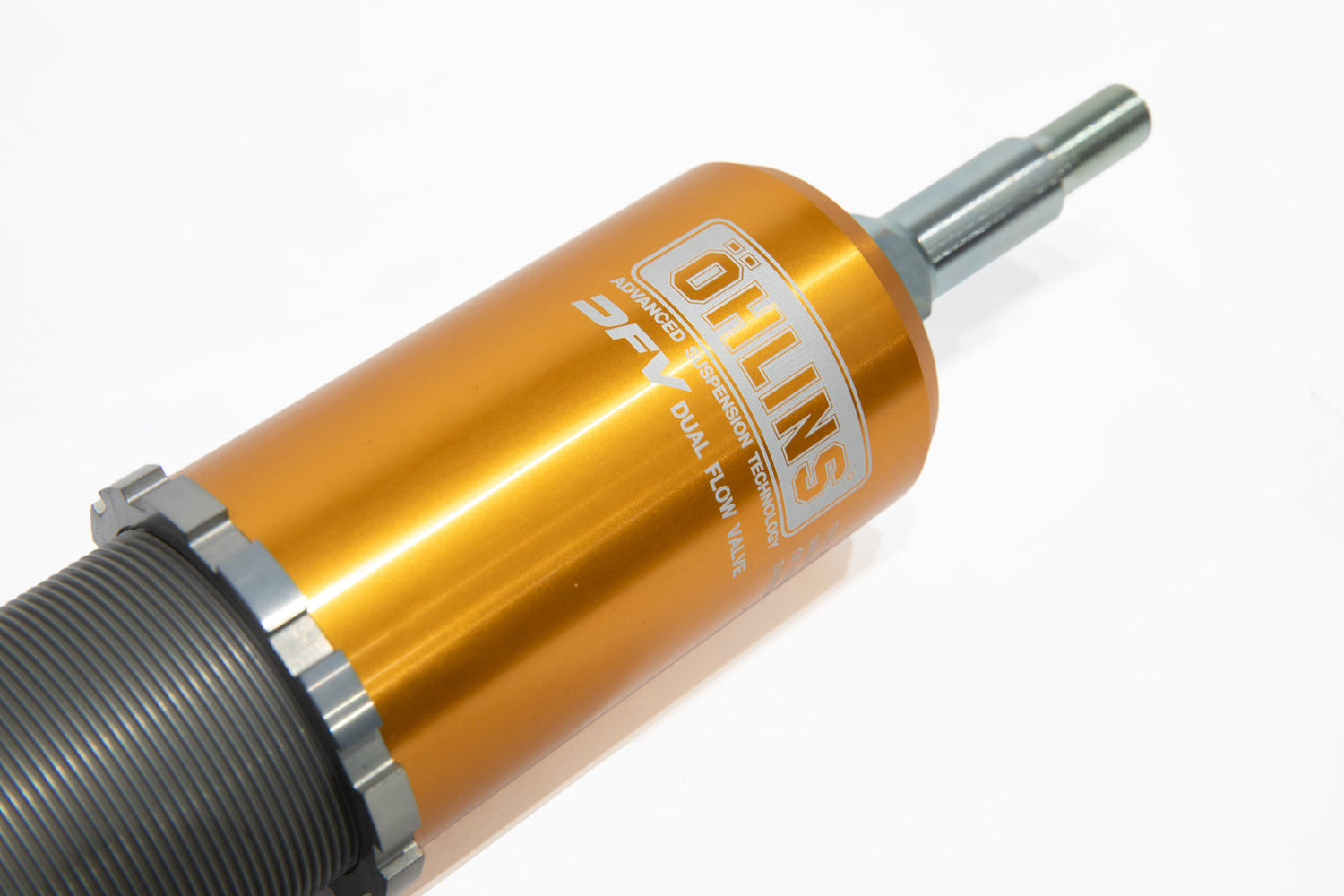

• Aluminium monotube shock absorber
• Spring preload adjuster
• Separate damper length adjuster
• Height adjustable — 25mm lower than standard is our recommended ride height
• Spring rate 90 N/mm — included
• Use with original top mounts

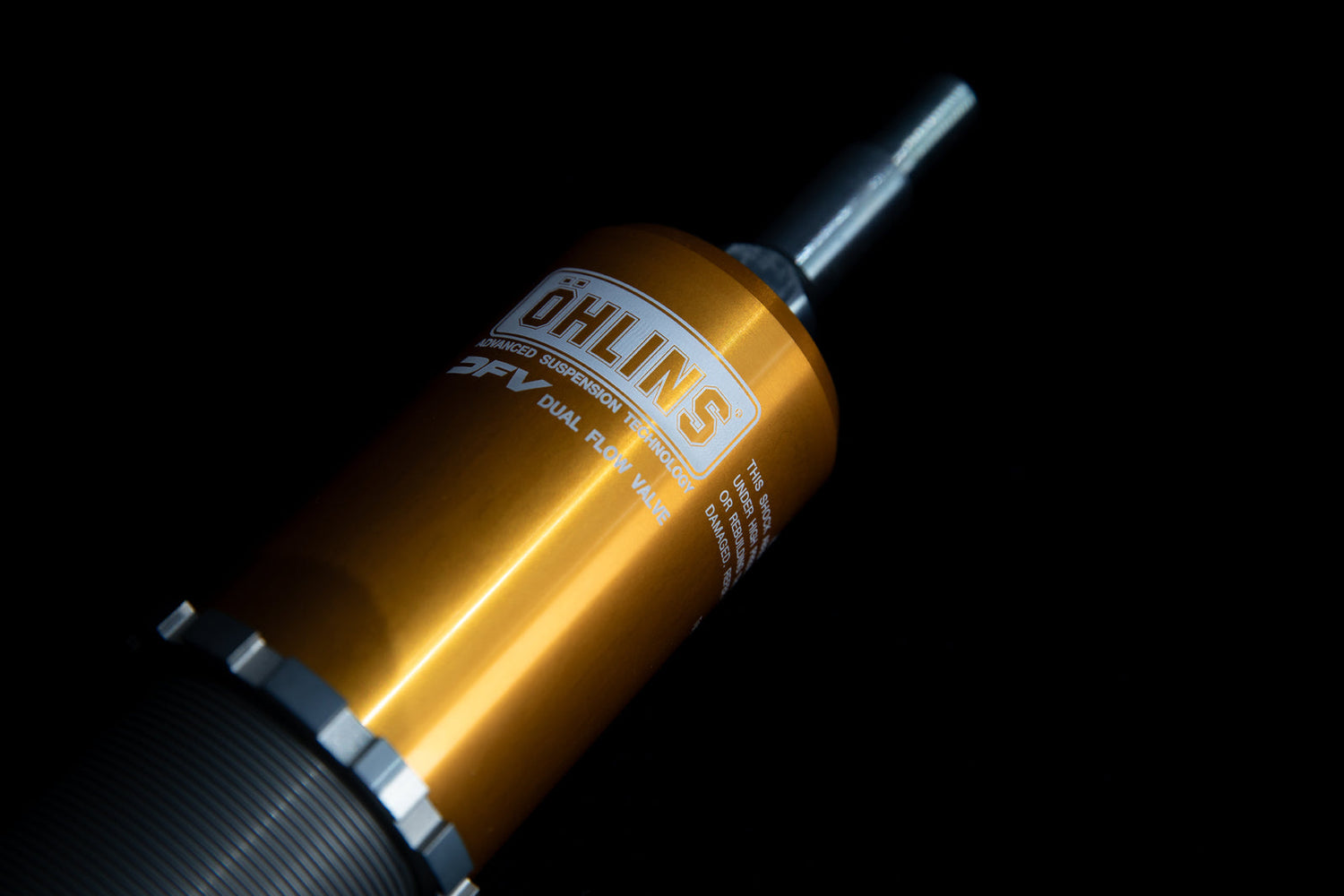

What is DFV (Dual Flow Valve)?
DFV is Öhlins' proprietary damping technology that sets the Road & Track range apart from conventional coilovers. The dual flow valve provides consistent damping characteristics on both compression and rebound strokes — the damper fluid follows a consistent flow path in both directions. This means the wheel and tyre can rapidly return to the road surface after a bump, maximising grip and traction at all times.
Because DFV opens more quickly on minor road imperfections, ride comfort is surprisingly supple — more akin to an OEM strut than a typical coilover. Over undulating surfaces, the compliance of the R&T units allows the car to crest bumps and potholes while remaining stable and in control.
Why Öhlins Road & Track?
• ✅ Over 40 years of motorsport engineering heritage — trusted by factory race teams worldwide
• ✅ DFV technology — genuine race-car response with OEM-level daily comfort
• ✅ Monotube upside-down front strut — reduced unsprung mass, sharper response
• ✅ Complete car set supplied from factory — springs included, no cancellation kit required
• ✅ Rebuildable, ISO 9227 corrosion-tested, 2-year warranty
