Öhlins Road & Track Coilovers – Toyota GR Yaris XPA16R Gen 1 (P...
Part Number: TOS MW00S1 | Chassis: XPA16R | Fitment: Toyota GR Yaris Gen 1 (Pre-Facelift) 2020+
⚠️ Fits Gen 1 Pre-Facelift Toyota GR Yaris (XPA16R) only. Not compatible with the facelift model.
Over 40 years of motorsport engineering distilled into a street-ready coilover kit. The Öhlins Road & Track series delivers a genuine racing experience without sacrificing daily drivability — thanks to Öhlins' proprietary Dual Flow Valve (DFV) technology. Featuring a McPherson upside-down front strut and conventional rear shock, with a wide -5 to -30mm lowering range and 80 N/mm spring rates front and rear. Complete suspension kit with springs and accessories included.
Vehicle Fitment
Toyota GR Yaris |
XPA16R — Gen 1 Pre-Facelift — 2020+ |
Technical Specifications
Part Number |
TOS MW00S1 |
Technology |
DFV — Dual Flow Valve |
Front Damper Type |
McPherson strut — upside-down |
Rear Damper Type |
Conventional shock absorber |
Damping Adjustment |
Single bleed adjuster (front & rear) |
Front Spring Rate |
80 N/mm — included |
Rear Spring Rate |
80 N/mm — included |
Lowering Range |
Approx. −5mm to −30mm below standard (front & rear) |
Top Mounts |
Use with original top mounts (front & rear) |
Springs Included |
Yes — complete kit with springs & accessories |
Rebuildable |
Yes |
Corrosion Testing |
ISO 9227 salt spray tested |
Warranty |
2-year limited warranty |
General Features
• DFV technology (Dual Flow Valve) — Öhlins' proprietary damping system
• Individual height adjustment — −5mm to −30mm range
• Single bleed adjuster — compression and rebound
• Rebuildable for custom tuning
• Corrosion salt spray tested (ISO 9227)
• 2-year limited warranty
• Complete kit with springs and accessories included

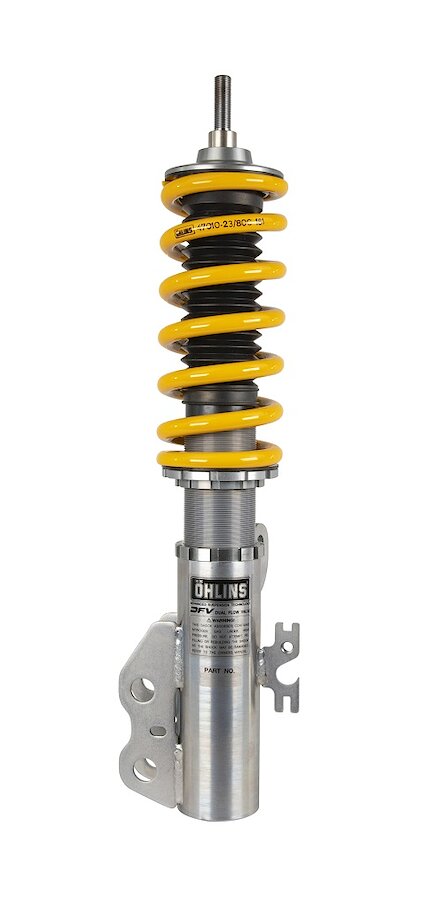

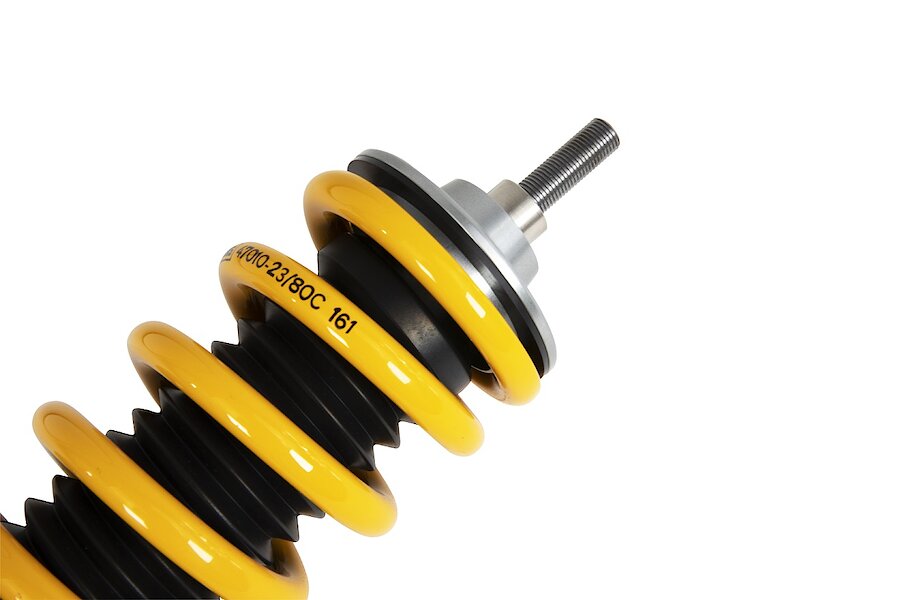

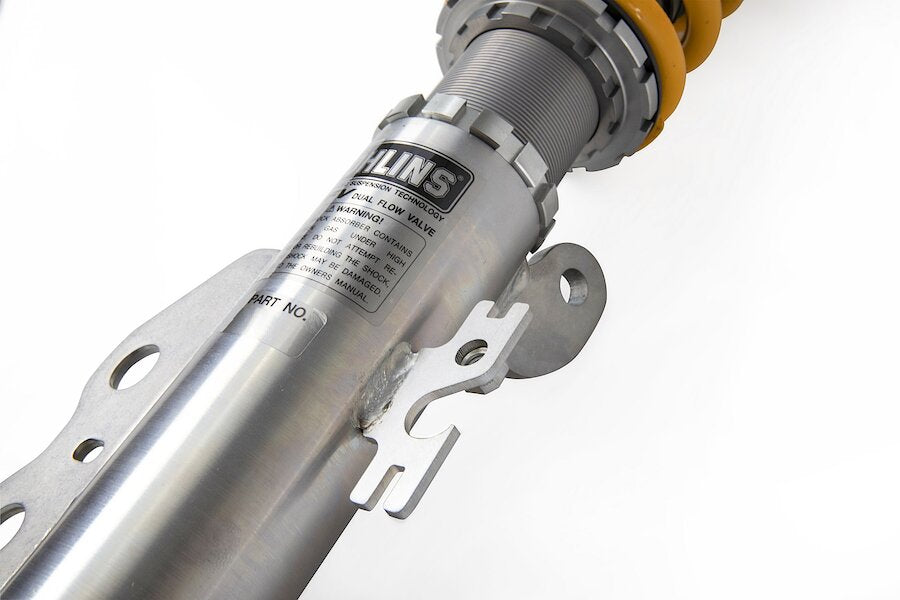

Front Features
• McPherson strut — upside-down design
• Single bleed adjuster
• Spring preload adjuster
• Height adjustable — approx. −5mm to −30mm below standard
• Coil springs included (80 N/mm)
• Use with original top mounts

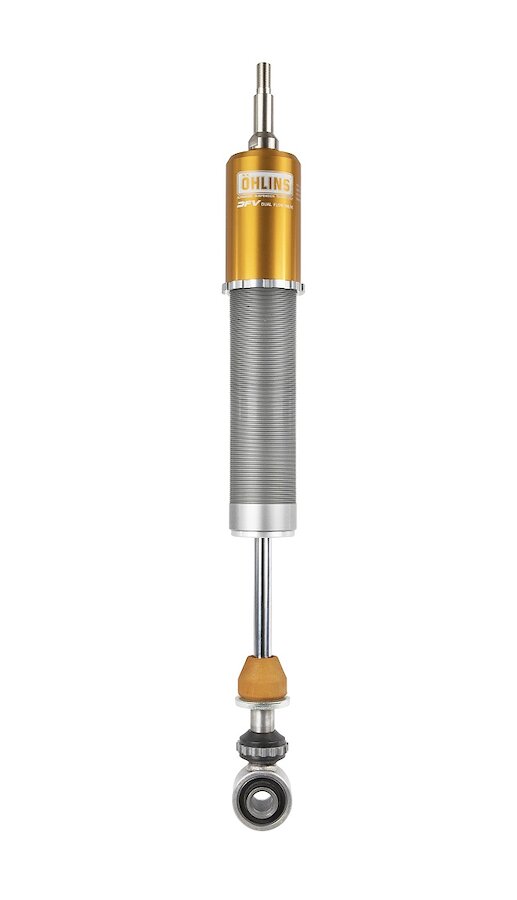

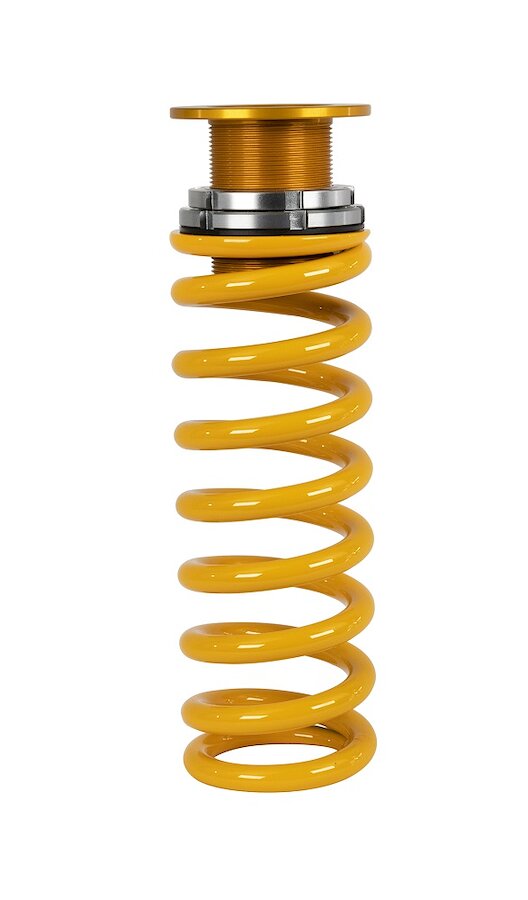

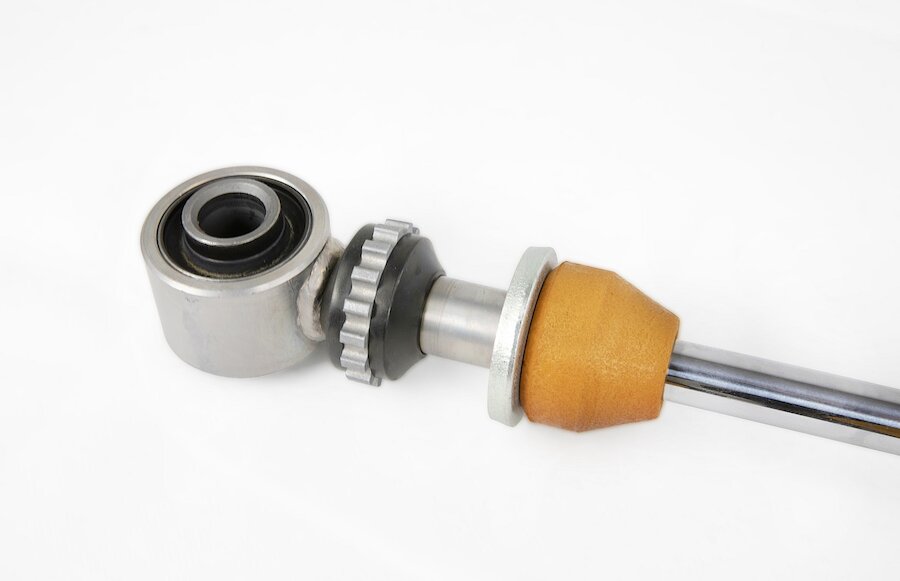

Rear Features
• Conventional shock absorber
• Single bleed adjuster
• Separate spring preload adjuster
• Height adjustable — approx. −5mm to −30mm below standard
• Coil springs included (80 N/mm)
• Use with original top mounts

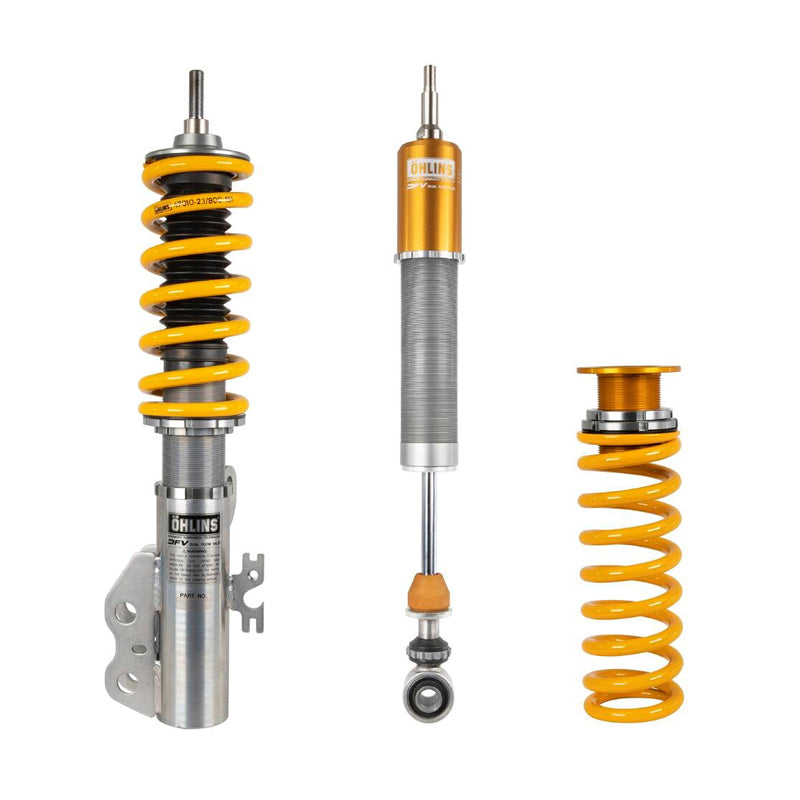

Kit Contents
• Complete coilover kit including springs and all mounting parts
• C-spanner for spring preload adjustment
• Owner's manual and mounting instructions
• Öhlins sticker set
What is DFV (Dual Flow Valve)?
DFV is Öhlins' proprietary damping technology that sets the Road & Track range apart from conventional coilovers. The dual flow valve provides consistent damping characteristics on both compression and rebound strokes — the damper fluid follows a consistent flow path in both directions. This means the wheel and tyre can rapidly return to the road surface after a bump, maximising grip and traction at all times.
Because DFV opens more quickly on minor road imperfections, ride comfort is surprisingly supple — more akin to an OEM strut than a typical coilover. Over undulating surfaces, the compliance of the R&T units allows the car to crest bumps and potholes while remaining stable and in control. Traction is always maintained at its optimum level.
Why Öhlins Road & Track?
• ✅ Over 40 years of motorsport engineering heritage — trusted by factory race teams worldwide
• ✅ DFV technology — genuine race-car response with OEM-level daily comfort
• ✅ Upside-down McPherson front strut — reduced unsprung mass, sharper response
• ✅ Wide −5 to −30mm lowering range — street and track flexibility
• ✅ Rebuildable, ISO 9227 corrosion-tested, 2-year limited warranty
