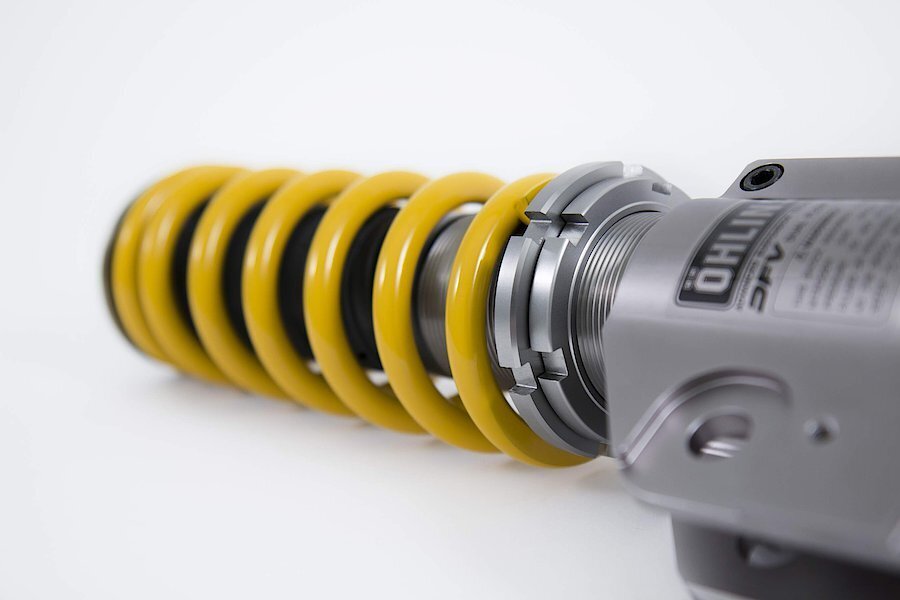

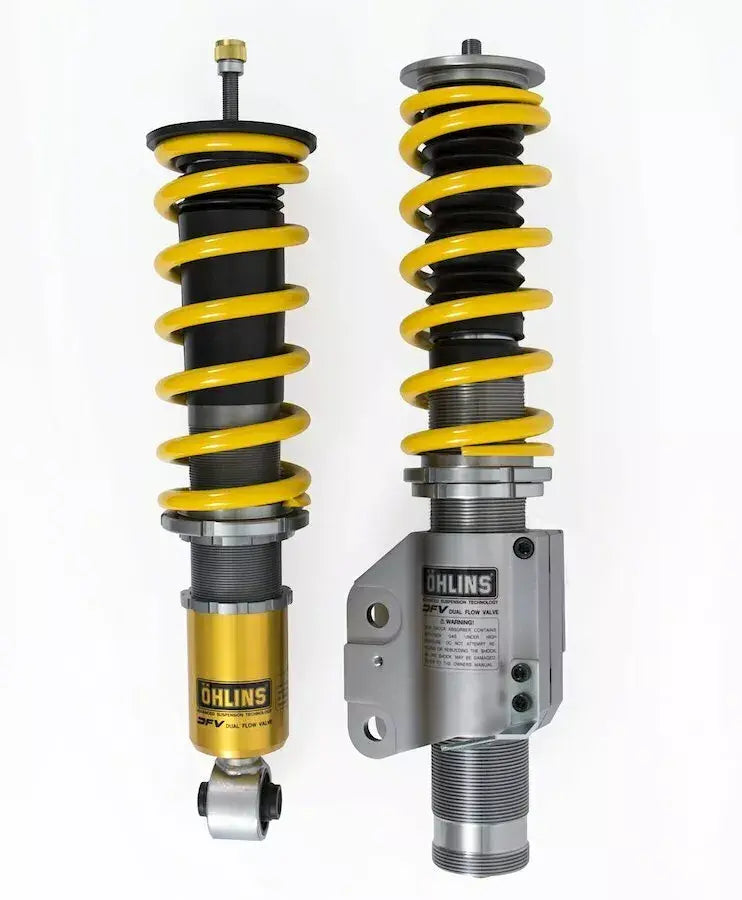

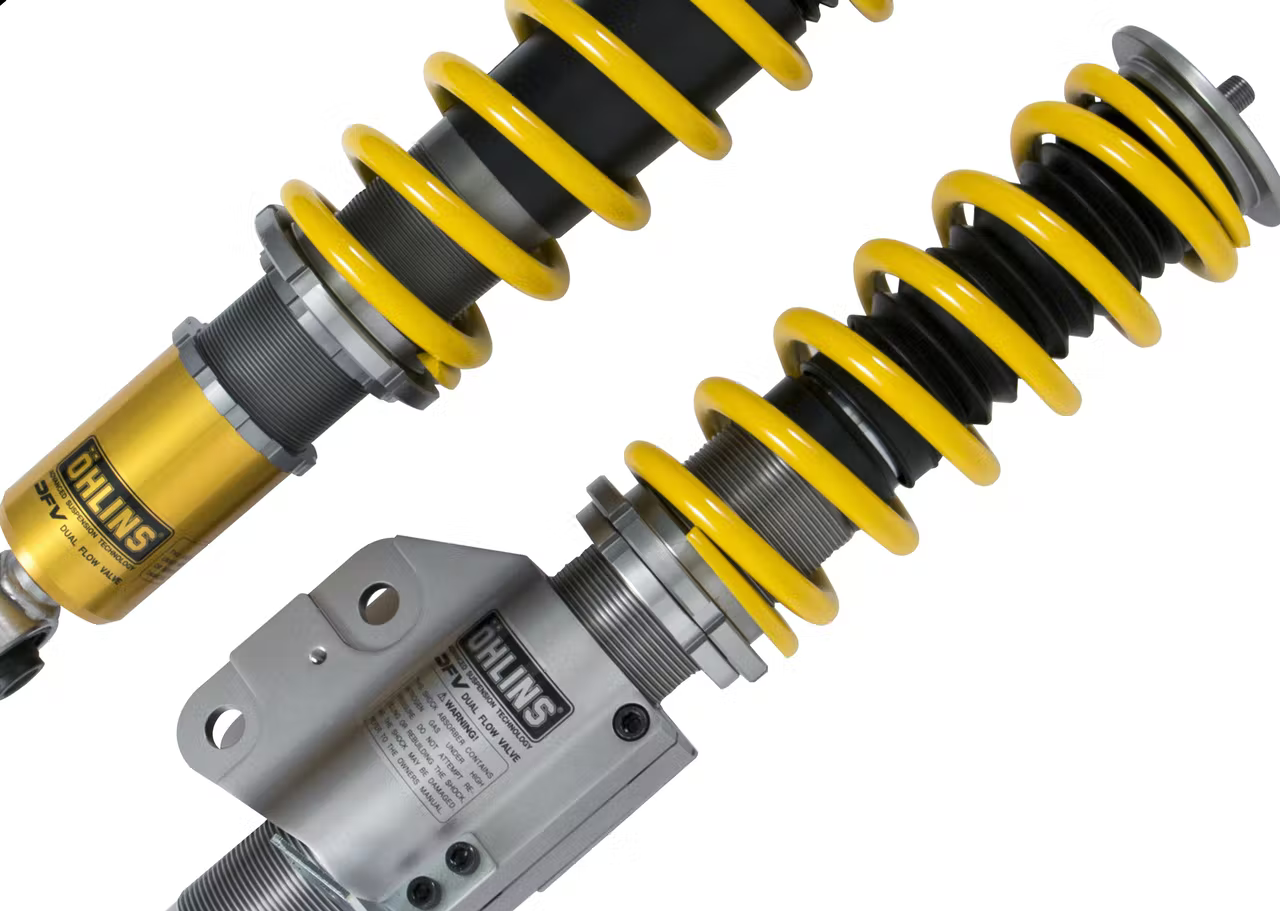

Öhlins Road & Track Coilovers – Subaru BRZ / Toyota 86 / GR86 (2012+)
Öhlins Road & Track Coilovers – Subaru BRZ / Toyota 86 / GR86 (2012+) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
MASSIVE RANGE
Over 20,000 performance & automotive SKUs for European, JDM, American, Korean and more
NATIONWIDE FAST SHIPPING
Quick dispatch across Australia with reliable tracked delivery
AUSSIE SUPPORT & EXPERTISE
Local customer service and technical assistance from our team of enthusiasts
Öhlins Road & Track Coilovers – Subaru BRZ / Toyota 86 / GR86 (...
Part Number: SUS MP21S2 | Supersedes: SUS MP21S1 | Fitment: 2012–2021 Subaru BRZ & Toyota 86/GT86 | 2022+ Subaru BRZ & Toyota GR86
Over 40 years of motorsport engineering distilled into a street-ready coilover kit. The Öhlins Road & Track series delivers a genuine racing experience without sacrificing daily drivability — thanks to Öhlins' proprietary Dual Flow Valve (DFV) technology. Corrosion-tested to ISO 9227 and backed by a 2-year worldwide limited warranty.
Vehicle Fitment
Subaru BRZ |
2012–2021 (ZC6) & 2022+ (ZD8) |
Toyota 86 / GT86 |
2012–2021 (ZN6) |
Toyota GR86 |
2022+ (ZN8) |
Technical Specifications
Part Number |
SUS MP21S2 |
Supersedes |
SUS MP21S1 |
Front Damper Type |
McPherson strut (upside down) |
Rear Damper Type |
Conventional shock absorber |
Front Spring Rate |
60 N/mm |
Rear Spring Rate |
60 N/mm |
Front Lowering Range |
Approx. 10–35mm below standard |
Rear Lowering Range |
Approx. 5–25mm below standard |
Damping Adjustment |
Combined compression & rebound (single adjuster, front & rear) |
Top Mounts |
Use with original top mounts (Öhlins top mounts available separately) |
Corrosion Testing |
ISO 9227 salt spray tested |
Warranty |
2-year worldwide limited warranty |
Rebuildable |
Yes |
General Features
• DFV technology (Dual Flow Valve) — Öhlins' proprietary damping system
• Individual ride height adjustment via threaded lower flange (spring seat position maintained)
• Spring preload adjustment with included C-spanner
• Rebuildable construction for long-term serviceability
• Corrosion salt spray tested to ISO 9227
• 2-year worldwide limited warranty
Front Features
• McPherson strut — upside down design
• Combined compression & rebound damping via single adjuster
• Spring preload adjuster
• Separate ride height adjustment
• Approx. 10–35mm lower than standard
• Spring rate: 60 N/mm
• Use with original top mounts (Öhlins top mounts available separately)

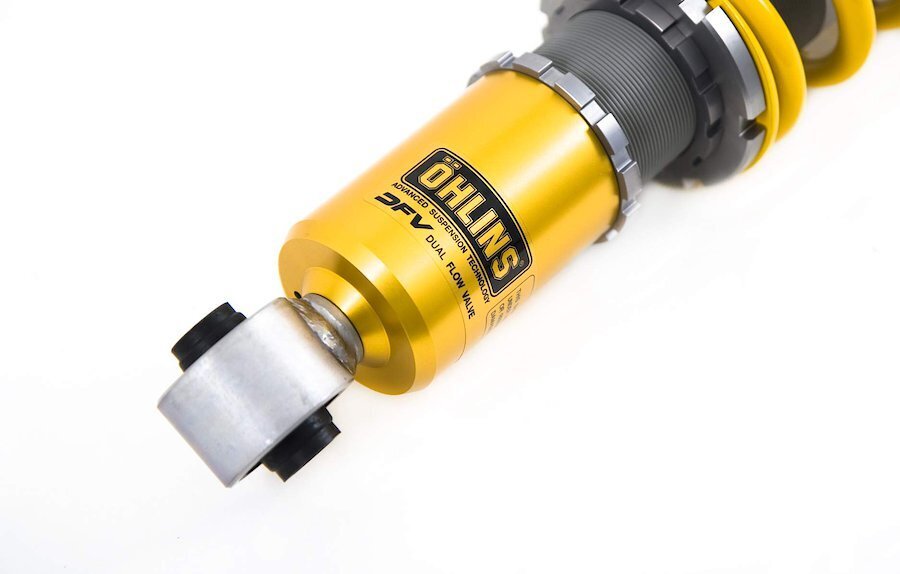

Rear Features
• Conventional shock absorber design
• Combined compression & rebound damping via single adjuster
• Spring preload adjuster
• Separate ride height adjustment
• Approx. 5–25mm lower than standard
• Spring rate: 60 N/mm
• Use with original top mounts (Öhlins top mounts available separately)
Kit Contents
• Complete coilover suspension kit including springs and all mounting hardware
• C-spanner for spring preload adjustment
• Owner's manual and mounting instructions
• Öhlins sticker set
What is DFV (Dual Flow Valve)?
DFV is Öhlins' proprietary damping technology that sets the Road & Track range apart from conventional coilovers. The dual flow valve provides consistent damping characteristics on both compression and rebound strokes — the damper fluid follows a consistent flow path in both directions. This means the wheel and tyre can rapidly return to the road surface after a bump, maximising grip and traction at all times.
Because DFV opens more quickly on minor road imperfections, ride comfort is surprisingly supple — more akin to an OEM strut than a typical coilover. Over undulating surfaces, the compliance of the R&T units allows the car to crest bumps and potholes while remaining stable and in control. Traction is always maintained at its optimum level.
Öhlins also incorporates a unique needle bleed valve that expands with temperature, compensating for changes in fluid viscosity as the damper heats up. The result: consistent damping performance lap after lap, regardless of operating temperature.
Why Öhlins Road & Track?
• ✅ Over 40 years of motorsport engineering heritage — trusted by factory race teams worldwide
• ✅ Proprietary DFV technology delivers genuine race-car response with OEM-level daily comfort
• ✅ Rebuildable and fully serviceable for long-term ownership and track use
• ✅ Precision ride height adjustment via threaded lower flange — spring geometry is never compromised
• ✅ ISO 9227 corrosion-tested and backed by a 2-year worldwide limited warranty
