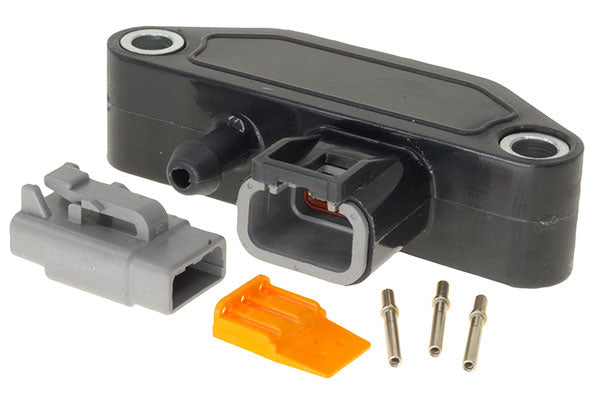

Raceworks Motorsport MAP Sensors (Manifold Pressure)
Raceworks Motorsport Map Sensors
When it comes to tuning precision, reliable manifold pressure readings are non-negotiable. Raceworks MAP Sensors are built for motorsport conditions — designed to handle extreme boost levels, rapid pressure changes, and harsh engine bay environments.
Whether you’re running a naturally aspirated setup or a high-boost turbo build, Raceworks offers MAP sensors to match:
-
1.15 Bar Sensor – Ideal for factory and naturally aspirated engines.
-
3 Bar Sensor – Perfect for moderate-boost street or track cars.
-
4 Bar Sensor – Built for serious turbo and supercharged applications.
Features
-
Motorsport-grade construction for superior reliability
-
Compact and lightweight design
-
Accurate pressure and temperature compensation
-
Compatible with most aftermarket ECUs
-
Weather-sealed connectors for harsh environments
-
Available in 1.15 Bar, 3 Bar, and 4 Bar variants
Applications
Raceworks MAP Sensors are suited for:
-
Turbocharged and supercharged performance engines
-
Standalone ECU tuning setups
-
Drag, drift, circuit, and time-attack builds
-
Street performance and race applications
Specifications
| Sensor Type | Pressure Range | Output | Boost Pressure |
|---|---|---|---|
| 1.15 Bar | 15 – 115 kPa | Linear 0.2 – 4.7 V | N/A |
| 3 Bar | 20 – 300 kPa | Linear 0.3 – 4.9 V | Up to 29PSI |
| 4 Bar | 20 – 400 kPa | Linear 0.2 – 4.8 V | Up to 43.5PSI |
