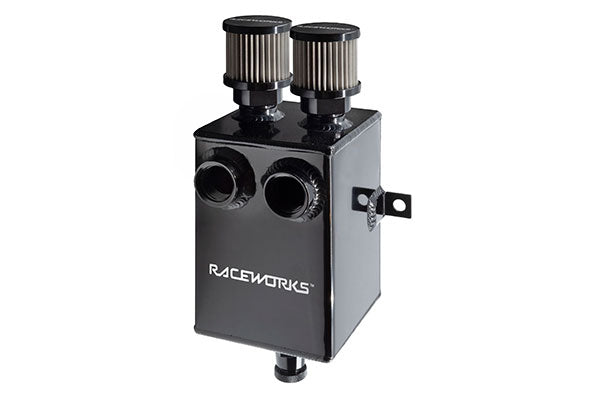

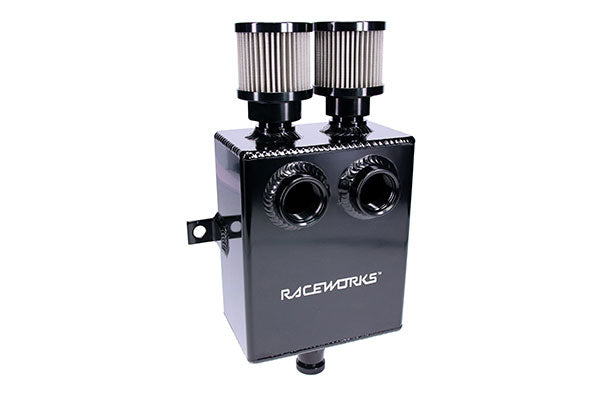

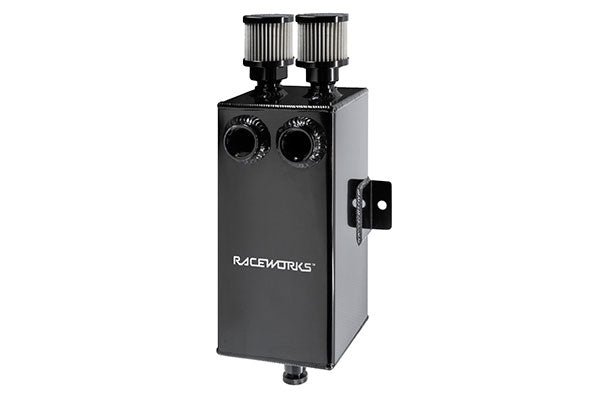

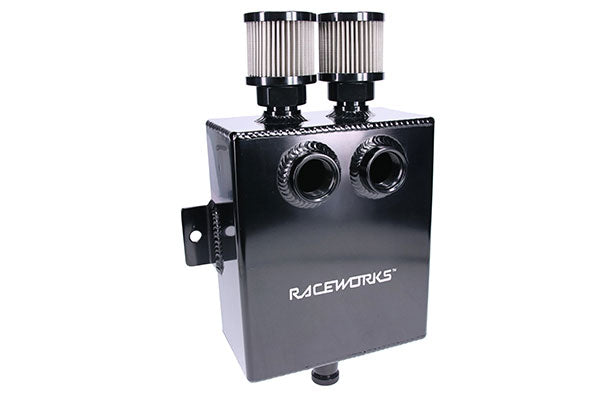

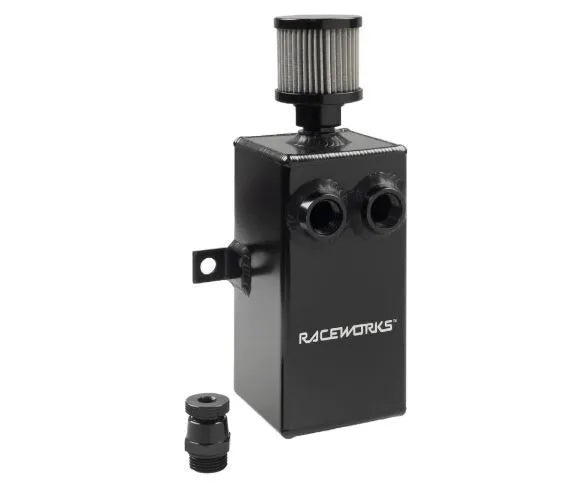

Raceworks Catch Cans
Raceworks Catch Can Tanks
Become compliant for the track with Raceworks Catch Can Tanks, engineered for performance, reliability, and style. Built from high-quality aluminium, these tanks deliver improved vapour catchment and protect your engine from recirculated oil vapour that coats the intake. Available in a black finish and internally baffled, Raceworks tanks are the perfect bolt-on solution for serious enthusiasts. Shop now for premium Raceworks Catch Can Tanks — designed to perform and built to last.
RECTANGULAR SPECS

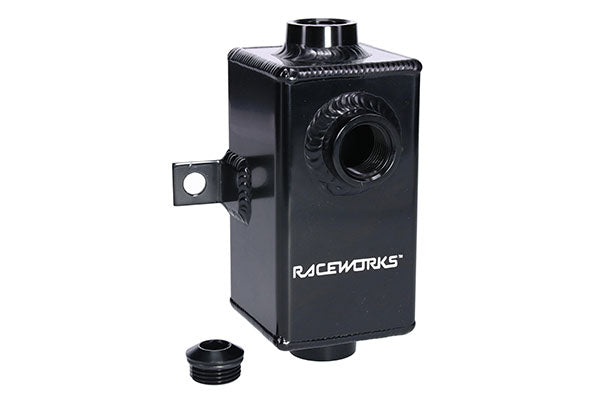

0.5L
Tank Capacity – 0.5L
Usable Volume – 0.3L
3x AN-10 ORB Ports
Tank Body Dimensions
Height: 120mm
Width: 65mm
Depth: 65mm
Includes a AN-10 ORB Plug for drain
1.0L
Tank Capacity – 1.0L
Usable Volume – 0.7L
2 x AN-8 ORB, AN-10 Drain with Tap, AN-12 Breather, Baffled
For AN-10 breather line applications, we recommend the use of RWF-920-10-08SS thin wall Stainless Steel fitting.
Height including breather and drain tap: 279mm
Height not including breather and drain tap: 200mm
Height of tank body only: 160mm
Width: 80mm
Depth: 80mm
1.6L
Tank Capacity – 1.6L
Usable Volume – 1.1L
2 x AN-12 ORB, AN-10 Drain with Tap, Twin AN-12 Breathers, Baffled
Height including breathers and drain tap: 279mm
Height not including breathers and drain tap: 203mm
Height of tank body only: 160mm
Width: 130mm
Depth: 80mm
2.0L
Tank Capacity – 2.0L
Usable Volume – 1.3L
2 x AN-12 ORB, AN-10 Drain with Tap, Twin AN-12 Breathers, Baffled
Height including breathers and drain tap: 277mm
Height not including breathers and drain tap: 203mm
Height of tank body only: 160mm
Width: 110mm
Depth: 110mm
2.7L
Tank Capacity – 2.7L
Usable Volume – 2.0L
2 x AN-12 ORB, AN-10 Drain with Tap, Twin AN-12 Breathers, Baffled
Height including breathers and drain tap: 307mm
Height not including breathers and drain tap: 266mm
Height of tank body only: 190mm
Width: 160mm
Depth: 90mm
3.5L
Tank Capacity – 3.5L
Usable Volume – 2.9L
2x AN-12 ORB Ports, AN-10 Drain with Tap. Twin AN-12 Breathers, Baffled
Height including breathers and drain tap: 370mm
Height excluding breathers and drain tap: 290mm
Height of tank body only: 250mm
Width: 120mm
Depth: 120mm
ROUND SPECS

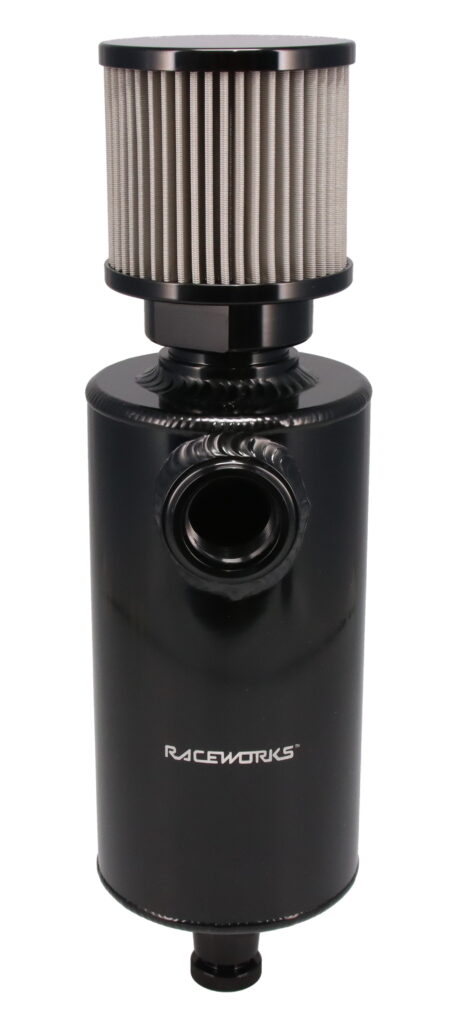

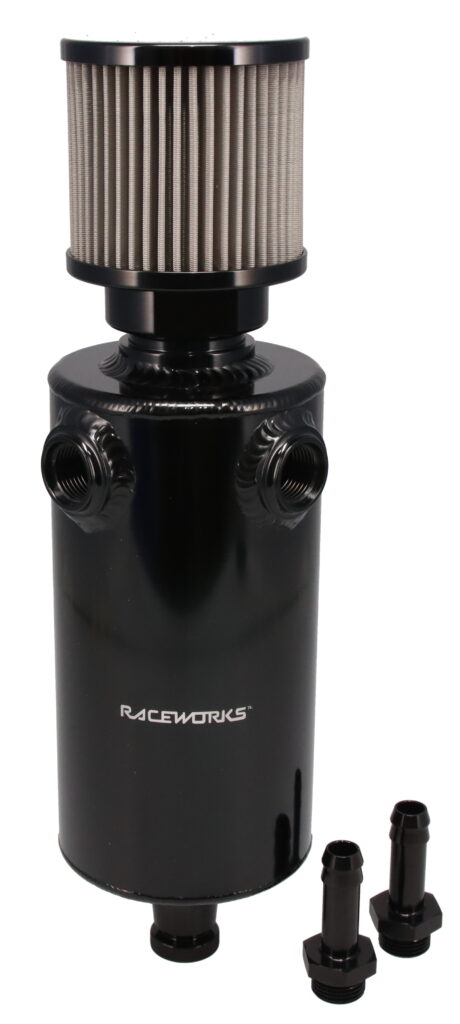

1.0L Y Fittings
Tank Capacity – 1.0L
Usable Volume – 0.8L
2 x AN-8 ORB, AN-10 Drain with Tap, AN-20 Breather, Baffled
Includes twin 1/2″ Barb Adapters
For AN-10 breather line appliations, we recommend the use of RWF-920-10-08SS thin wall stainless steel fittings
Height including breather and drain tap – 316mm
Height of tank body – 175mm
Tank Body Diameter – 90mm
Contains twin M8x1.25 bosses on the rear for mounting
Includes mounting hardware
1.0L Straight Fittings
Tank Capacity – 1.0L
Usable Volume – 0.75L
AN-12 ORB, AN-10 Drain with Tap, AN-20 Breather, Baffled
Height including breather and drain tap – 316mm
Height of tank body – 175mm
Tank Body Diameter – 90mm
Contains twin M8x1.25 bosses on the rear for mounting
Includes mounting hardware
