Paragon  |  SKU: P2R.151.350.300.22000.08.01.01

Paragon 2-piece Rotors Rear Pair 350mm x 30mm (13.78" x 1.18") - McLaren MP4-12C / 12C / 540C / 570GT

$2,148.36 AUD
Shipping calculated at checkout.

MASSIVE RANGE

Over 20,000 performance & automotive SKUs for European, JDM, American, Korean and more

NATIONWIDE FAST SHIPPING

Quick dispatch across Australia with reliable tracked delivery

AUSSIE SUPPORT & EXPERTISE

Local customer service and technical assistance from our team of enthusiasts

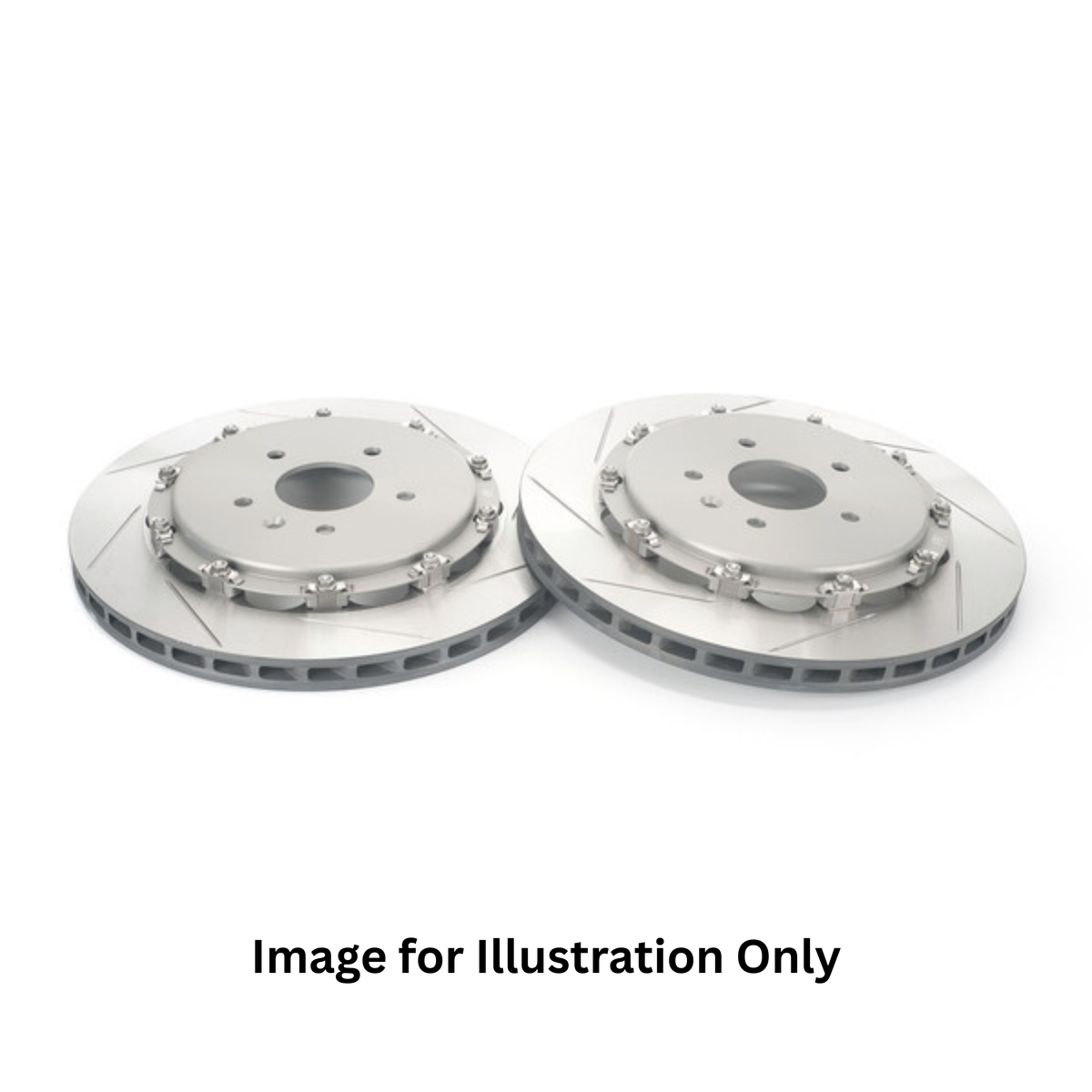

Paragon 2-piece Rotors Rear Pair 350mm x 30mm (13.78" x 1.18") — McLaren MP4-12C / 12C / 540C / 570GT

Application: MP4-12C/12C/540C/570GT Rear   |   Part Number: P2R.151.350.300.22000.08.01.01/02.R


Engineered for the thermal demands of high-performance driving, the Paragon 2-piece rear rotor pair delivers exceptional heat dissipation, reduced unsprung weight, and consistent braking performance across both road and track use. The directional ventilated vane design — featuring 48 precision-cast vanes — draws heat away from the friction surface under sustained braking loads, keeping temperatures in check lap after lap.

The friction ring is machined from CM-250 high carbon alloy cast iron, a material chosen for its superior wear resistance and thermal stability compared to standard grey iron. Each rotor is finished using CBN (Cubic Boron Nitride) turning, producing an ultra-precise surface that promotes even pad bedding and eliminates the need for a break-in grind.

The two-piece floating design pairs the iron friction ring with a lightweight 6061-T6 aerospace-grade aluminium hat via stainless steel bobbins and anti-rattle clips. The floating interface allows the ring to expand thermally without distorting the hat, reducing the risk of brake judder and extending rotor life. The slotted face pattern continuously sweeps the pad surface clean of gases and debris, maintaining consistent bite throughout the braking zone.

The aluminium hat is available in Natural or Hard Anodised finish and is bolt-on compatible with OEM McLaren rear hub carriers — no modifications required. The complete assembly arrives pre-built and ready to install, including a detailed installation manual.

Direct Replacement of: OEM McLaren part # 11C0585CP / 11C0587CP / PA2494-2429

*Does not fit vehicles with OEM carbon ceramic brakes.


Specifications:

Diameter 350mm (13.78")
Thickness (new) 30mm (1.18")
Thickness (min.) 28mm (1.10")
Type 2-piece floating
Face Pattern Slotted
Vented / Solid Directional ventilated
Number of Vanes 48
Hat Material 6061-T6 aluminum
Friction Ring Material CM-250 high carbon alloy cast iron
Rotor Finish CBN turned

Cross Reference:

OEM McLaren 11C0585CP / 11C0587CP / PA2494-2429

Sold as a pair (Left & Right). Aluminium hat finishing selection required at checkout.

This product is sourced to order. Please contact us to confirm lead time and availability before purchasing. Express shipping available on request.
