Ohlins Automotive Suspension  |  SKU: TTX-NH31

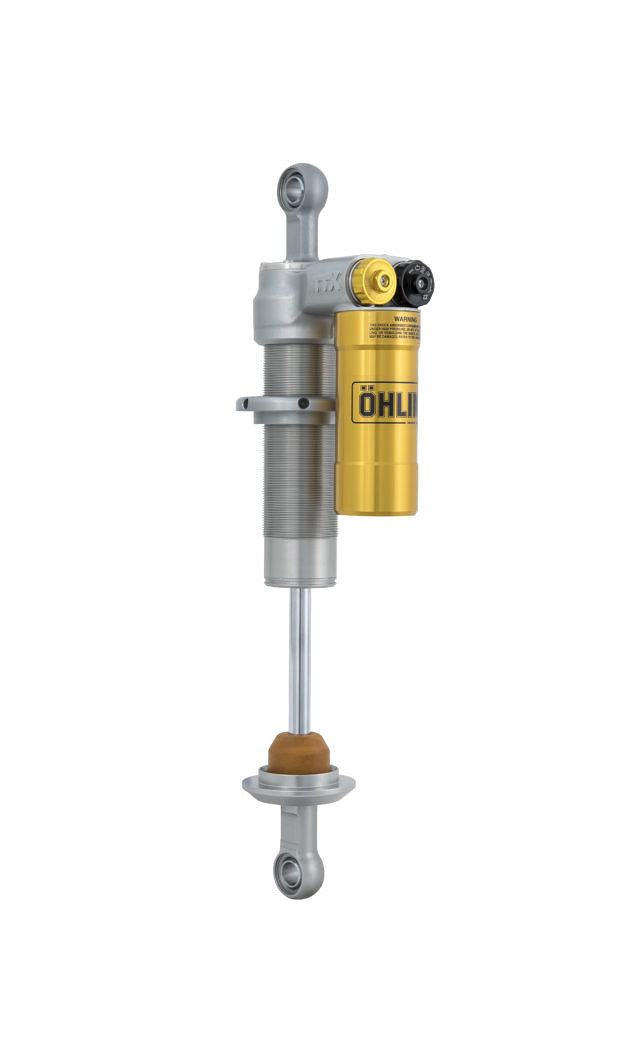

Ohlins TTX36 Universal Motorsport Damper External Reservoir SINGLE - NO SPRING

$1,899.00 AUD
Shipping calculated at checkout.
Option

MASSIVE RANGE

Over 20,000 performance & automotive SKUs for European, JDM, American, Korean and more

NATIONWIDE FAST SHIPPING

Quick dispatch across Australia with reliable tracked delivery

AUSSIE SUPPORT & EXPERTISE

Local customer service and technical assistance from our team of enthusiasts

The TTX 36 is a popular choice, especially for Touring- & GT-cars, as well as in single seater applications. The design is compact with light weight components. This version is a piggy back type with an external reservoir and is of a non-through rod type. The standard configuration is 2-way adjusted; 1-way compression and 1-way rebound, but is easy to upgrade to become 3- or even 4-way adjusted. It’s one of our most versatile dampers and is used for many different applications.

Five lengths are available from 283 mm up to 490 mm, measure without end- and top eye. Still with a compact light weight design this versatile racing shock absorber is 2-way adjustable but can also be upgraded to 3- and 4-way adjusted.

Features:

  • TTX-technology
  • Piggy back
  • 36 mm solid piston
  • 2-way adjusted, compression and rebound
  • Possible to upgrade to 3- and 4-way adjustable
  • Available in different lengths
  • Available with a internal blow-off piston kit
  • Available with high frequency piston
  • Fully rebuildable

Notes:

  • Sold Individually
  • Sold Without Springs
