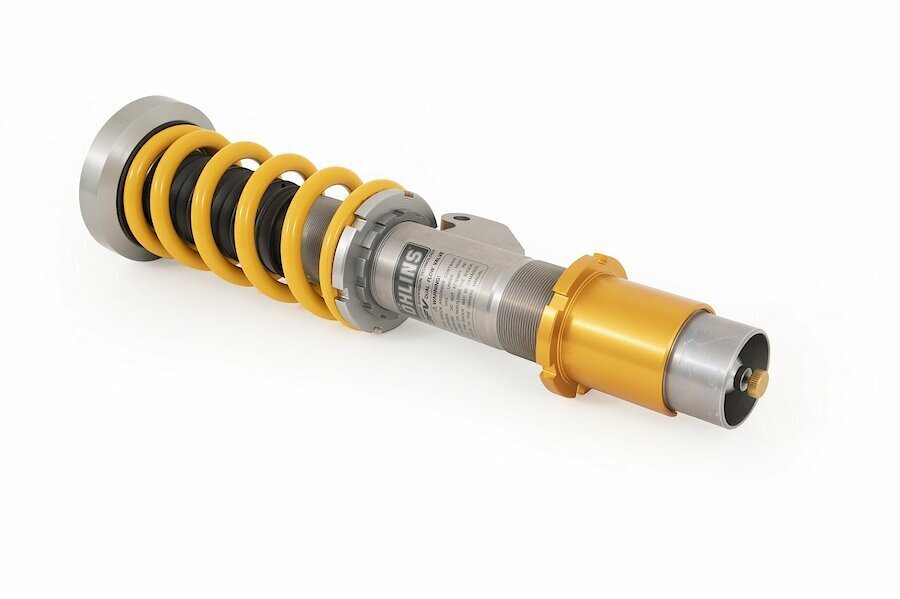

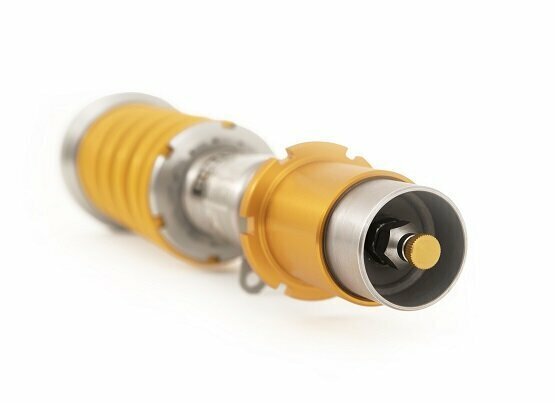

Öhlins Road & Track Coilovers – Toyota Supra A90 & BMW Z4 G29
Öhlins Road & Track Coilovers – Toyota Supra A90 & BMW Z4 G29
Part Number: TOS MU00S1 | Fitment: Toyota Supra A90 & BMW Z4 G29 (incl. RWD & xDrive AWD)
Over 40 years of motorsport engineering distilled into a street-ready coilover kit. The Öhlins Road & Track series delivers a genuine racing experience without sacrificing daily drivability — thanks to Öhlins' proprietary Dual Flow Valve (DFV) technology. Featuring a McPherson front strut and conventional rear shock with ~20mm drop, this kit is engineered for the shared A90/G29 platform. Springs are included.
⚠️ Note: For vehicles equipped OE with electronic adjustable suspension, an Öhlins cancellation kit is also required (sold separately). See cancellation kit table below.
Vehicle Fitment
| Toyota Supra | A90 — 2019+ |
| BMW Z4 | G29 — incl. RWD & xDrive AWD — 2019+ |
Technical Specifications
| Part Number | TOS MU00S1 |
| Technology | DFV — Dual Flow Valve |
| Front Damper Type | McPherson strut |
| Rear Damper Type | Conventional shock absorber |
| Damping Adjustment | Single bleed adjuster (front & rear) |
| Front Spring Rate | 90 N/mm (Part No. 48010-27) — included |
| Rear Spring Rate | 160 N/mm (Part No. 48010-55) — included |
| Lowering Range | Approx. 20mm below standard (front & rear) |
| Top Mounts | Use with original top mounts (front & rear) |
| Springs | Included |
| Rebuildable | Yes |
| Corrosion Testing | ISO 9227 salt spray tested |
| Warranty | 2-year limited warranty |
Included Springs
| Position | Part No | Spring Rate |
|---|---|---|
| Front | 48010-27 | 90 N/mm |
| Rear | 48010-55 | 160 N/mm |
Cancellation Kit (if required)
For vehicles equipped OE with electronic adjustable suspension, an Öhlins cancellation kit must also be used. Ordered separately.
| Part No | Description |
|---|---|
| 35020-30 | Cancellation kit |
General Features
- DFV technology (Dual Flow Valve) — Öhlins' proprietary damping system
- Individual height adjustment
- Single bleed adjuster — compression and rebound
- Rebuildable for custom tuning
- Corrosion salt spray tested (ISO 9227)
- 2-year limited warranty
- Springs included

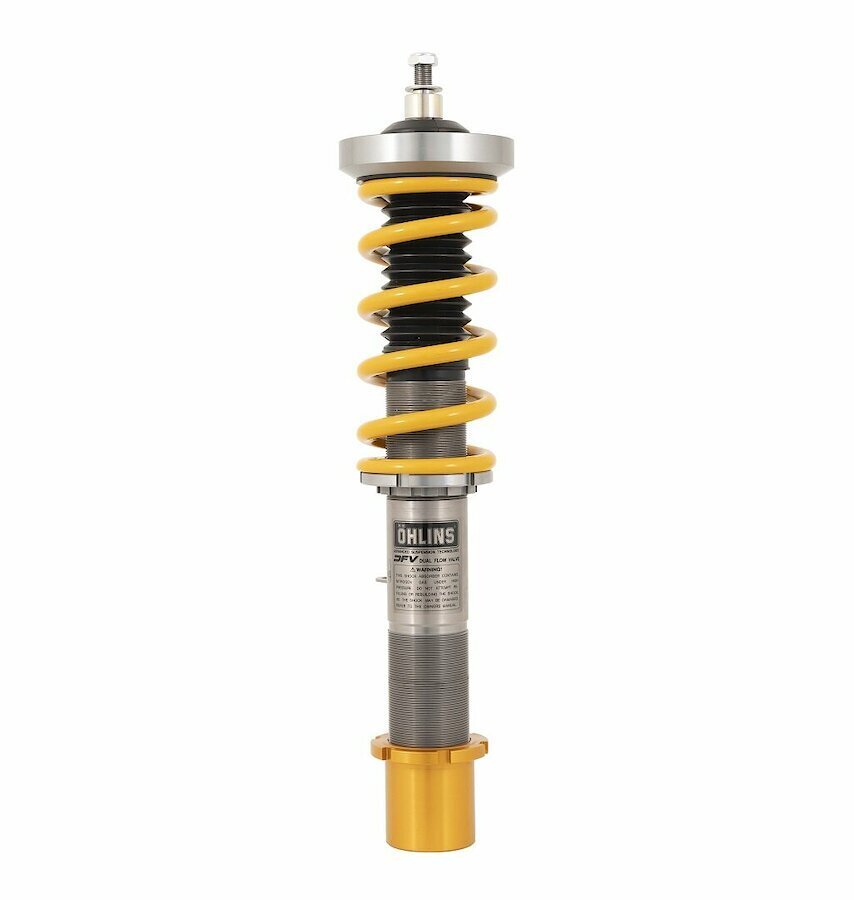

Front Features
- McPherson strut
- Single bleed adjuster
- Spring preload adjuster
- Height adjustable — approx. 20mm lower than standard
- Coil springs 90 N/mm — included (Part No. 48010-27)
- Use with original top mounts

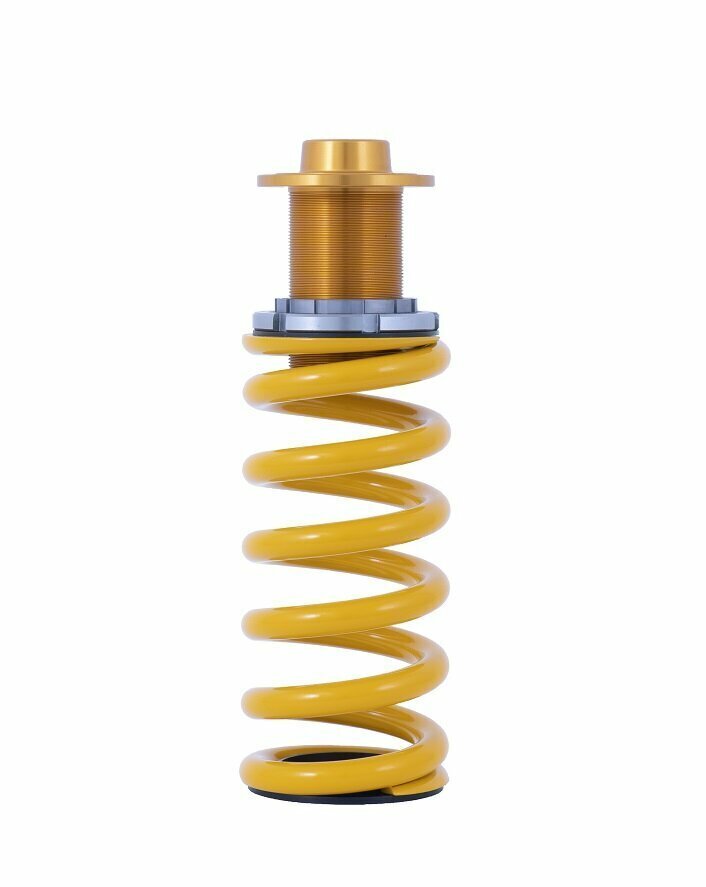

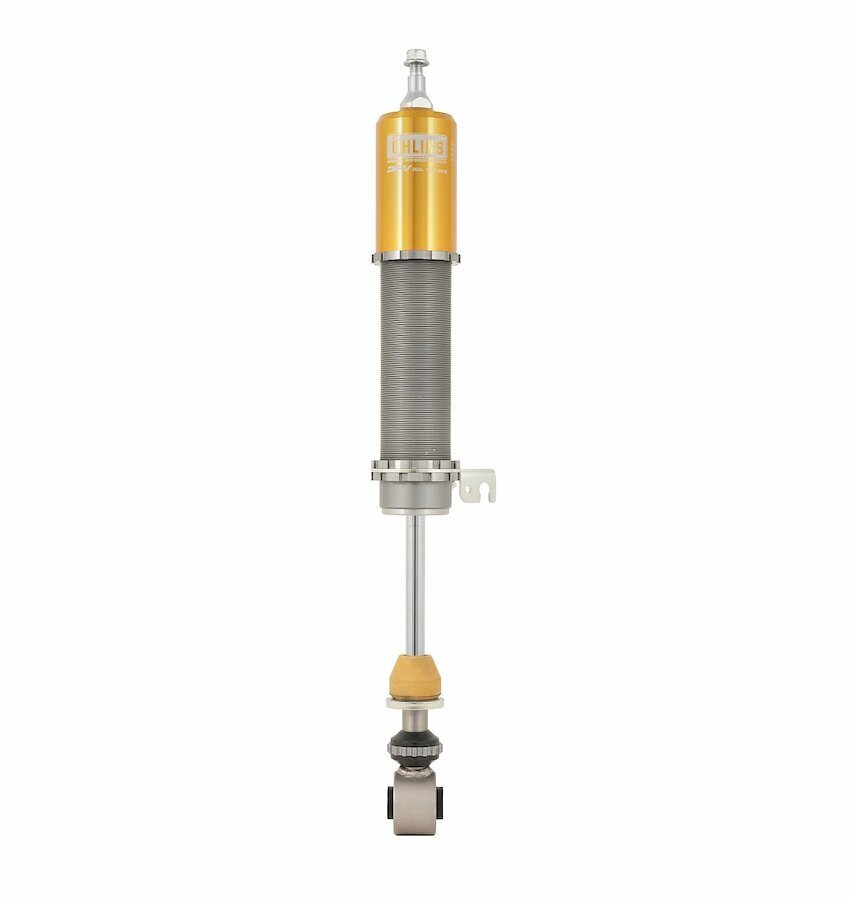

Rear Features
- Conventional shock absorber
- Single bleed adjuster
- Separate spring preload adjuster
- Height adjustable — approx. 20mm lower than standard
- Coil springs 160 N/mm — included (Part No. 48010-55)
- Use with original top mounts

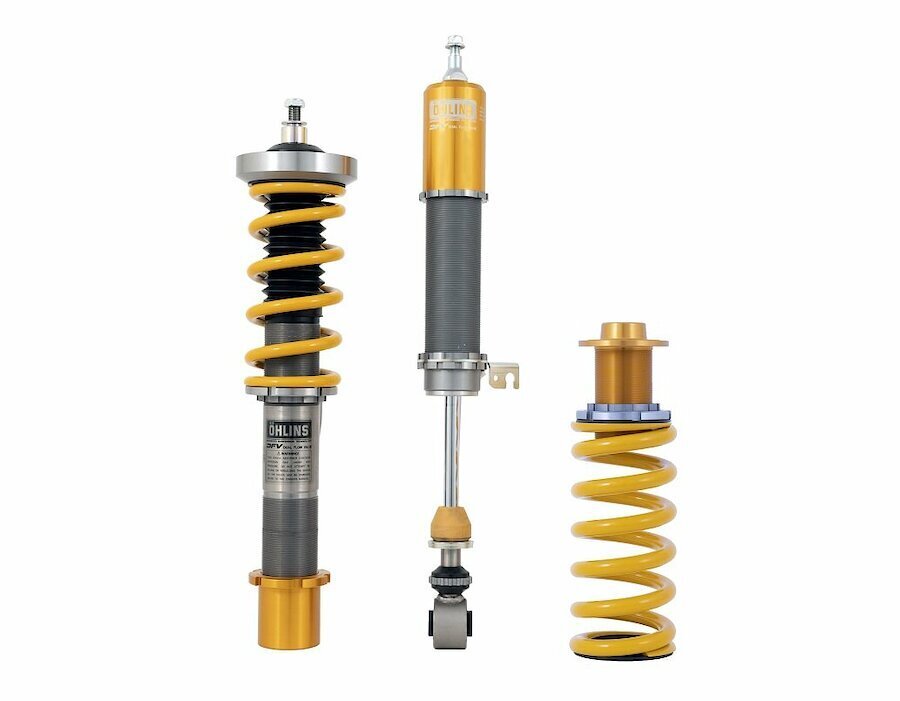

Kit Contents
- Coilover damper kit
- Front coil springs — 90 N/mm (Part No. 48010-27)
- Rear coil springs — 160 N/mm (Part No. 48010-55)
- C-spanner for spring preload adjustment
- Owner's manual and mounting instructions
What is DFV (Dual Flow Valve)?
DFV is Öhlins' proprietary damping technology that sets the Road & Track range apart from conventional coilovers. The dual flow valve provides consistent damping characteristics on both compression and rebound strokes — the damper fluid follows a consistent flow path in both directions. This means the wheel and tyre can rapidly return to the road surface after a bump, maximising grip and traction at all times.
Because DFV opens more quickly on minor road imperfections, ride comfort is surprisingly supple — more akin to an OEM strut than a typical coilover. Over undulating surfaces, the compliance of the R&T units allows the car to crest bumps and potholes while remaining stable and in control. Traction is always maintained at its optimum level.
Why Öhlins Road & Track?
- ✅ Over 40 years of motorsport engineering heritage — trusted by factory race teams worldwide
- ✅ DFV technology — genuine race-car response with OEM-level daily comfort
- ✅ Shared A90/G29 platform fitment — suits Toyota Supra & BMW Z4 (RWD & AWD)
- ✅ Precision ride height adjustment — spring geometry is never compromised
- ✅ Rebuildable, ISO 9227 corrosion-tested, 2-year limited warranty
