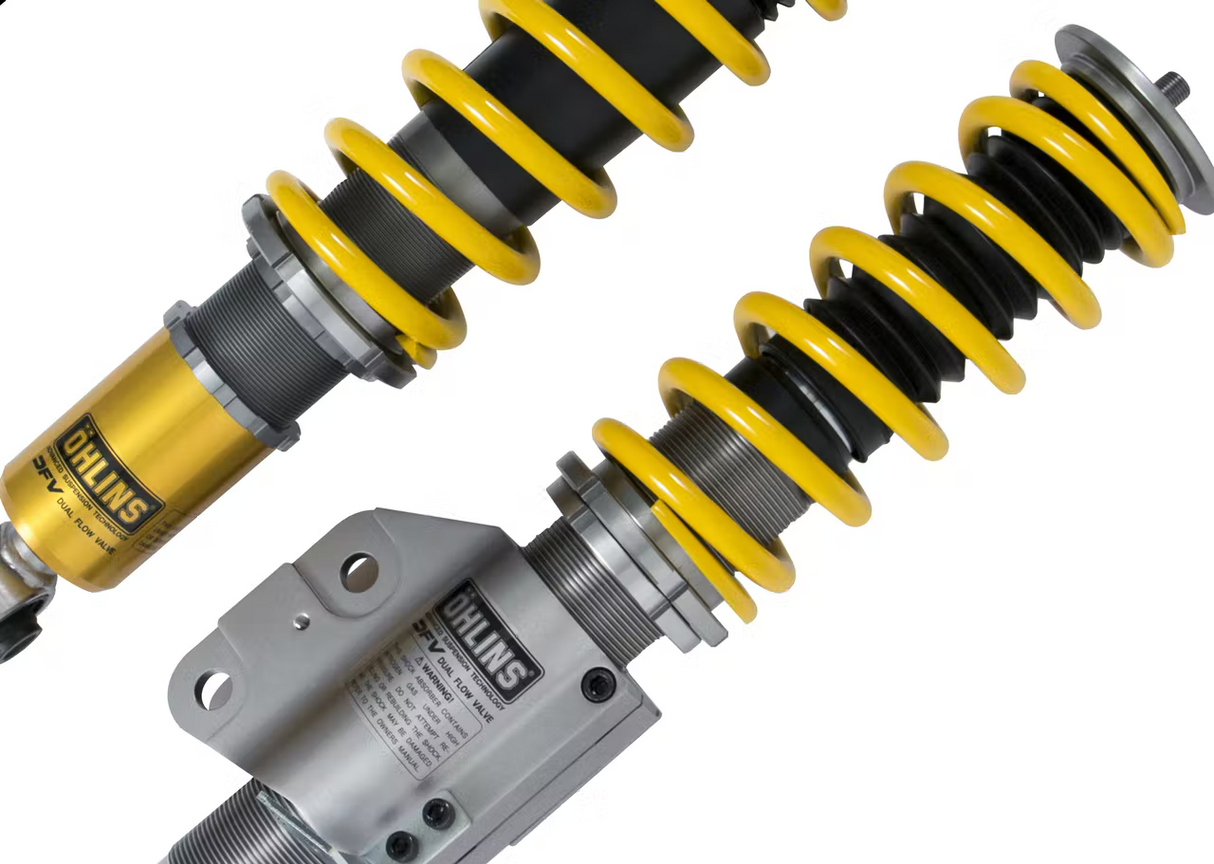

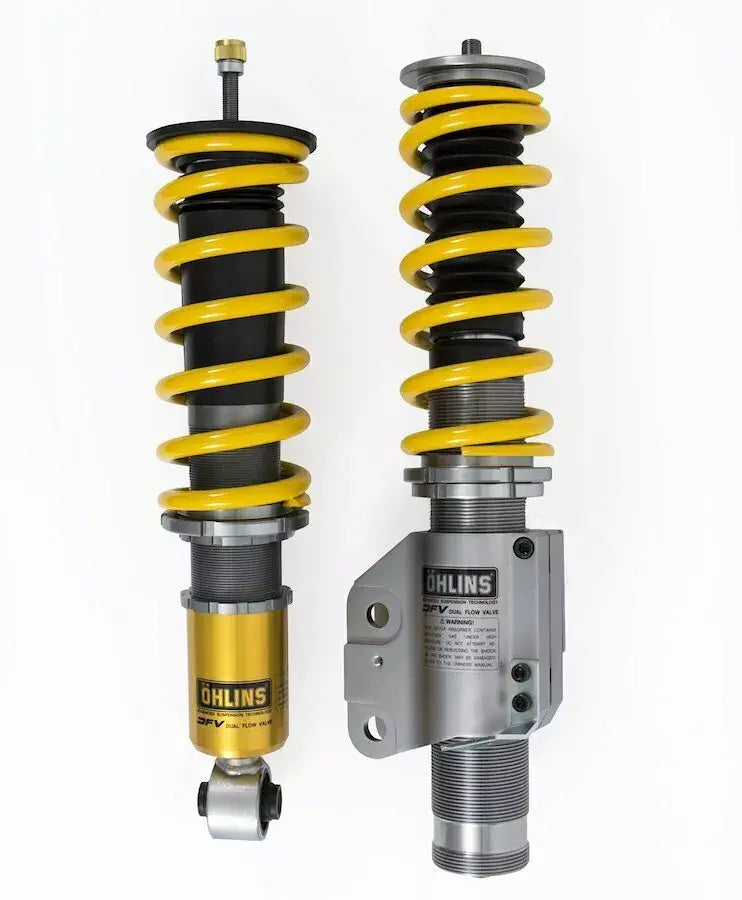

Öhlins Road & Track Coilovers – Subaru BRZ / Toyota 86 / GR86 (2012+)
Part Number: SUS MP21S2 | Supersedes: SUS MP21S1 | Fitment: 2012–2021 Subaru BRZ & Toyota 86/GT86 | 2022+ Subaru BRZ & Toyota GR86
Over 40 years of motorsport engineering distilled into a street-ready coilover kit. The Öhlins Road & Track series delivers a genuine racing experience without sacrificing daily drivability — thanks to Öhlins' proprietary Dual Flow Valve (DFV) technology. Corrosion-tested to ISO 9227 and backed by a 2-year worldwide limited warranty.
Vehicle Fitment
| Subaru BRZ | 2012–2021 (ZC6) & 2022+ (ZD8) |
| Toyota 86 / GT86 | 2012–2021 (ZN6) |
| Toyota GR86 | 2022+ (ZN8) |
Technical Specifications
| Part Number | SUS MP21S2 |
| Supersedes | SUS MP21S1 |
| Front Damper Type | McPherson strut (upside down) |
| Rear Damper Type | Conventional shock absorber |
| Front Spring Rate | 60 N/mm |
| Rear Spring Rate | 60 N/mm |
| Front Lowering Range | Approx. 10–35mm below standard |
| Rear Lowering Range | Approx. 5–25mm below standard |
| Damping Adjustment | Combined compression & rebound (single adjuster, front & rear) |
| Top Mounts | Use with original top mounts (Öhlins top mounts available separately) |
| Corrosion Testing | ISO 9227 salt spray tested |
| Warranty | 2-year worldwide limited warranty |
| Rebuildable | Yes |
General Features
- DFV technology (Dual Flow Valve) — Öhlins' proprietary damping system
- Individual ride height adjustment via threaded lower flange (spring seat position maintained)
- Spring preload adjustment with included C-spanner
- Rebuildable construction for long-term serviceability
- Corrosion salt spray tested to ISO 9227
- 2-year worldwide limited warranty
Front Features

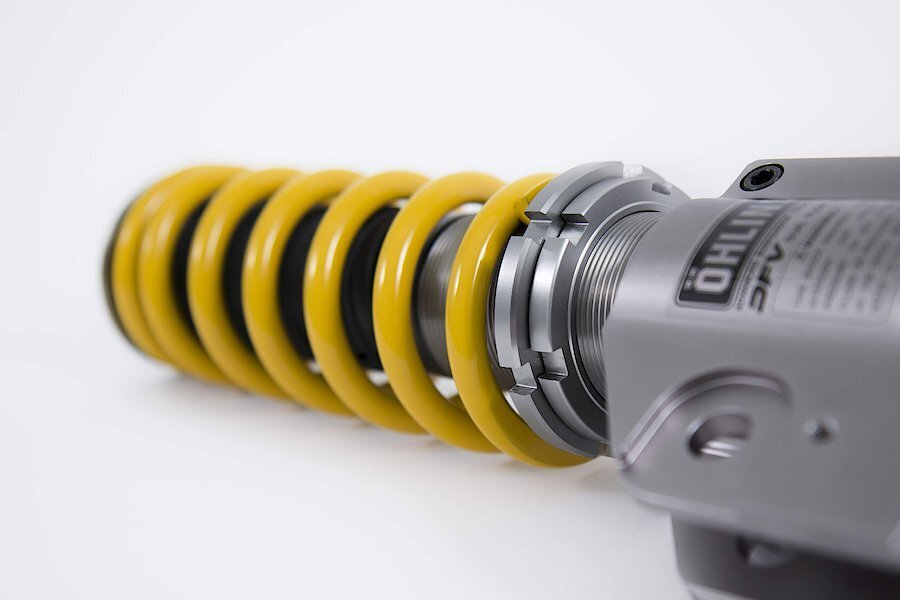

- McPherson strut — upside down design
- Combined compression & rebound damping via single adjuster
- Spring preload adjuster
- Separate ride height adjustment
- Approx. 10–35mm lower than standard
- Spring rate: 60 N/mm
- Use with original top mounts (Öhlins top mounts available separately)
Rear Features

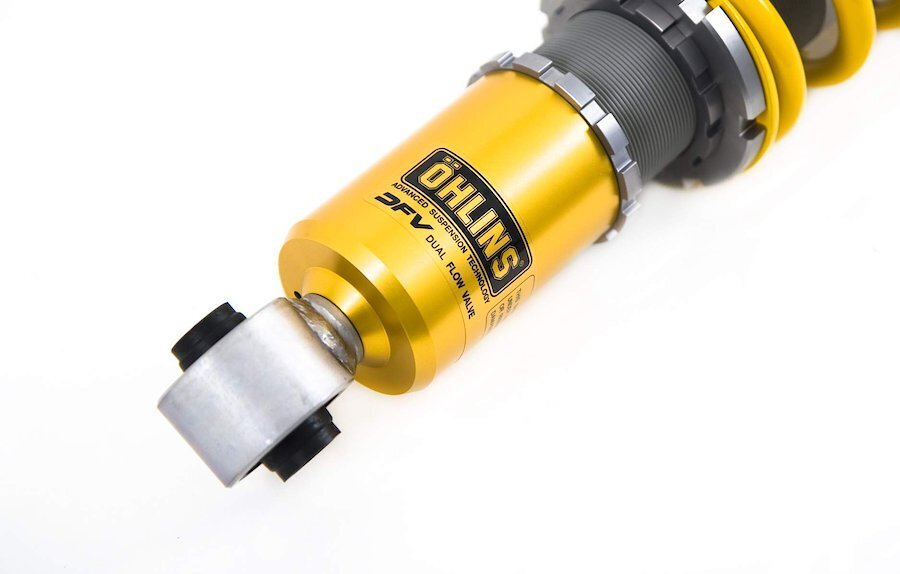

- Conventional shock absorber design
- Combined compression & rebound damping via single adjuster
- Spring preload adjuster
- Separate ride height adjustment
- Approx. 5–25mm lower than standard
- Spring rate: 60 N/mm
- Use with original top mounts (Öhlins top mounts available separately)
Kit Contents
- Complete coilover suspension kit including springs and all mounting hardware
- C-spanner for spring preload adjustment
- Owner's manual and mounting instructions
- Öhlins sticker set
What is DFV (Dual Flow Valve)?
DFV is Öhlins' proprietary damping technology that sets the Road & Track range apart from conventional coilovers. The dual flow valve provides consistent damping characteristics on both compression and rebound strokes — the damper fluid follows a consistent flow path in both directions. This means the wheel and tyre can rapidly return to the road surface after a bump, maximising grip and traction at all times.
Because DFV opens more quickly on minor road imperfections, ride comfort is surprisingly supple — more akin to an OEM strut than a typical coilover. Over undulating surfaces, the compliance of the R&T units allows the car to crest bumps and potholes while remaining stable and in control. Traction is always maintained at its optimum level.
Öhlins also incorporates a unique needle bleed valve that expands with temperature, compensating for changes in fluid viscosity as the damper heats up. The result: consistent damping performance lap after lap, regardless of operating temperature.
Why Öhlins Road & Track?
- ✅ Over 40 years of motorsport engineering heritage — trusted by factory race teams worldwide
- ✅ Proprietary DFV technology delivers genuine race-car response with OEM-level daily comfort
- ✅ Rebuildable and fully serviceable for long-term ownership and track use
- ✅ Precision ride height adjustment via threaded lower flange — spring geometry is never compromised
- ✅ ISO 9227 corrosion-tested and backed by a 2-year worldwide limited warranty
