Öhlins Road & Track Coilovers – Hyundai i30N PDE (2017+)
Öhlins Road & Track Coilovers – Hyundai i30N PDE (2017+)
Part Number: HYS MT00S1 | Fitment: Hyundai i30N — PDE.1 / PDE.2 / PDE.3 — 2017+

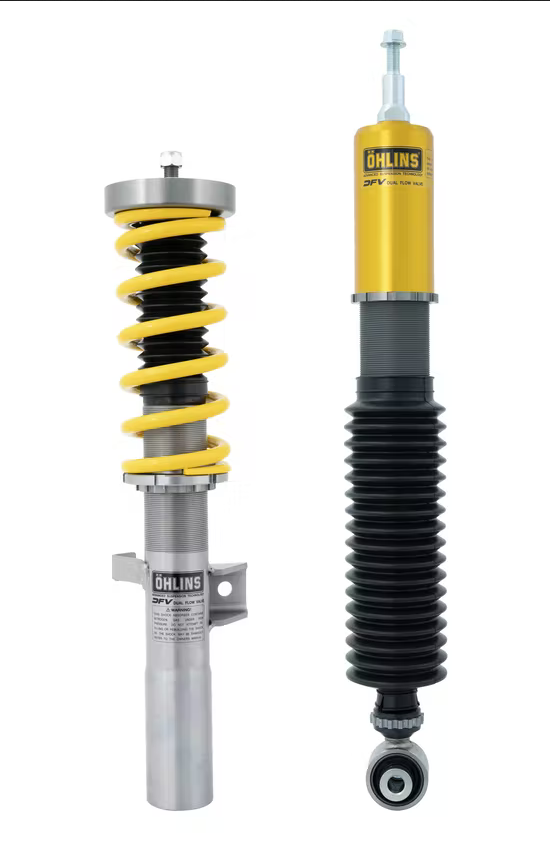

Over 40 years of motorsport engineering distilled into a street-ready coilover kit. The Öhlins Road & Track series delivers a genuine racing experience without sacrificing daily drivability — thanks to Öhlins' proprietary Dual Flow Valve (DFV) technology. Featuring a McPherson front strut and conventional rear shock with a 10–15mm lowering range, springs included as a complete car set. Corrosion-tested to ISO 9227 and backed by a 2-year limited warranty.
⚠️ Note: For vehicles equipped OE with electronic adjustable suspension, an Öhlins cancellation kit is also required (sold separately). See cancellation kit table below.
Vehicle Fitment
| Hyundai i30N | PDE.1 / PDE.2 / PDE.3 — 2017+ |
Technical Specifications
| Part Number | HYS MT00S1 |
| Technology | DFV — Dual Flow Valve |
| Front Damper Type | McPherson strut |
| Rear Damper Type | Conventional shock absorber |
| Damping Adjustment | Single bleed adjuster (front & rear) |
| Front Spring Rate | 60 N/mm (Part No. 48010-15) — included |
| Rear Spring Rate | 90 N/mm (Part No. 48000-27) — included |
| Lowering Range | Approx. 10–15mm below standard (front & rear) |
| Top Mounts | Use with original top mounts (front & rear) |
| Springs Included | Yes — front & rear springs included |
| Rebuildable | Yes |
| Corrosion Testing | ISO 9227 salt spray tested |
| Warranty | 2-year limited warranty |

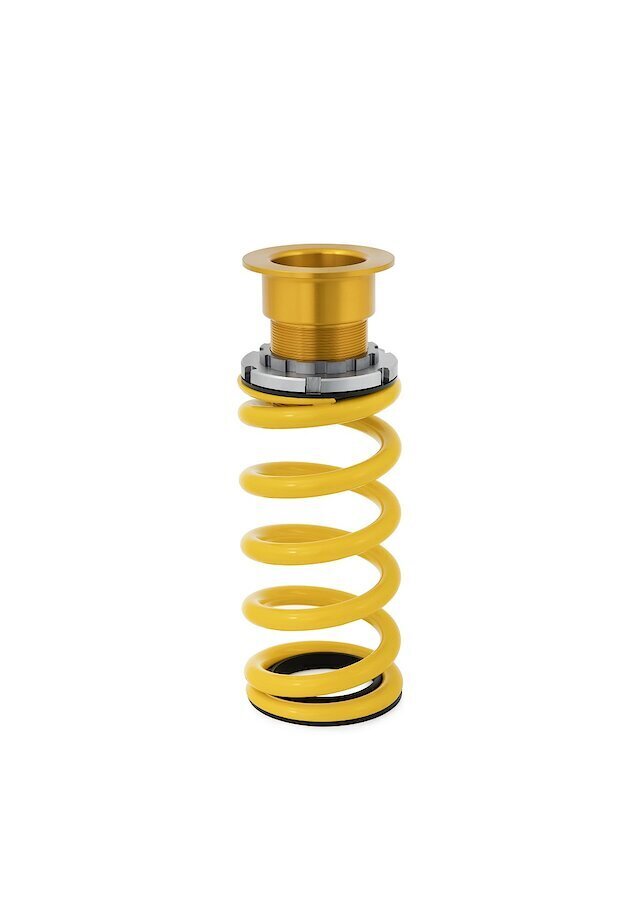

Included Springs
| Position | Part No | Spring Rate |
|---|---|---|
| Front | 48010-15 | 60 N/mm |
| Rear | 48000-27 | 90 N/mm |
Cancellation Kit (if required)
For vehicles equipped OE with electronic adjustable suspension, an Öhlins cancellation kit must also be used. Ordered separately.
| Part No | Description |
|---|---|
| 35020-26 | Cancellation kit |
General Features
- DFV technology (Dual Flow Valve) — Öhlins' proprietary damping system
- Individual height adjustment — approx. 10–15mm below standard
- Single bleed adjuster — compression and rebound
- Rebuildable for custom tuning
- Corrosion salt spray tested (ISO 9227)
- 2-year limited warranty
- Front & rear springs included

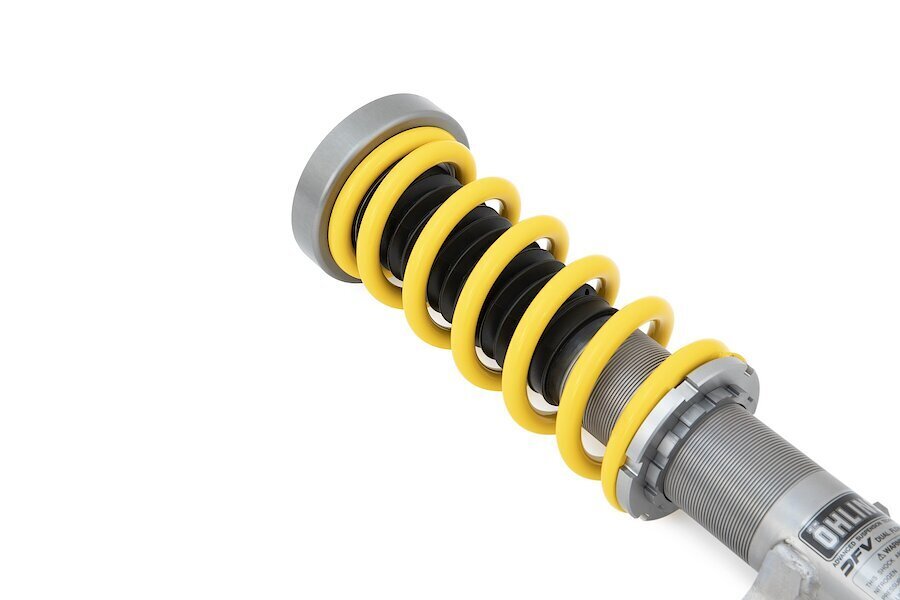

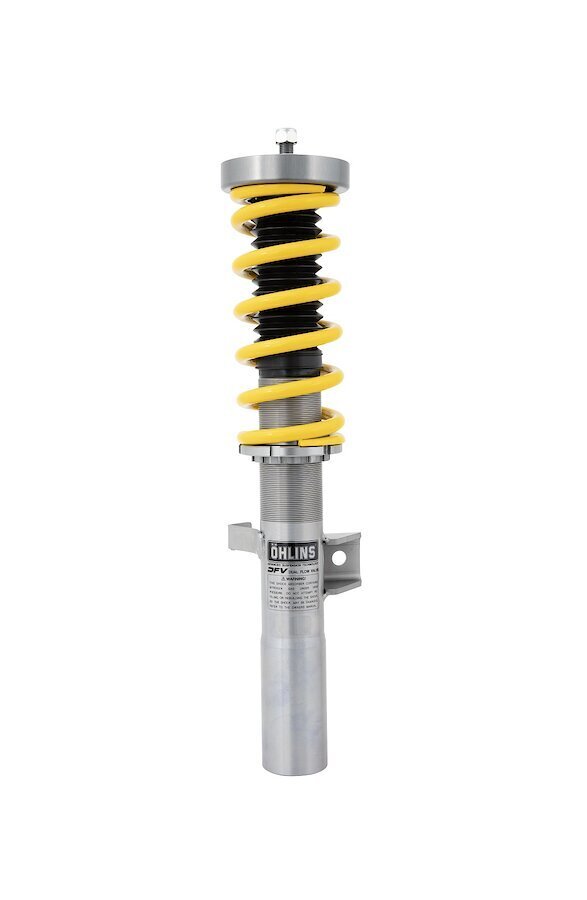

Front Features
- McPherson strut
- Single bleed adjuster
- Height adjustable — approx. 10–15mm lower than standard
- Coil springs included (60 N/mm — Part No. 48010-15)
- Use with original top mounts

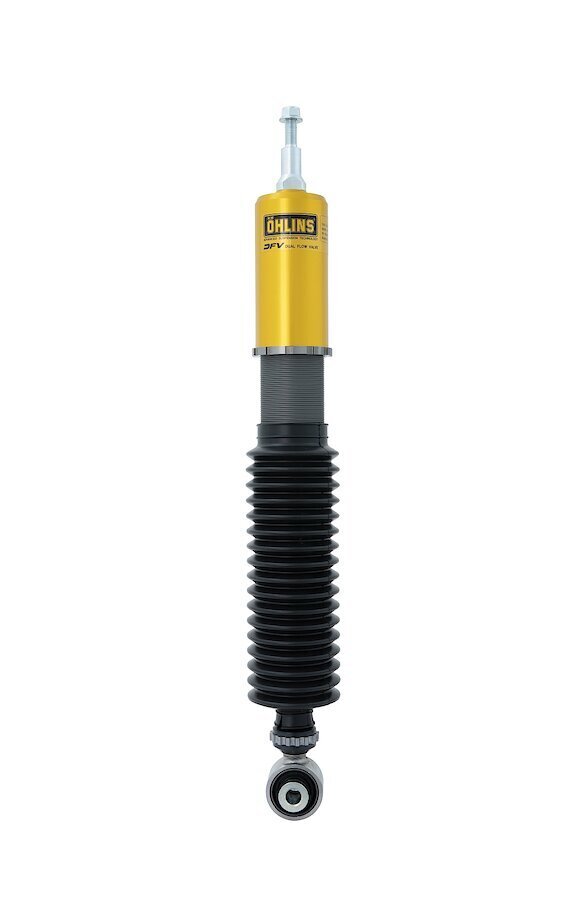

Rear Features
- Conventional shock absorber
- Single bleed adjuster
- Height adjustable — approx. 10–15mm lower than standard
- Coil springs included (90 N/mm — Part No. 48000-27)
- Use with original top mounts
Kit Contents
- Complete coilover kit including springs and all mounting parts
- C-spanner for spring preload adjustment
- Owner's manual and mounting instructions
- Öhlins sticker set
What is DFV (Dual Flow Valve)?
DFV is Öhlins' proprietary damping technology that sets the Road & Track range apart from conventional coilovers. The dual flow valve provides consistent damping characteristics on both compression and rebound strokes — the damper fluid follows a consistent flow path in both directions. This means the wheel and tyre can rapidly return to the road surface after a bump, maximising grip and traction at all times.
Because DFV opens more quickly on minor road imperfections, ride comfort is surprisingly supple — more akin to an OEM strut than a typical coilover. Over undulating surfaces, the compliance of the R&T units allows the car to crest bumps and potholes while remaining stable and in control. Traction is always maintained at its optimum level.
Why Öhlins Road & Track?
- ✅ Over 40 years of motorsport engineering heritage — trusted by factory race teams worldwide
- ✅ DFV technology — genuine race-car response with OEM-level daily comfort
- ✅ Covers i30N PDE.1, PDE.2 & PDE.3 — all generations of the performance hatch
- ✅ Springs included — 60/90 N/mm front & rear, ready to fit
- ✅ Rebuildable, ISO 9227 corrosion-tested, 2-year limited warranty
