Öhlins Road & Track Coilovers – Subaru WRX VB (2022+)
Öhlins Road & Track Coilovers – Subaru WRX VB (2022+)
Part Number: SUS MX00S1 | Chassis Code: VB | Fitment: Subaru WRX 2022+
Over 40 years of motorsport engineering distilled into a street-ready coilover kit. The Öhlins Road & Track series delivers a genuine racing experience without sacrificing daily drivability — thanks to Öhlins' proprietary Dual Flow Valve (DFV) technology. Featuring a 1-way 25-click compression and rebound adjuster, a wide 15–35mm lowering range, and monotube upside-down front strut technology, this kit unlocks the true potential of the Subaru WRX VB. Springs are included. Corrosion-tested to ISO 9227 and backed by a 2-year limited warranty.
Vehicle Fitment
| Subaru WRX | VB chassis — 2022 to present |
Technical Specifications
| Part Number | SUS MX00S1 |
| Technology | DFV — Dual Flow Valve |
| Damping Adjustment | 1-way — 25-click compression & rebound adjuster |

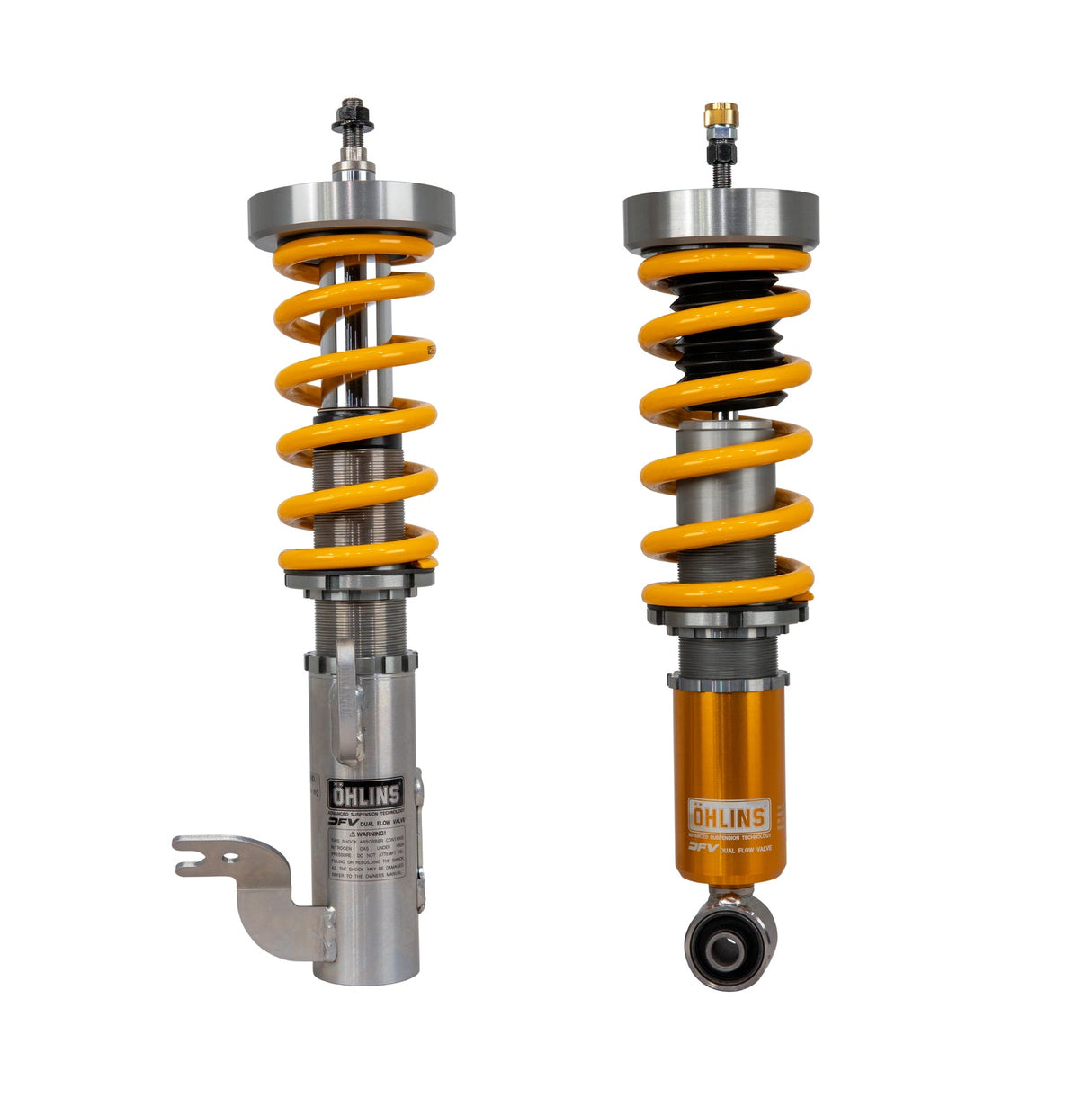

| Front Damper Type | McPherson strut — monotube upside-down |
| Rear Damper Type | Aluminium monotube shock absorber |
| Front Spring Rate | 90 N/mm — included |
| Rear Spring Rate | 90 N/mm — included |
| Lowering Range | Approx. 15–35mm below standard (front & rear) |
| Top Mounts | Use with original top mounts (front & rear) |
| Springs Included | Yes — front & rear springs included |
| Rebuildable | Yes — rebuildable for custom tuning |
| Corrosion Testing | ISO 9227 salt spray tested |
| Warranty | 2-year limited warranty |

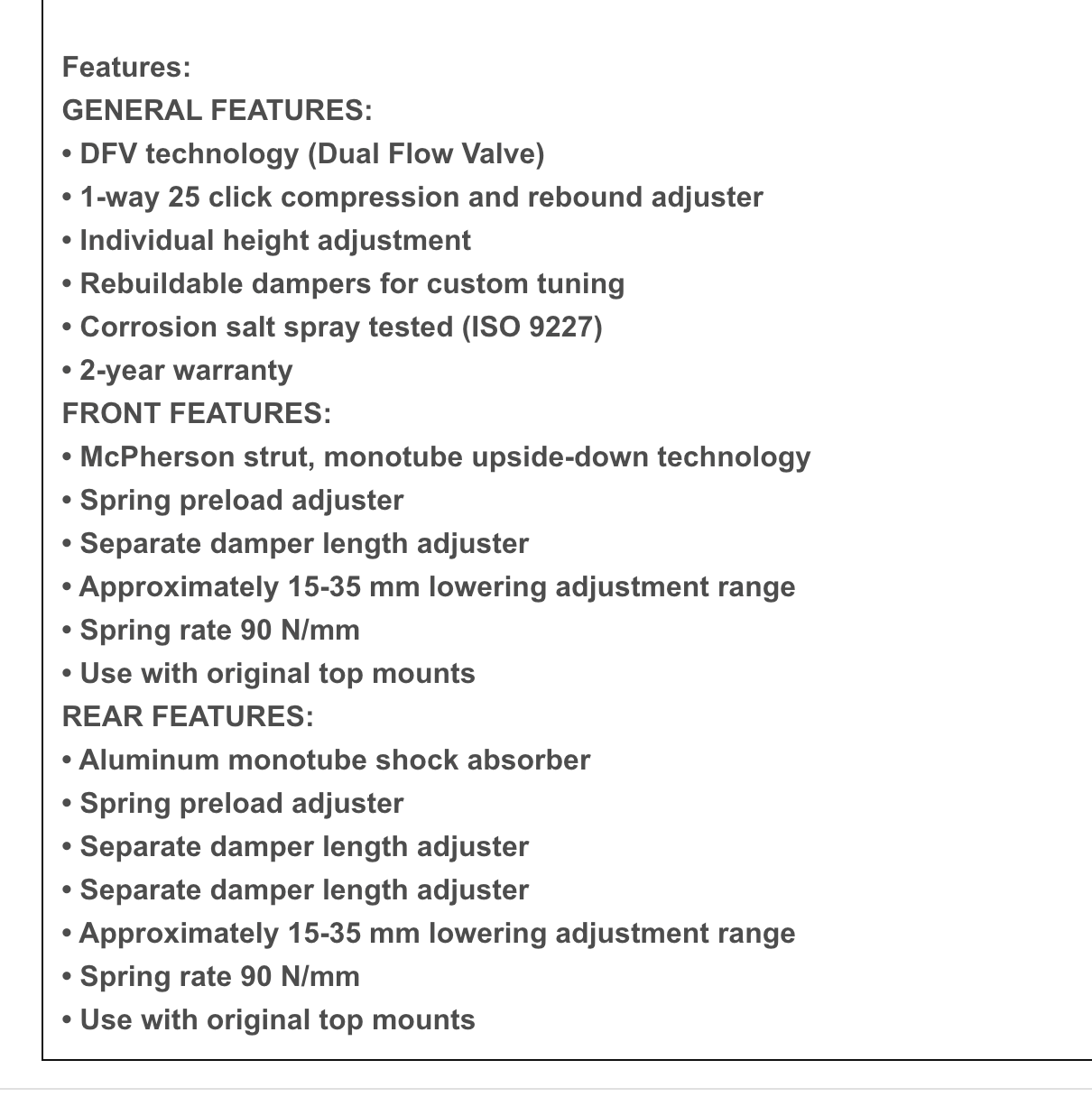

General Features
- DFV technology (Dual Flow Valve) — Öhlins' proprietary damping system
- 1-way 25-click compression and rebound adjuster
- Individual height adjustment
- Rebuildable dampers for custom tuning
- Corrosion salt spray tested (ISO 9227)
- 2-year limited warranty
- Front & rear springs included
Front Features

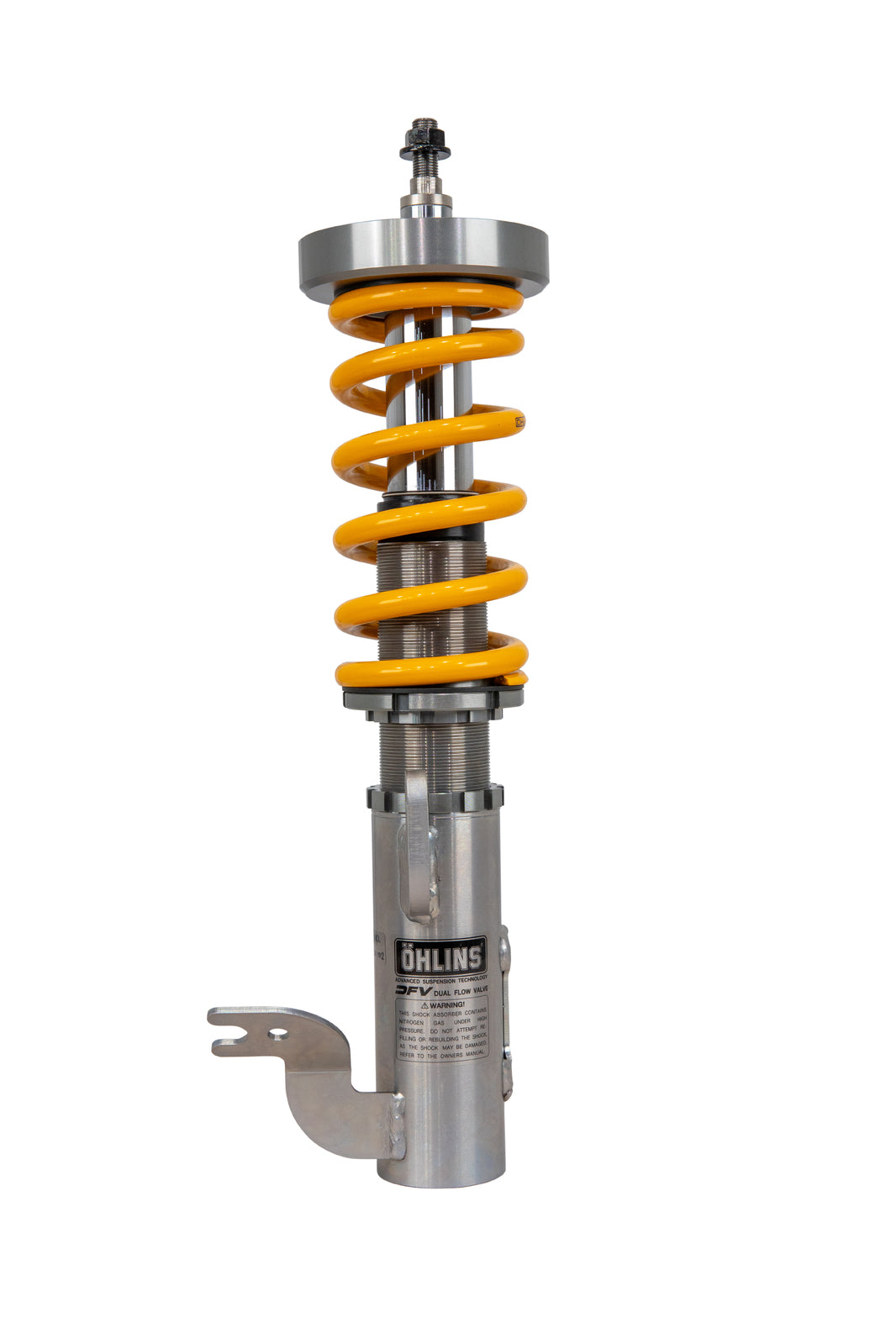

- McPherson strut — monotube upside-down technology

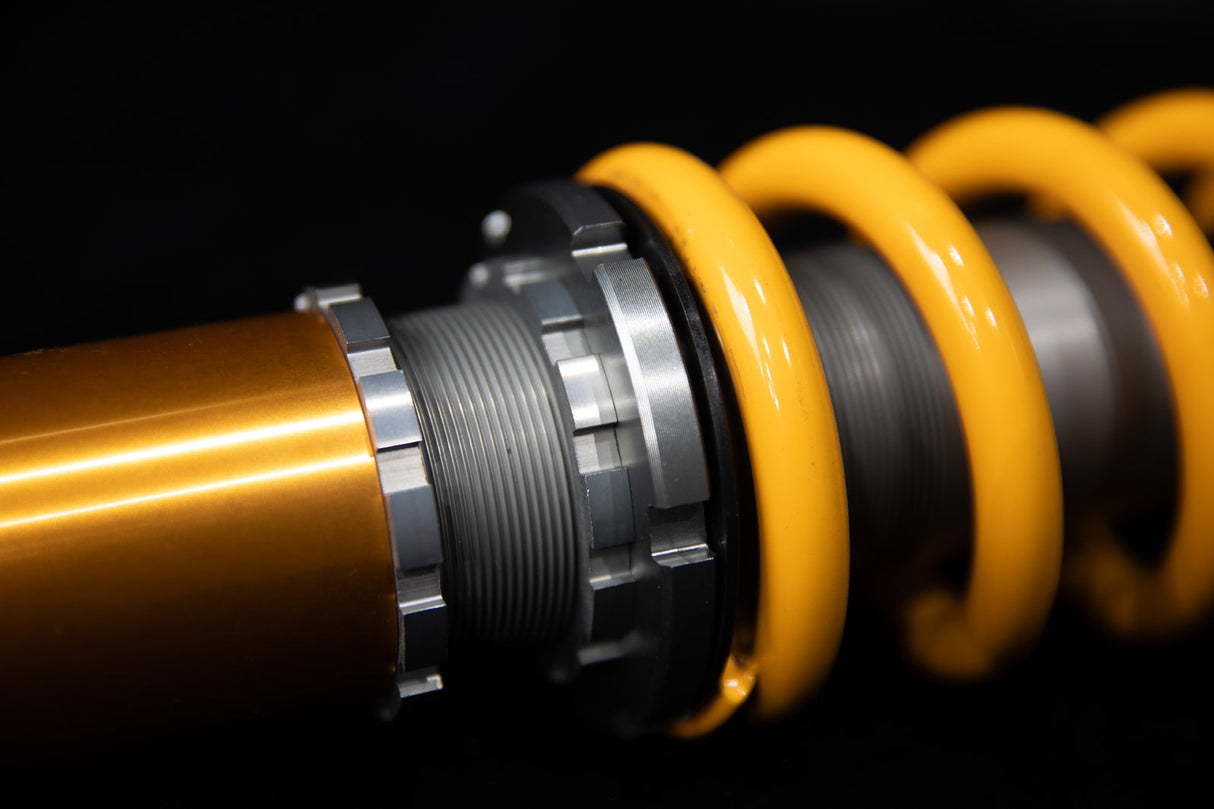

- Spring preload adjuster
- Separate damper length adjuster
- Height adjustable — approx. 15–35mm lowering adjustment range
- Spring rate 90 N/mm — included
- Use with original top mounts

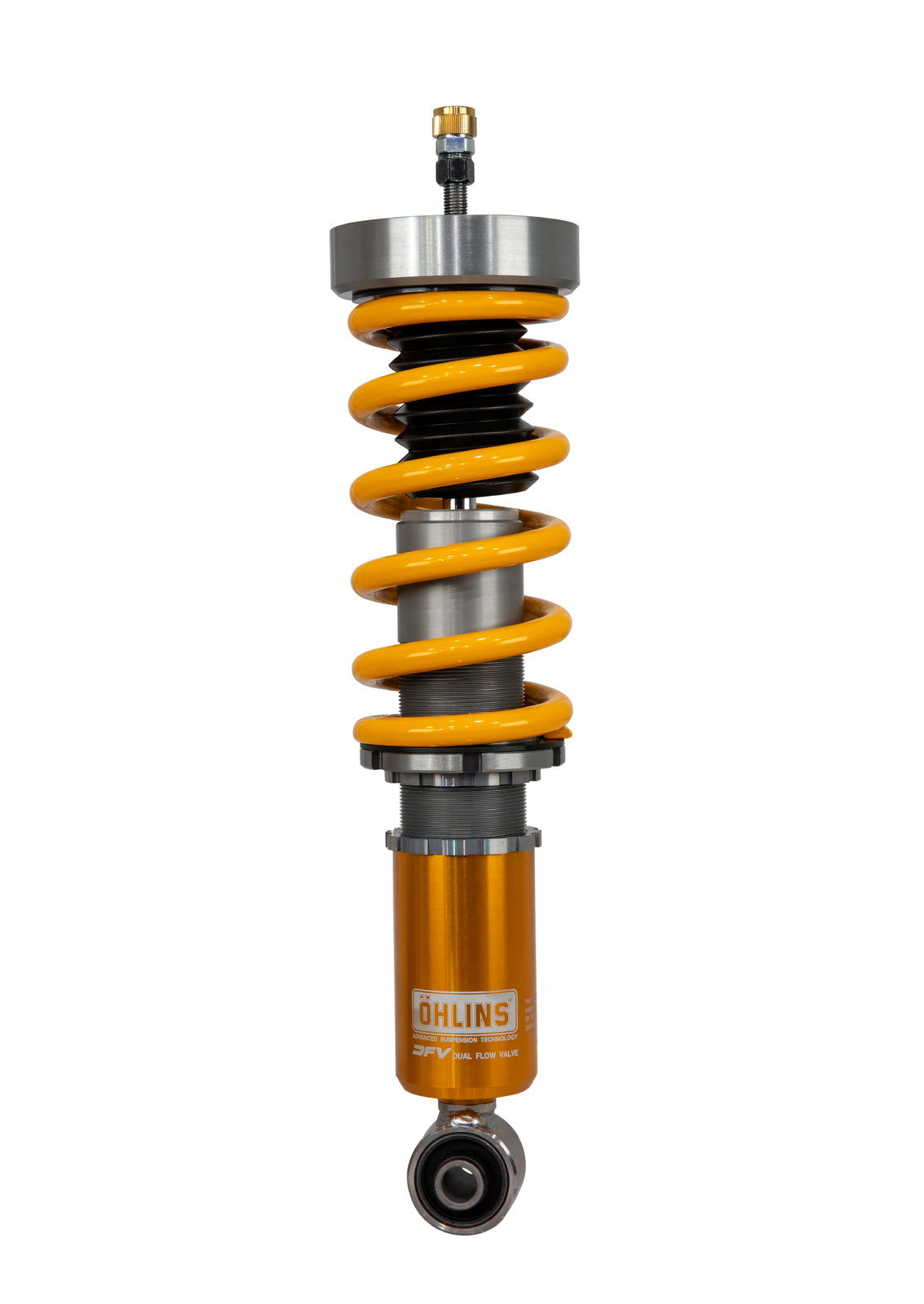

Rear Features

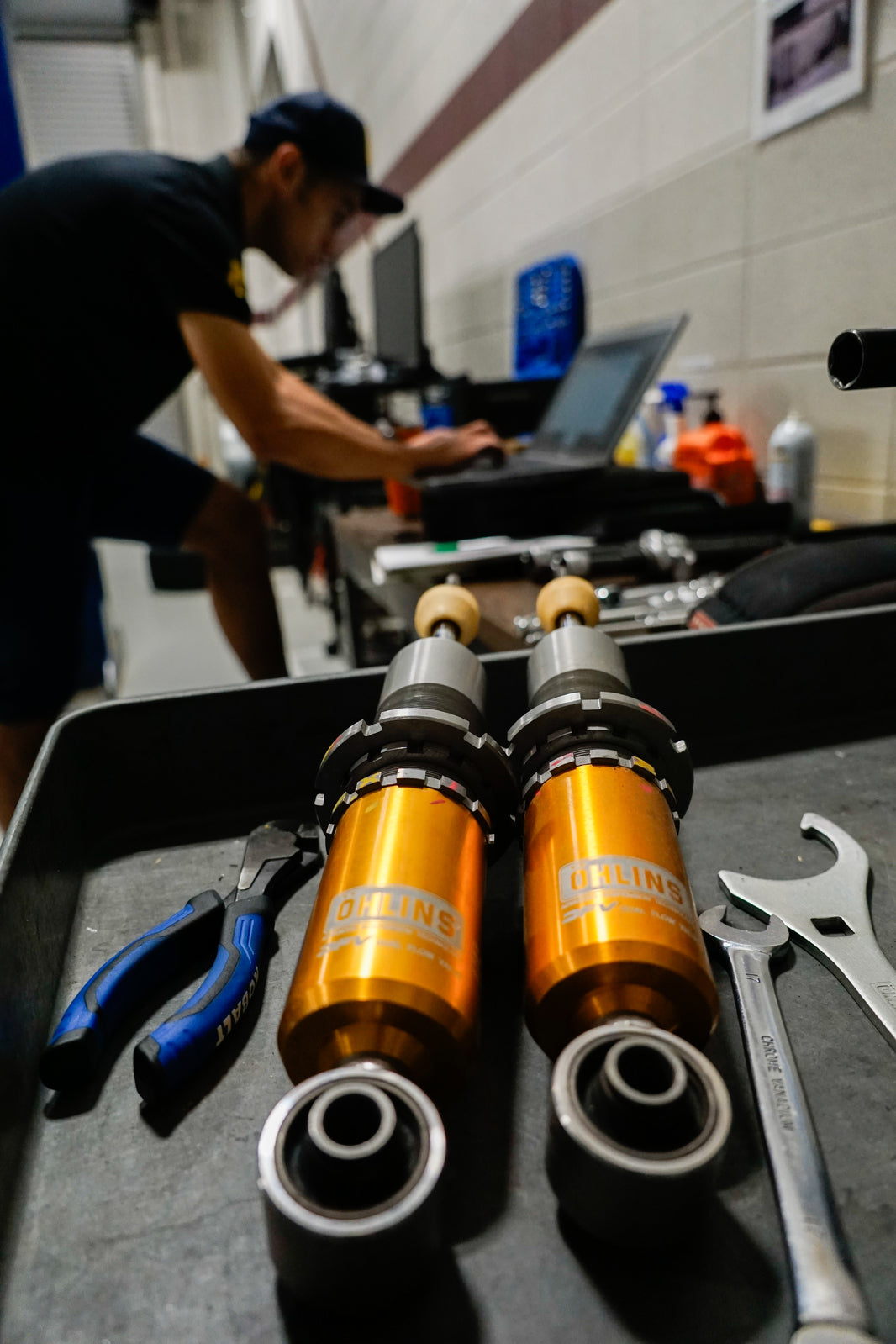

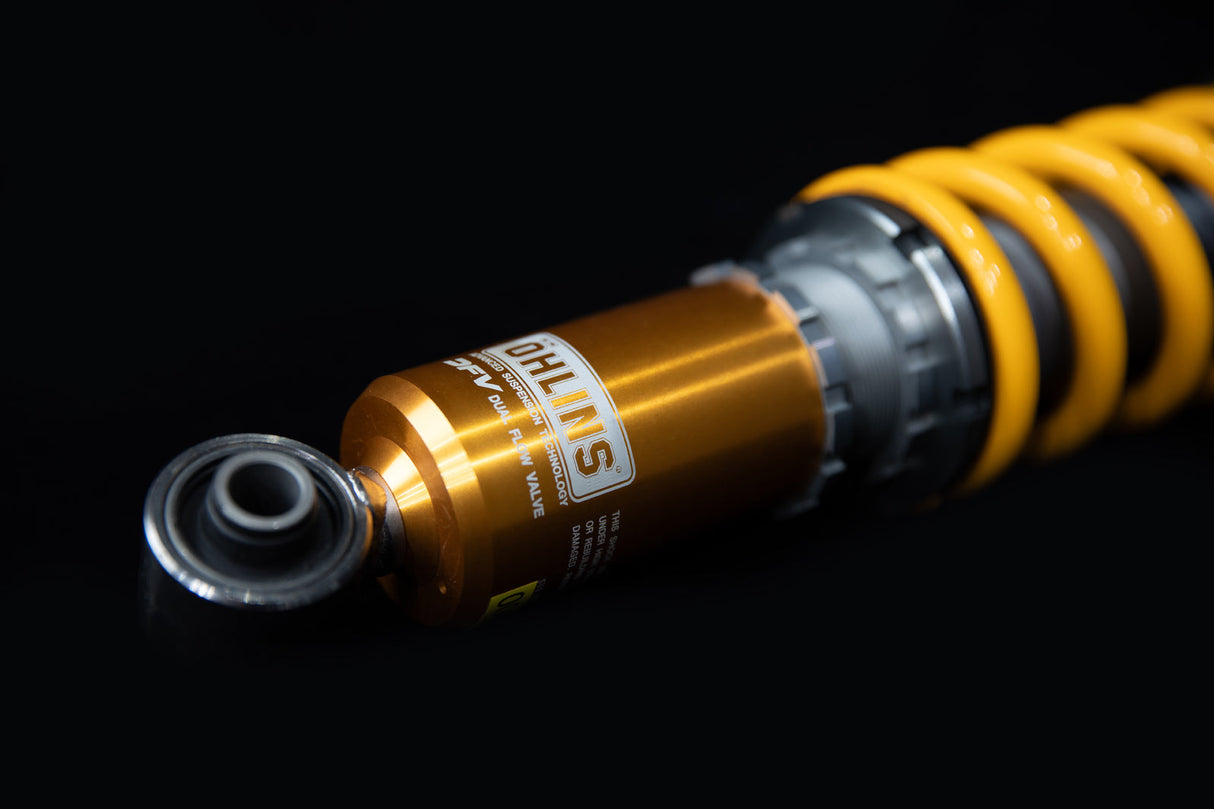

- Aluminium monotube shock absorber
- Spring preload adjuster
- Separate damper length adjuster
- Height adjustable — approx. 15–35mm lowering adjustment range
- Spring rate 90 N/mm — included
- Use with original top mounts
What is DFV (Dual Flow Valve)?
DFV is Öhlins' proprietary damping technology that sets the Road & Track range apart from conventional coilovers. The dual flow valve provides consistent damping characteristics on both compression and rebound strokes — the damper fluid follows a consistent flow path in both directions. This means the wheel and tyre can rapidly return to the road surface after a bump, maximising grip and traction at all times.
Because DFV opens more quickly on minor road imperfections, ride comfort is surprisingly supple — more akin to an OEM strut than a typical coilover. Over undulating surfaces, the compliance of the R&T units allows the car to crest bumps and potholes while remaining stable and in control.
Why Öhlins Road & Track?
- ✅ Over 40 years of motorsport engineering heritage — trusted by factory race teams worldwide
- ✅ DFV technology — genuine race-car response with OEM-level daily comfort
- ✅ Monotube upside-down front strut — reduced unsprung mass, sharper response
- ✅ Wide 15–35mm lowering range via separate length adjuster — front & rear
- ✅ Rebuildable, ISO 9227 corrosion-tested, 2-year limited warranty
