Öhlins Adventure Shock Absorber TTX Set – Mercedes G-Class W463
Part Number: MEV MY46 | Chassis Code: W463 | Fitment: Mercedes-Benz G-Class W463

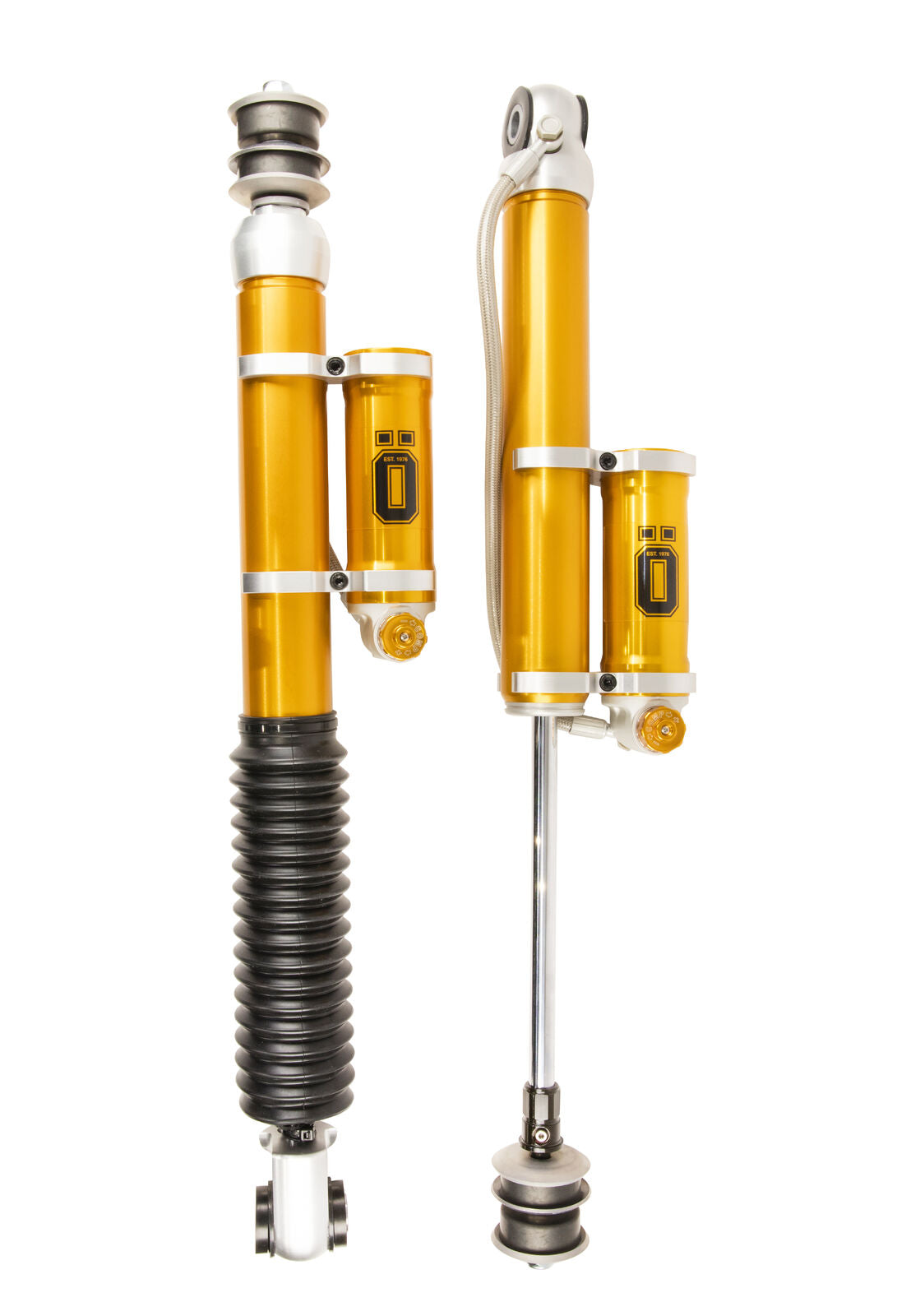

Crafted exclusively for the Mercedes-Benz G-Wagen, this kit features the time-tested Öhlins 16/46 shock absorbers — a robust 16mm piston shaft paired with a 46mm piston. Designed to accommodate a lift of up to +3", this shock absorber kit integrates seamlessly with both aftermarket and OEM springs. Featuring a new design with golden outer tubes and remote reservoir, this is the definitive off-road upgrade for the G-Class platform.
Countless hours of testing across varied terrains and road conditions have been dedicated to refining the settings — achieving an unrivalled balance between optimal comfort and unparalleled performance. Wheel spacers or other ET changes on the wheels are required for the shock absorbers to work properly.
Technical Specifications
| Part Number | MEV MY46 |
| Chassis Code | W463 |
| Technology | Öhlins 16/46 Adventure |
| Piston Shaft Diameter | 16mm |
| Piston Diameter | 46mm |
| Damping Adjustment | 2-way — independent compression & rebound adjustment |

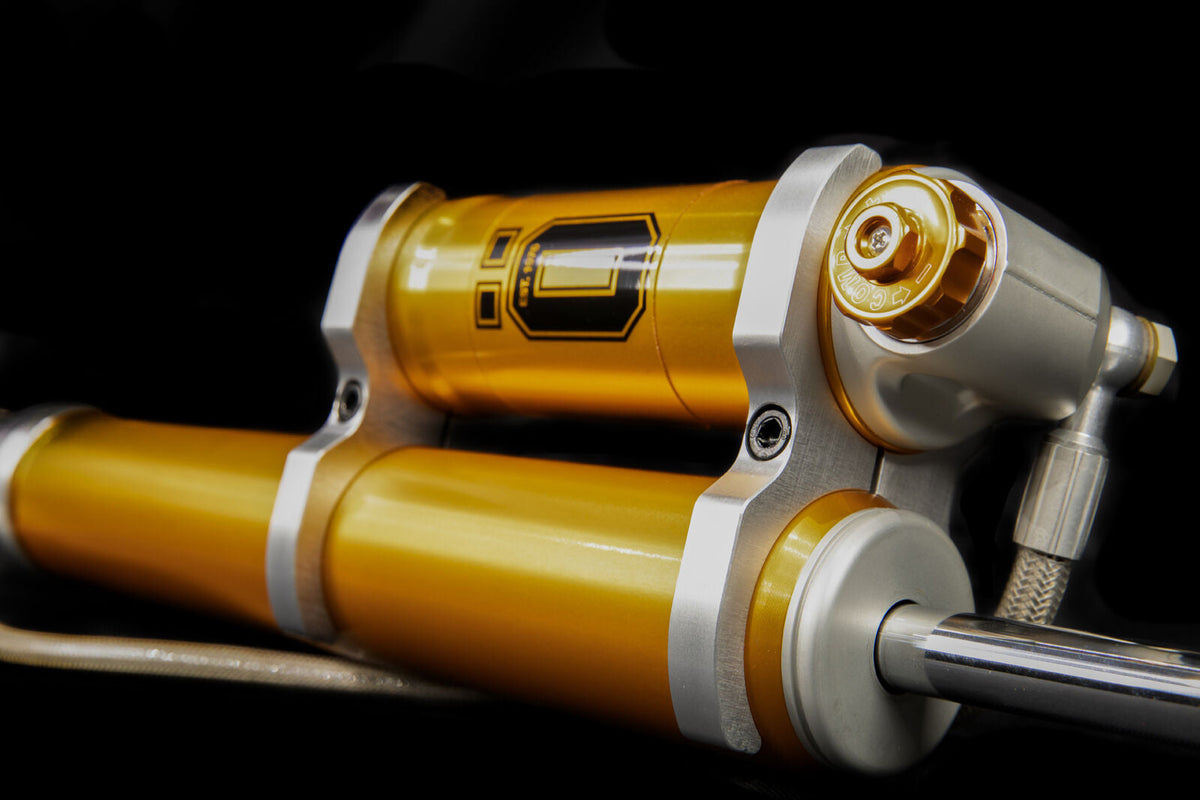

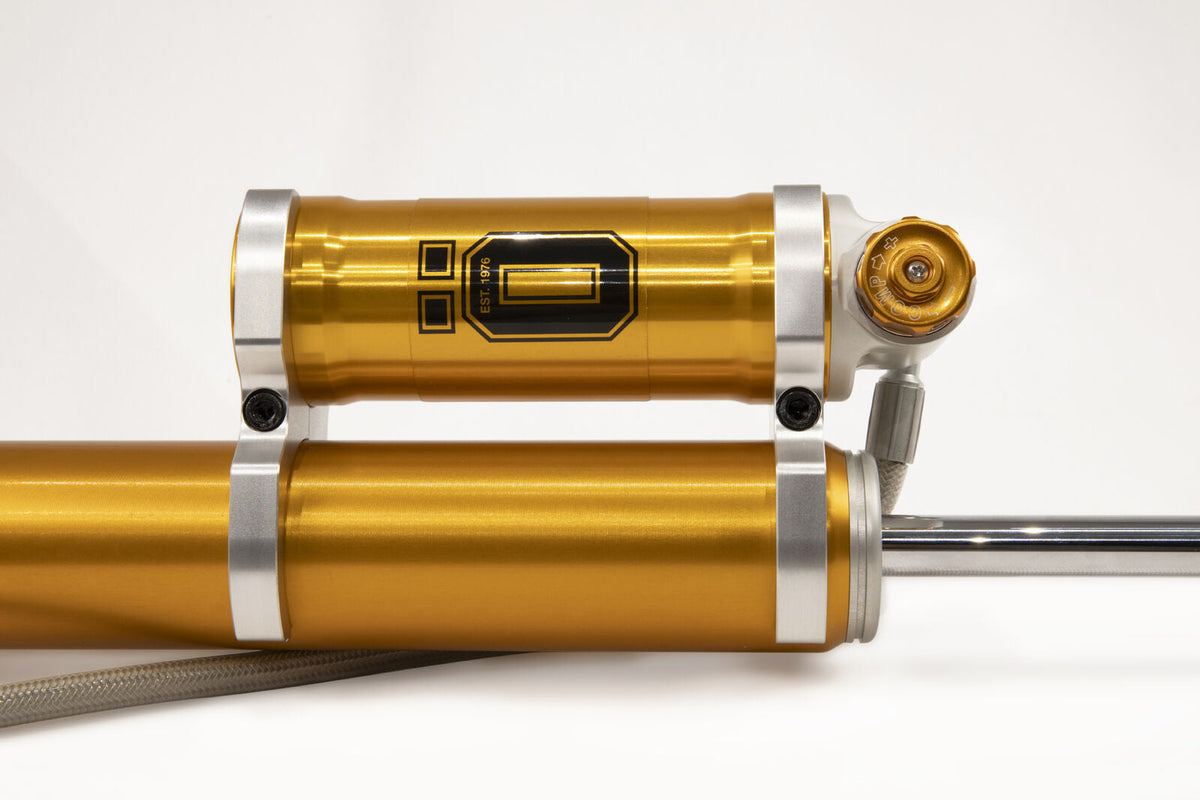

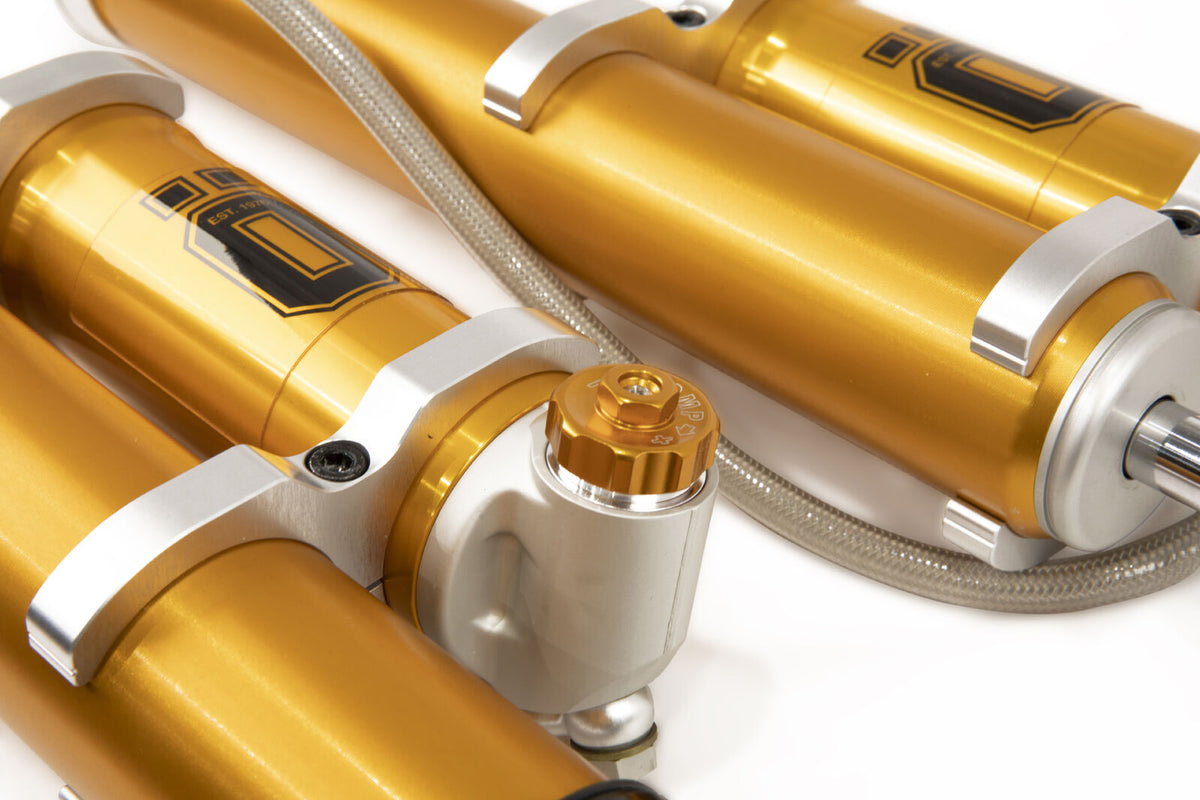

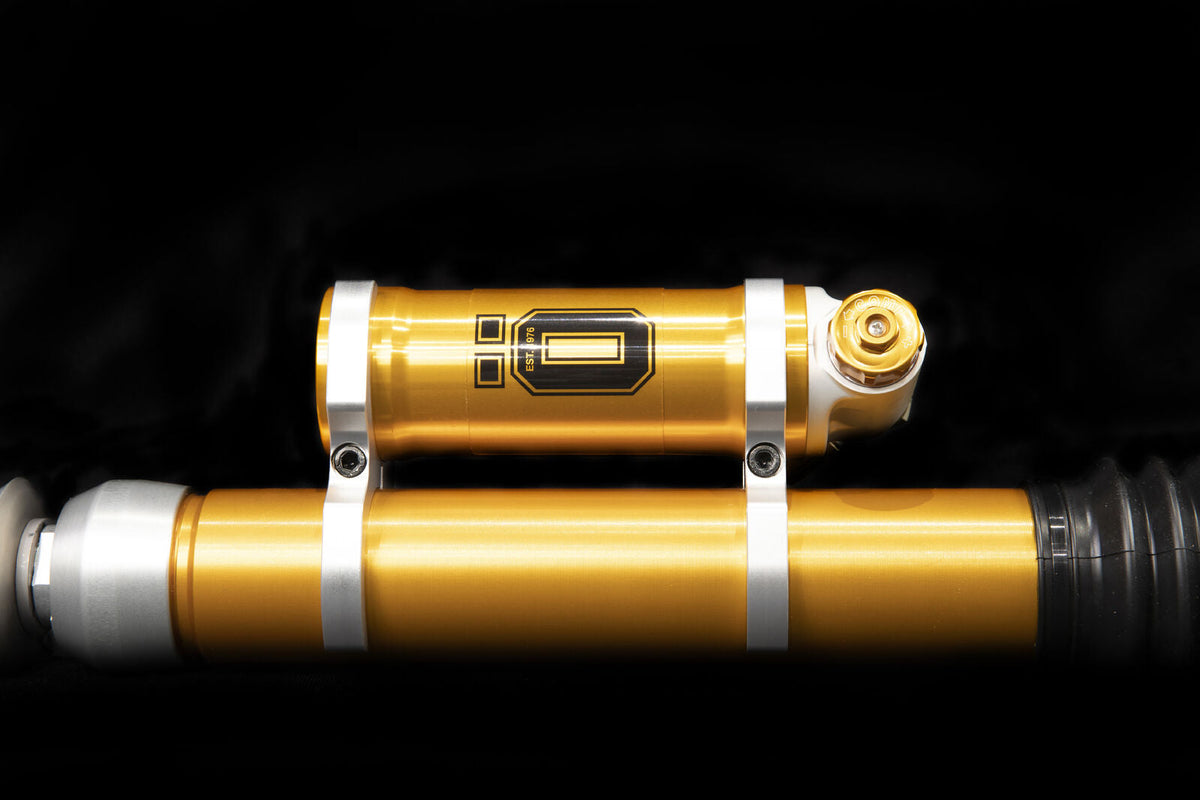

| Reservoir | Remote reservoir |
| Lift Capability | Up to +3" (76mm) |
| Spring Compatibility | Suitable with aftermarket springs or OE springs |
| Outer Tube Finish | New design with golden outer tubes |
| Wheel Spacers | Required — wheel spacers or ET change needed for proper fitment |
| Rebuildable | Yes — rebuildable for custom tuning |
| Corrosion Testing | ISO 9227 salt spray tested |
| Warranty | 2-year worldwide limited warranty |
General Features
- Öhlins 16/46 Adventure technology
- 46mm piston for best performance — comfort and chassis control
- Possible to raise the vehicle up to 3"
- Remote reservoir for improved damping consistency
- New design with golden outer tubes
- 2-way adjustable — independent compression and rebound damping forces
- Suitable with aftermarket springs or OE springs
- Wheel spacers or other ET on the wheels are needed for the shock absorbers to work properly
- Rebuildable for custom tuning
- Corrosion salt spray tested (ISO 9227)
- 2-year limited warranty

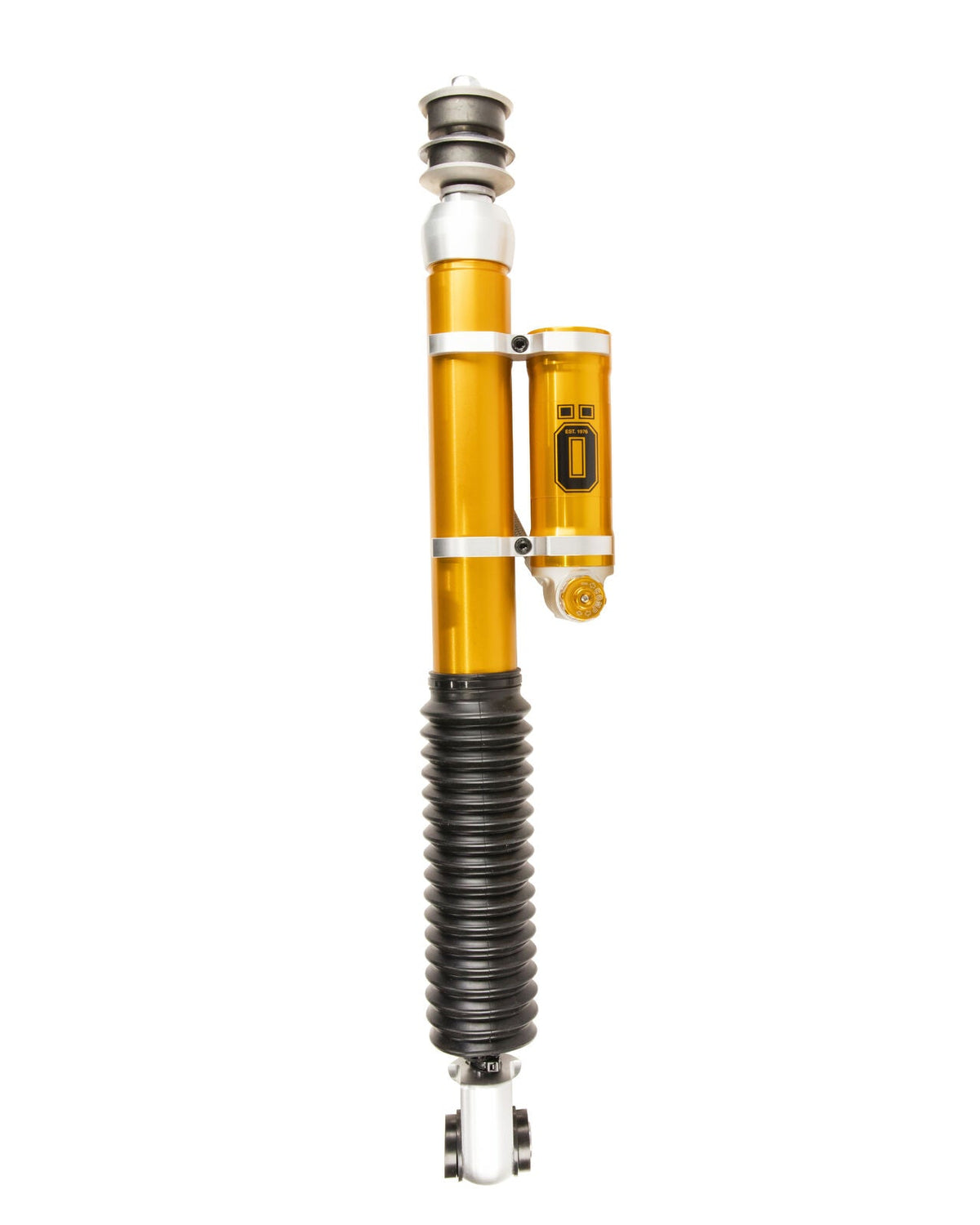

Front Features
- Conventional shock absorber
- 2-way separate compression and rebound adjustment
- Remote reservoir with high pressure stainless steel braided hose
- Golden outer tube construction

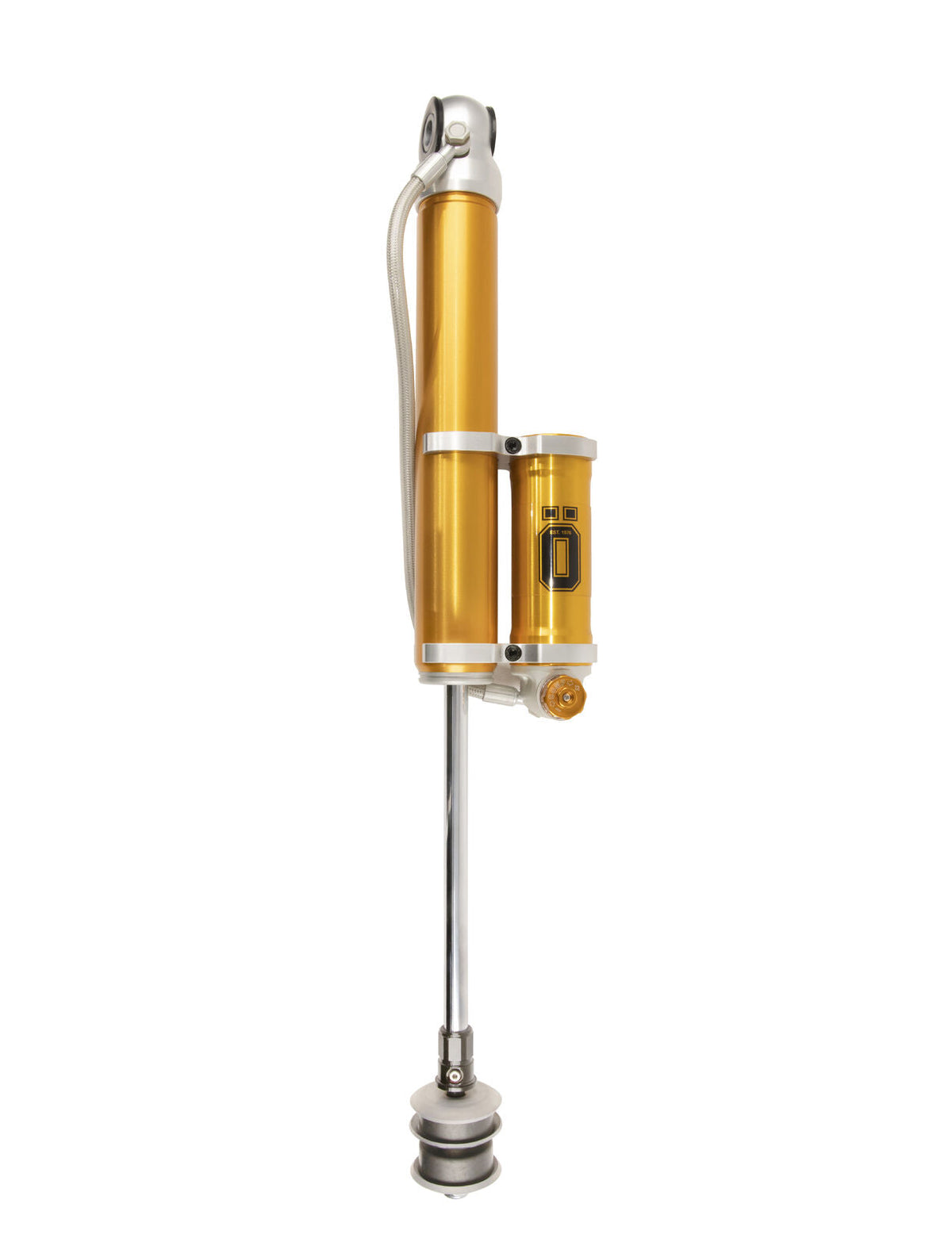

Rear Features
- Conventional shock absorber
- 2-way separate compression and rebound adjustment
- Remote reservoir with high pressure stainless steel braided hose
- Golden outer tube construction
Why Öhlins Adventure?
- ✅ Over 40 years of motorsport and off-road engineering heritage
- ✅ ORQ 16/46 technology — proven across rally and extreme off-road competition
- ✅ 2-way independent damping adjustment for precise terrain-specific tuning
- ✅ Rebuildable and fully serviceable for long-term ownership
- ✅ ISO 9227 corrosion-tested and backed by a 2-year worldwide limited warranty
