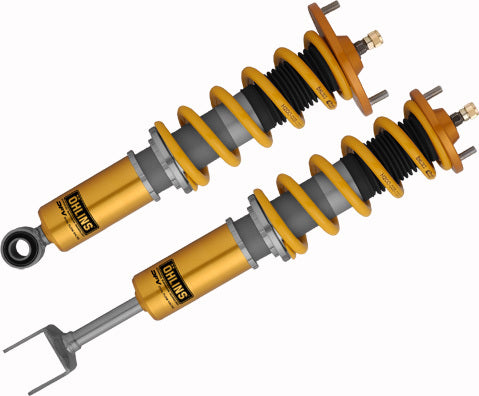

Öhlins Road & Track Coilovers – Nissan Skyline GT-R R32 (1989–1993)
Öhlins Road & Track Coilovers – Nissan Skyline GT-R R32 (1989–1993) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
MASSIVE RANGE
Over 20,000 performance & automotive SKUs for European, JDM, American, Korean and more
NATIONWIDE FAST SHIPPING
Quick dispatch across Australia with reliable tracked delivery
AUSSIE SUPPORT & EXPERTISE
Local customer service and technical assistance from our team of enthusiasts
Öhlins Road & Track Coilovers – Nissan Skyline GT-R R32 (1989–1...
Part Number: NIS MI05S1 | Fitment: Nissan Skyline GT-R R32 (1989–1993) | Top Mounts: Aluminium rubber mounts (not camber adjustable)
Over 40 years of motorsport engineering distilled into a street-ready coilover kit. The Öhlins Road & Track series delivers a genuine racing experience without sacrificing daily drivability — thanks to Öhlins' proprietary Dual Flow Valve (DFV) technology. This kit features conventional shock absorbers front and rear with separate ride height adjustment, aluminium top mounts, and springs included as a complete car set.
Vehicle Fitment
Nissan Skyline GT-R |
R32 — 1989 to 1993 |
Technical Specifications
Part Number |
NIS MI05S1 |
Technology |
DFV — Dual Flow Valve |
Front Damper Type |
Conventional shock absorber |
Rear Damper Type |
Conventional shock absorber |
Damping Adjustment |
Single bleed adjuster — compression & rebound (front & rear) |
Front Spring Rate |
100 N/mm — included |
Rear Spring Rate |
80 N/mm — included |
Front Lowering |
Approx. 40mm below standard (recommended setting) |
Rear Lowering |
Approx. 25mm below standard (recommended setting) |
Height Adjustment |
Separate ride height adjuster (front & rear) |
Top Mounts |
Aluminium rubber mounts — included (not camber adjustable) |
Springs Included |
Yes — complete kit incl. springs & mounting parts |
Rebuildable |
Yes |
Corrosion Testing |
ISO 9227 salt spray tested |
Warranty |
2-year limited warranty |
General Features
• DFV technology (Dual Flow Valve) — Öhlins' proprietary damping system
• Individual height adjustment via separate ride height adjuster
• Single bleed adjuster — compression and rebound
• Rebuildable for custom tuning
• Corrosion salt spray tested (ISO 9227)
• 2-year limited warranty
• Springs and mounting parts included
Front Features
• Conventional shock absorber
• Single bleed adjuster — compression and rebound
• Spring preload adjuster
• Separate ride height adjustment
• Approx. 40mm lower than standard (recommended setting)
• Spring rate 100 N/mm — included
• Aluminium rubber top mounts included (not camber adjustable)
Rear Features
• Conventional shock absorber
• Single bleed adjuster — compression and rebound
• Spring preload adjuster
• Separate ride height adjustment
• Approx. 25mm lower than standard (recommended setting)
• Spring rate 80 N/mm — included
• Aluminium rubber top mounts included (not camber adjustable)
Kit Contents
• Complete coilover kit including springs and all mounting parts
• Aluminium rubber top mounts (front & rear)
• C-spanner for spring preload adjustment
• Owner's manual and mounting instructions
• Öhlins sticker set
What is DFV (Dual Flow Valve)?
DFV is Öhlins' proprietary damping technology that sets the Road & Track range apart from conventional coilovers. The dual flow valve provides consistent damping characteristics on both compression and rebound strokes — the damper fluid follows a consistent flow path in both directions. This means the wheel and tyre can rapidly return to the road surface after a bump, maximising grip and traction at all times.
Because DFV opens more quickly on minor road imperfections, ride comfort is surprisingly supple — more akin to an OEM strut than a typical coilover. Over undulating surfaces, the compliance of the R&T units allows the car to crest bumps and potholes while remaining stable and in control. Traction is always maintained at its optimum level.
Öhlins also incorporates a unique needle bleed valve that expands with temperature, compensating for changes in fluid viscosity as the damper heats up. The result: consistent damping performance lap after lap, regardless of operating temperature.
Why Öhlins Road & Track?
• ✅ Over 40 years of motorsport engineering heritage — trusted by factory race teams worldwide
• ✅ DFV technology — genuine race-car response with OEM-level daily comfort
• ✅ Separate ride height adjuster — spring geometry is never compromised
• ✅ Complete kit — springs, aluminium top mounts, and mounting hardware all included
• ✅ Rebuildable, ISO 9227 corrosion-tested, 2-year limited warranty
