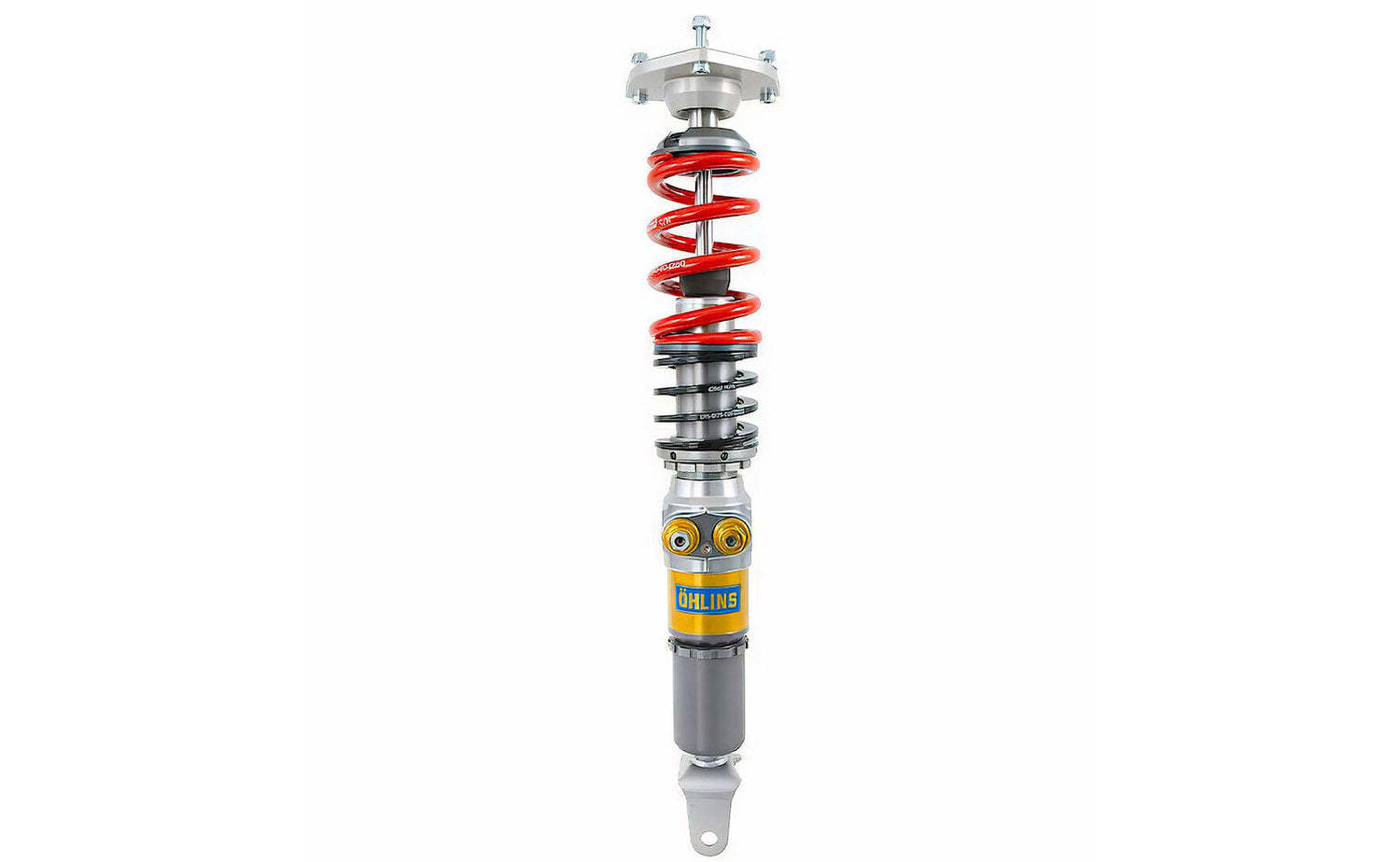

Öhlins TTX Advanced Trackday Kit – Nissan GT-R R35 (4-Way)
Part Number: NIR-GN00 | Fitment: Nissan GT-R R35
The Öhlins TTX Advanced Trackday kit for the Nissan GT-R R35 features ILX36 True Twin Tube technology with 4-way adjustable damping — independent high and low speed compression and rebound adjustment — giving you complete control over your GT-R's suspension for every track, tyre, and condition. Featuring uniball aluminium top mounts front and rear, separate length adjusters, and springs included as a complete kit.
⚠️ Note: If the car is equipped with EDC (Electronic Damper Control), an Öhlins EDC cancellation kit is required (sold separately). See additional parts table below.
Vehicle Fitment
Nissan GT-R |
R35 — All years |
Technical Specifications
Part Number |
NIR-GN00 |
Technology |
TTX — True Twin Tube (ILX36), cavitation-free damping |
Damping Adjustment |
4-way — independent hi/lo speed compression & rebound |
Piston |
36mm (front & rear) |
Reservoir |
Internal reservoir (front & rear) |
Front Spring Rate |
260 N/mm — included (other rates on request) |
Rear Spring Rate |
150 N/mm — included (other rates on request) |
Lowering Range |
Approx. 20mm below standard (recommended setting) |
Top Mounts |

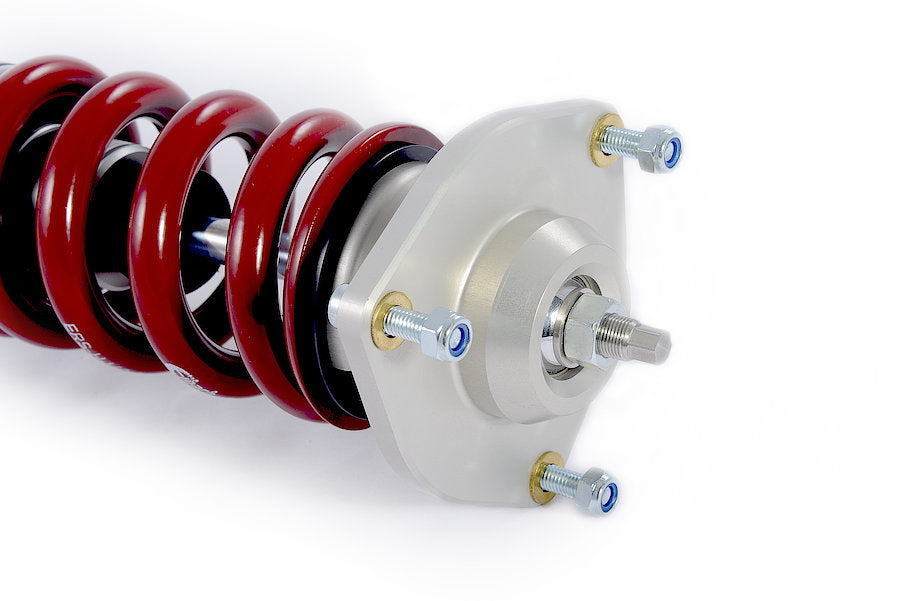

Uniball aluminium top mounts — included (front & rear, not camber adjustable) |
Springs Included |
Yes — complete kit incl. springs & mounting parts |
Height Adjustment |
Yes — separate length adjuster (front & rear) |
Rebuildable |
Yes |
Corrosion Testing |
ISO 9227 salt spray tested |
Warranty |
2-year limited warranty |

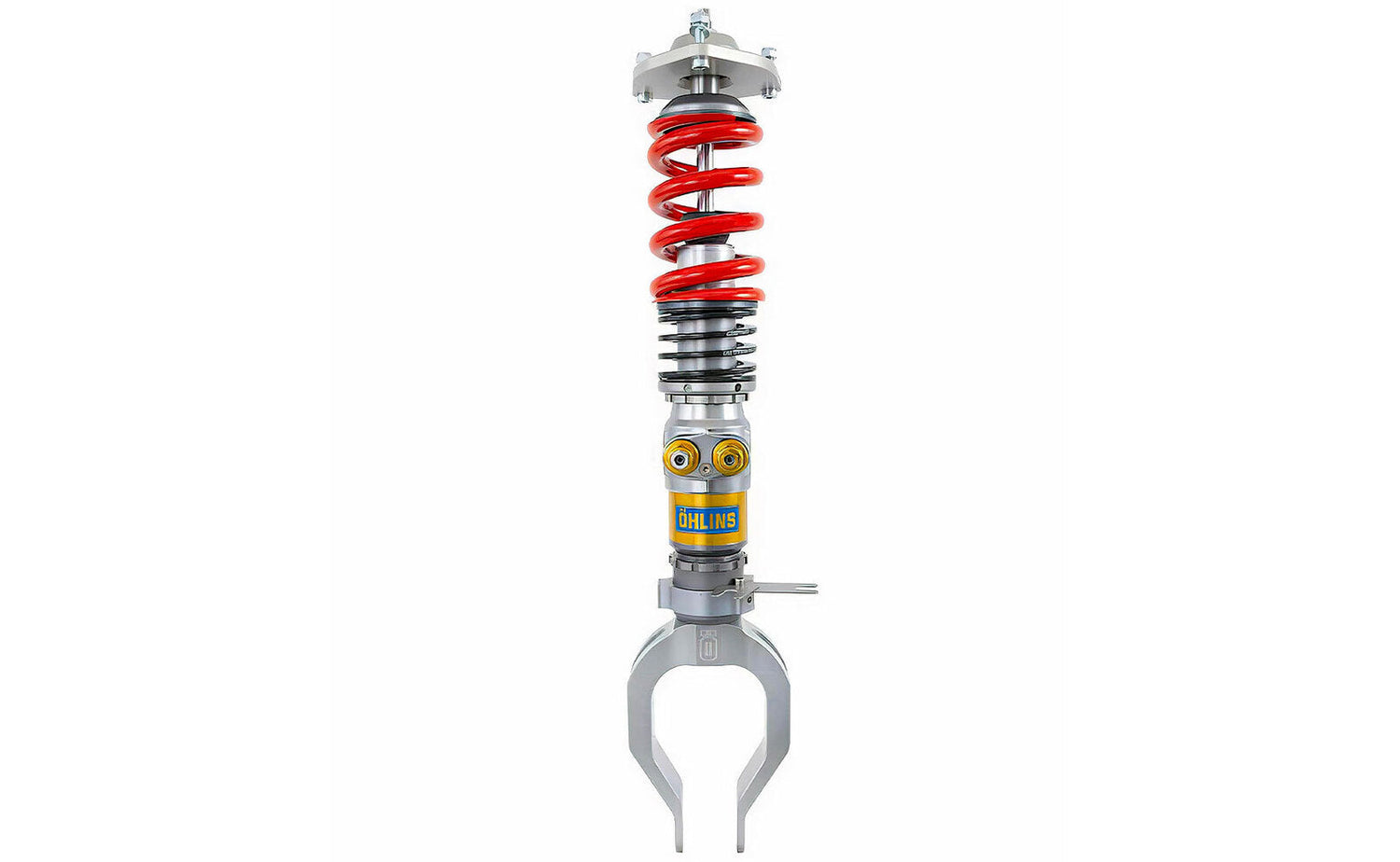

Front Features — ILX36 (Internal Reservoir)

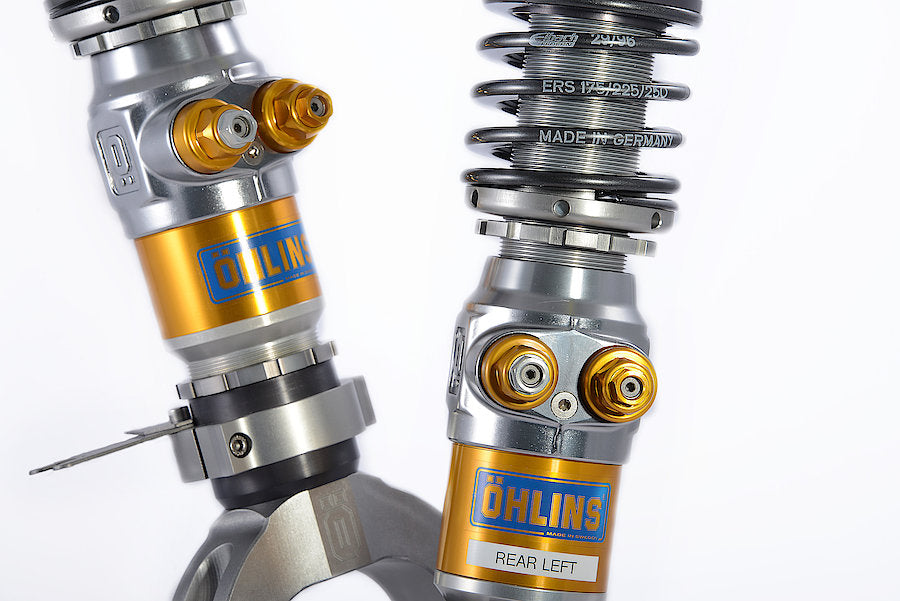

• ILX36 shock absorber with internal reservoir — 36mm piston
• Compression and rebound damping adjustment in high and low speed
• Spring preload adjuster
• Separate length adjuster
• Height adjustable — approx. 20mm lower with recommended setting
• Spring rate 260 N/mm — included (other rates on request)
• Uniball aluminium top mounts — included
Rear Features — ILX36 (Internal Reservoir)
• ILX36 shock absorber with internal reservoir — 36mm piston
• Compression and rebound damping adjustment in high and low speed
• Spring preload adjuster
• Separate length adjuster
• Height adjustable — approx. 20mm lower with recommended setting
• Spring rate 150 N/mm — included (other rates on request)
• Uniball aluminium top mounts — included
Kit Contents

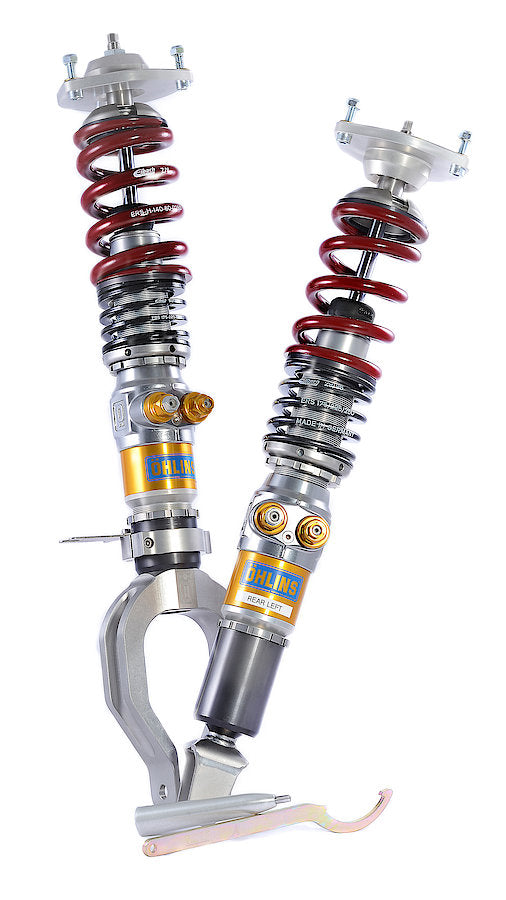

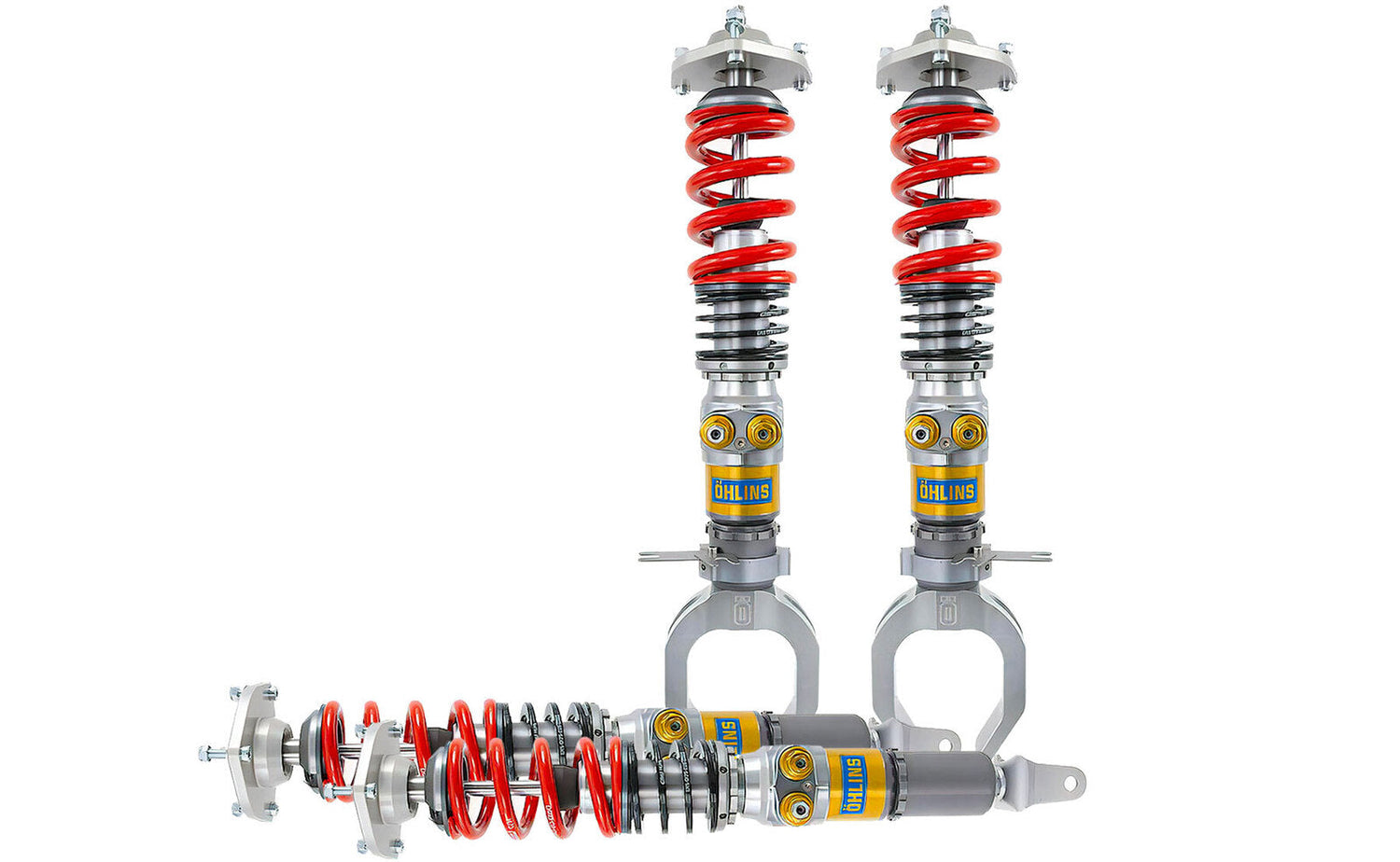

• Complete coilover kit including springs and all mounting parts
• Uniball aluminium top mounts (front & rear)
• C-spanner for spring preload adjustment
• Owner's manual and mounting instructions
EDC Cancellation Kit (if required)
The EDC cancellation kit is not included and must be ordered separately.
Part No
Description
Included
35020-06 |
Öhlins EDC Cancellation Kit |
No — ordered separately |
Why Öhlins TTX Advanced Trackday?
• ✅ TTX True Twin Tube ILX36 technology — cavitation-free damping under sustained race conditions
• ✅ 4-way independent damping — hi/lo speed compression & rebound for precise track tuning
• ✅ Uniball aluminium top mounts included — front & rear, race-grade fitment
• ✅ Separate length adjusters front & rear — precise ride height control
• ✅ Rebuildable and fully serviceable — ISO 9227 corrosion tested, 2-year warranty
