Moton Suspension  |  SKU: AST-200-45-61

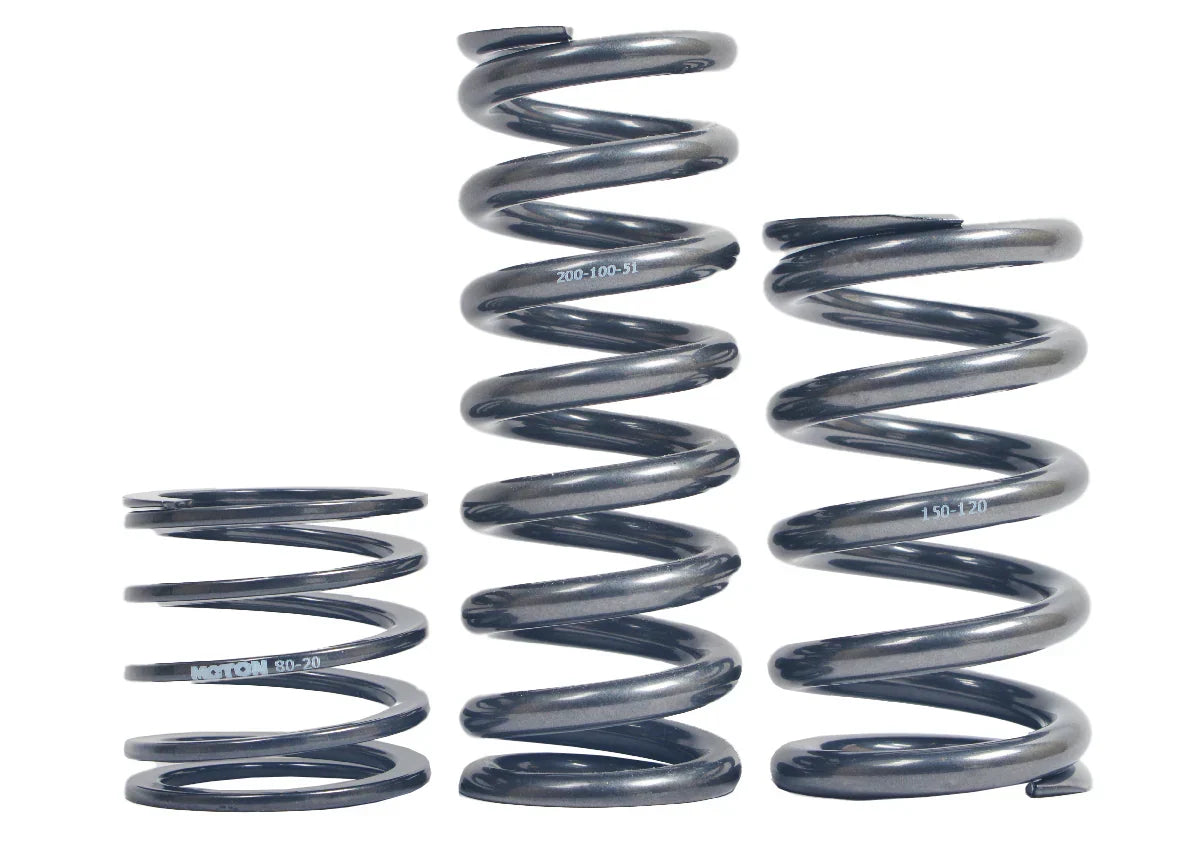

MOTON Linear Racing Springs – 200 Series (200mm x 61mm ID) - 200/45/61

$250.00 AUD
Shipping calculated at checkout.

MASSIVE RANGE

Over 20,000 performance & automotive SKUs for European, JDM, American, Korean and more

NATIONWIDE FAST SHIPPING

Quick dispatch across Australia with reliable tracked delivery

AUSSIE SUPPORT & EXPERTISE

Local customer service and technical assistance from our team of enthusiasts

Moton Linear Racing Springs

Premium 200-Series Replacement Springs (61mm ID)

Engineered for professional motorsport, these 200mm length linear-rate springs provide the consistency required for high-level chassis tuning. Manufactured from high-tensile chrome silicone steel, they offer maximum travel with minimal weight, ensuring your Moton or AST coilovers perform at their peak.

Specifications for Part #AST-200-45-61
Open Length (Lo): 200 mm
Spring Rate (R): 45 N/mm
Inside Dia (Di): 61 mm
Block Length (Sn): 76 mm
Block Force (Fn): 5580 N
Usable Stroke (St): 124 mm
Lo Open Length (mm)
R Spring Rate (N/mm)
Di Inside Diameter (mm)
Sn Block Length (mm)
Fn Force at Block (N)
St Usable Stroke (mm)

Series Reference Chart:

Part Number Lo R Di Sn Fn St
AST-200-20-61 200 20 61 - - -
AST-200-25-61 200 25 61 - - -
AST-200-30-61 200 30 61 70 3900 130
AST-200-35-61 200 35 61 69 4585 131
AST-200-40-61 200 40 61 69 5240 131
AST-200-45-61 200 45 61 76 5580 124
AST-200-50-61 200 50 61 77 6150 123
AST-200-55-61 200 55 61 78 6710 122
AST-200-60-61 200 60 61 80 7200 120
AST-200-65-61 200 65 61 82 7670 118
AST-200-70-61 200 70 61 84 8120 116
AST-200-75-61 200 75 61 87 8475 113
AST-200-80-61 200 80 61 89 8880 111
AST-200-85-61 200 85 61 92 9180 108
AST-200-90-61 200 90 61 95 9450 105
AST-200-95-61 200 95 61 99 9595 101
AST-200-100-61 200 100 61 95 10500 105
AST-200-110-61 200 110 61 102 10780 98
AST-200-120-61 200 120 61 104 11520 96
AST-200-130-61 200 130 61 103 12610 97
AST-200-140-61 200 140 61 104 13440 96
AST-200-150-61 200 150 61 105 14250 95
AST-200-160-61 200 160 61 98 16320 102
AST-200-180-61 200 180 61 103 17460 97
