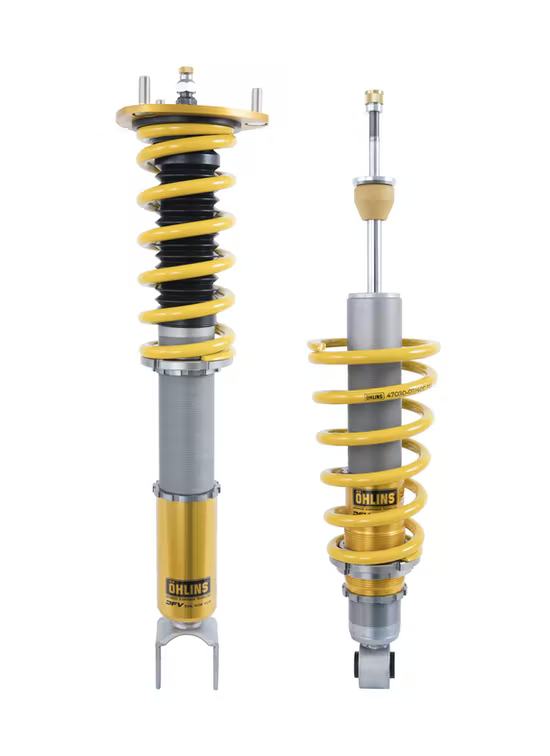

Öhlins Road & Track Coilovers – Mazda MX-5 NC (2005–2014)
Part Number: MAS MI30S1 | Fitment: 2005–2014 Mazda MX-5 NC
Over 40 years of motorsport engineering distilled into a street-ready coilover kit. The Öhlins Road & Track series delivers a genuine racing experience without sacrificing daily drivability — thanks to Öhlins' proprietary Dual Flow Valve (DFV) technology. Corrosion-tested to ISO 9227 and backed by a 2-year worldwide limited warranty.
Technical Specifications
Part Number |
MAS MI30S1 |
Vehicle Fitment |
2005–2014 Mazda MX-5 NC |
Front Damper Type |
Conventional shock absorber |
Rear Damper Type |
Conventional shock absorber |
Front Spring Rate |
70 N/mm |
Rear Spring Rate |
40 N/mm |
Front Lowering Range |
Approx. 10–40mm below standard |
Rear Lowering Range |
Approx. 10–40mm below standard |
Damping Adjustment |
Combined compression & rebound (single adjuster, front & rear) |
Front Top Mounts |
Aluminium top mounts included (non-adjustable) |
Rear Top Mounts |
Use with original top mounts |
Corrosion Testing |
ISO 9227 salt spray tested |
Warranty |
2-year worldwide limited warranty |
Rebuildable |
Yes |
General Features
• DFV technology (Dual Flow Valve) — Öhlins' proprietary damping system

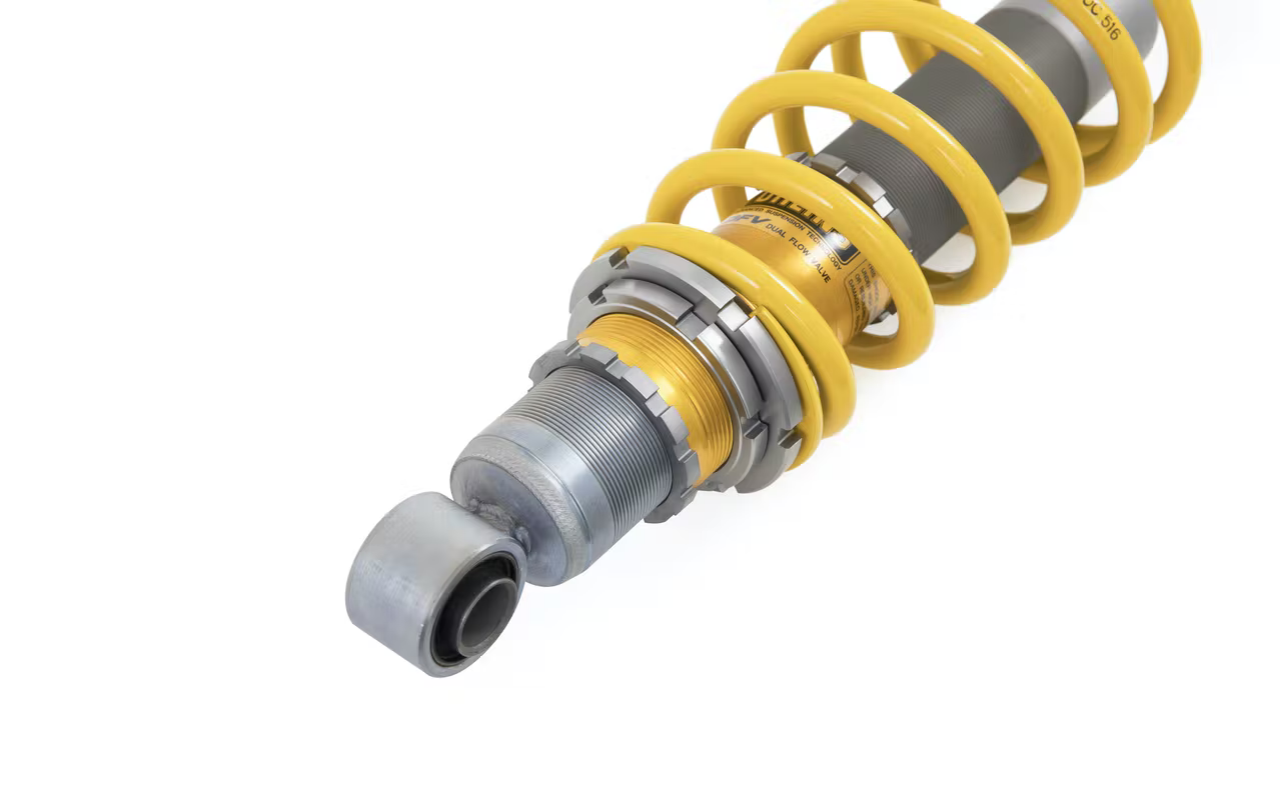

• Individual ride height adjustment via threaded lower flange (spring seat position maintained)
• Spring preload adjustment with included C-spanner
• Rebuildable construction for long-term serviceability
• Corrosion salt spray tested to ISO 9227
• 2-year worldwide limited warranty

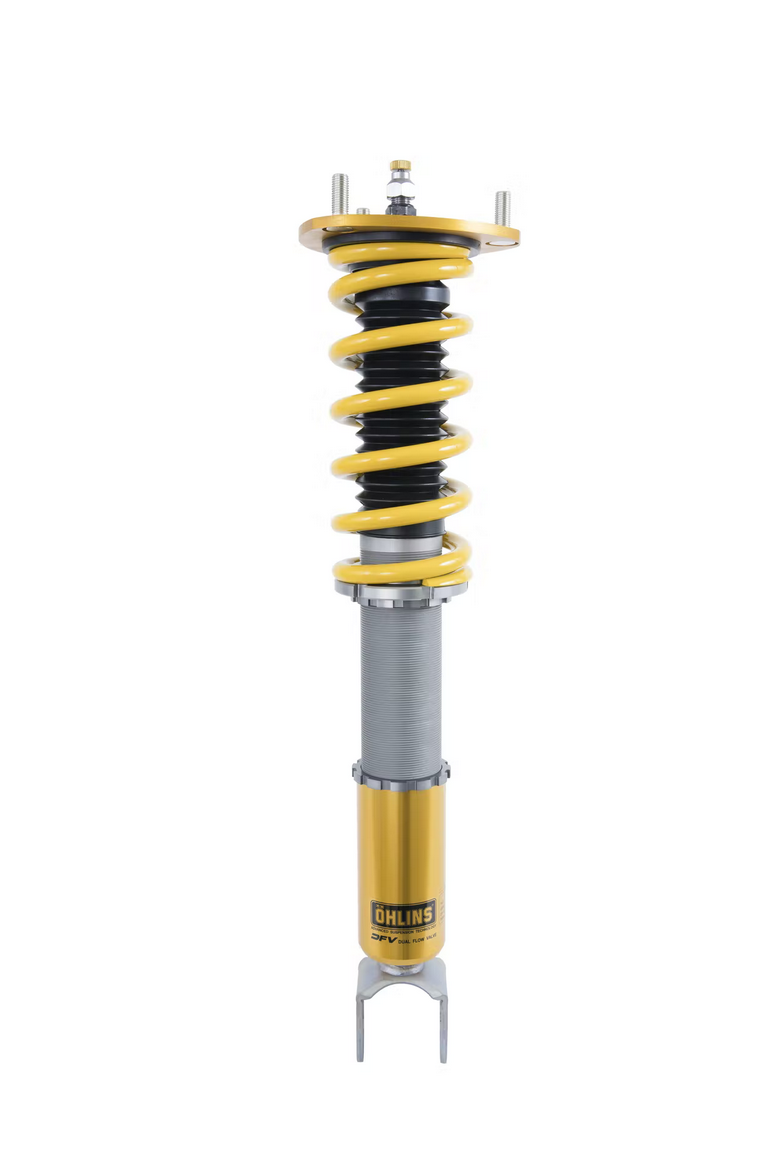

Front Features
• Conventional shock absorber design
• Combined compression & rebound damping via single adjuster
• Spring preload adjuster
• Separate ride height adjustment
• Approx. 10–40mm lower than standard
• Spring rate: 70 N/mm

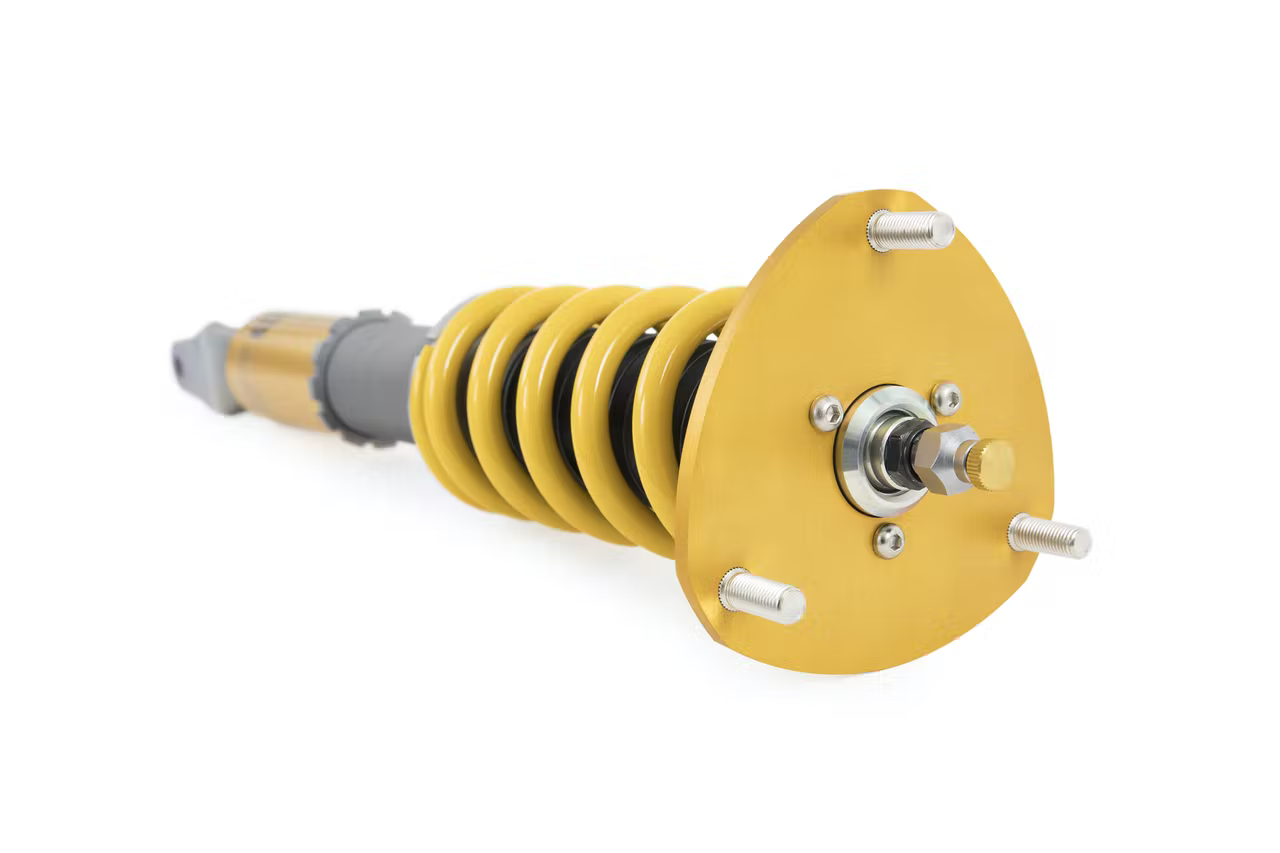

• Aluminium top mounts included (non-adjustable)

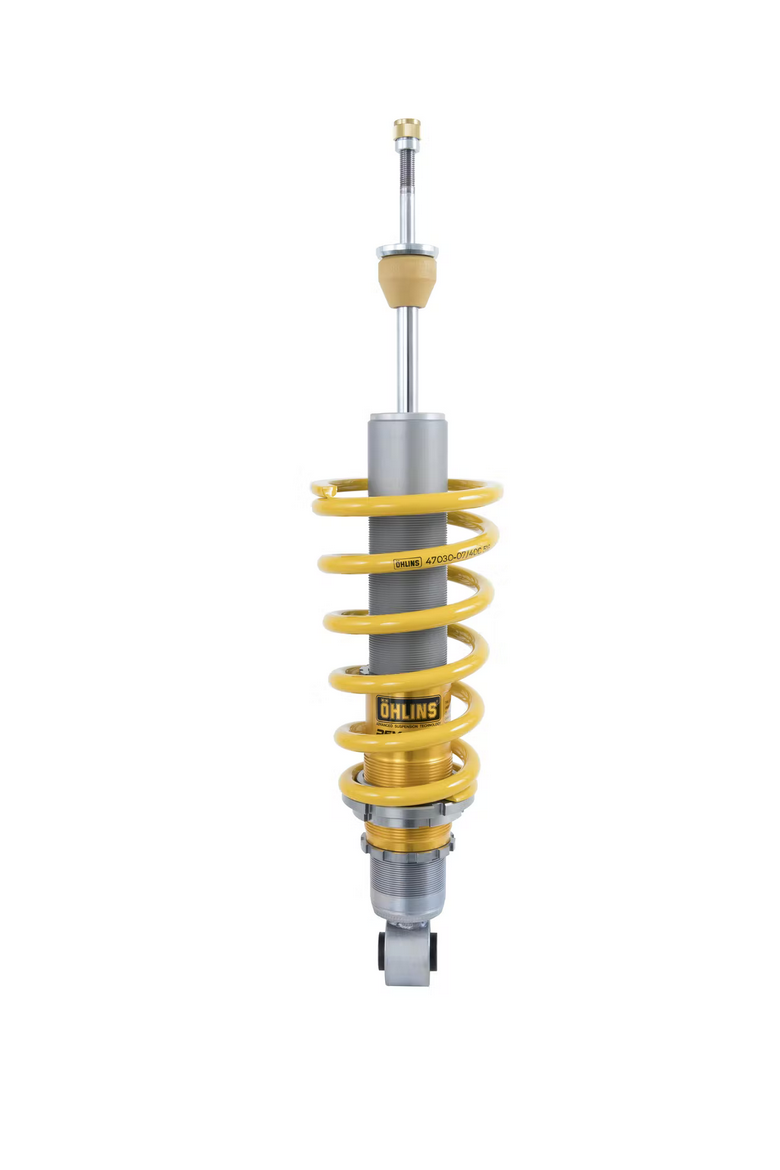

Rear Features
• Conventional shock absorber design
• Combined compression & rebound damping via single adjuster
• Spring preload adjuster
• Separate ride height adjustment
• Approx. 10–40mm lower than standard
• Spring rate: 40 N/mm
• Use with original top mounts
Kit Contents
• Complete coilover kit including springs and all mounting hardware
• C-spanner for spring preload adjustment
• Owner's manual and mounting instructions
• Öhlins sticker set
What is DFV (Dual Flow Valve)?
DFV is Öhlins' proprietary damping technology that sets the Road & Track range apart from conventional coilovers. The dual flow valve provides consistent damping characteristics on both compression and rebound strokes — the damper fluid follows a consistent flow path in both directions. This means the wheel and tyre can rapidly return to the road surface after a bump, maximising grip and traction at all times.
Because DFV opens more quickly on minor road imperfections, ride comfort is surprisingly supple — more akin to an OEM strut than a typical coilover. Over undulating surfaces, the compliance of the R&T units allows the car to crest bumps and potholes while remaining stable and in control. Traction is always maintained at its optimum level.
Öhlins also incorporates a unique needle bleed valve that expands with temperature, compensating for changes in fluid viscosity as the damper heats up. The result: consistent damping performance lap after lap, regardless of operating temperature.
Why Öhlins Road & Track?
• ✅ Over 40 years of motorsport engineering heritage — trusted by factory race teams worldwide
• ✅ Proprietary DFV technology delivers genuine race-car response with OEM-level daily comfort
• ✅ Rebuildable and fully serviceable for long-term ownership and track use
• ✅ Precision ride height adjustment via threaded lower flange — spring geometry is never compromised
• ✅ ISO 9227 corrosion-tested and backed by a 2-year worldwide limited warranty
