Koyorad Performance Radiator: Honda / Acura Integra DC2 K-Series Swap 1994-2001
Koyorad Performance Radiator: Honda / Acura Integra DC2 K-Series Swap 1994-2001 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
MASSIVE RANGE
Over 20,000 performance & automotive SKUs for European, JDM, American, Korean and more
NATIONWIDE FAST SHIPPING
Quick dispatch across Australia with reliable tracked delivery
AUSSIE SUPPORT & EXPERTISE
Local customer service and technical assistance from our team of enthusiasts
Koyorad Performance Radiator: Honda / Acura Integra DC2 K-Series Sw...

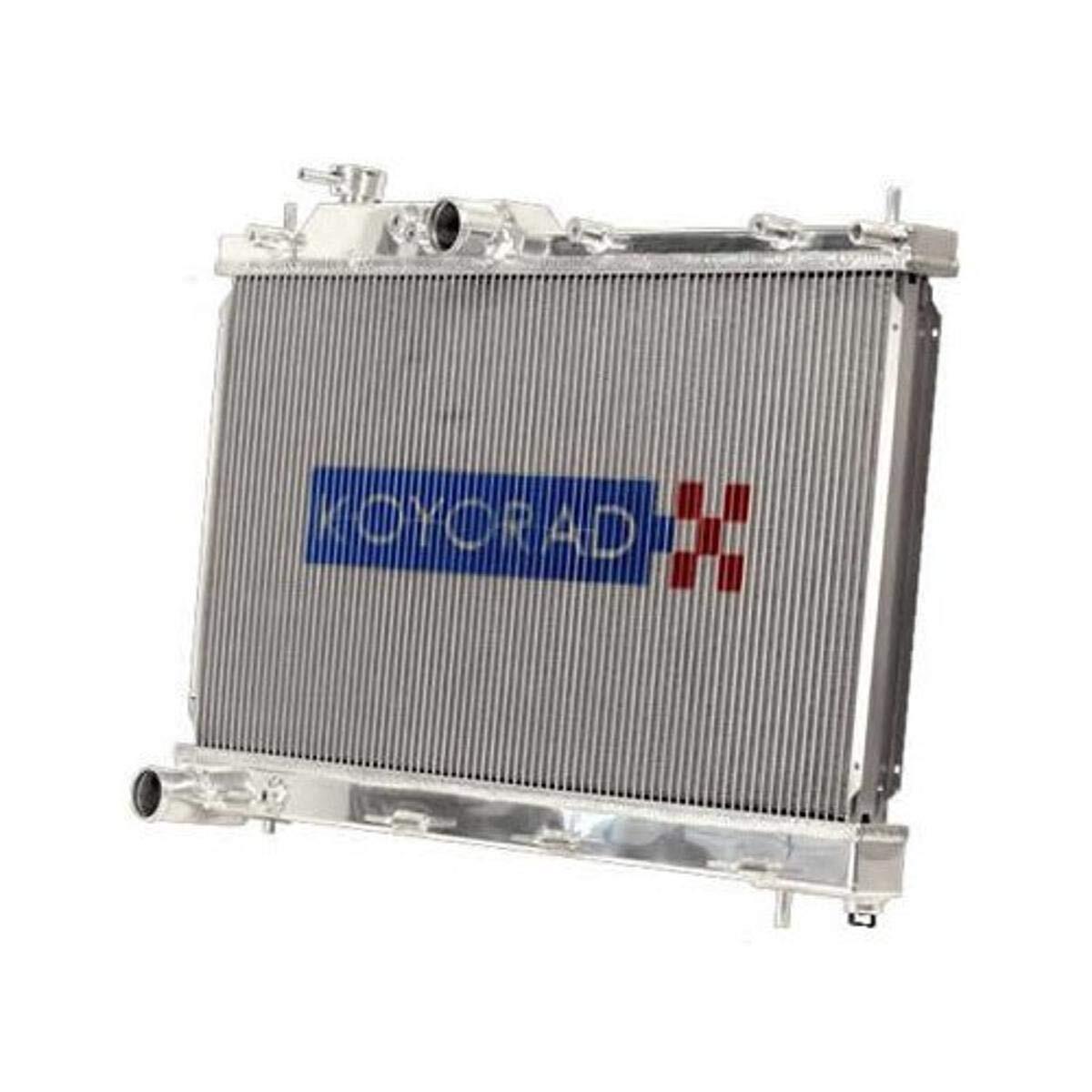

Koyo Performance Radiator – Honda / Acura Integra DC2 K-Series Swap MT (1994–2001)
Application: Honda / Acura Integra MT | DC2 | K-Series Swap (K20A / K24) | Manual Transmission
Part Number: KV081255U06 | SKU: V081255
The DC2 Integra is one of the most popular K-Series swap platforms in the world — lightweight, well-balanced, and a natural fit for the high-revving K20 or torquey K24. Once you've dropped in a K-Series, the factory radiator simply isn't up to the task. The Koyorad KV081255U06 is purpose-built for this exact application, delivering the cooling capacity your K-Swap needs without any cutting, drilling, or fabrication.
Koyorad's all-aluminium construction and high-efficiency core design dissipate heat faster and more effectively than the factory unit, keeping coolant temperatures in check even under sustained high-load driving. Nocolok furnace brazed, precision TIG welded by hand, and triple pressure tested — it retains OEM-style mounting and stock hose connections with no modifications required.
Why Koyorad?
- Precise Tube & Fin Alignment — Strict quality control ensures optimal coolant flow and maximum heat transfer efficiency across the entire core.
- Nocolok Furnace Brazing — All tubes, fins, headers, and brackets are bonded in a state-of-the-art Nocolok furnace, creating a structure that resists vibration, road debris, and the elements.
- Billet Filler Neck — Precision-machined billet filler necks are fitted to every unit for superior strength, durability, and a reliable seal.
- OE-Specific Mounting — Application-specific mounting points ensure a pain-free, no-modification install.
- Hand-Crafted Heliarc Welds — Each radiator is individually Heliarc welded by hand, creating the strongest possible aluminium-to-aluminium bond across all components.
Specifications
| Part Number Japan | KV081255U06 |
| Koyorad SKU | V081255 |
| Core Thickness | 36mm |
| Core Dimensions (H × W) | 620 × 402/412mm |
| Tank Dimensions | 43/43 × 420mm |
| Inlet / Outlet Diameter | ⌢32mm (top and bottom) |
| Drain Plug | M18 × P1.5 (42014) |
| Construction | All Aluminium, Nocolok Brazed, Heliarc Welded |
| Transmission | Manual (MT) |
| Fitment | Direct bolt-in for K-Series swap, no modifications required |
Fitment Table
| Year | Make | Model | Chassis | Submodel |
|---|---|---|---|---|
| 1994–2001 | Honda / Acura | Integra | DC2 | K-Series Swap (K20A / K24) — 2.0/2.4L — Manual Transmission |
Sold individually. Manual transmission fitment only. Designed for K-Series engine swap applications. Lead times may apply — contact us at ModsDirect for availability and shipping estimates.
