Koyorad  |  SKU: H010409

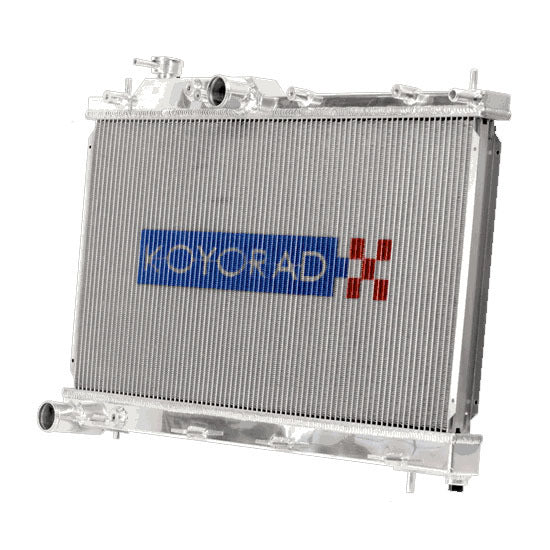

Koyorad Performance Radiator: Toyota Mark II / Chaser / Cresta JZX90 1JZ-GTE MT 1992-1996

$799.00 AUD
Shipping calculated at checkout.

MASSIVE RANGE

Over 20,000 performance & automotive SKUs for European, JDM, American, Korean and more

NATIONWIDE FAST SHIPPING

Quick dispatch across Australia with reliable tracked delivery

AUSSIE SUPPORT & EXPERTISE

Local customer service and technical assistance from our team of enthusiasts

Koyo Performance Radiator – Toyota Mark II / Chaser / Cresta JZX90 1JZ-GTE MT (1992–1996)

Application: Toyota Mark II MT / Chaser MT / Cresta MT | E-JZX90 | 1JZ-GTE | Manual Transmission | JDM Only

Part Number: H010409 | KH010409R

Toyota OEM Reference: 16041 46250


The JZX90 Mark II, Chaser, and Cresta are among the most iconic JDM performance platforms ever produced — rear-wheel drive, turbocharged, and endlessly tuneable. The 1JZ-GTE is a legendary inline-six that thrives on boost, but sustained hard driving demands a cooling system that can keep pace. The Koyorad H010409 is a direct bolt-in performance upgrade engineered specifically for the JZX90 with manual transmission, delivering improved cooling capacity without any cutting, drilling, or fabrication.

Koyorad's all-aluminium construction and high-efficiency 48mm core design dissipate heat faster and more effectively than the factory unit, keeping coolant temperatures in check even under sustained high-load driving. Nocolok furnace brazed, precision TIG welded by hand, and triple pressure tested — it retains all OEM fan shroud mounts and stock hose connections with no modifications required.


Why Koyorad?

  • Precise Tube & Fin Alignment — Strict quality control ensures optimal coolant flow and maximum heat transfer efficiency across the entire core.
  • Nocolok Furnace Brazing — All tubes, fins, headers, and brackets are bonded in a state-of-the-art Nocolok furnace, creating a structure that resists vibration, road debris, and the elements.
  • Billet Filler Neck — Precision-machined billet filler necks are fitted to every unit for superior strength, durability, and a reliable seal.
  • OE-Specific Mounting — Application-specific mounting points for fan shrouds, inlet/outlet hoses, and top/bottom pins ensure a pain-free, no-modification install.
  • Hand-Crafted Heliarc Welds — Each radiator is individually Heliarc welded by hand, creating the strongest possible aluminium-to-aluminium bond across all components.

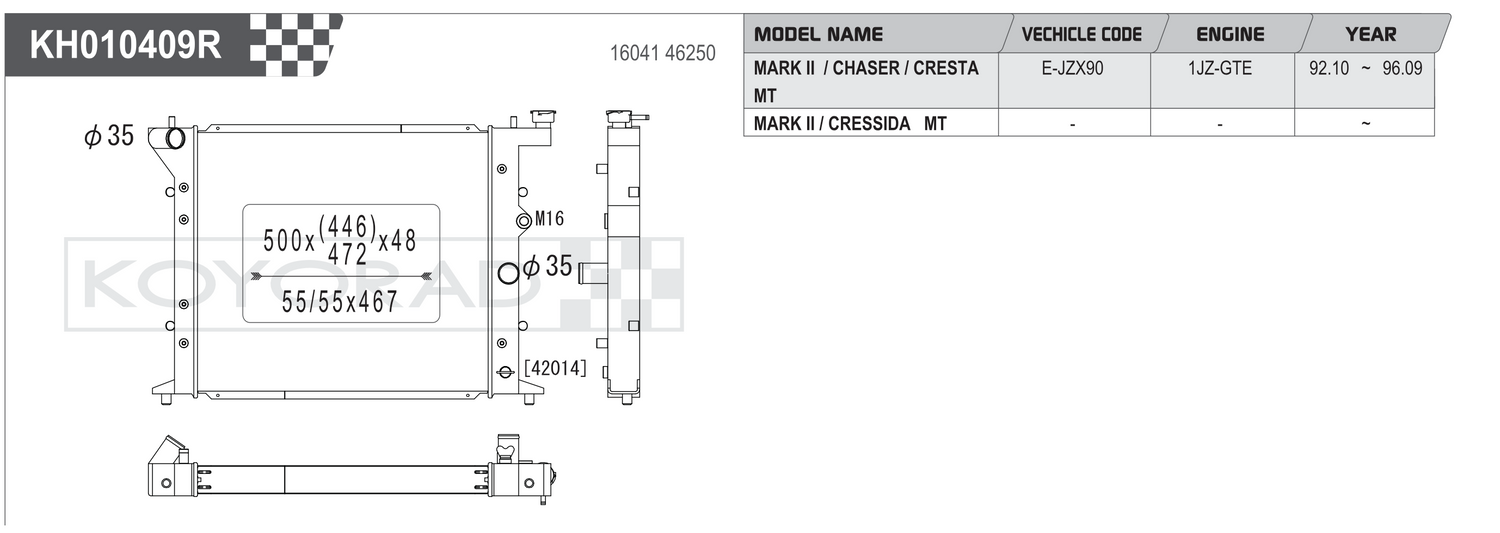

Specifications

Part Number H010409 / KH010409R
Core Thickness 48mm
Core Dimensions (H × W) 500 × 446/472mm
Tank Dimensions 55/55 × 467mm
Inlet / Outlet Diameter ⌢35mm (top and bottom)
Drain Plug 42014 | M16 side
Toyota OEM Ref 16041 46250
Construction All Aluminium, Nocolok Brazed, Heliarc Welded
Transmission Manual (MT)
Market JDM Only
Fitment Direct bolt-in, no modifications required

Cross Reference

Koyorad H010409 / KH010409R
Toyota OEM 16041 46250

Fitment Table

Year Make Model Chassis Submodel
1992.10–1996.09 Toyota Mark II / Chaser / Cresta E-JZX90 1JZ-GTE — Manual Transmission — JDM
Toyota Mark II / Cressida Manual Transmission — JDM

Sold individually. Manual transmission fitment only. JDM market vehicles only. Lead times may apply — contact us at ModsDirect for availability and shipping estimates.


ModsDirect is an Authorised Australian Distributor of Koyorad Performance Radiators.
Shop with confidence — all Koyorad products sold through ModsDirect are genuine, backed by manufacturer support, and shipped from Australia.
