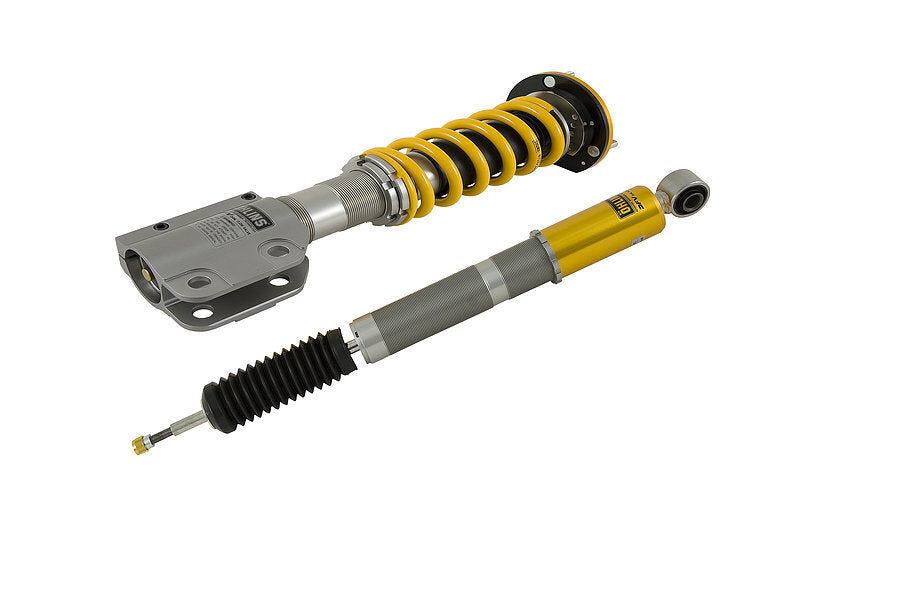

Öhlins Road & Track Coilovers – Honda Civic Type R FD2 (2006–2011)
Part Number: HOS MI30S1 | Fitment: Honda Civic Type R FD2 Sedan — 2006–2011
Over 40 years of motorsport engineering distilled into a street-ready coilover kit. The Öhlins Road & Track series delivers a genuine racing experience without sacrificing daily drivability — thanks to Öhlins' proprietary Dual Flow Valve (DFV) technology. Featuring a McPherson front strut and conventional rear shock with dustcovers, springs included as a complete car set. Approximately 15mm drop with the recommended setup.
Vehicle Fitment
Honda Civic Type R |
FD2 Sedan — 2006–2011 |
Technical Specifications
Part Number |
HOS MI30S1 |
Technology |
DFV — Dual Flow Valve |
Front Damper Type |
McPherson strut |
Rear Damper Type |
Conventional shock absorber |
Damping Adjustment |
Single bleed adjuster (front & rear) |
Front Spring Rate |
80 N/mm — included |
Rear Spring Rate |
Progressive — included |
Lowering Range |
Approx. 15mm below standard (front & rear) |
Dustcovers |
Included (front & rear) |
Springs Included |
Yes — front & rear springs included |
Rebuildable |
Yes |
Corrosion Testing |
ISO 9227 salt spray tested |
Warranty |
2-year limited warranty |
Included Springs
Position
Spring Rate
Front |
80 N/mm |
Rear |
Progressive rate |
General Features
• DFV technology (Dual Flow Valve) — Öhlins' proprietary damping system
• Individual height adjustment — approx. 15mm below standard
• Single bleed adjuster — compression and rebound
• Rebuildable for custom tuning
• Corrosion salt spray tested (ISO 9227)
• 2-year limited warranty
• Front & rear springs included
Front Features

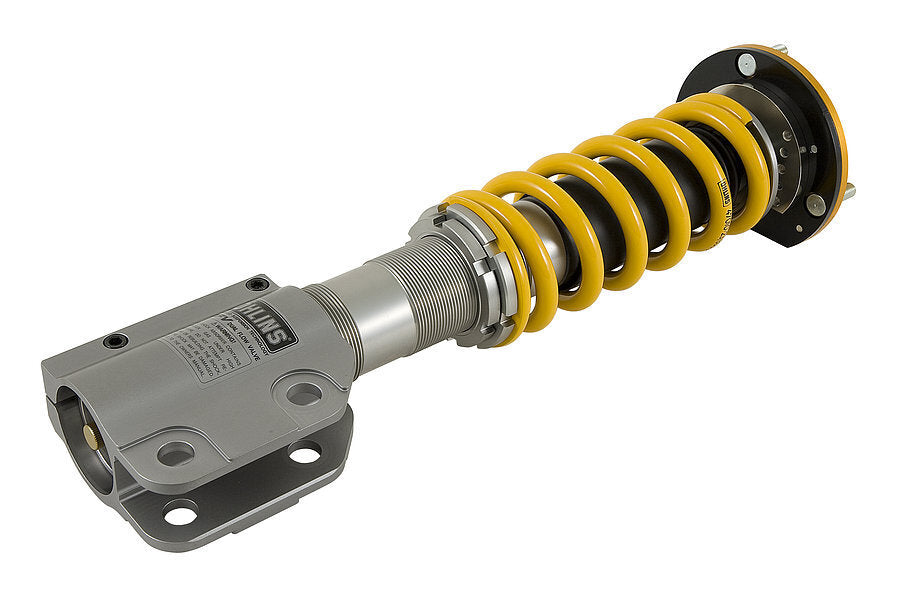

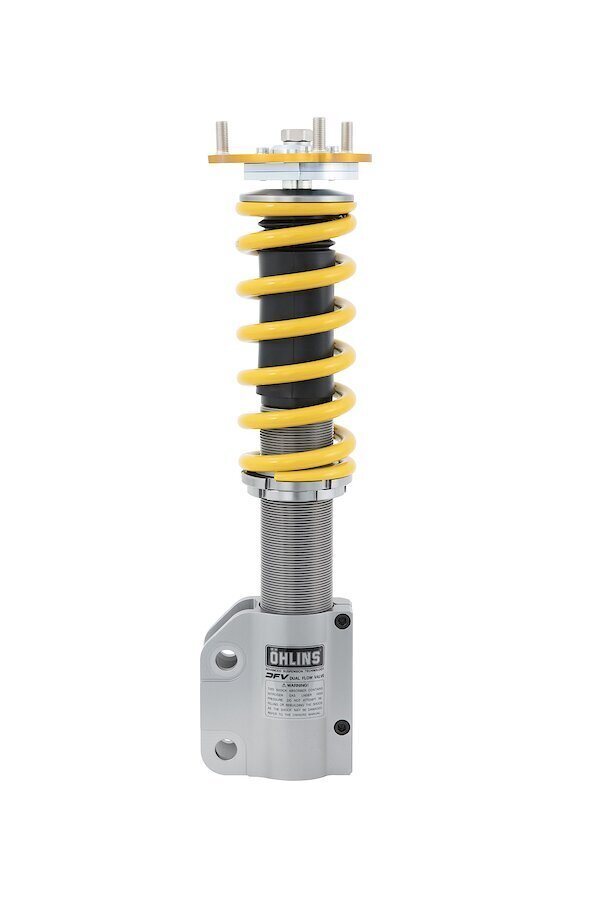

• McPherson strut
• Single bleed adjuster

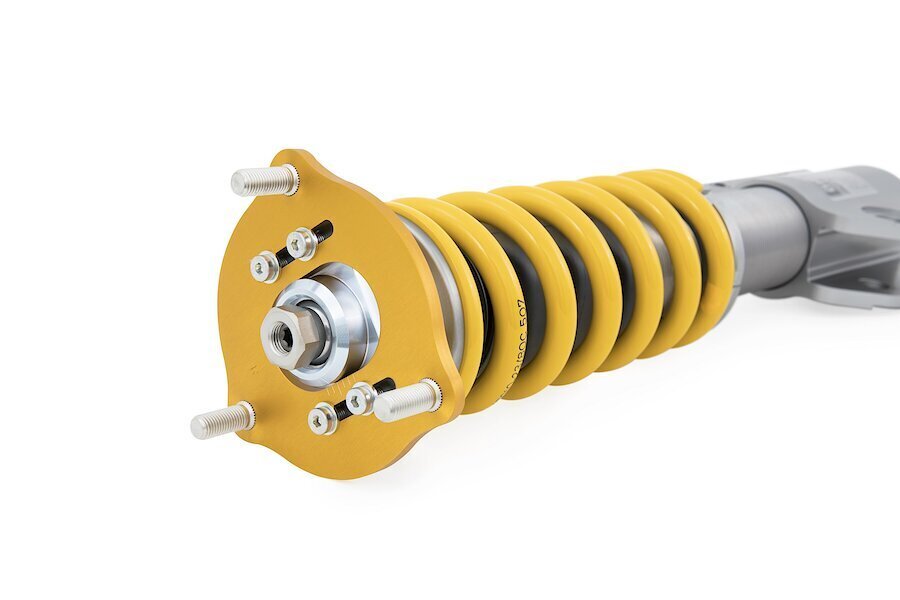

• Spring preload adjuster
• Height adjustable — approx. 15mm lower than standard
• Coil springs included (80 N/mm)
• Dustcovers included
Rear Features

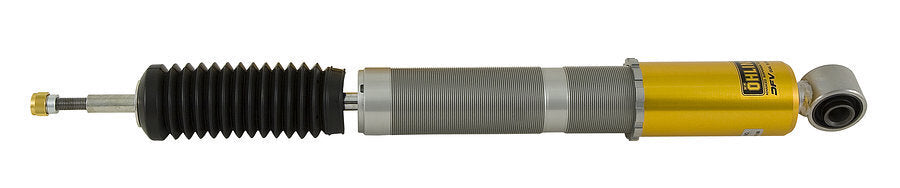

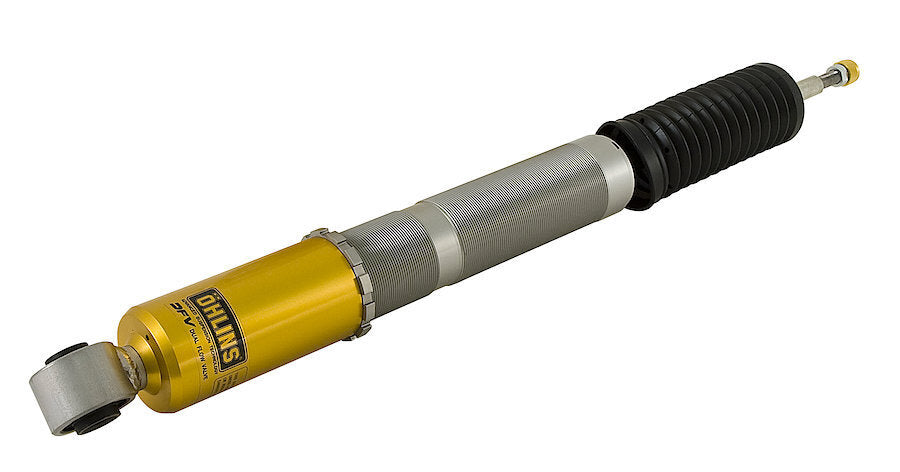

• Conventional shock absorber
• Single bleed adjuster
• Height adjustable — approx. 15mm lower than standard
• Progressive rate coil springs included
• Dustcovers included
Kit Contents

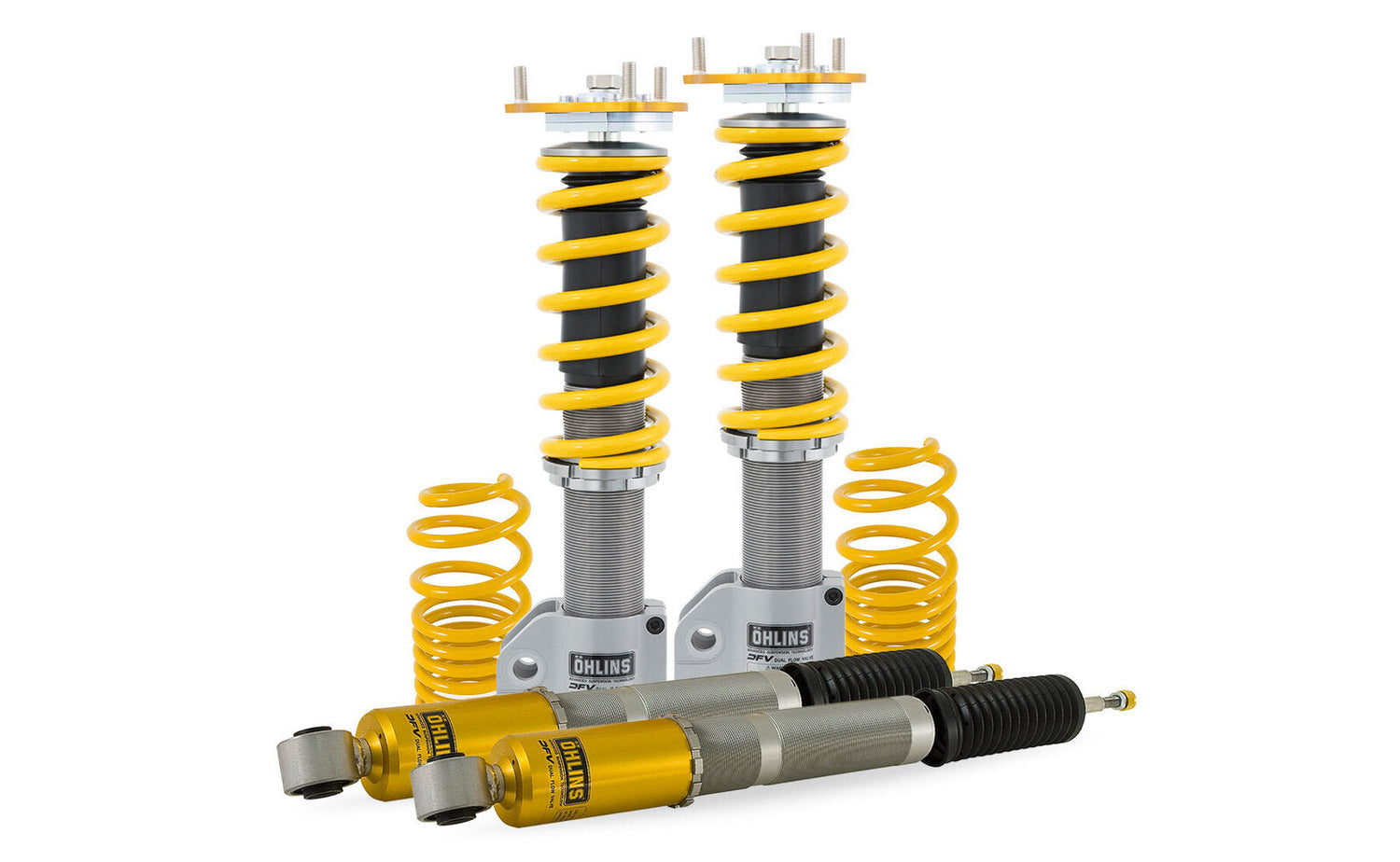

• Complete coilover kit including springs and all mounting parts
• Dustcovers (front & rear)
• C-spanner for spring preload adjustment
• Owner's manual and mounting instructions
• Öhlins sticker set
What is DFV (Dual Flow Valve)?
DFV is Öhlins' proprietary damping technology that sets the Road & Track range apart from conventional coilovers. The dual flow valve provides consistent damping characteristics on both compression and rebound strokes — the damper fluid follows a consistent flow path in both directions. This means the wheel and tyre can rapidly return to the road surface after a bump, maximising grip and traction at all times.
Because DFV opens more quickly on minor road imperfections, ride comfort is surprisingly supple — more akin to an OEM strut than a typical coilover. Over undulating surfaces, the compliance of the R&T units allows the car to crest bumps and potholes while remaining stable and in control. Traction is always maintained at its optimum level.
Why Öhlins Road & Track?
• ✅ Over 40 years of motorsport engineering heritage — trusted by factory race teams worldwide
• ✅ DFV technology — genuine race-car response with OEM-level daily comfort
• ✅ Engineered for the FD2 Sedan — the JDM-spec Civic Type R platform
• ✅ Progressive rear springs & 80 N/mm front included — complete kit, ready to fit
• ✅ Rebuildable, ISO 9227 corrosion-tested, 2-year limited warranty
