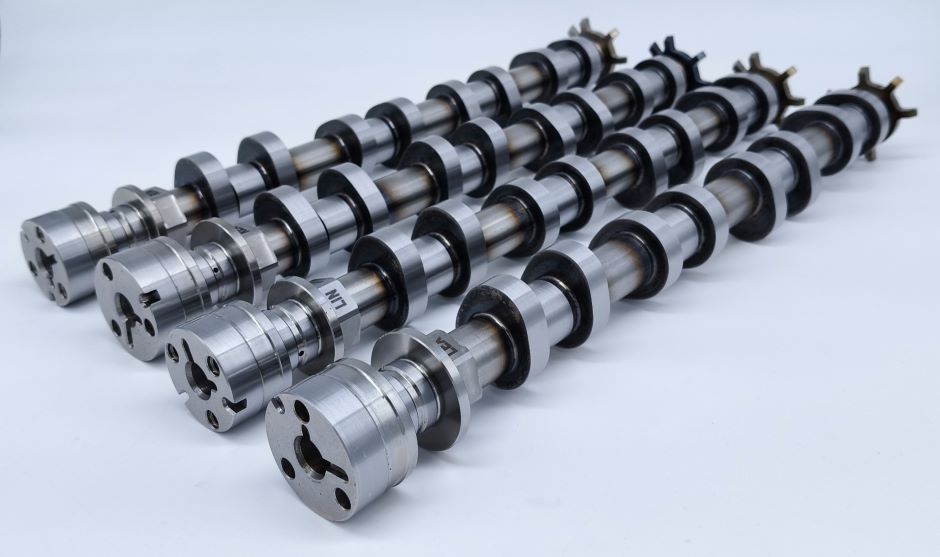

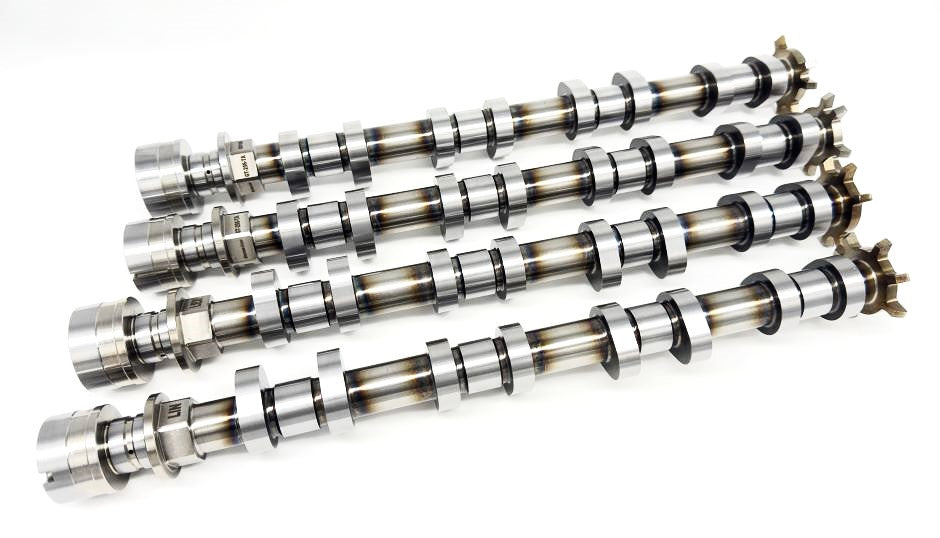

Kelford Cams - Ford Coyote Gen2 5.0L With Voodoo Head Swap Camshafts (Camshaft Duration- 298°/292° | 15.00mm/14.00mm NA Stage 3 with GT350/GT500 Heads)
Kelford Cams - Ford Coyote Gen2 5.0L With Voodoo Head Swap Camshafts (Camshaft Duration- 298°/292° | 15.00mm/14.00mm NA Stage 3 with GT350/GT500 Heads) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Kelford Cams also offers a full range of high-performance camshafts for the Ford Coyote Gen2 using GT350 / GT500 / Voodoo swapped cylinder heads (Must be Coyote Firing Order). Voodoo / GT350 / GT500 cylinder heads are fully compatible with Ford Coyote Gen 2 (2015–2018) short blocks, offering a flexible and potent upgrade path.
*The part numbers for the Voodoo head swapped engines is designated as: GT-256-

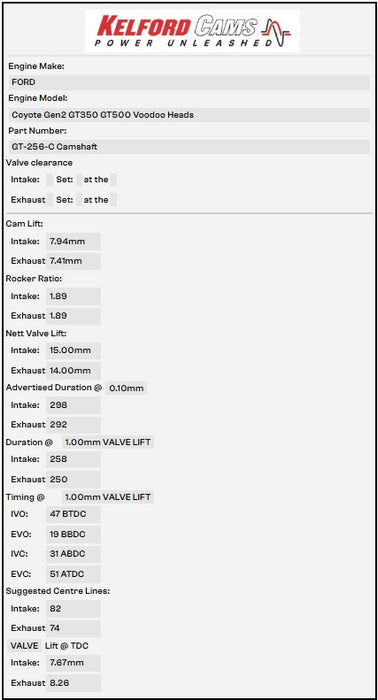

GT-256-C NA Stage 3:
298°/292° | 15.00mm/14.00mm
Stage 3 – Ford GT350 / GT500 heads on 5.0L block (Coyote Firing Order) NA Camshafts (Ported Heads, 10,200 RPM)
The Kelford Cams Stage 3 camshafts for the Ford Coyote are the ultimate choice for extreme high-RPM naturally aspirated racing engines. Designed for professionally assembled powerplants running ported cylinder heads, high compression ratios, and maximum-flow intake and exhaust systems, these cams are engineered to perform to 10,200 RPM and deliver peak performance at the highest level. Stage 3 cams must be paired with aftermarket pistons featuring deep valve relief pockets, and a KVS257 valve spring upgrade is required for reliable operation under intense racing conditions. For competitive racers aiming to lead the field, these cams offer elite performance and precision.
