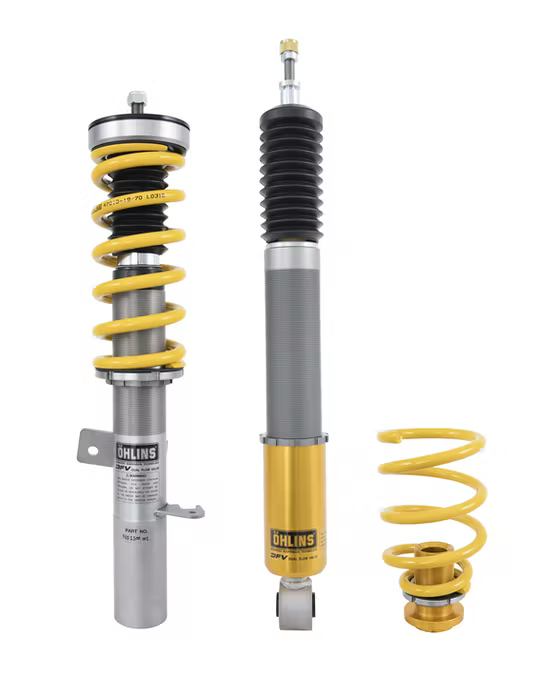

Öhlins Road & Track Coilovers – Ford Focus RS Mk3 LZ (2016–2017)
Part Number: FOS MS00S1 | Fitment: Ford Focus RS Mk3 LZ — 2016–2017
Over 40 years of motorsport engineering distilled into a street-ready coilover kit. The Öhlins Road & Track series delivers a genuine racing experience without sacrificing daily drivability — thanks to Öhlins' proprietary Dual Flow Valve (DFV) technology. Featuring a McPherson front strut and conventional rear shock with a separate length adjuster, springs included as a complete car set. Approximately 15–25mm drop with the recommended setup.
⚠️ Note: For vehicles equipped OE with electronic adjustable suspension, an Öhlins cancellation kit is also required (sold separately). See cancellation kit table below.
Vehicle Fitment
Ford Focus RS |
Mk3 LZ — 2016–2017 |
Technical Specifications
Part Number |
FOS MS00S1 |
Technology |
DFV — Dual Flow Valve |
Front Damper Type |
McPherson strut |
Rear Damper Type |
Conventional shock absorber |
Damping Adjustment |
Single bleed adjuster (front & rear) |
Front Spring Rate |
80 N/mm (Part No. 48010-23) — included |
Rear Spring Rate |
70 N/mm (Part No. 47040-19) — included |
Lowering Range |
Approx. 15–25mm below standard (front & rear) |
Rear Height Adjustment |
Separate length adjuster |
Top Mounts |
Use with original top mounts (front & rear) |
Springs Included |
Yes — front & rear springs included |
Rebuildable |
Yes |
Corrosion Testing |
ISO 9227 salt spray tested |
Warranty |
2-year limited warranty |
Included Springs
Position
Part No
Spring Rate
Front |
48010-23 |
80 N/mm |
Rear |
47040-19 |
70 N/mm |
Cancellation Kit (if required)
For vehicles equipped OE with electronic adjustable suspension, an Öhlins cancellation kit must also be used. Ordered separately.
Part No
Description
35020-18 |
Cancellation kit |
General Features
• DFV technology (Dual Flow Valve) — Öhlins' proprietary damping system
• Individual height adjustment — approx. 15–25mm below standard
• Single bleed adjuster — compression and rebound
• Rebuildable for custom tuning
• Corrosion salt spray tested (ISO 9227)
• 2-year limited warranty
• Front & rear springs included

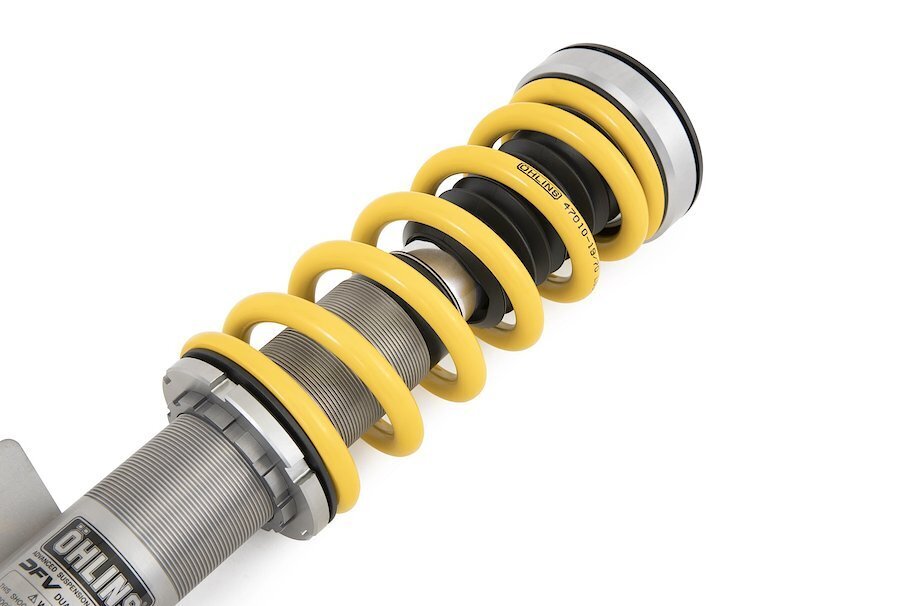

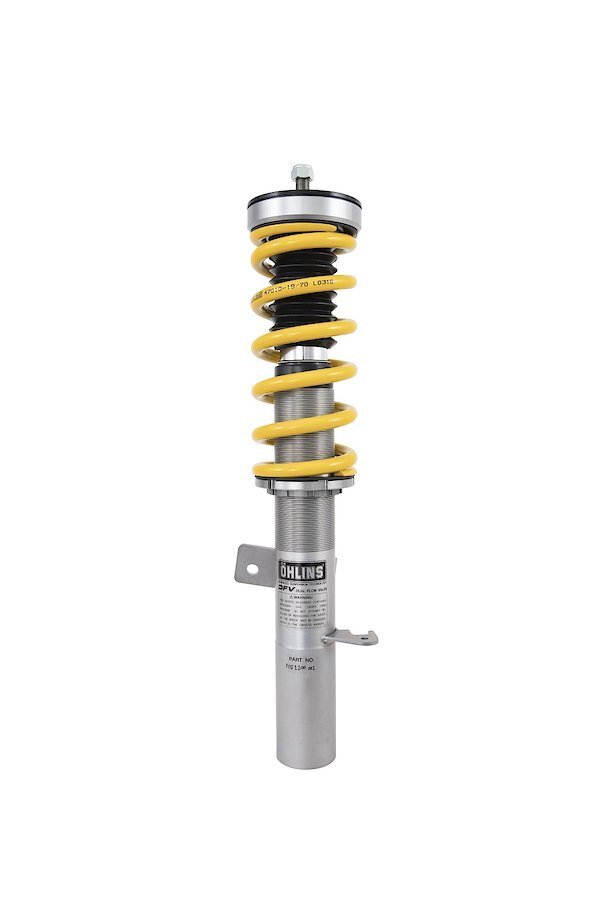

Front Features
• McPherson strut
• Single bleed adjuster
• Spring preload adjuster
• Height adjustable — approx. 15–25mm lower than standard
• Coil springs included (80 N/mm — Part No. 48010-23)
• Use with original top mounts

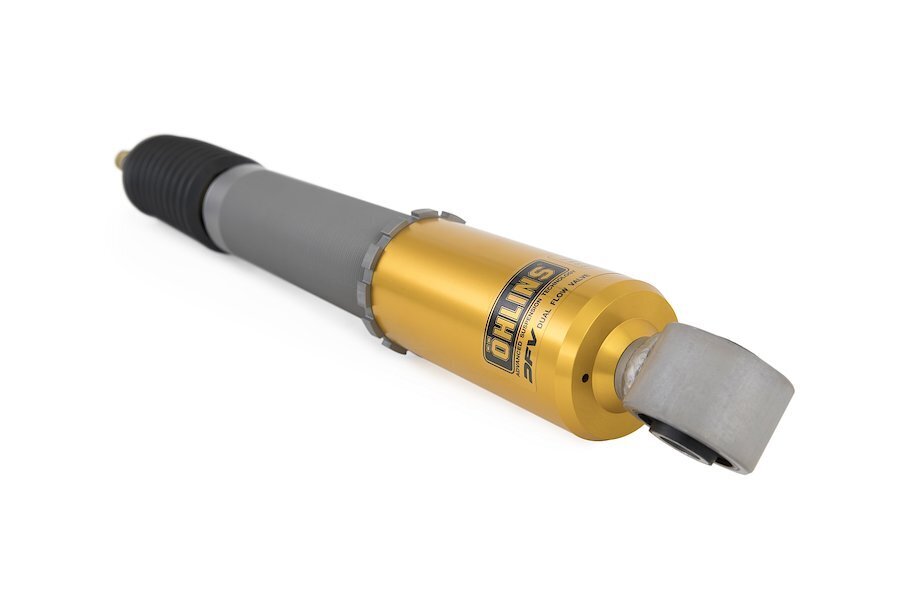

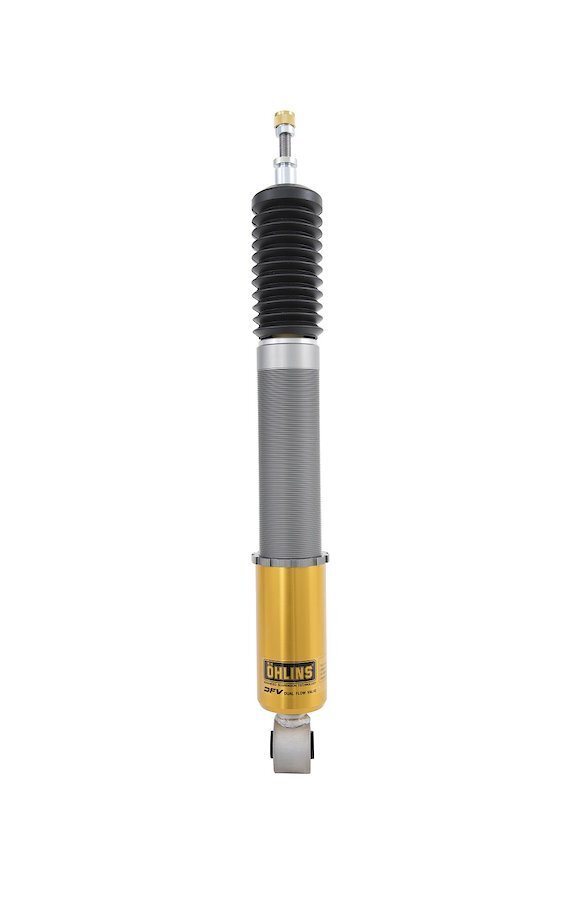

Rear Features
• Conventional shock absorber

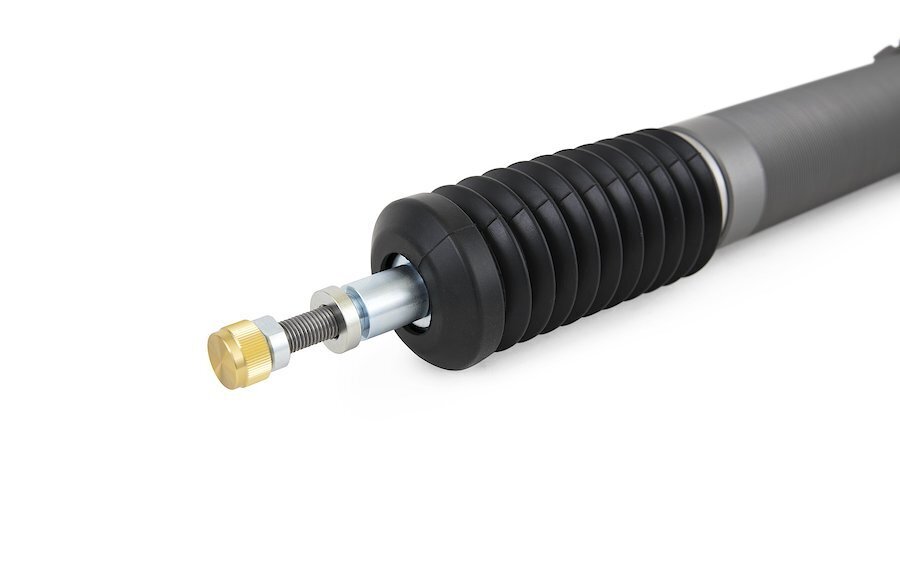

• Separate length adjuster
• Single bleed adjuster
• Spring preload adjuster
• Height adjustable — approx. 15–25mm lower than standard

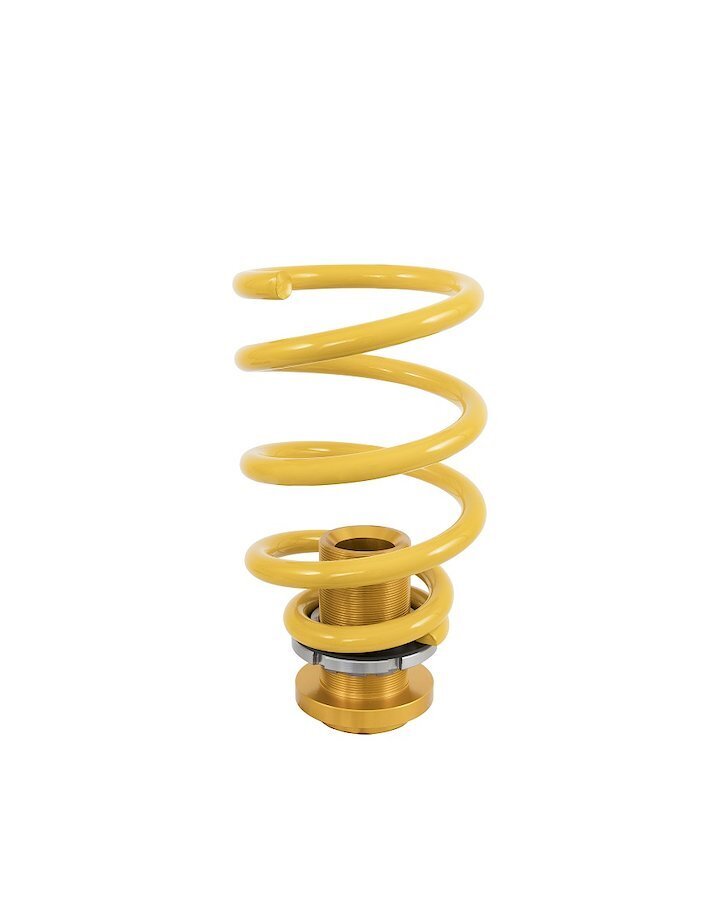

• Coil springs included (70 N/mm — Part No. 47040-19)
• Use with original top mounts
Kit Contents
• Complete coilover kit including springs and all mounting parts
• C-spanner for spring preload adjustment
• Owner's manual and mounting instructions
• Öhlins sticker set
What is DFV (Dual Flow Valve)?
DFV is Öhlins' proprietary damping technology that sets the Road & Track range apart from conventional coilovers. The dual flow valve provides consistent damping characteristics on both compression and rebound strokes — the damper fluid follows a consistent flow path in both directions. This means the wheel and tyre can rapidly return to the road surface after a bump, maximising grip and traction at all times.
Because DFV opens more quickly on minor road imperfections, ride comfort is surprisingly supple — more akin to an OEM strut than a typical coilover. Over undulating surfaces, the compliance of the R&T units allows the car to crest bumps and potholes while remaining stable and in control. Traction is always maintained at its optimum level.
Why Öhlins Road & Track?
• ✅ Over 40 years of motorsport engineering heritage — trusted by factory race teams worldwide
• ✅ DFV technology — genuine race-car response with OEM-level daily comfort
• ✅ Engineered for the Focus RS Mk3 — AWD performance hatch with factory drift mode
• ✅ Springs included — 80/70 N/mm front & rear, ready to fit
• ✅ Rebuildable, ISO 9227 corrosion-tested, 2-year limited warranty
