Dixcel FS Replacement Front Rotor Rings - Subaru WRX STI R205 (GRB) / S206 (VAB) - 340x32mm
Dixcel FS Replacement Front Rotor Rings - Subaru WRX STI R205 (GRB) / S206 (VAB) - 340x32mm is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
MASSIVE RANGE
Over 20,000 performance & automotive SKUs for European, JDM, American, Korean and more
NATIONWIDE FAST SHIPPING
Quick dispatch across Australia with reliable tracked delivery
AUSSIE SUPPORT & EXPERTISE
Local customer service and technical assistance from our team of enthusiasts
Dixcel FS Replacement Front Rotor Rings - Subaru WRX STI R205 (GRB)...
Dixcel FS Replacement Front Rotor Rings (Pair) - Subaru WRX STI R205 (GRB) / S206 (VAB) - 340x32mm
Refresh your Subaru WRX STI R205 or S206's factory two-piece Brembo big brake kit with Dixcel FS replacement rotor rings, engineered in Japan and developed through decades of OEM supply and motorsport experience. Dixcel rotor rings are designed to deliver consistent braking performance, stable pedal feel, and reliable control under demanding circuit and trackday conditions, while preserving the aluminium centre hats, mounting bobbins, and hardware from your factory STI two-piece BBK.

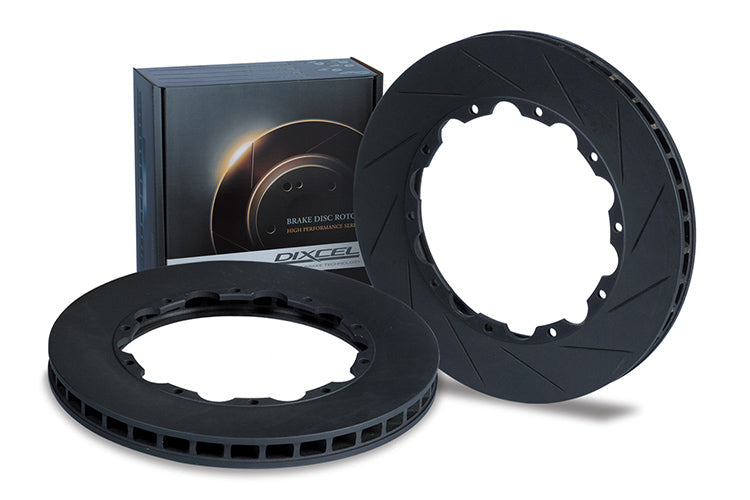

This listing covers a matched left and right pair of 340x32mm Dixcel FS replacement front friction rings (part number FS-34032W76R/77L) for the rare JDM Subaru WRX STI R205 (GRB, 400 units, 2010) and S206 (VAB, 300 units, 2012) Subaru Tecnica International limited editions. Both cars were fitted with factory-equipped two-piece Brembo brake hardware as part of their NBR Challenge homologation development. The ring-only design preserves your factory aluminium centre hats and mounting hardware, allowing significant cost savings over a complete rotor assembly replacement when only the friction ring is consumed.
Compatible Vehicle Applications
- Subaru WRX STI R205 (GRB) - 2010 JDM Limited Edition (400 units) - Factory STI two-piece Brembo BBK
- Subaru WRX STI S206 (VAB) - 2012 JDM Limited Edition (300 units) - Factory STI two-piece Brembo BBK
- Subaru WRX STI S206 NBR Challenge Package (VAB) - 2012 JDM Limited (100 units) - Factory STI two-piece Brembo BBK
Rotor Ring Specifications
- Dixcel Part Number: FS-34032W76R/77L (paired set)
- Outer Diameter: 340mm
- Thickness: 32mm
- Inner Diameter / Hat Bore: 217mm
- Mounting PCD: 202mm
- Mounting Holes: 10
- Application: Factory STI two-piece Brembo BBK (Front)
- Sold As: Pair (Left and Right)
- Origin: Made in Japan
Important Fitment Notes
- This product is a replacement rotor ring only - aluminium centre hats, mounting bobbins, and hardware are NOT included. You must reuse the factory STI hat and hardware from your existing two-piece BBK.
- Designed as a direct OEM-replacement for the factory STI two-piece Brembo front rotor fitted to the R205 and S206 limited editions.
- Standard WRX STI (GRB / GVB / VAB) variants are NOT fitted with two-piece Brembo brakes from the factory and require a different rotor.
- If your vehicle has been retrofitted with an aftermarket BBK, confirm rotor dimensions, mounting PCD, and bolt pattern match the specifications above before ordering.
Vehicle compatibility, rotor specifications, and fitment notes are provided in the tabs above. Please ensure your vehicle's variant, brake hardware, and rotor specifications are confirmed before ordering.
Not sure if these rings suit your R205 or S206? Contact our team at info@modsdirect.com.au for expert advice.
