DGR Suspension  |  SKU: TO-078

DGR Coilovers | Street Series (Toyota 86 / Subaru BRZ)

$1,499.00
Shipping calculated at checkout.

DGR Toyota 86 Coilovers

DGR utilises a very well respected and proven monotube damper design combined with high quality components which has gone through numerous rigorous tests and costly manufacturing processes. The design of the DGR Toyota 86 Coilovers has gained worldwide recognition for its unparalleled performance and it is being used as an OEM stock application in some high end performance cars. The monotube uses a single outer tube and the oil and gas are separated by a free piston, which puts the oil on the top and gas on the bottom. The damper uses a large floating piston which displaces more oil, creating more flow through the valves than the smaller twin-tube piston, this makes the damper much more sensitive to small suspension movements. The high flow in turn makes it more repeatable and enables to achieve an accurate control of the damping force. Monotube design also allows the heat in the oil to transfer directly to the outer surface of the shock body, which is in direct contact with airflow where it can dissipate more efficiently. This reduces heat-induced fad, allowing the shock to maintain full damping characteristics as temperatures rise.   Track/Drift as well as custom spring rates and other options can be built available upon request, Please Contact Us for more information!

Specifications

  • 30 levels of damping adjustment
  • Full threaded absorber tube casing for independent height adjustment
  • Mono-Tube construction
  • SAE9254 high strength durable cold wound steel & heat treated coils
  • Genuine Japanese KOYO spherical bearing
  • Japanese NOK oil seals
  • Italian IP high quality damper oil
  • Lock rings are made of high quality cast iron and the lower bracket is made from light weight aluminium material.

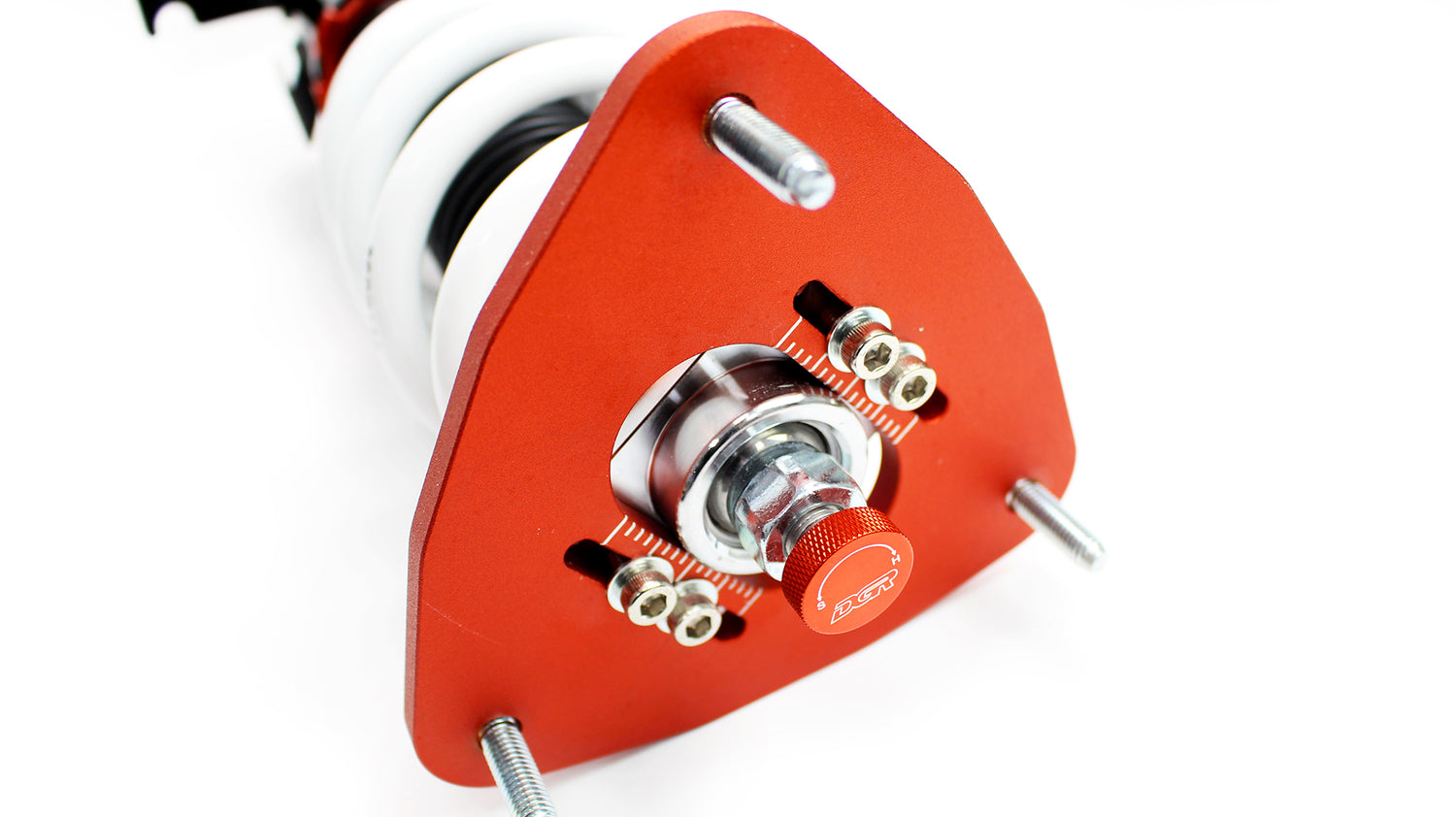

  • Elongated camber bolt hole for camber adjustment without the need of special camber screw and bolt.

Included in the kit

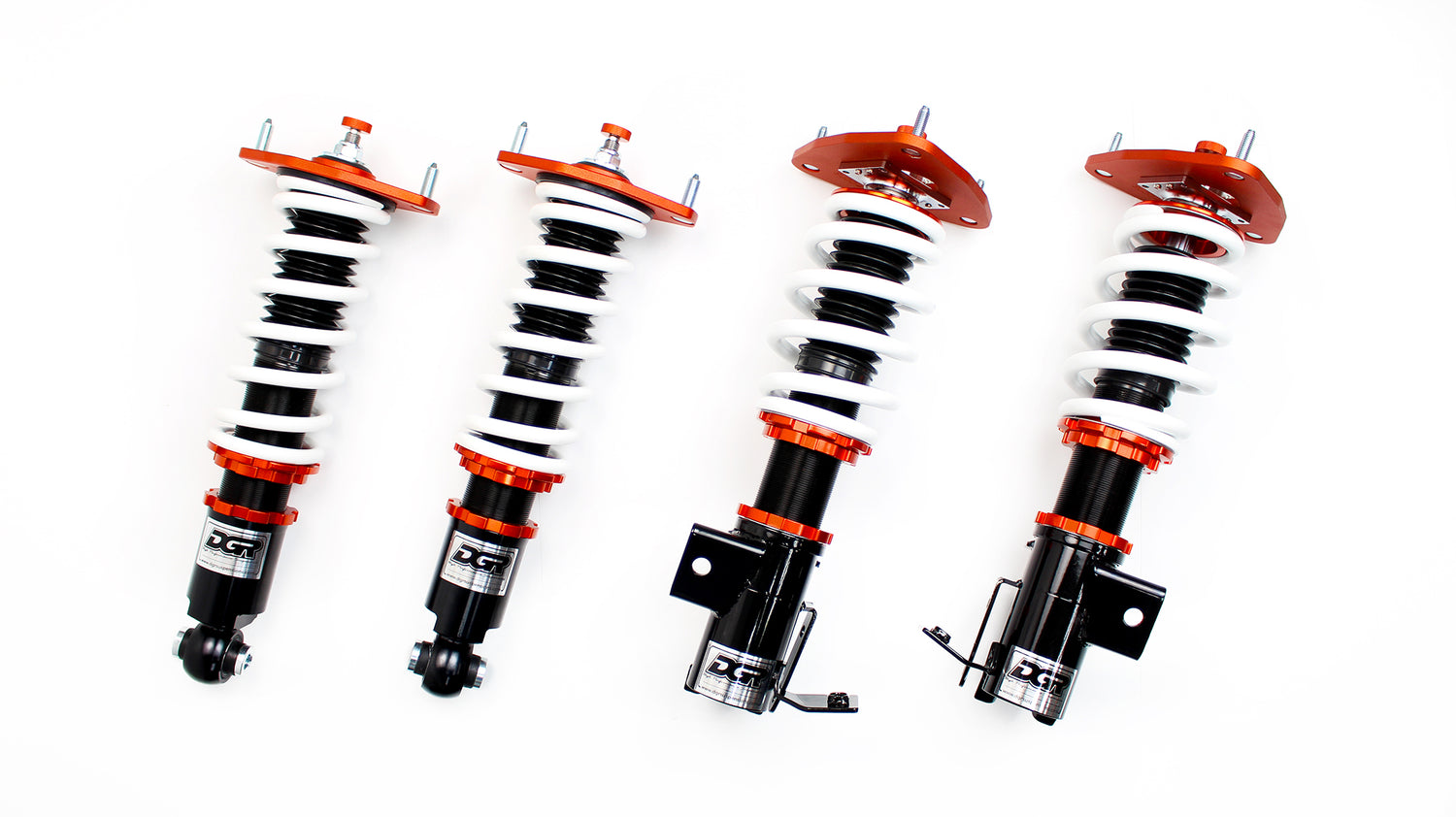

  • 4x Coilovers.
  • C spanners for adjusting ride height.
  • DGR Booklet & Warranty Card.


30 levels fully adjustable damper

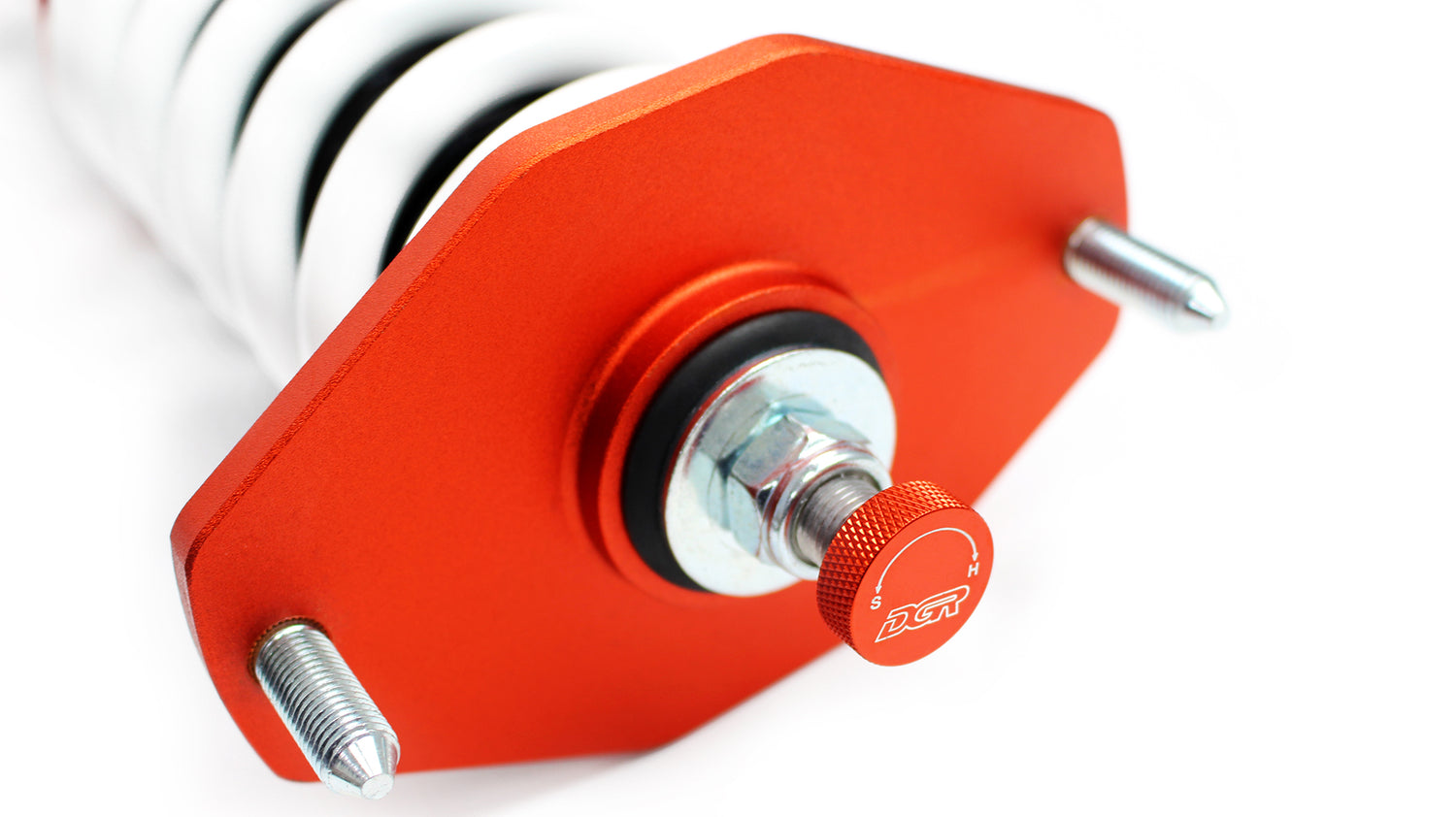

DGR coilovers offer excellent, versatile performance , durability and ride comfort over all road conditions. Featuring 30 levels of damping adjustment, it combines both rebound and compression in one adjust for simplicity and ease of use. The damper can be easily accessed and adjusted via a knob at the top of the damper mount. Simple adjustments can be made to tune to your desired style of driving and comfort level that you desire. This allows you to preset to soft damping for your daily drive and switch to hard damping for track days

Two way independent height adjustment

DGR uses a threaded tube body coupled with an adjustable lower mount, offering an independent height adjustment . This means a wide range of height adjustment is available without affecting the spring per-load or the damper stroke length. This allows significant ride height changes without sacrificing shock travel or ride comfort. So whatever height is being set, you will received to optimum performance of the damper. You can raise your car up to factory height for OEM appearance. Otherwise, you can drop your car all the way down for a formal racetrack aggressive outlook which also lowers your centre of gravity. Not to mention, by lowering the centre of gravity from OEM height you dramatically improve the vehicle’s performance and handling characteristics.

Warranty (VERY IMPORTANT INFORMATION)

  • 1 Year Warranty (Providing coilovers are installed by mechanic. This is a requirement of the main DGR office).
  • Please keep the warranty card in good condition & store it somewhere safe in case need to make a warranty claim.
  • You will need to provide us the serial number.
  • Warranty replacement is free.

Shipping

Normally ships within 3 Working Days via express courier service. Approx 10-14 days travel time (some orders may be coming from overseas).   **Images are for illustration purposes & your kit will vary depending on the car model. Some kits will have a 'divorced' setup.   Contact us for any fitment questions.
