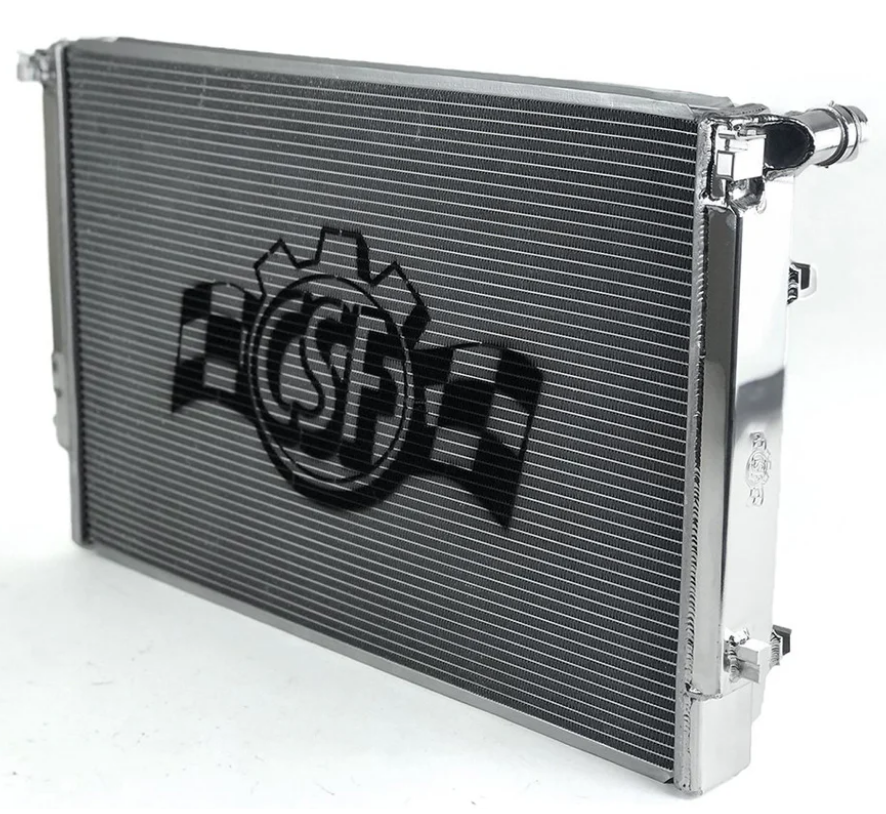

CSF Aluminium Racing Radiator (MQB EA888.3)
CSF Aluminium Racing Radiator (MQB EA888.3) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
CSF Aluminium Racing Radiator (MQB EA888.3)
MK7 GOLF R CSF Racing Radiator
CSF manufactures the most advanced and efficient radiator cores in the industry by using innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation. These techniques allow CSF to stay ahead of the pack when it comes to radiator technology.
B-TUBE TECHNOLOGY
Unlike a regular oval shape "O"� type radiator tube, CSF uses a specially engineered tube in a shape of a "B."� These "B-tubes"� are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O"� shape tubes that are welded.
The design (inlet in the middle of tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes "“ producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes"� you are able to get "dual liquid laminar flow."�
High Efficiency multi-louvered fins
CSF uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.
DESIGN & ENGINEERING
CSF aims to lead the cooling system industry by introducing new technologies and manufacturing processes that allows us to be on the cutting edge of heat transfer innovation.
ADVANCED ENDTANK DESIGNS
CSF offers three all-aluminum end-tank designs to match any style and performance need.
FINISH
Each CSF high-quality radiator is completed with an industry-leading 1 hour, hand-polished "Show-Stopperâ„¢"� Mirror Finish. Our hand polishing tools and techniques in our new polishing center located at the end of the production line ensure that every CSF cooling system looks just as good as it performs.
Features:
- 2-row 42mm (dual core) featuring CSF's exclusive B-tube technology
- Core features an ultra-efficient fin with 6.5 mm fin height and multi-louvered design for maximum surface area contact
- Triple-pass flow structure allows the coolant to flow across the core of the radiator 3 times before exiting the radiator for lowest outlet temperatures possible
- CNC machined "quick-connect"� inlet/outlet connections
- All-aluminum race style drain plug
- 1 hour "mirror finish"� by hand
- "Drop-in fit"� requiring no modifications to install
Vehicle Fitment:
- Audi A3 8V (2.0 TFSI)
- Audi S3 8V (2.0 TFSI)
- Audi TT, TTS 8S (2.0 TFSI)
- Volkswagen Golf GTI Mk7, Mk7.5 (2.0 TSI)
- Volkswagen Golf R Mk7, Mk7.5 (2.0 TSI)
- Skoda Octavia vRS NE (2.0 TSI)
Can I return a product after install?
Once a product has been installed, used or fitted it is no longer returnable.
How long do I have to return a product?
Customers have 7 days inclusive from the day they receive their order to lodge a “Return Request” with ModsDirect. If the return form is approved (notification by email) the item must then be returned within 21 days. All returns must be trackable.
Please note that exchanges, refunds or credits will NOT be processed until the returned product(s) is received by ModsDirect.
Where do items need to be returned to?
After submitting a “Return Request” form, ModsDirect will be in touch via email to confirm details for return.
How do I return items?
All returns must be returned to ModsDirect by courier or post. All returns must be trackable. In some instances, ModsDirect may offer a return label.
What about restocking fees?
All returns will incur a fee of 15%. This is to cover fees incurred by ModsDirect for payment processing and handling. We are at the mercy of paying for services used at our website regardless of whether the order remains completed or reversed.
Who pays for return shipping?
All return shipping costs are the responsibility of the customer. However, if a customer has received the incorrect product, ModsDirect will cover return fees and provide a courier pickup at no cost to the customer.
Exchange, Credit or Refund?
If a customer requests a return, they may be eligible for either an exchange, credit or refund based on the nature of the return and product availability. If refunding, moneys will be returned to the customer via the original payment gateway used at checkout.
Can I drop a return off to ModsDirect?
Sorry, no in-store return option is presently available.
I damaged the packaging during unboxing, can I still return?
Unfortunately not. All packing materials must be in resalable condition for a return. Some minor damages such as a neat cut of a package seal may still be eligible for return. Please include a photo of the packaging with your Return Request form.
By purchasing from ModsDirect you agree to the Return Policy outlined above.
The “Vehicle Fitment” tab found on ModsDirect product listings are to be used as a guide ONLY. ModsDirect does not take responsibility for any misinformation on the Vehicle Fitment tab. The customer must ensure proper and correct fitment on their vehicle prior to ordering. If any errors are found in any product, you are encouraged to inform ModsDirect by clicking here.
