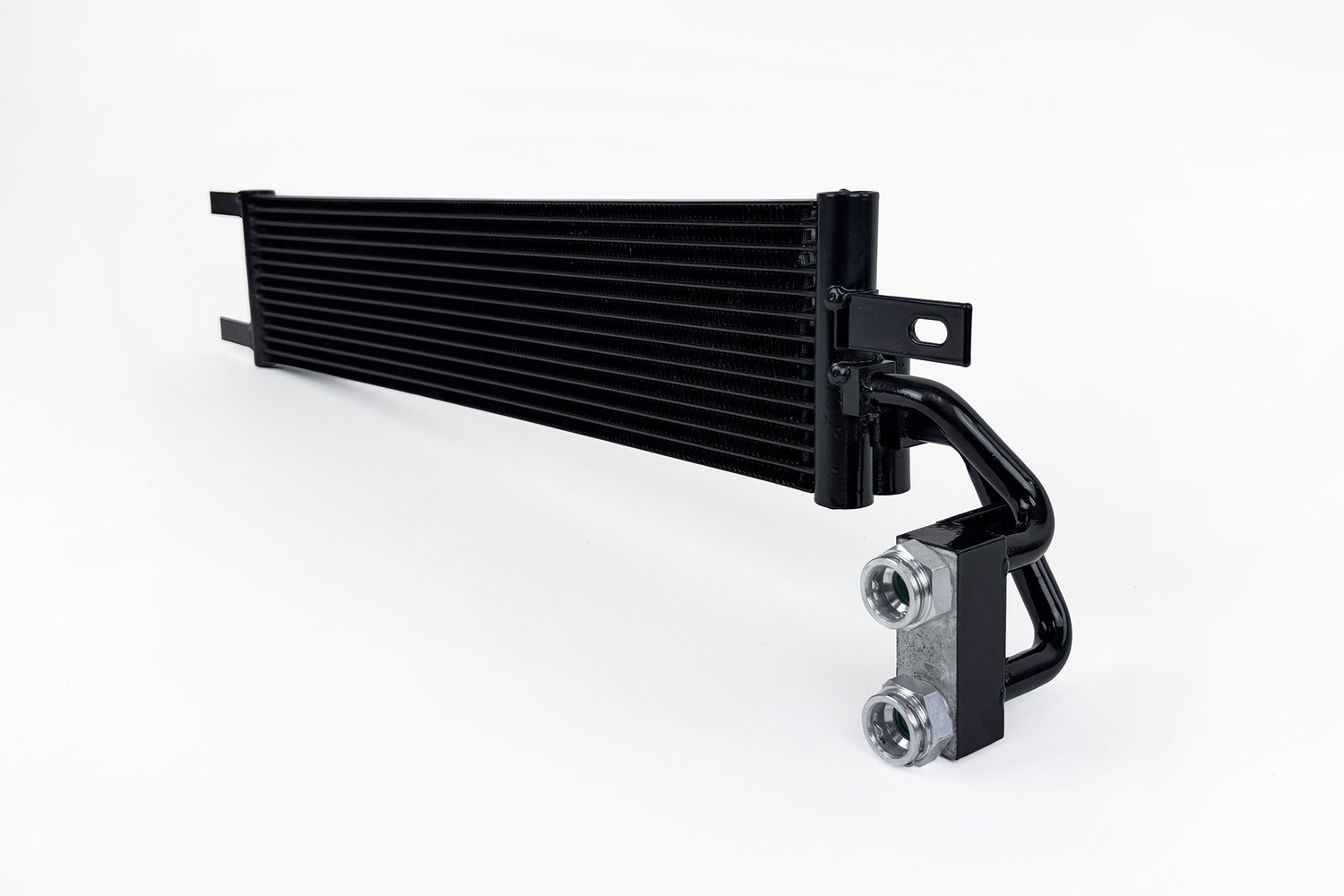

CSF Jeep Wrangler (JL) & Gladiator (JT) High-Performance Transmission Oil Cooler
CSF Jeep Wrangler (JL) & Gladiator (JT) High-Performance Transmission Oil Cooler is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
MASSIVE RANGE
Over 20,000 performance & automotive SKUs for European, JDM, American, Korean and more
NATIONWIDE FAST SHIPPING
Quick dispatch across Australia with reliable tracked delivery
AUSSIE SUPPORT & EXPERTISE
Local customer service and technical assistance from our team of enthusiasts
CSF Jeep Wrangler (JL) & Gladiator (JT) High-Performance Transm...
The Jeep Wrangler (JL) and pickup truck sibling the Gladiator (JT), are well known for their rugged reliability and out of the box off-road performance. However, even the best vehicles have their limits. Whether you are rock crawling, off-roading, or overlanding in extreme conditions, coolant temperatures can spike causing you to overheat. The new CSF High-Performance Transmission Oil Cooler is part of the ultimate cooling solution for your Jeep.
Why Wrangler & Gladiator Owners Should Upgrade
Upgraded cooling systems are not just for off-road rigs and big haulers. Even basic mods/upgrades like oversized tires can increase strain on your engine in adverse conditions. The CSF Radiator provides extra protection that:
Extends transmission life by maintaining optimal coolant temperatures
Improves towing capacity by enhancing cooling efficiency
Eliminates performance limitations during demanding driving conditions
Provides peace of mind with superior construction and durability
Design & Engineering
When transmission fluid overheats, performance suffers and long-term damage becomes more likely. The Wrangler (JL) & Gladiator (JT) often see transmission temperatures of over 250�F while hauling and off-roading. While many owners haven't observed immediate damage, the longer term repercussions are always a reduction in transmission life. On top of that, having to stop and wait for your transmission to cool down is more than just an inconvenience, it is a limitation that shouldn't exist in a Wrangler.

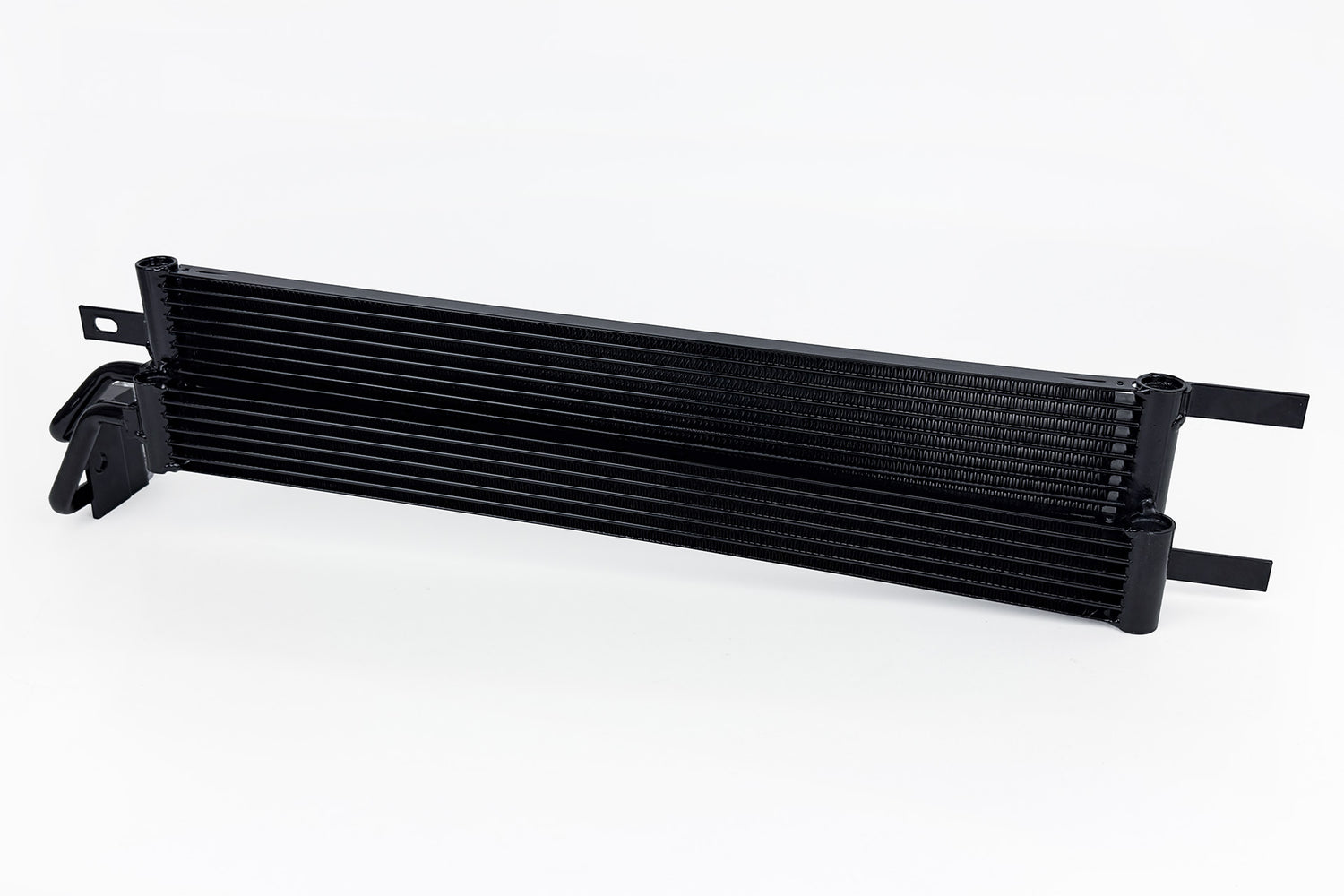

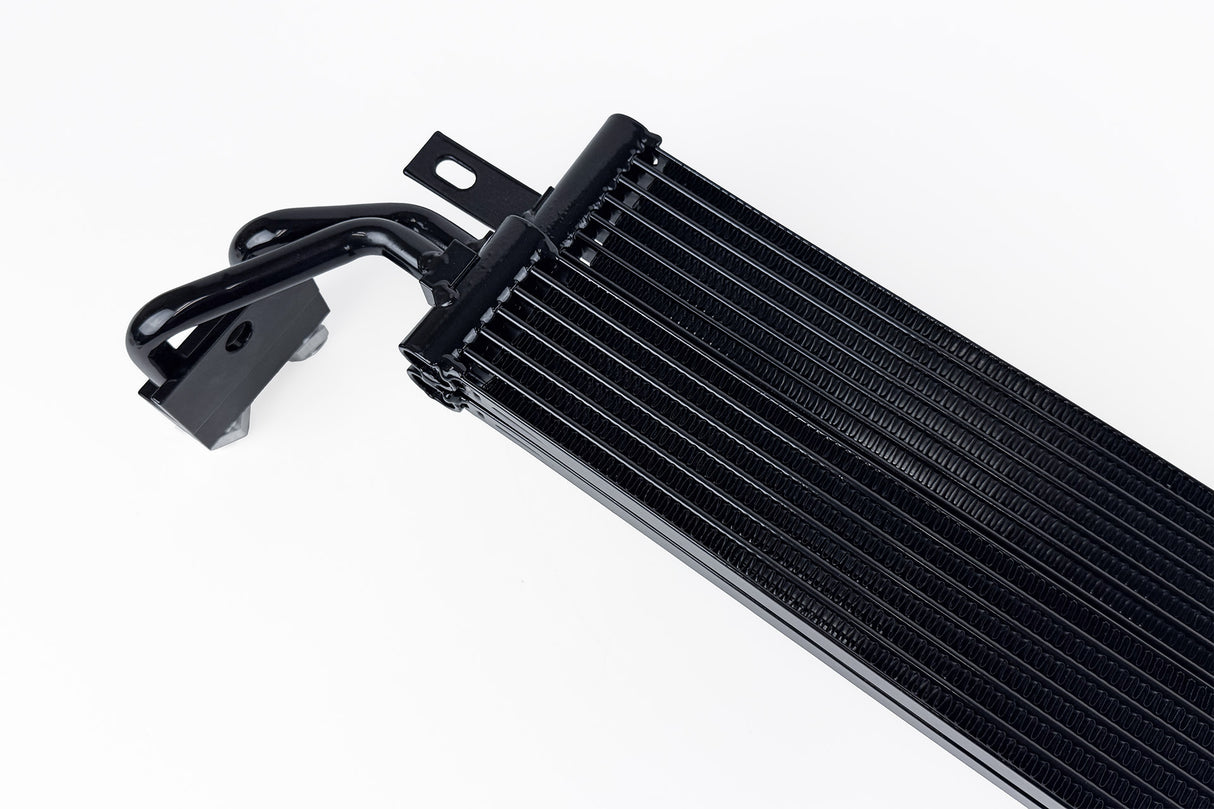

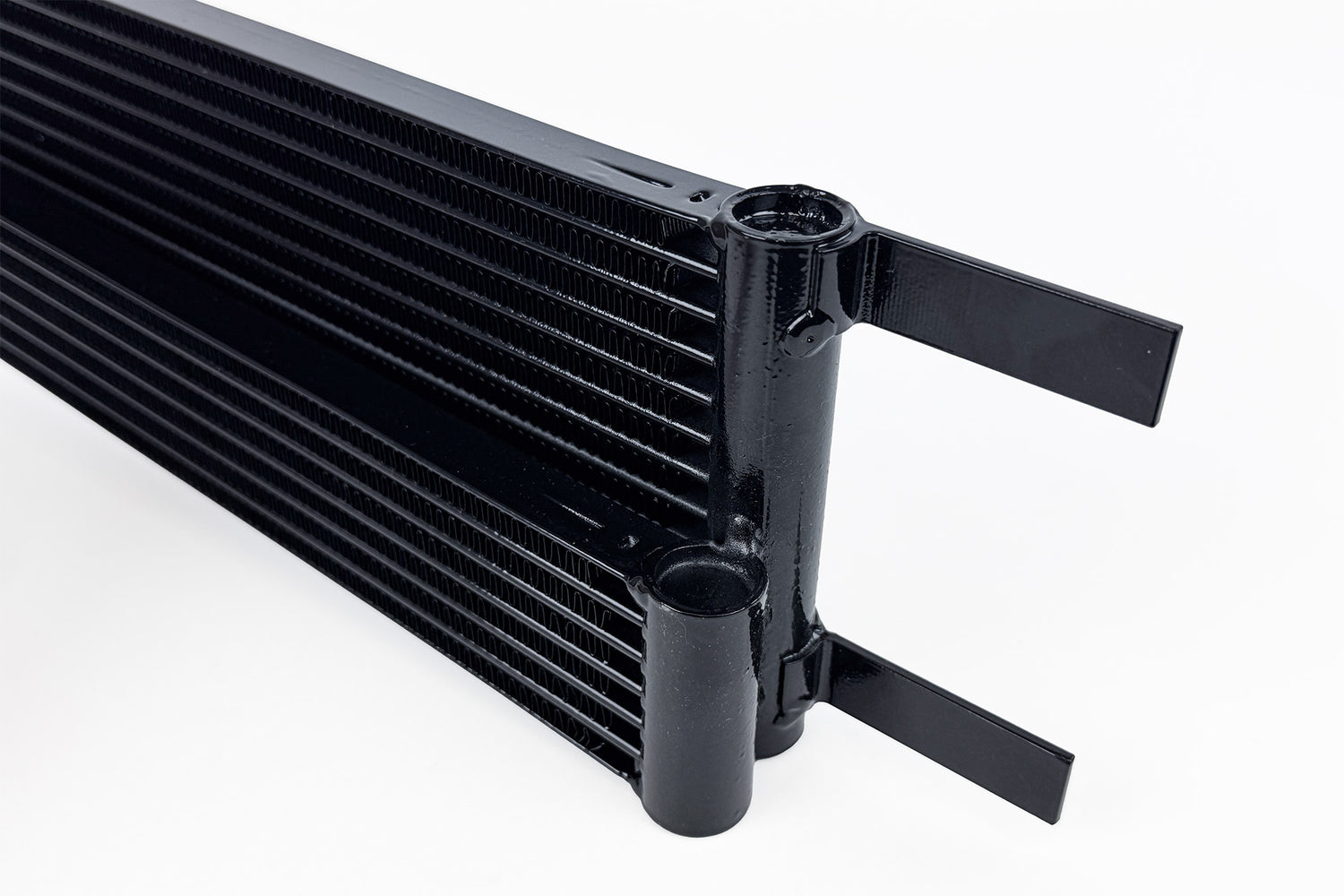

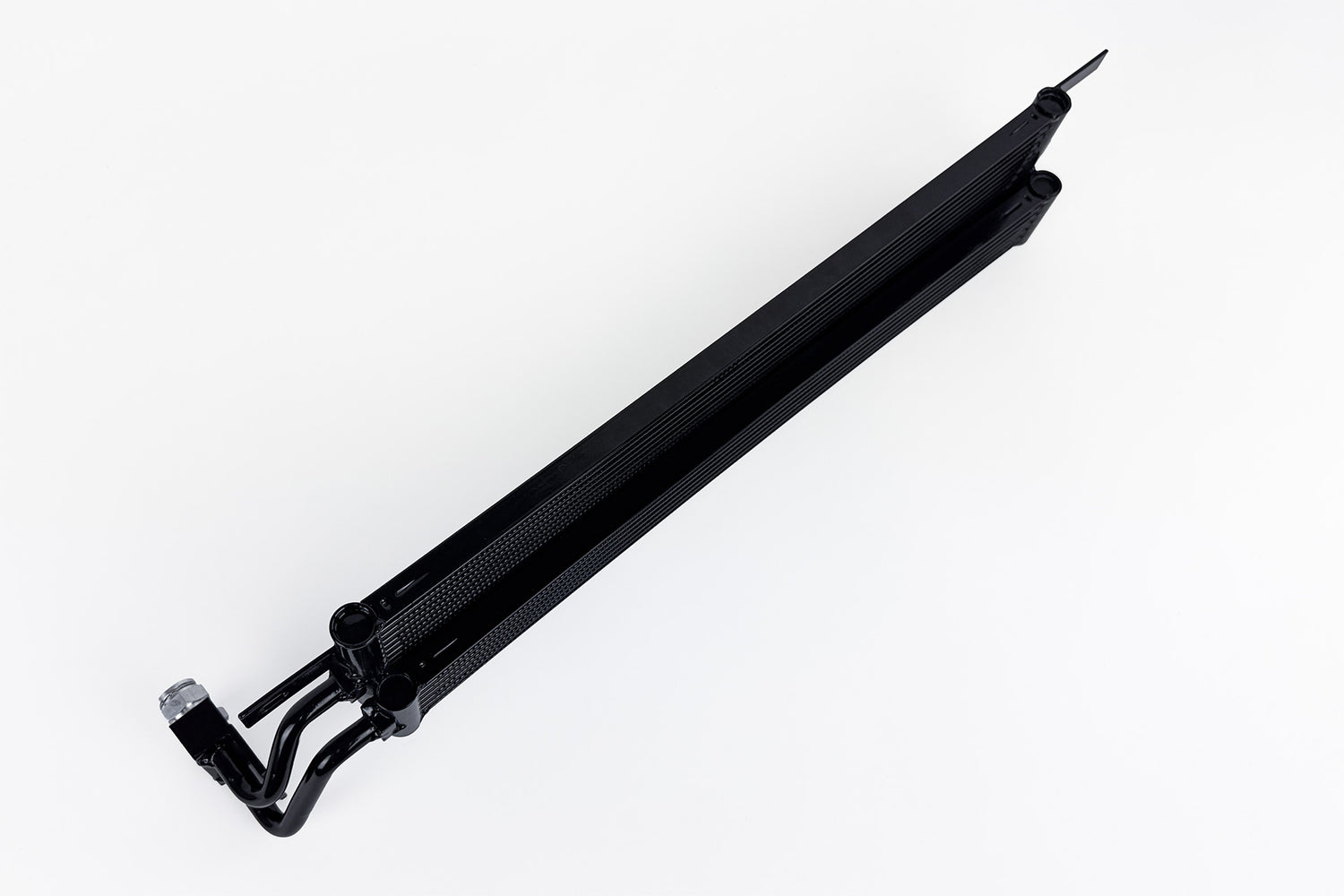

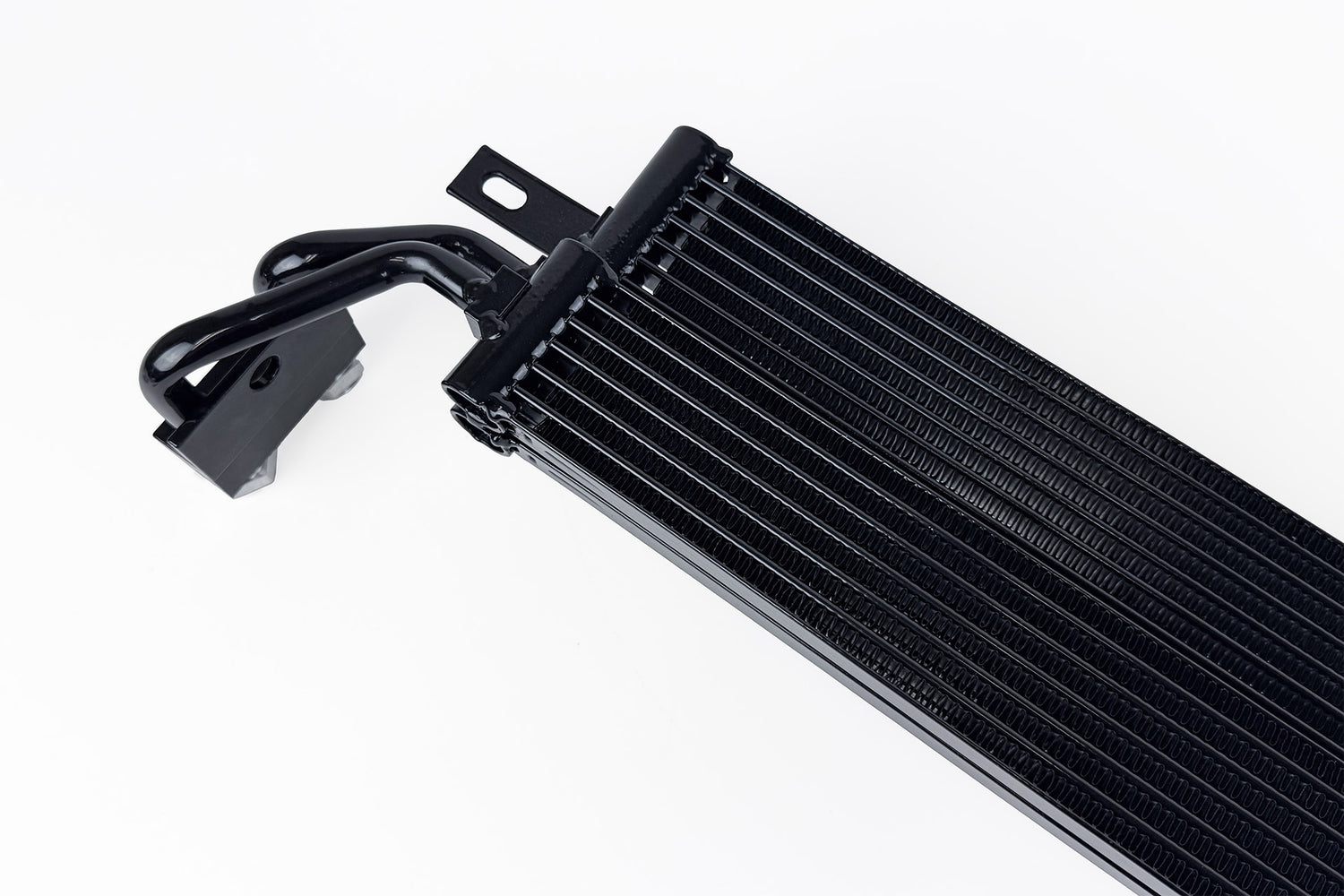

The CSF transmission oil cooler eliminates the concern of overheating. The advanced design features CSF's proprietary AC Condenser Technology, utilizing Super-High Pressure 16mm 10-Channel Microtube architecture that maximizes both oil flow and cooling surface area. The result is dramatic temperature reduction under all driving conditions.

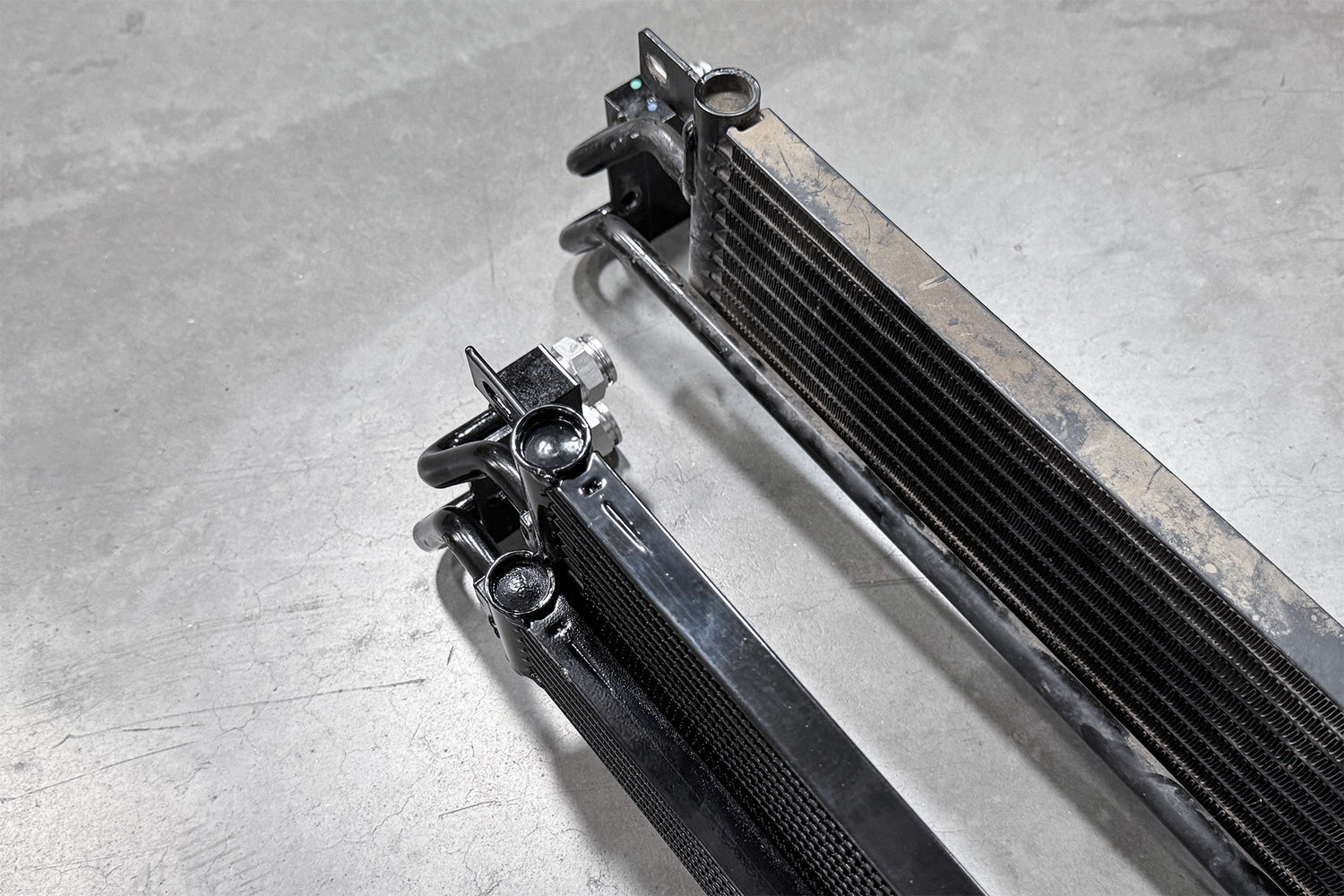

CSF vs OEM
The factory transmission oil cooler for the Wrangler (JL) & Gladiator (JT) is definitely undersized and just enough for daily driving. Add in modifications like oversized tires, roof racks, etc, the transmission starts to get too hot. The CSF transmission oil cooler is a must have for any type of serious off-roading offering:
34% Larger Core Volume and 68% more Fluid Volume than the factory cooler
Dual Pass Core vs factory single pass design
Double the number of cooling tubes and fin rows compared to factory
Perfect for daily driving, overlanding, and off-road adventures
Feature CSF OEM
# Core Rows 2 1
# Cooling Tubes 5 (front) + 12 (back) 8
# Cooling Fin Rows 6 (front) + 13 (back) 9
Fin Height 5mm 8mm
Core Thickness 16mm (front) + 16mm (back) 19mm
Core Material Aluminum Aluminum
Tank Material Aluminum Aluminum
Construction 100% TIG Welded Brazed
Plug and Play Installation

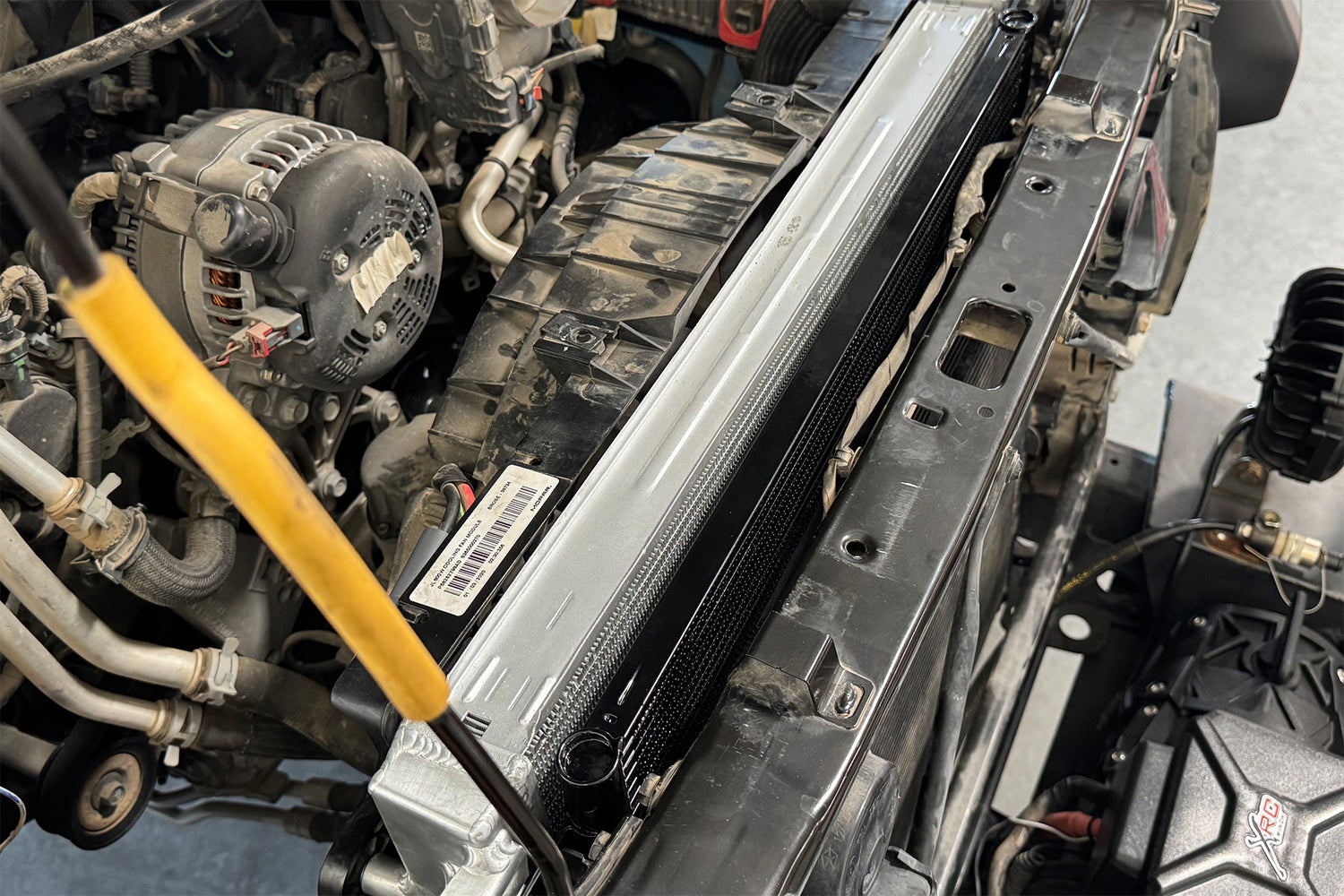

CSF designed the transmission oil cooler to easily replace the OEM unit. The Plug-and-Play "Drop-in Fit" installation should only take 2-3 hours and greatly improves the reliability and longevity of your transmission.
Make it a package
CSF offers a Heavy-Duty/High-Performance All-Aluminum Radiator for the 2018-2025 Jeep Wrangler & Gladiator (CSF #7340) that perfectly compliments the upgraded Transmission Oil Cooler. An upgraded radiator helps eliminate the concern of overheating. These advanced designs feature larger 2-Row, 42mm aluminum cores which increase the fluid capacity of the radiators, and greatly improves heat dissipation. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the ultra-efficient multi-louvered fins maximize airflow through the core for the best possible performance. The result is a dramatic temperature reduction under all driving conditions.
Features
Made with CSF's AC Condenser Technology Using a 1-Row Super-High Pressure 16mm 10-Channel Microtube for Optimal Oil Flow and Maximum Surface Area Contact
19 Rows of 5mm Tall Multi-Louvered Fins
Welded All-Aluminum Construction

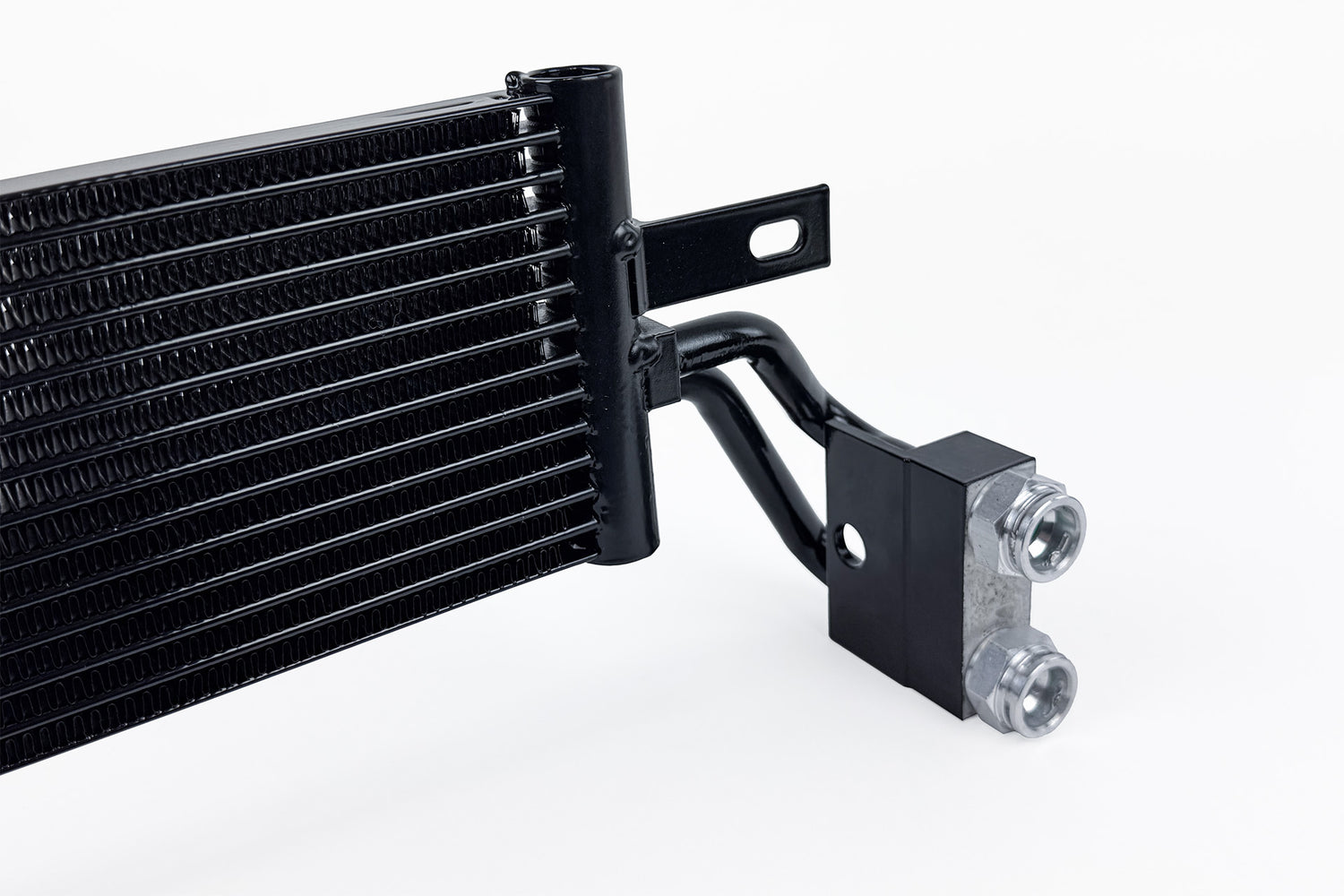

OEM Style Inlet/Outlet Connections
34% Larger Core Volume and 68% more Fluid Volume than the factory cooler
Drop-in Fit Requires No Modifications to Install
Black Finish for OEM+ Look
2-Year Limited Warranty
Fitment
Year Range Make Chassis Code Model Trim Engine / Trans / Etc Notes
2018-2025 Jeep JL/JT Wrangler - Turbocharged MILD HYBRID EV-GAS (MHEV) 2.0L L4 -
2018-2025 Jeep JL/JT Wrangler - Turbocharged 2.0L L4 -
2020-2023 Jeep JL/JT Wrangler - Turbocharged Diesel 3.0L V6 -
2018-2025 Jeep JL/JT Wrangler - 3.6L V6 -
2020-2023 Jeep JL/JT Wrangler - MILD HYBRID EV-GAS (MHEV) 3.6L V6 -
2020-2025 Jeep JL/JT Gladiator - 3.6L V6 -
2021-2023 Jeep JL/JT Gladiator - Turbocharged Diesel 3.0L V6 -
