CSF Radiators  |  SKU: CSF8334

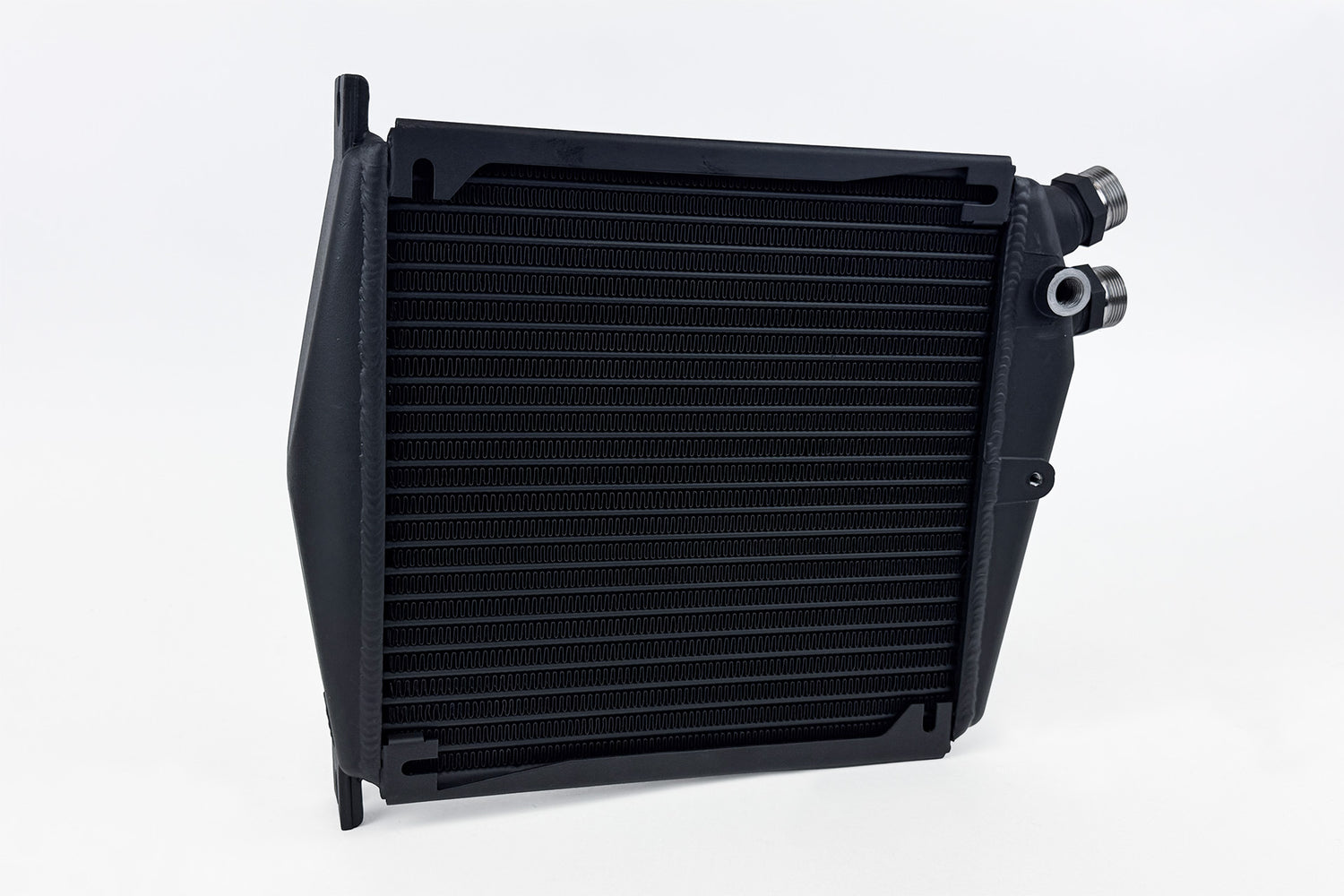

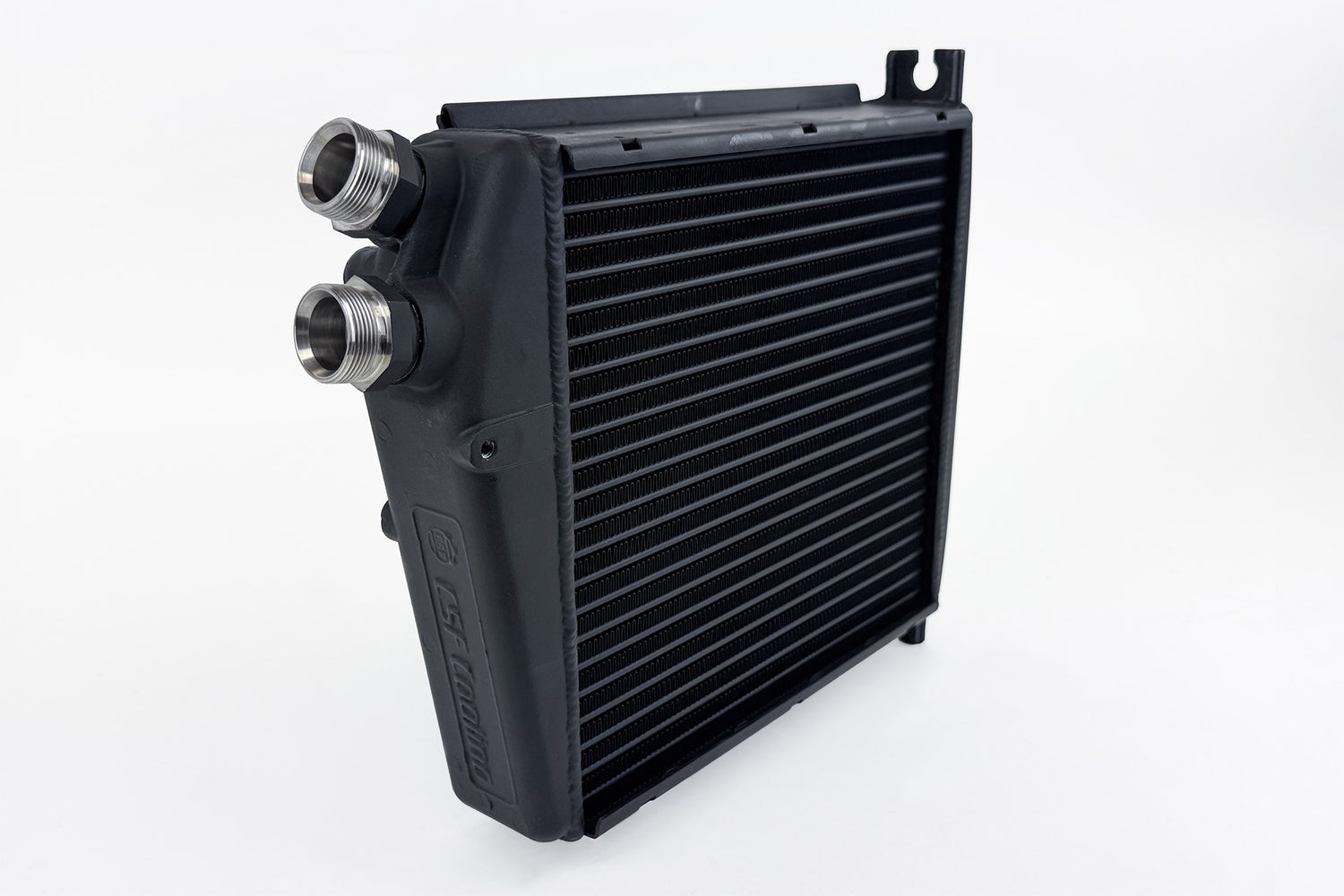

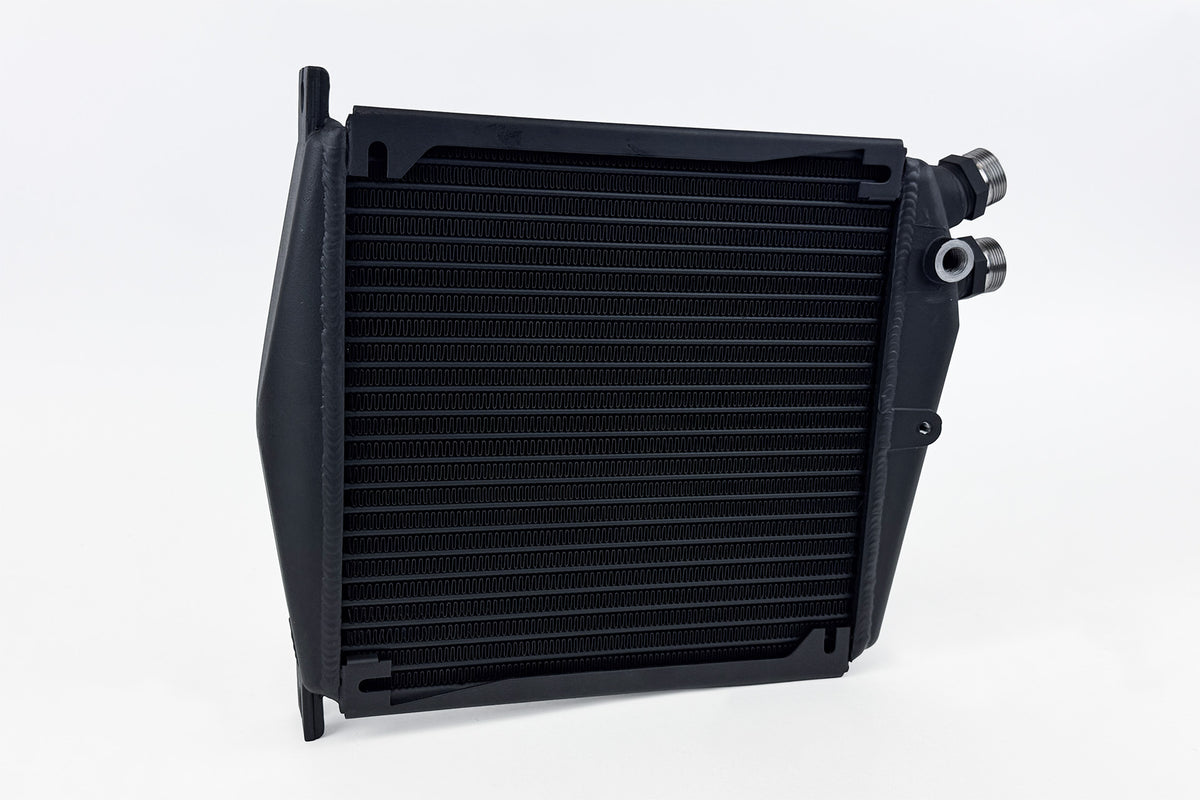

CSF Porsche 964 / 993 OEM+ Performance Fender Oil Cooler

$1,547.42 AUD
Shipping calculated at checkout.

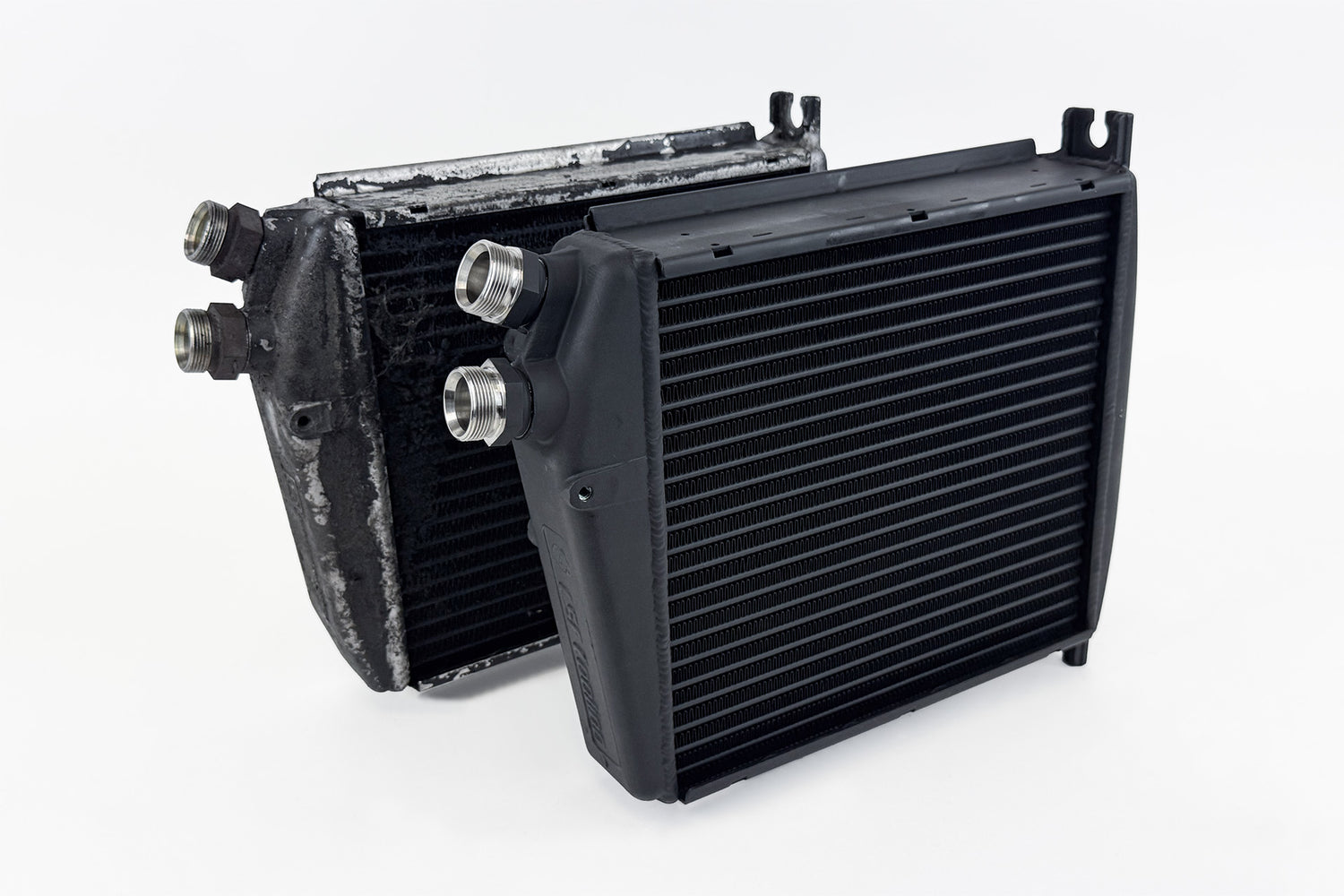

OEM+ / High-Performance recreation of the original L�ngerer & Reich oil cooler
Modern Dual Pass 50mm High-Performance Tube and Fin Core

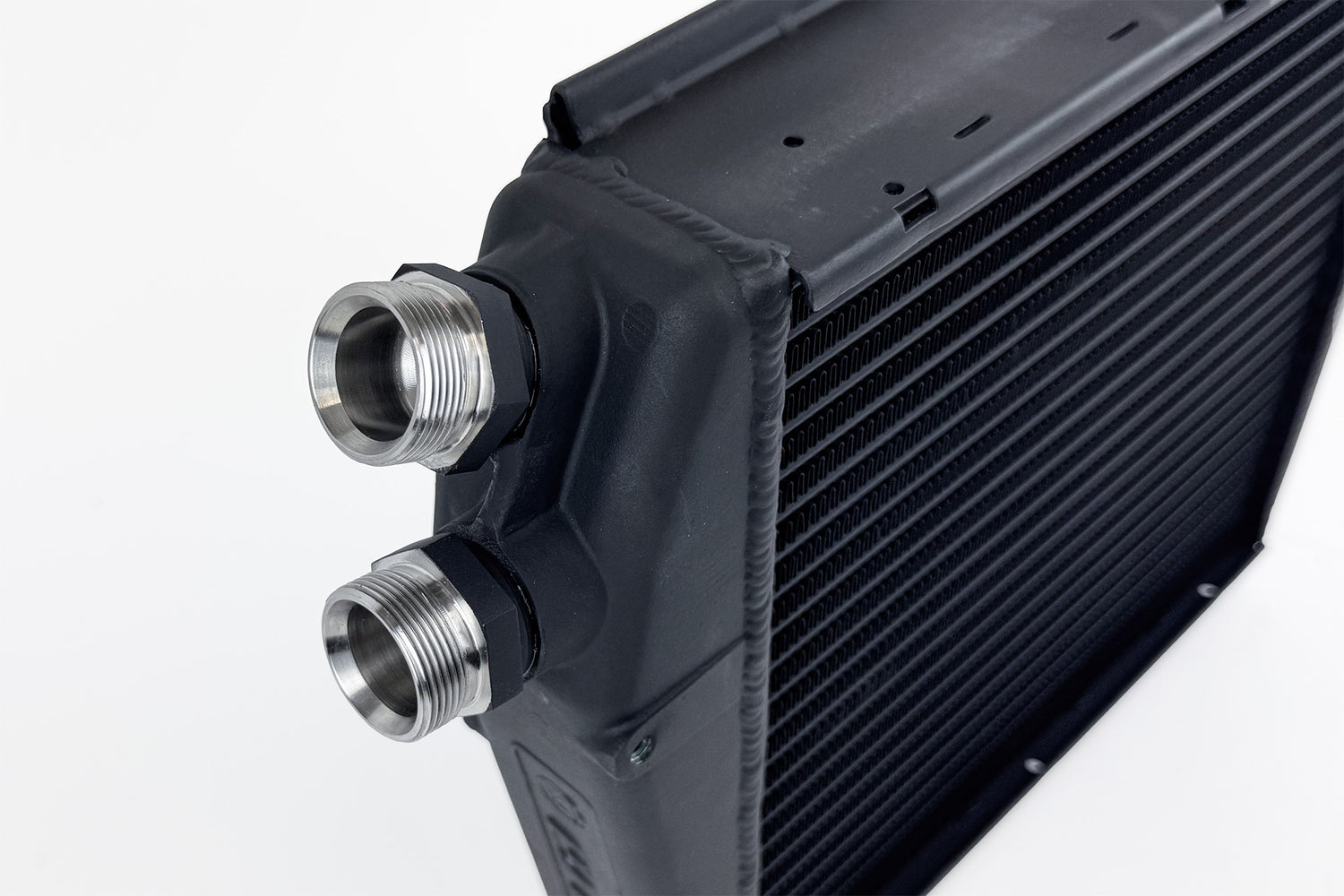

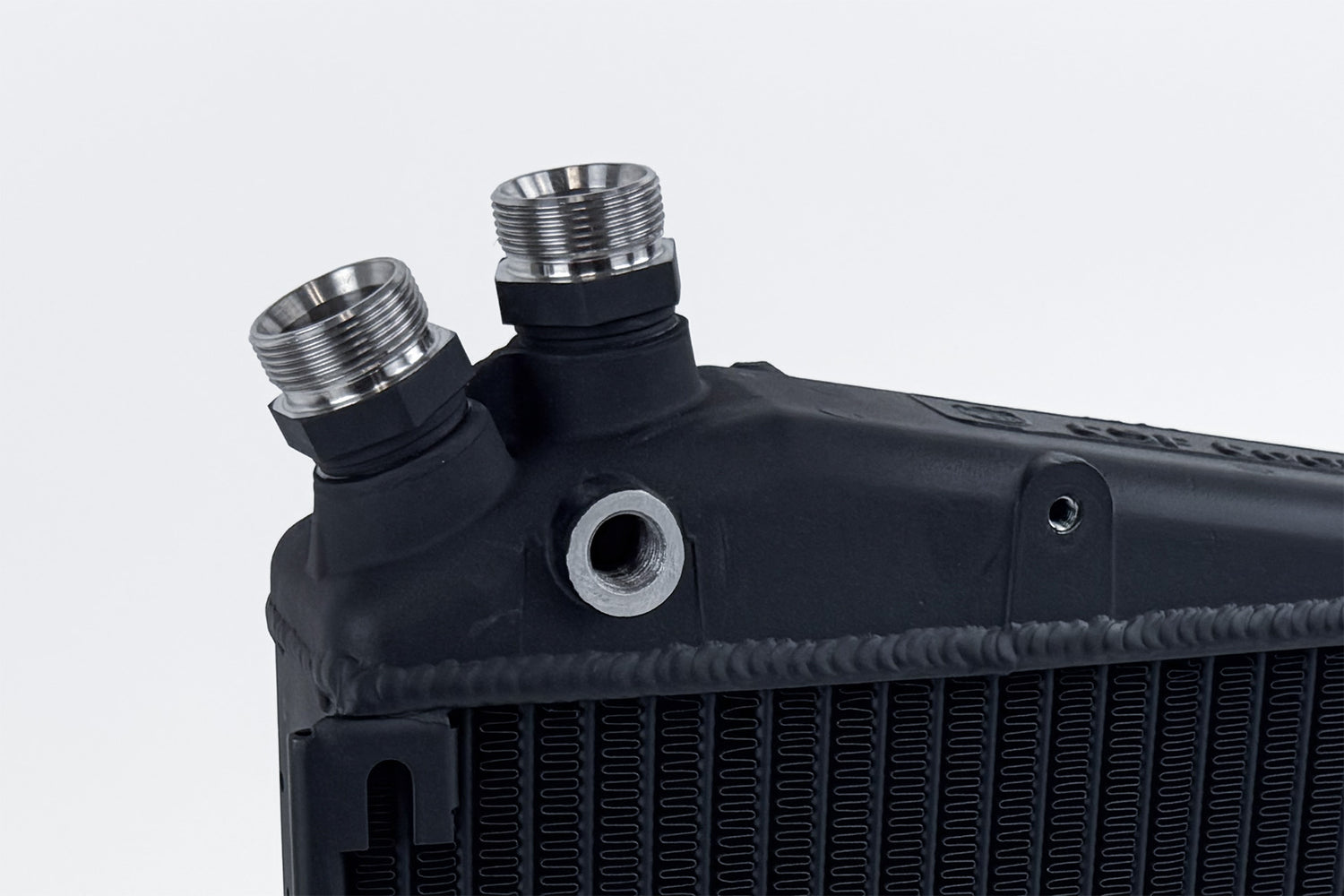

Stainless Steel �Widemouth� M30 x 1.5 High-Flow Fittings
Improved Design of Fan Shroud Mounting Locations for Easier Installation
100% All Aluminum TIG-Welded Construction
Satin Black Finish
True Plug-and-Play �Drop-in Fit� Installation Requires Absolutely No Modifications
Individually Leak and Pressure Tested at 8bar (116psi)

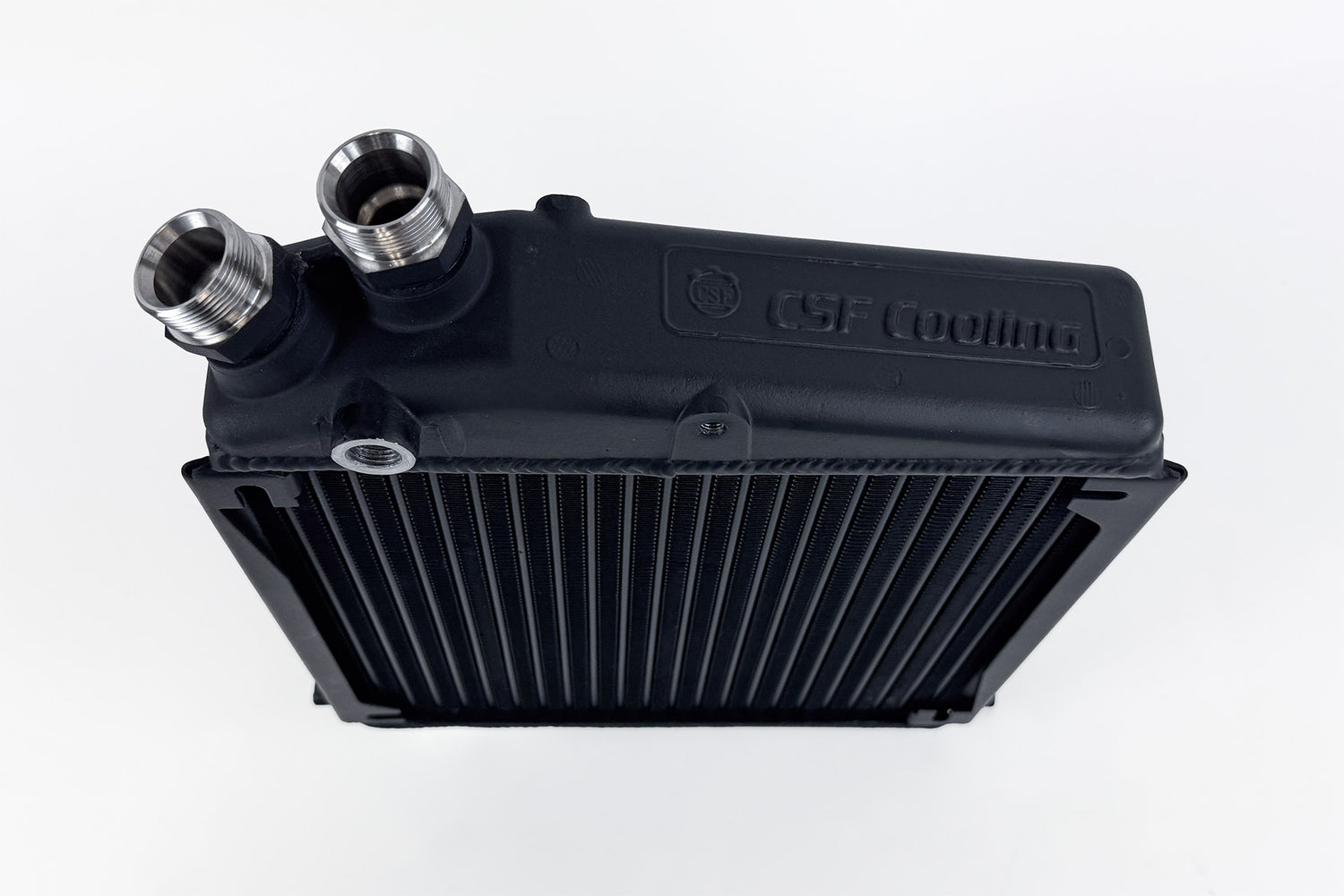

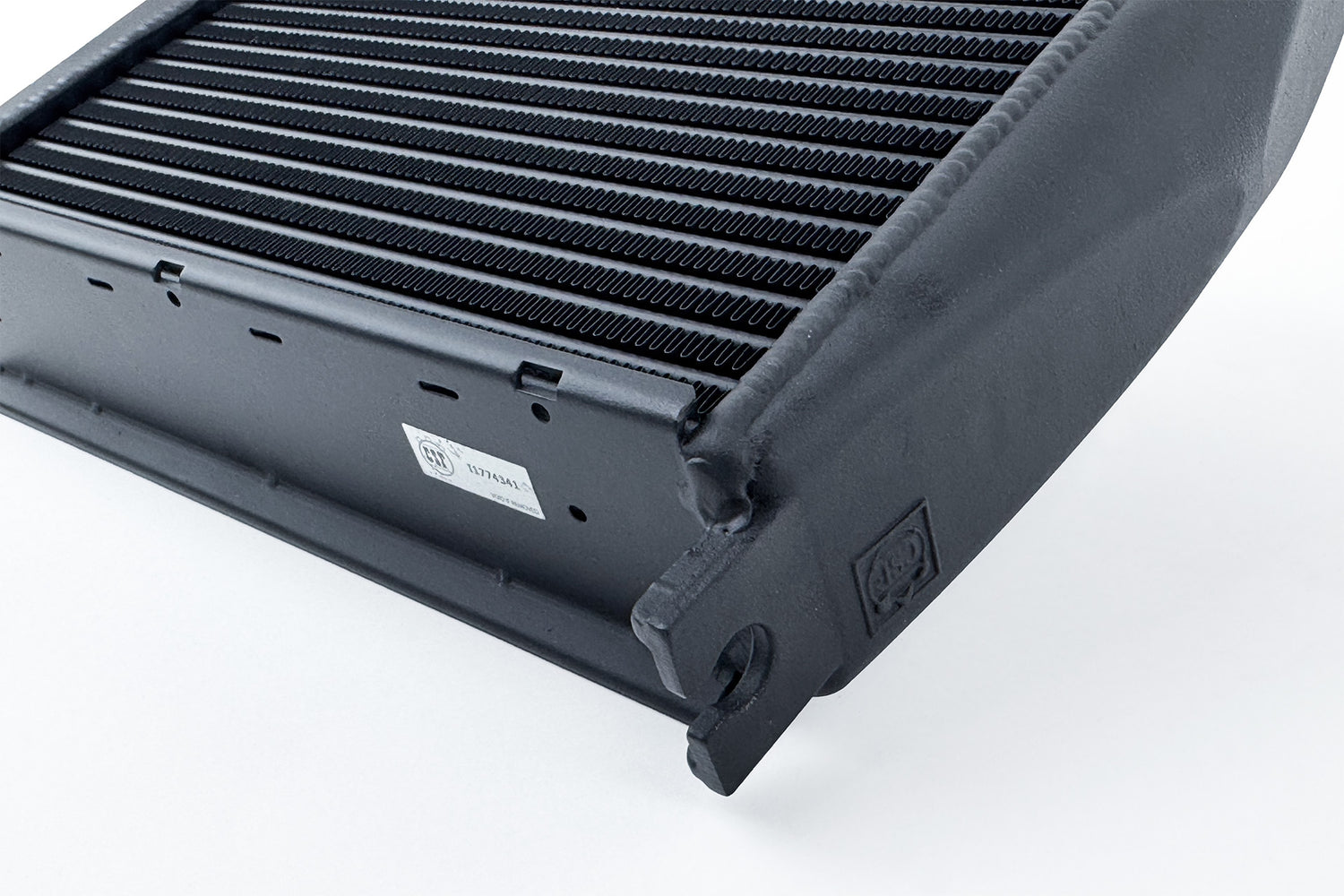

CSF Logo Stamping and Individually Serialized for Quality Control and Authenticity
Product Specific Foam Inserts and High Quality 5-Ply Box to Ensure Damage Free Shipment Worldwide
Includes Warranty Sheet with Torque Specifications
10-Year Limited Warranty


Feature CSF OEM
Core Length x Height 269 mm L x 255.6 mm H 268 mm L x 244 mm H
Core Thickness 50mm 44mm
Core Volume 3438 cc 2877 cc
# Cooling Tubes 22 22
# Cooling Fin Rows 23 23
Fin Height 7mm Multi-Louvered Fin 7mm
Core Material Aluminum Aluminum
Tank Material Aluminum Aluminum
Construction 100% TIG Welded Brazed

Fitment
1989-1994 Porsche 964 911 Carrera 4 - 3.6L H6
1990-1994 Porsche 964 911 Carrera 2 - 3.6L H6
1991-1992 Porsche 964 911 Turbo - Turbocharged 3.3L H6
1993-1994 Porsche 964 911 RS America - 3.6L H6
1993-1994 Porsche 964 911 Turbo 3.6 - Turbocharged 3.6L H6
1994 Porsche 964 911 Speedster - 3.6L H6
1995-1998 Porsche 993 911 Carrera - 3.6L H6
1995-1998 Porsche 993 911 Carrera 4 - 3.6L H6
1996-1998 Porsche 993 911 Carrera 4S - 3.6L H6
1995-1996 Porsche 993 911 Carrera RS - 3.8L H6
1996-1998 Porsche 993 911 Targa - 3.6L H6
1996-1997 Porsche 993 911 Turbo - Turbocharged 3.6L H6
1995-1997 Porsche 993 911 GT2 - Turbocharged 3.6L H6
1998 Porsche 993 911 Carrera S - 3.6L H6

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

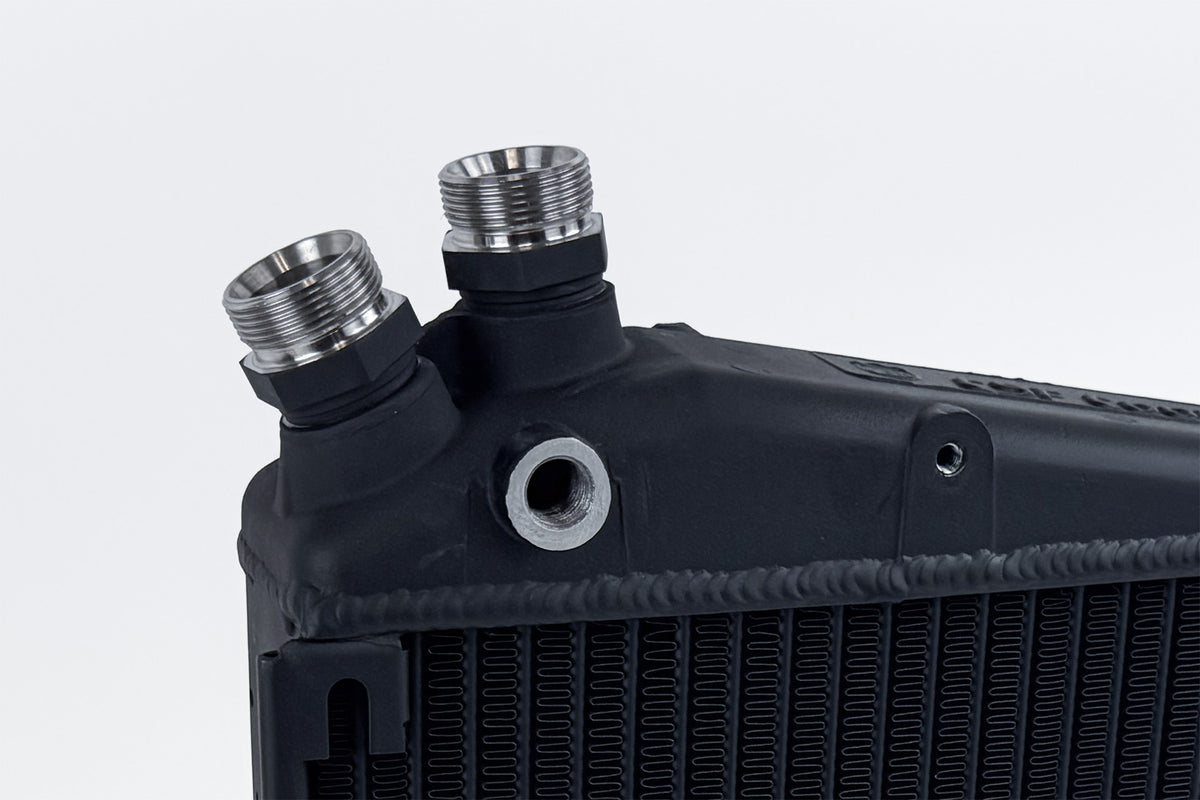

CSF Porsche 964 / 993 OEM+ Performance Fender Oil Cooler
