CSF Radiators  |  SKU: CSF8317

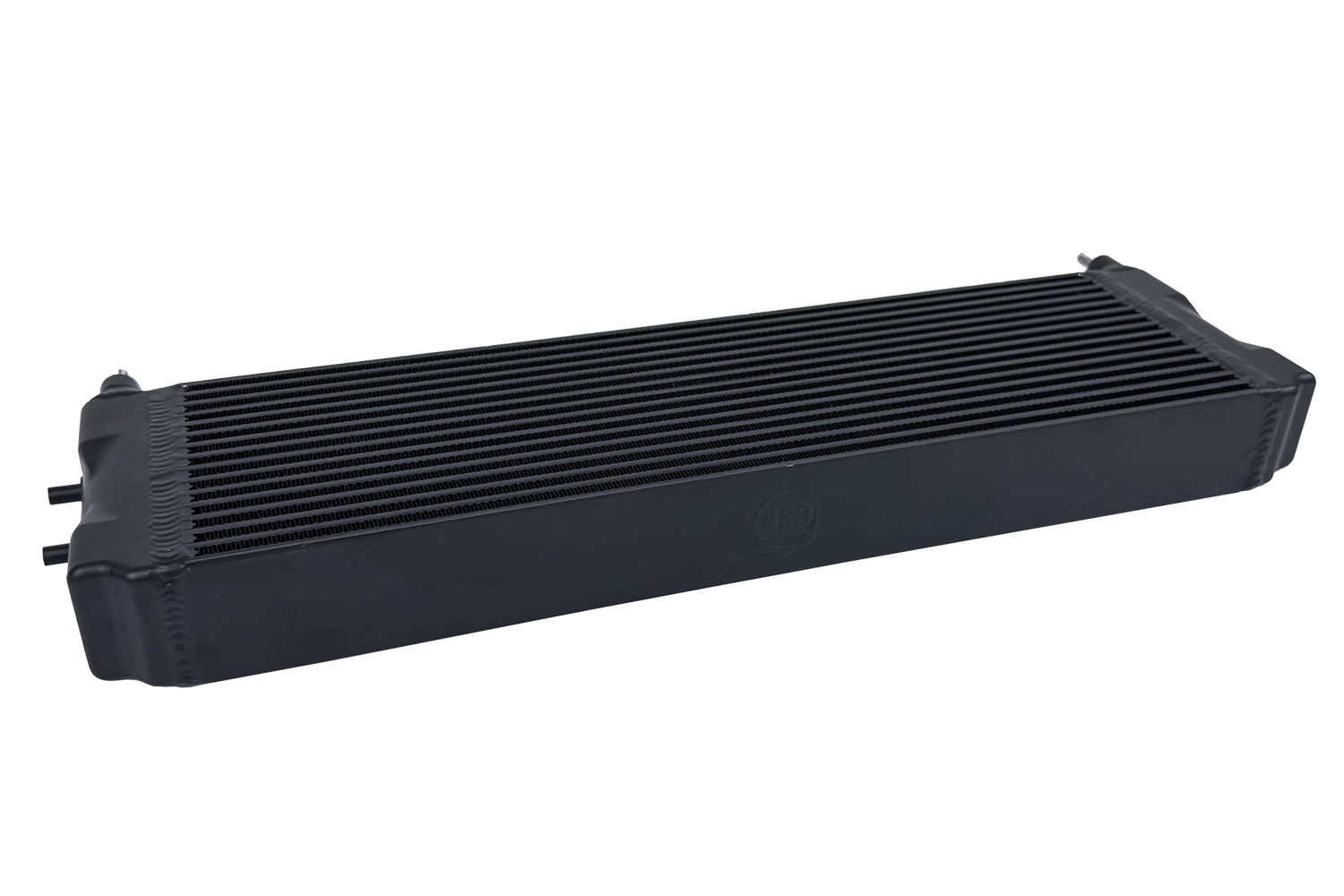

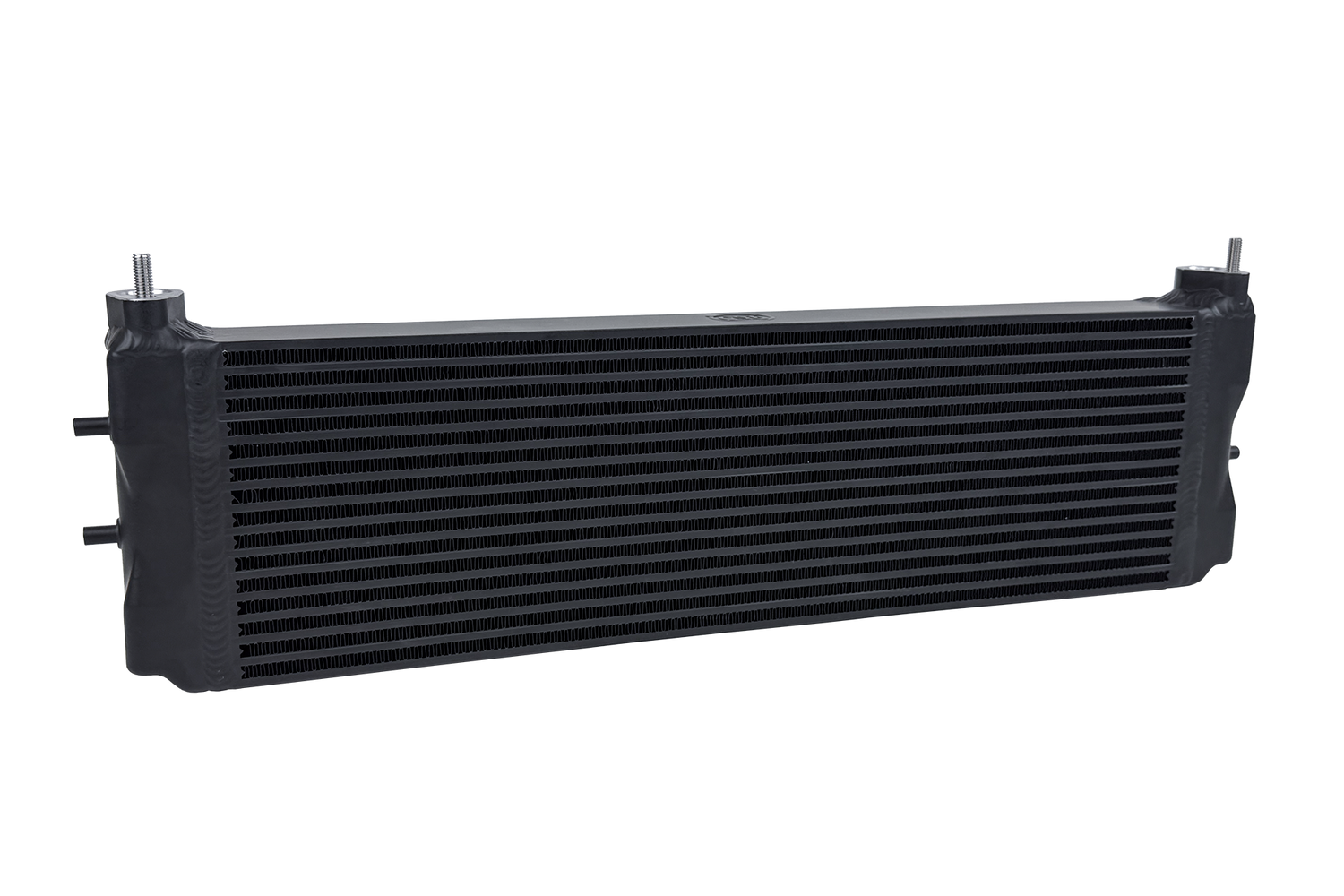

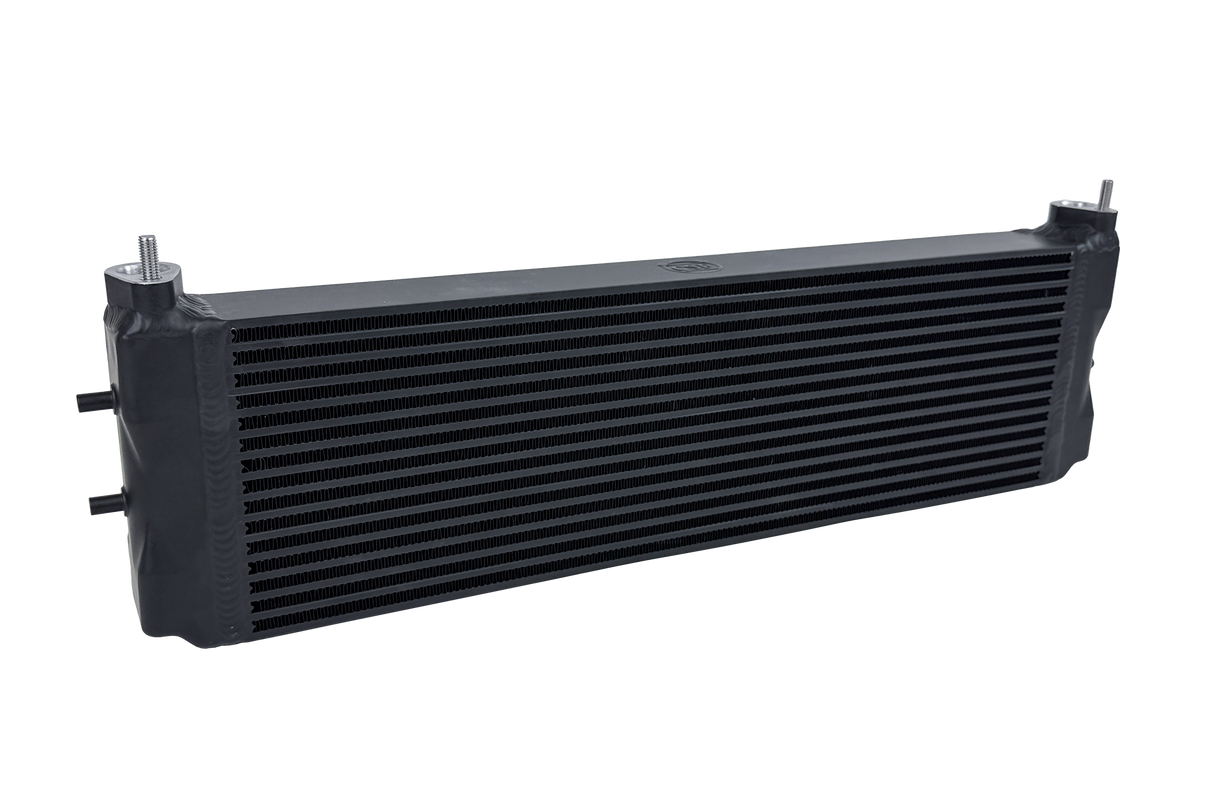

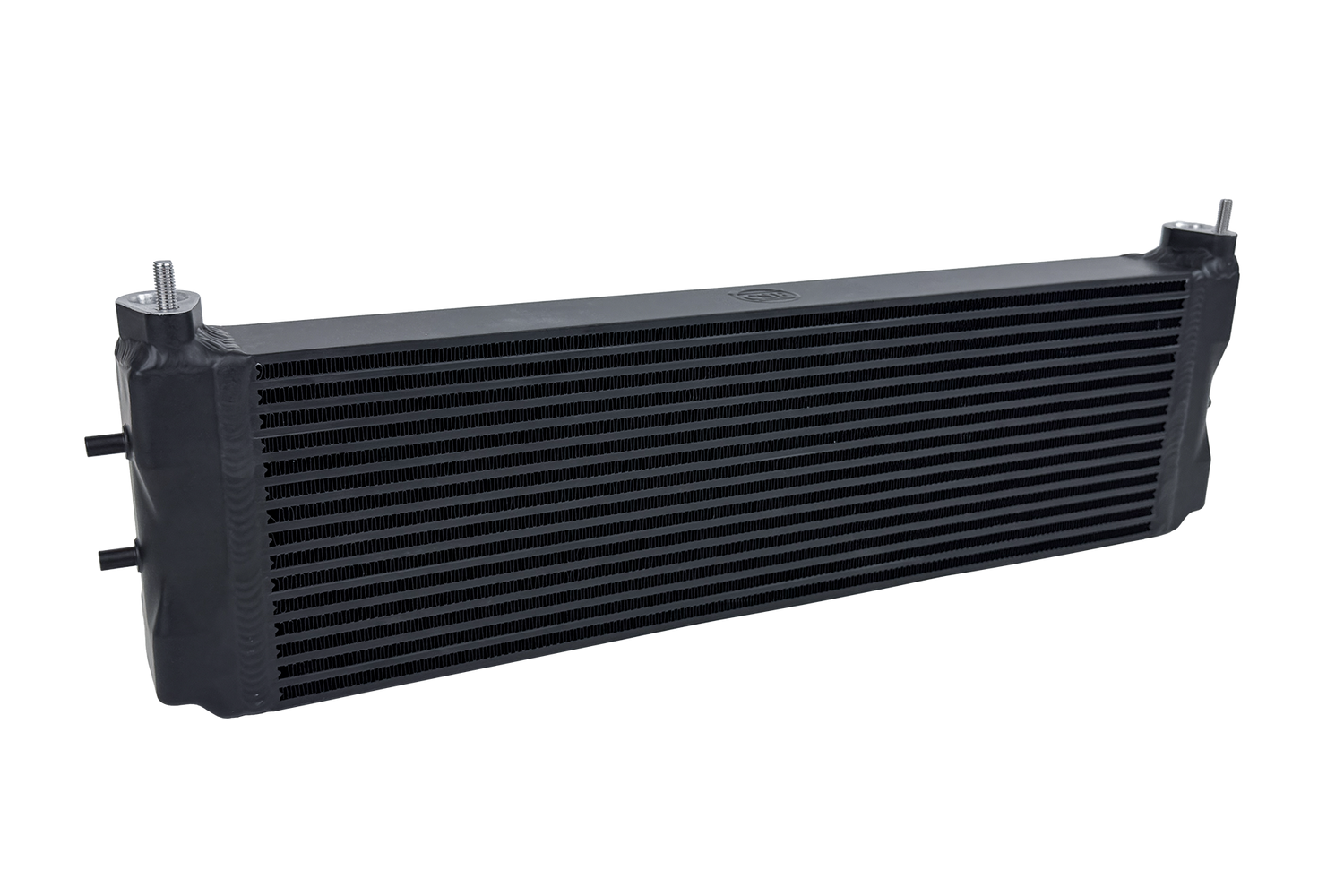

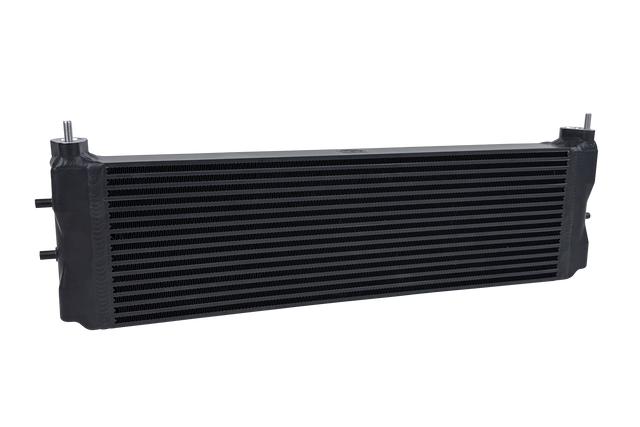

CSF High-Performance Engine Oil Cooler for BMW G9X M5, F9X M5/M8, & F1X M5/M6

$1,341.62 AUD
Shipping calculated at checkout.

MASSIVE RANGE

Over 20,000 performance & automotive SKUs for European, JDM, American, Korean and more

NATIONWIDE FAST SHIPPING

Quick dispatch across Australia with reliable tracked delivery

AUSSIE SUPPORT & EXPERTISE

Local customer service and technical assistance from our team of enthusiasts

High Efficiency & Rugged Durability Bar/Plate Design
�Aero-Flow� Bar Lightweight Construction for Strength and Maximum Flow

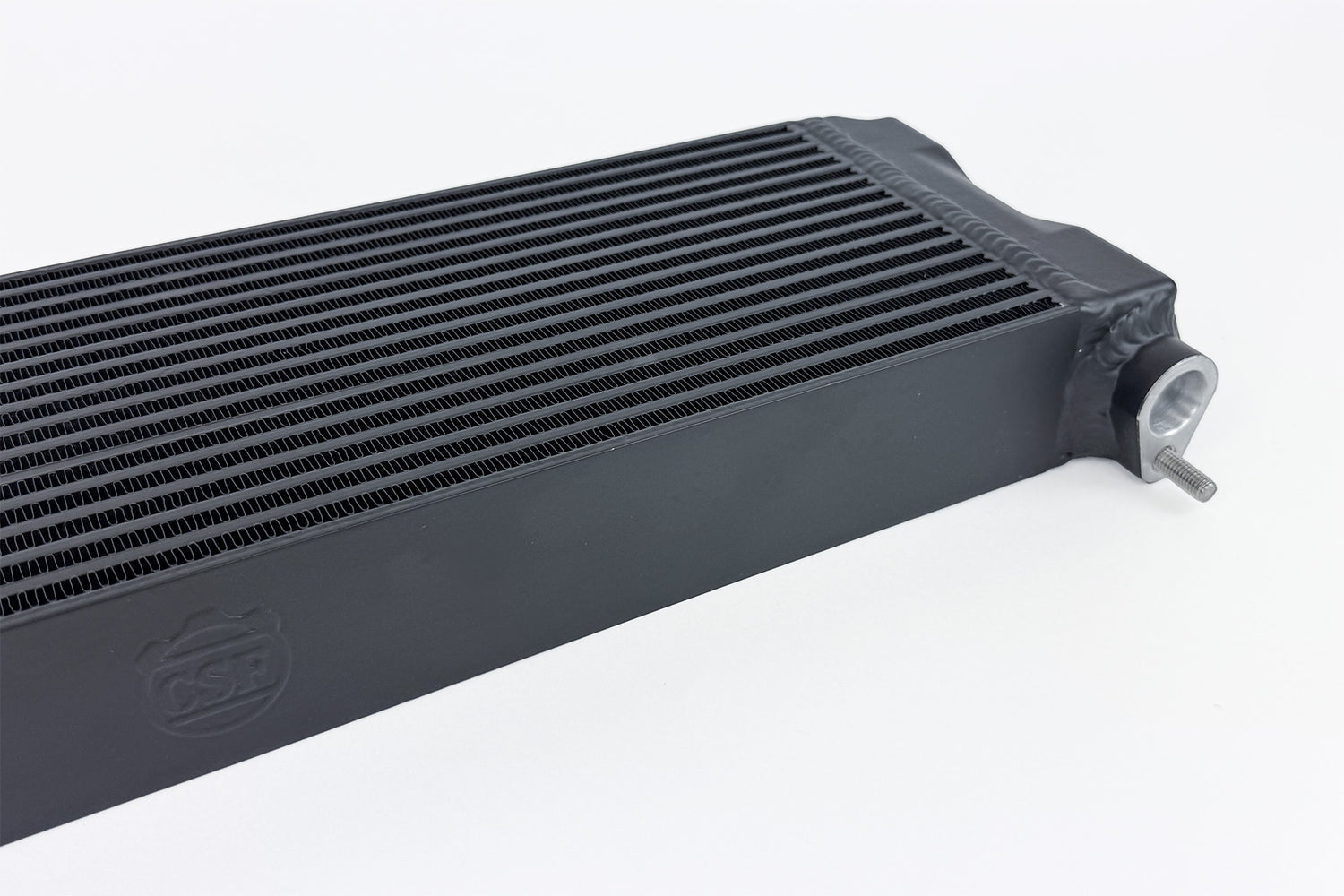

Cast End Tanks with 100% TIG-Welded Construction
Finished in CSF�s Thermal Dispersion Black Cerakote

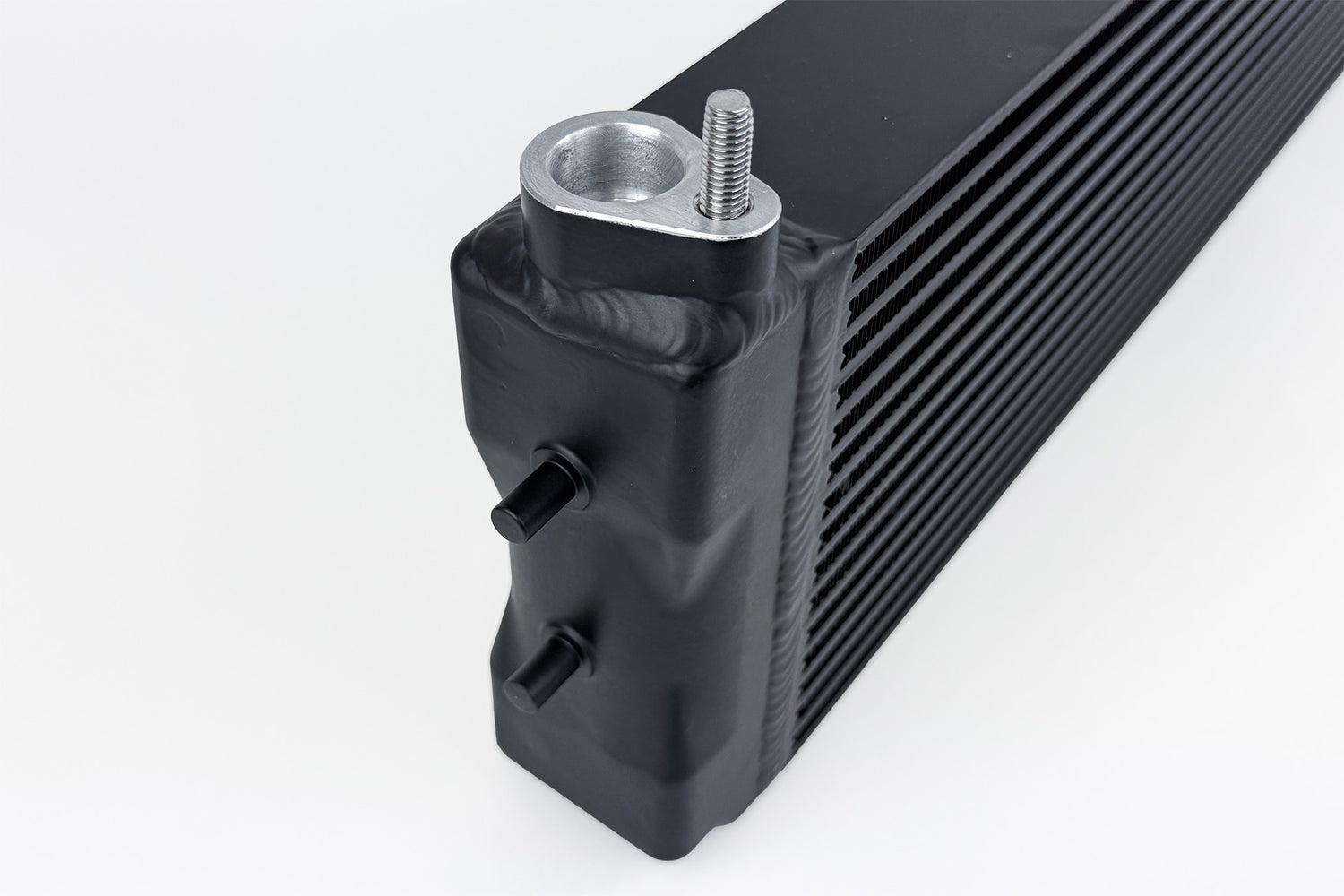

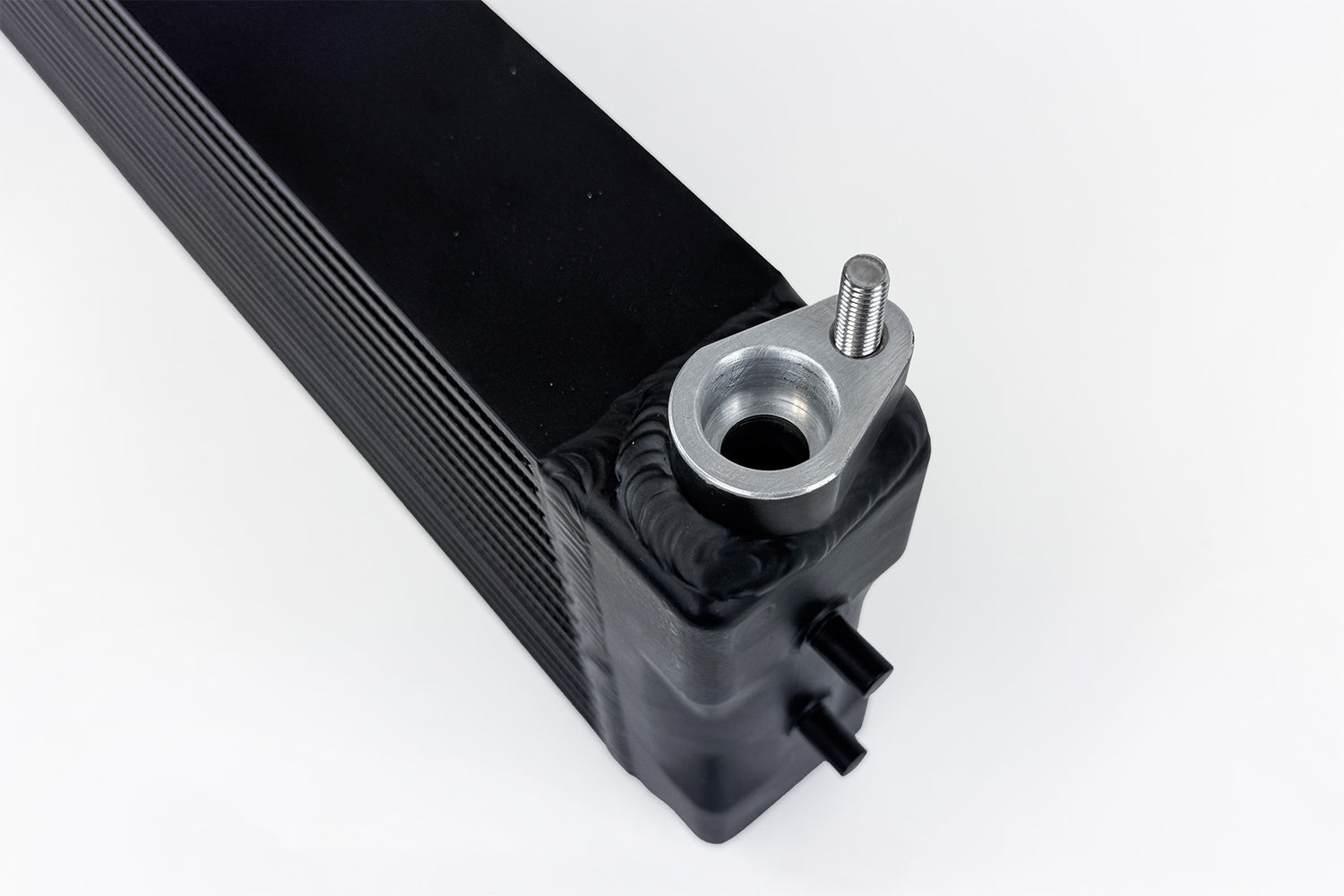

CNC Machined Mounting Brackets and OEM Style Inlet/Outlet Connection
Individually Leak and Pressure Tested
True Plug-and-Play �Drop-in Fit� Installation. It is recommended to trim the OE Ducting and Lower Radiator Cradle for better fitment.
2-Year Limited Warranty


Feature CSF OEM
# Cooling Tubes 14 11
# Cooling Fin Rows 15 12
Fin Height/Width 6.5mm 8mm
Core Thickness 60mm (2.36 inches) 45mm (1.77 inches)
Core Material Aluminum Aluminum
Core Construction Bar & Plate Tube & Fin
Tank Material Aluminum Aluminum
Construction 100% TIG Welded Brazed

Fitment
Year Range Make Chassis Code Model Trim Engine / Trans / Etc Notes
2012-2016 BMW F10 M5 - Turbocharged 4.4L V8 -
2018-2023 BMW F90 M5 - Turbocharged 4.4L V8 -
2019-2023 BMW F90 M5 Competition Turbocharged 4.4L V8 -
2022 BMW F90 M5 CS Turbocharged 4.4L V8 -
2020 BMW F90 M5 Edition 35 Years Turbocharged 4.4L V8 -
2012-2018 BMW F12/F13 M6 - Turbocharged 4.4L V8 -
2014-2019 BMW F06 M6 Gran Coupe - Turbocharged 4.4L V8 -
2020-2025 BMW F91/F92 M8 - Turbocharged 4.4L V8 -
2020-2025 BMW F91/F92 M8 Competition Turbocharged 4.4L V8 -
2020-2025 BMW F93 M8 Gran Coupe - Turbocharged 4.4L V8 -
2020-2025 BMW F93 M8 Gran Coupe Competition Turbocharged 4.4L V8 -
2019-2025 BMW G14/G15 M850i xDrive - Turbocharged 4.4L V8 -
2020-2025 BMW G16 M850i xDrive Gran Coupe - Turbocharged 4.4L V8 -
2025 BMW G9X M5 - Turbocharged 4.4L V8 -
2025 BMW G9X M5 Touring - Turbocharged 4.4L V8 -
