CSF A90 Supra / BMW B58 Charge-Air Cooler Manifold - Thermal Disper...
With the larger and more efficient intercooler performance, lower pressure drop, included fuel rail & kit for top feed port injection, and other industry-leading features, the CSF Super Manifold allows B58 owners to maximize performance.

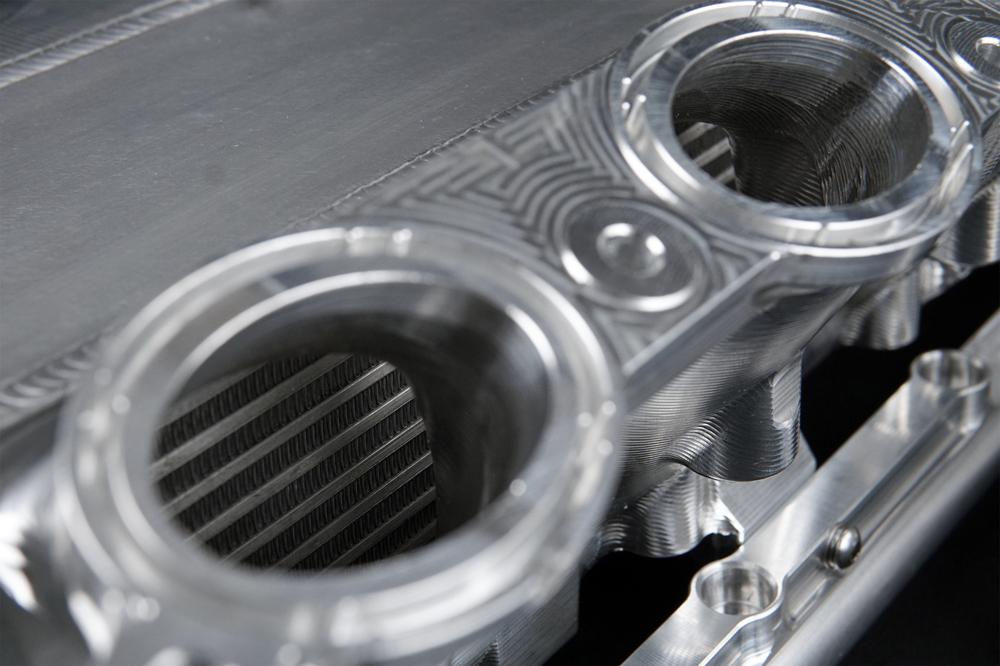

Utilizes a High Performance, Motorsports-Grade Bar/Plate Air-to-Water Intercooler Core
Double the Capacity of the OEM Core (12 Rows of Water Cooling vs. OEM 6 Rows)
Significantly Lower Pressure Drop Across the Core Compared to OEM
Designed in SolidWorks Using Computational Fluid Dynamics (CFD)
Integrated Air Divider in Inlet Tank Evenly Distributes Airflow Throughout the Core
Easy Access to Spin-Off Oil Filter for Quick Oil Changes - No Need to Uninstall Manifold Every Oil Change
Counter Balanced Design for Optimized Airflow

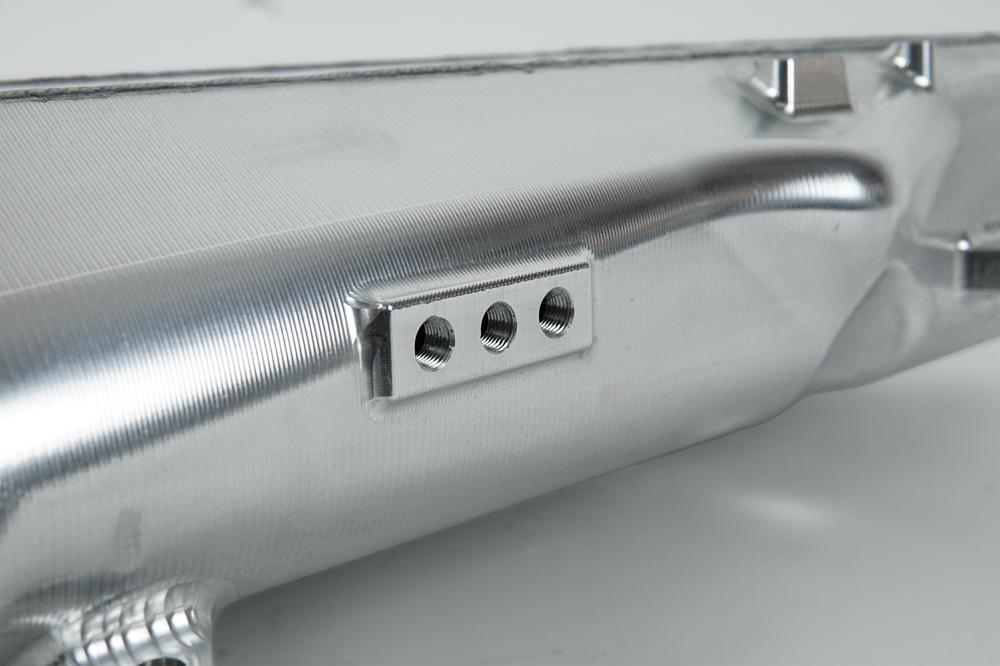

Integrated Sensor Pad with Three 1/8" NPT Ports to Measure Additional Parameters

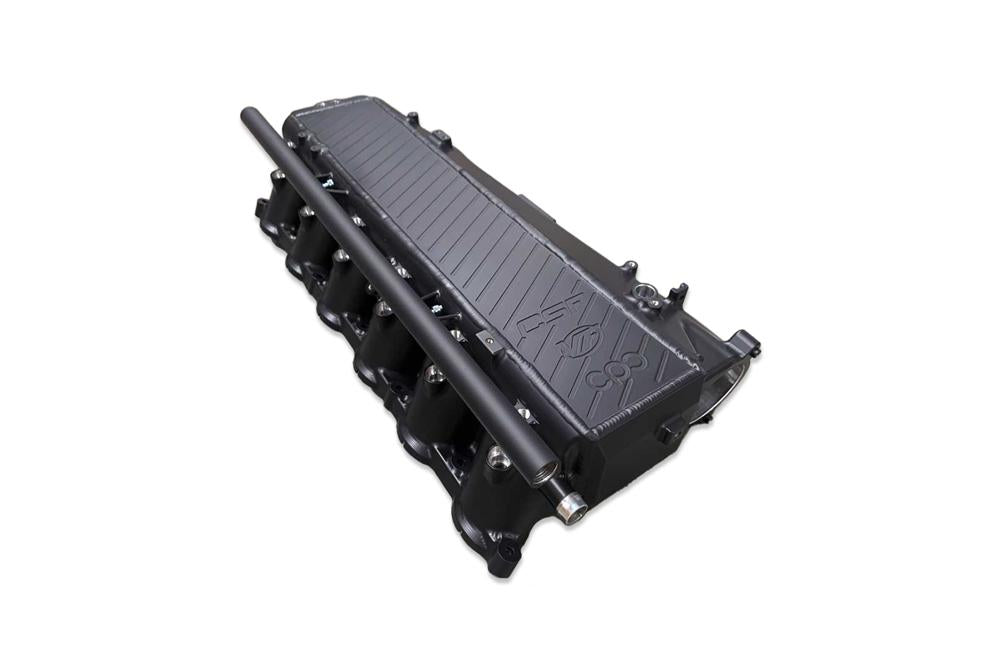

Included Optional Fuel Rail for Top Feed Port Injection

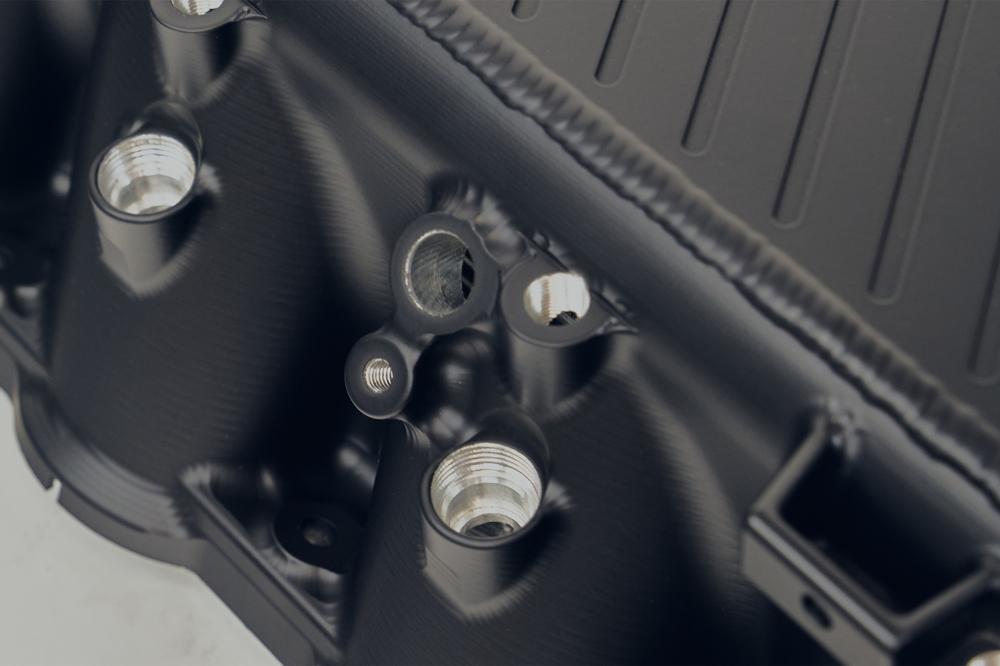

Individual Port Injection Bungs on Each Cylinder Runner (Comes Pre-Plugged)
Individual 1/8" NPT Ports on the Top of Each Cylinder Runner for Nitrous or Meth Injection
Allows for Even Spray Distribution and Control for Maximum Performance and Engine Protection
Individual 1/8" NPT Breather Ports for Both Inlet/Outlet Water Connections on Back of Manifold for Easy Air-Bleeding of the System
Plug-and-Play design, Requiring No Modifications to Install

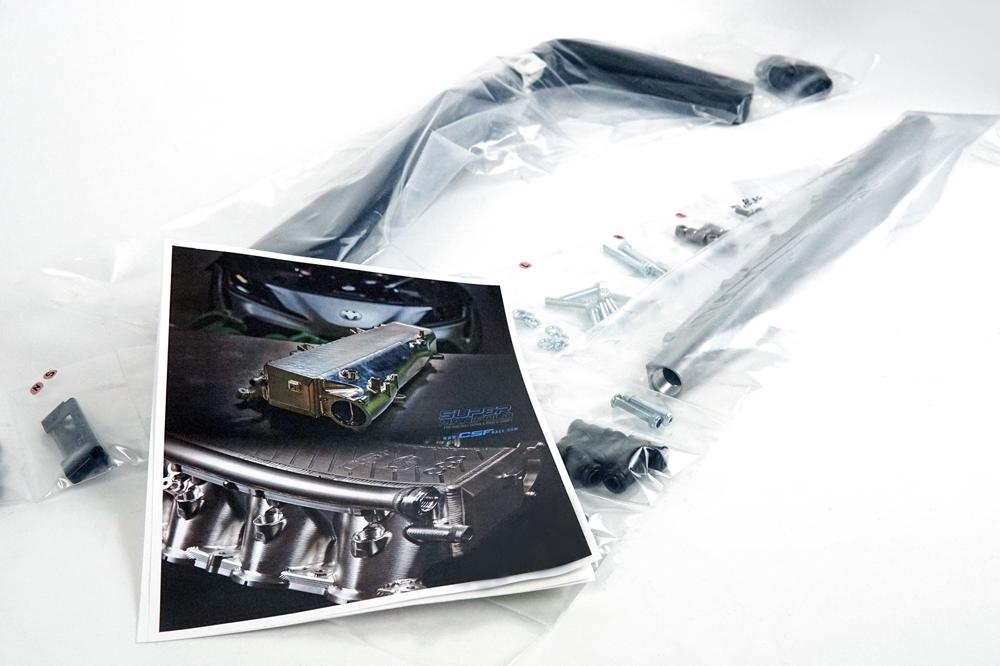

Includes Hardware and Installation Kit with Picture Diagrams Containing 28 Different Parts for Easy Installation
Can be Used With OEM or Aftermarket Engine Covers (with OEM Connections)
Comes Finished in Thermal Black Heat Dispersion Coating - Made by World-Leading Automotive Machinist Custom Plenum Creations in Australia
CSF pressure tests each #8200 / #8200C manifold at 60-70 PSI for a period of 2-3 minutes during the Quality Control and Inspection process.
The CSF manifold is not designed to operate above 60 PSI. Users who chose to operate their vehicle with the CSF manifold over 60 PSI does so at their own risk. Operation at these pressure levels will void the CSF Limited Lifetime Warranty.
Year Range Make Chassis Code Model Trim Engine / Trans / Etc Notes
2020-2023 BMW G30 540i - Turbocharged 3.0L L6 -
2020-2023 BMW G30 540i xDrive - Turbocharged 3.0L L6 -
2018-2022 BMW G11/G12 740i - Turbocharged 3.0L L6 -
2018-2022 BMW G11/G12 740i xDrive - Turbocharged 3.0L L6 -
2020-2022 BMW G11/G12 745e - Turbocharged 3.0L L6 -
2020-2022 BMW G11/G12 745e xDrive - Turbocharged 3.0L L6 -
2020-2025 BMW G14/G15 840i - Turbocharged 3.0L L6 -
2020-2025 BMW G14/G15 840i Gran Coupe - Turbocharged 3.0L L6 -
2020-2025 BMW G14/G15 840i xDrive - Turbocharged 3.0L L6 -
2020-2025 BMW G14/G15 840i xDrive Gran Coupe - Turbocharged 3.0L L6 -
2023-2025 BMW G42 M240i - Turbocharged 3.0L L6 -
2022-2025 BMW G42 M240i xDrive - Turbocharged 3.0L L6 -
2020-2024 BMW G2X M340i - Turbocharged 3.0L L6 -
2020-2024 BMW G2X M340i xDrive - Turbocharged 3.0L L6 -
2021-2024 BMW G2X M440i - Turbocharged 3.0L L6 -
2024 BMW G2X M440i Gran Coupe - Turbocharged 3.0L L6 -
2021-2024 BMW G2X M440i xDrive - Turbocharged 3.0L L6 -
2022-2024 BMW G2X M440i xDrive Gran Coupe - Turbocharged 3.0L L6 -
2020-2024 BMW G01 X3 M40i Turbocharged 3.0L L6 -
2020-2025 BMW G02 X4 M40i Turbocharged 3.0L L6 -
2020-2023 BMW G05 X5 sDrive40i Turbocharged 3.0L L6 -
2019-2023 BMW G05 X5 xDrive40i Turbocharged 3.0L L6 -
2021-2023 BMW G05 X5 xDrive45e Turbocharged 3.0L L6 -
2020-2021 BMW G06 X6 sDrive40i Turbocharged 3.0L L6 -
2020-2023 BMW G06 X6 xDrive40i Turbocharged 3.0L L6 -
2019-2023 BMW G07 X7 xDrive40i Turbocharged 3.0L L6 -
2023-2025 BMW G29 Z4 M40i Turbocharged 3.0L L6 -
2020-2025 BMW G29 Z4 - Turbocharged 3.0L L6 -
2024 Toyota A90/A91 GR Supra 45th Anniversary Edition Turbocharged 3.0L L6 -
2023 Toyota A90/A91 GR Supra A91-MT Edition Turbocharged 3.0L L6 -
2023 Toyota A90/A91 GR Supra - Turbocharged 3.0L L6 -
2020-2025 Toyota A90/A91 GR Supra - Turbocharged 3.0L L6 -
2023 Toyota A90/A91 GR Supra Premium Turbocharged 3.0L L6 -
2024-2025 Toyota A90/A91 GR Supra Premium Turbocharged 3.0L L6 -
2024 Toyota A90/A91 GR Supra Premium 45th Anniversary Edition Turbocharged 3.0L L6 -
2024-2026 INEOS - Grenadier Base Turbocharged 3.0L L6 -
2024-2026 INEOS - Grenadier Fieldmaster Turbocharged 3.0L L6 -
2024-2026 INEOS - Grenadier Trialmaster Turbocharged 3.0L L6 -
2025-2026 INEOS - Grenadier Quartermaster Base Turbocharged 3.0L L6 -
2025-2026 INEOS - Grenadier Quartermaster Fieldmaster Turbocharged 3.0L L6 -
2025-2026 INEOS - Grenadier Quartermaster Trialmaster Turbocharged 3.0L L6 -
