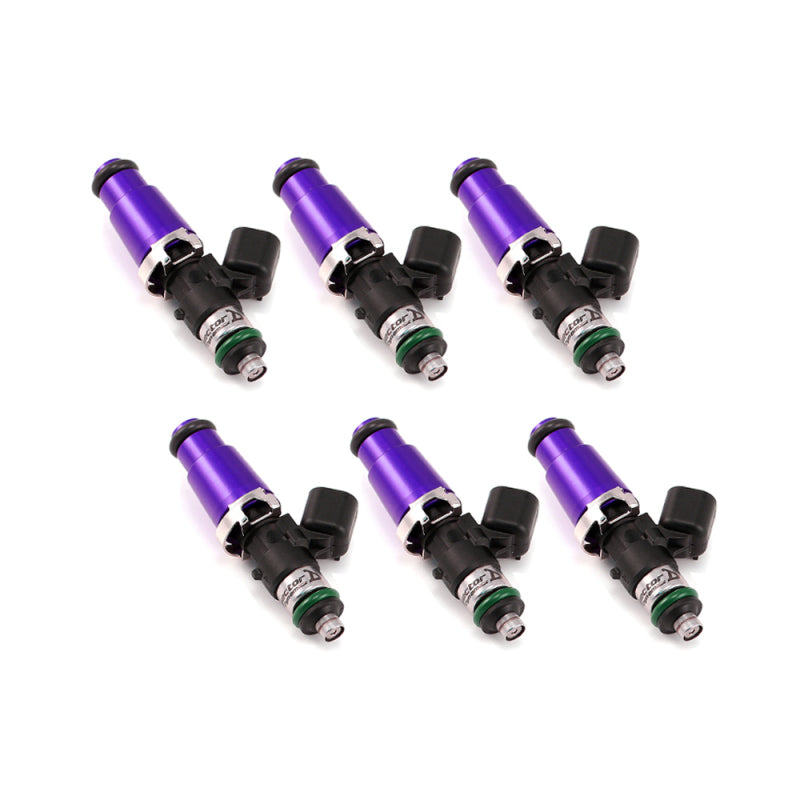

Injector Dynamics ID2600-XDS Direct Fit Injectors Set of 6- Toyota Supra 2JZ-GTE/Holden V6/Porsche 993/996/997.1/BMW E36 (w/14mm Top O-Ring)

Description
The ID2600-XDS is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport. The ID2600-XDS was developed specifically for use with liquid fuels, featuring corrosion resistant internals, and long term compatibility with ethanol and methanol. The ID2600-XDS has the highest flow rate of any injector offered by Bosch, and flows 50% more than the ID1700x.

The ID2600-XDS benefits from Dual Slope Matching, a method of matching the flow rate in both the linear, and nonlinear operating range, providing better cylinder to cylinder consistency at low pulse widths.

What is Dual Slope Matching?

Dual Slope Matching is a method of matching injectors that provides the best possible cylinder to cylinder fueling across the entire operating range.

Traditionally, injectors were matched based on static flow rate alone, which resulted in large deviations at low pulse widths.

Injector Dynamics introduced Slope Intercept Matching over a decade ago, which provided even cylinder to cylinder fueling across the linear operating range of the injector.

With the progression of turbo technology, and increased use of alcohol fuels, greater demands are placed on fuel injectors, and they are often required to deliver fuel well outside of their linear operating range.

The concept of Dual Slope Matching extends the injector matching into the lower non linear operating range. Dual Slope Matching was conceived by Aaron Looft of Injector Dynamics, who was inspired by the dual slope injector characterization model used by Ford.

How Does Dual Slope Matching Work?

Lets first consider static flow matching which was the industry standard prior to Injector Dynamics.

The graph below shows the dynamic response of two hypothetical 1500 cc/min injectors within their linear operating range. One with an offset (Dead time, latency, etc.) of 0.95 milliseconds, and one with an offset of 0.85 milliseconds.

The slope of both lines is the same, as they have the same flow rate, but the difference in offset results in the injector with the higher offset delivering 2.5 uL less fuel per injection event. At a pulse width of 19msec, which equals 90% duty cycle at 6,000 rpm, 2.5ul amounts to a mere 0.6% difference in flow between the two injectors, but at 2msec, that same 2.5ul difference amounts to a 9.5% difference!

Slope Intercept matching as introduced by Injector Dynamics in 2007 solved this problem by matching injectors based on flow rate (Slope) and offset (Intercept) providing even cylinder to cylinder fueling across the linear operating range.

Moving on to the non linear operating range, the graph below shows a pair of 1500cc injectors matched using the Injector Dynamics Slope Intercept method. Both injectors have the same flow rate and offset, but in the non linear range, the flow deviates from the straight line shown in the graph above. In this case, the flow rate, or slope of each injector in the non linear range is 1530cc/min and 1470cc/min representing a spread of +/- 2%.

As the graph clearly shows, the difference between the two injectors increases as pulse width decreases.

Shown as percent difference in flow, we see that even though the injectors are matched perfectly in the linear operating range, the difference in slope in the non linear range results in a flow mismatch that is magnified as the pulse-width decreases, becoming substantial at the very lowest pulse widths.

How Well Does This Work in Practice?

Moving from hypothetical injectors to a real world application, the response in the non linear range is considerably less orderly than shown in the graphs above, and is quantified using a technique called Least Squares Linear Regression ? Which is a fancy way of saying straight line approximation.

By approximating the response in the non linear range, and matching sets accordingly, the best possible cylinder to cylinder fueling is realized across the entire operating range.

Using the ID2600-XDS as an example, the traditional Slope Intercept method of matching results in an average deviation of +/-5.1% in the non linear range, while the new method of Dual Slope Matching has reduced this to +/-1.4%

In a perfect world, this deviation would not exist at all, but for those of us who live (And tune!) in the real world, Dual Slope Matching represents a large step forward, and we are proud to offer it to the market.

Vehicle Fitment:
Click "Vehicle Fitment" tab to see narrowed down vehicle list
Note: Some vehicles may have multiple possible injector sizes available. Always compare sizing provided in the listing (length and O-Ring size) against injectors currently fitted to vehicle.

Technical Specifications
Nominal Flow Rate: 2600cc/min @ 3.0 Bar (43.5 psi)
Maximum Differential Fuel Pressure: 9.0 Bar (130.5 psi) Ð Requires Minimum 11volt.
Fuel Compatibility: Compatible with Methanol/Ethanol/All Known Hydrocarbons. NOT Compatible with Ethers (MTBE, ETBE, TAME) or Nitro Methane
Electrical Connector: USCAR

Fitment Table
Year
Make
Model
Chassis
Submodel

1994 - 1995
BMW
M3
E36 (2D Convertible)
Base - S50B30 3.0L Aspirated Petrol RWD (210kW)

1996 - 2000
BMW
M3
E36 (2D Convertible)
Base - S50B32 3.2L Aspirated Petrol RWD (236kW)

1993 - 1995
BMW
M3
E36 (2D Coupe)
Base - S50B30 3.0L Aspirated Petrol RWD (210kW)

1995 - 2000
BMW
M3
E36 (2D Coupe)
Base - S50B32 3.2L Aspirated Petrol RWD (236kW)

1995 - 1997
BMW
M3
E36 (4D Sedan)
Base - S50B32 3.2L Aspirated Petrol RWD (236kW)

1998 - 2000
BMW
Z3
E36 (2D Coupe)
M - S50B32 3.2L Aspirated Petrol RWD (236kW)

1997 - 2000
BMW
Z3
E36 (2D Roadster)
M - S50B32 3.2L Aspirated Petrol RWD (236kW)

1998 - 2000
BMW
Z3
E36 (2D Roadster)
M - S52B32 3.2L Aspirated Petrol RWD (179kW)

1997 - 2000
Holden
Berlina
VT (4D Sedan)
Base - L36 3.8L Aspirated Petrol RWD (147kW)

1999 - 2000
Holden
Berlina
VT (4D Sedan)
Base - L67 3.8L Supercharged Petrol RWD (171kW)

1997 - 2000
Holden
Berlina
VT (4D Wagon)
Base - L36 3.8L Aspirated Petrol RWD (147kW)

2000 - 2002
Holden
Berlina
VX (4D Sedan)
Base - L36 3.8L Aspirated Petrol RWD (152kW)

2000 - 2001
Holden
Berlina
VX (4D Sedan)
Base - L67 3.8L Supercharged Petrol RWD (171kW)

2000 - 2002
Holden
Berlina
VX (4D Wagon)
Base - L36 3.8L Aspirated Petrol RWD (152kW)

2002 - 2004
Holden
Berlina
VY (4D Sedan)
Base - L36 3.8L Aspirated Petrol RWD (152kW)

2002 - 2004
Holden
Berlina
VY (4D Wagon)
Base - L36 3.8L Aspirated Petrol RWD (152kW)

1996 - 1997
Holden
Calais
VS (4D Sedan)
Base - L36 3.8L Aspirated Petrol RWD (147kW)

1996 - 1997
Holden
Calais
VS (4D Sedan)
Base - L67 3.8L Supercharged Petrol RWD (165kW)

1997 - 2000
Holden
Calais
VT (4D Sedan)
Base - L36 3.8L Aspirated Petrol RWD (147kW)

1997 - 2000
Holden
Calais
VT (4D Sedan)
Base - L67 3.8L Supercharged Petrol RWD (171kW)

2000 - 2002
Holden
Calais
VX (4D Sedan)
Base - L36 3.8L Aspirated Petrol RWD (152kW)

2000 - 2002
Holden
Calais
VX (4D Sedan)
Base - L67 3.8L Aspirated Petrol RWD (171kW)

2002 - 2004
Holden
Calais
VY (4D Sedan)
Base - L36 3.8L Aspirated Petrol RWD (152kW)

2002 - 2004
Holden
Calais
VY (4D Sedan)
Base - L67 3.8L Aspirated Petrol RWD (171kW)

1996 - 1998
Holden
Caprice
VS (4D Sedan)
Base - L36 3.8L Aspirated Petrol RWD (147kW)

1996 - 2000
Holden
Commodore
VS (2D Ute)
Base - L36 3.8L Aspirated Petrol RWD (147kW)

1996 - 1997
Holden
Commodore
VS (4D Sedan)
Base - L36 3.8L Aspirated Petrol RWD (147kW)

1996 - 1997
Holden
Commodore
VS (4D Sedan)
Berlina - L36 3.8L Aspirated Petrol RWD (147kW)

1996 - 1997
Holden
Commodore
VS (4D Wagon)
Base - L36 3.8L Aspirated Petrol RWD (147kW)

1995
Holden
Commodore
VS (4D Wagon)
Berlina - L27 3.8L Aspirated Petrol RWD (147kW)

1996 - 1997
Holden
Commodore
VS (4D Wagon)
Berlina - L36 3.8L Aspirated Petrol RWD (147kW)

1997 - 2000
Holden
Commodore
VT (4D Sedan)
Base - L36 3.8L Aspirated Petrol RWD (147kW)

1997 - 2000
Holden
Commodore
VT (4D Sedan)
Berlina - L36 3.8L Aspirated Petrol RWD (147kW)

1999 - 2000
Holden
Commodore
VT (4D Sedan)
Berlina - L67 3.8L Supercharged Petrol RWD (171kW)

1997 - 2000
Holden
Commodore
VT (4D Sedan)
S - L67 3.8L Supercharged Petrol RWD (171kW)

1997 - 2000
Holden
Commodore
VT (4D Sedan)
SS - L67 3.8L Supercharged Petrol RWD (171kW)

1997 - 2000
Holden
Commodore
VT (4D Wagon)
Base - L36 3.8L Aspirated Petrol RWD (147kW)

1997 - 2000
Holden
Commodore
VT (4D Wagon)
Berlina - L36 3.8L Aspirated Petrol RWD (147kW)

2000 - 2002
Holden
Commodore
VU (2D Ute)
S - L36 3.8L Aspirated Petrol RWD (152kW)

2000 - 2002
Holden
Commodore
VU (2D Ute)
Storm - L36 3.8L Aspirated Petrol RWD (152kW)

2000 - 2002
Holden
Commodore
VX (4D Sedan)
Base - L36 3.8L Aspirated Petrol RWD (152kW)

2000 - 2002
Holden
Commodore
VX (4D Sedan)
Base - L67 3.8L Supercharged Petrol RWD (171kW)

2000 - 2002
Holden
Commodore
VX (4D Sedan)
Berlina - L36 3.8L Aspirated Petrol RWD (152kW)

2000 - 2001
Holden
Commodore
VX (4D Sedan)
Berlina - L67 3.8L Supercharged Petrol RWD (171kW)

2000 - 2002
Holden
Commodore
VX (4D Wagon)
Base - L36 3.8L Aspirated Petrol RWD (152kW)

2000 - 2002
Holden
Commodore
VX (4D Wagon)
Berlina - L36 3.8L Aspirated Petrol RWD (152kW)

2003 - 2004
Holden
Commodore
VY (2D Tray)
One Tonner - L36 3.8L Aspirated Petrol RWD (152kW)

2002 - 2004
Holden
Commodore
VY (2D Ute)
Base - L36 3.8L Aspirated Petrol RWD (152kW)

2002 - 2004
Holden
Commodore
VY (4D Sedan)
Base - L36 3.8L Aspirated Petrol RWD (152kW)

2002 - 2004
Holden
Commodore
VY (4D Sedan)
Berlina - L36 3.8L Aspirated Petrol RWD (152kW)

2002 - 2004
Holden
Commodore
VY (4D Sedan)
S - L67 3.8L Supercharged Petrol RWD (171kW)

2002 - 2004
Holden
Commodore
VY (4D Wagon)
Base - L36 3.8L Aspirated Petrol RWD (152kW)

2002 - 2004
Holden
Commodore
VY (4D Wagon)
Berlina - L36 3.8L Aspirated Petrol RWD (152kW)

2003 - 2004
Holden
Crewman
VY (4D Ute)
Base - L36 3.8L Aspirated Petrol RWD (152kW)

2003 - 2004
Holden
One Tonner
VY (2D Tray)
Base - L36 3.8L Aspirated Petrol RWD (152kW)

1996 - 1999
Holden
Statesman
VS (4D Sedan)
Base - L36 3.8L Aspirated Petrol RWD (147kW)

1996 - 1999
Holden
Statesman
VS (4D Sedan)
Base - L67 3.8L Supercharged Petrol RWD (165kW)

1999 - 2000
Holden
Statesman
WH (4D Sedan)
Base - L36 3.8L Aspirated Petrol RWD (147kW)

2000 - 2003
Holden
Statesman
WH (4D Sedan)
Base - L36 3.8L Aspirated Petrol RWD (152kW)

1999 - 2003
Holden
Statesman
WH (4D Sedan)
Base - L67 3.8L Supercharged Petrol RWD (171kW)

2003 - 2004
Holden
Statesman
WK (4D Sedan)
Base - L36 3.8L Aspirated Petrol RWD (152kW)

2003 - 2004
Holden
Statesman
WK (4D Sedan)
Base - L67 3.8L Supercharged Petrol RWD (171kW)

1999 - 2000
HSV
Grange
WH (4D Sedan)
180i - L67 3.8L Supercharged Petrol RWD (180kW)

1998 - 2000
HSV
XU6
VT (4D Sedan)
Base - L67 3.8L Supercharged Petrol RWD (180kW)

2000 - 2002
HSV
XU6
VX (4D Sedan)
Base - L67 3.8L Supercharged Petrol RWD (180kW)

1994 - 1995
Porsche
911
993 (2D Convertible)
Carrera - M64.05/06 3.6L Aspirated Petrol RWD (200kW)

1995 - 1998
Porsche
911
993 (2D Convertible)
Carrera - M64.21/22 3.6L Aspirated Petrol RWD (210kW)

1994 - 1995
Porsche
911
993 (2D Convertible)
Carrera 4 - M64.05/06 3.6L Aspirated Petrol AWD (200kW)

1995 - 1997
Porsche
911
993 (2D Convertible)
Carrera 4 - M64.21/22 3.6L Aspirated Petrol AWD (210kW)

1994 - 1995
Porsche
911
993 (2D Coupe)
Carrera - M64.05/06 3.6L Aspirated Petrol RWD (200kW)

1995 - 1997
Porsche
911
993 (2D Coupe)
Carrera - M64.21/22 3.6L Aspirated Petrol RWD (210kW)

1994 - 1995
Porsche
911
993 (2D Coupe)
Carrera 4 - M64.05/06 3.6L Aspirated Petrol AWD (200kW)

1995 - 1997
Porsche
911
993 (2D Coupe)
Carrera 4 - M64.21/22 3.6L Aspirated Petrol AWD (210kW)

1996 - 1998
Porsche
911
993 (2D Coupe)
Carrera 4S - M64.21/22 3.6L Aspirated Petrol AWD (210kW)

1998
Porsche
911
993 (2D Coupe)
Carrera S - M64.21/22 3.6L Aspirated Petrol RWD (210kW)

1993
Porsche
911
993 (2D Coupe)
Speedster - M64.01/02 3.6L Aspirated Petrol RWD (184kW)

1998 - 2001
Porsche
911
996 (2D Convertible)
Carrera - M96.01/02/04 3.4L Aspirated Petrol RWD (221kW)

2001 - 2005
Porsche
911
996 (2D Convertible)
Carrera - M96.03 3.6L Aspirated Petrol RWD (235kW)

1998 - 2001
Porsche
911
996 (2D Convertible)
Carrera 4 - M96.01/02/04 3.4L Aspirated Petrol AWD (221kW)

2003 - 2006
Porsche
911
996 (2D Convertible)
Carrera 4S Cabriolet - M96.03 3.6L Aspirated Petrol AWD (235kW)

1998 - 2001
Porsche
911
996 (2D Coupe)
Carrera - M96.01/02/04 3.4L Aspirated Petrol RWD (221kW)

2001 - 2004
Porsche
911
996 (2D Coupe)
Carrera - M96.03 3.6L Aspirated Petrol RWD (235kW)

1998 - 2001
Porsche
911
996 (2D Coupe)
Carrera 4 - M96.01/02/04 3.4L Aspirated Petrol AWD (221kW)

2001 - 2006
Porsche
911
996 (2D Coupe)
Carrera 4S - M96.03 3.6L Aspirated Petrol AWD (235kW)

2001 - 2006
Porsche
911
996 (2D Targa)
Targa - M96.03 3.6L Aspirated Petrol RWD (235kW)

2005 - 2008
Porsche
911
997 (2D Convertible)
Carrera - M96.05 3.6L Aspirated Petrol RWD (239kW)

2006 - 2008
Porsche
911
997 (2D Convertible)
Carrera 4 - M96.05 3.6L Aspirated Petrol AWD (239kW)

2006 - 2008
Porsche
911
997 (2D Convertible)
Carrera 4S - M97.01 3.8L Aspirated Petrol AWD (261kW)

2005 - 2008
Porsche
911
997 (2D Convertible)
Carrera S - M97.01 3.8L Aspirated Petrol RWD (261kW)

2004 - 2008
Porsche
911
997 (2D Coupe)
Carrera - M96.05 3.6L Aspirated Petrol RWD (239kW)

2006 - 2008
Porsche
911
997 (2D Coupe)
Carrera 4 - M96.05 3.6L Aspirated Petrol AWD (239kW)

2006 - 2008
Porsche
911
997 (2D Coupe)
Carrera 4S - M97.01 3.8L Aspirated Petrol AWD (261kW)

2004, 2006 - 2008
Porsche
911
997 (2D Coupe)
Carrera S - M97.01 3.8L Aspirated Petrol RWD (261kW)

2006 - 2008
Porsche
911
997 (2D Targa)
Targa 4 - M96.05 3.6L Aspirated Petrol AWD (239kW)

2006 - 2008
Porsche
911
997 (2D Targa)
Targa 4S - M97.01 3.8L Aspirated Petrol AWD (261kW)

1991 - 1997
Toyota
Aristo
JZS147 (4D Sedan)
Base - 2JZ-GTE 3.0L Twin Turbo Petrol RWD (208kW)

1997 - 2004
Toyota
Aristo
JZS161 (4D Sedan)
V300 - 2JZ-GTE 3.0L Twin Turbo Petrol RWD (208kW)

1993 - 2002
Toyota
Supra
JZA80 (2D Coupe)
Base - 2JZ-GTE 3.0L Twin Turbo Petrol RWD (208kW)
