Competition Gen.2 Intercooler Kit Hyundai I30N
Competition Gen.2 Intercooler Kit Hyundai I30N is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Competition Gen.2 Intercooler Kit Hyundai I30N
Wagner Tuning Hyundai I30N Competition Intercooler Kit - 200001129
Hyundai I30 N 184KW/250PS (2017-2020)
Hyundai I30 N Performance 202KW/275PS (2017-2020)
Hyundai I30 N Project C 202KW/275PS (2019-2020)
*not suitable for Facelift from 05/2021

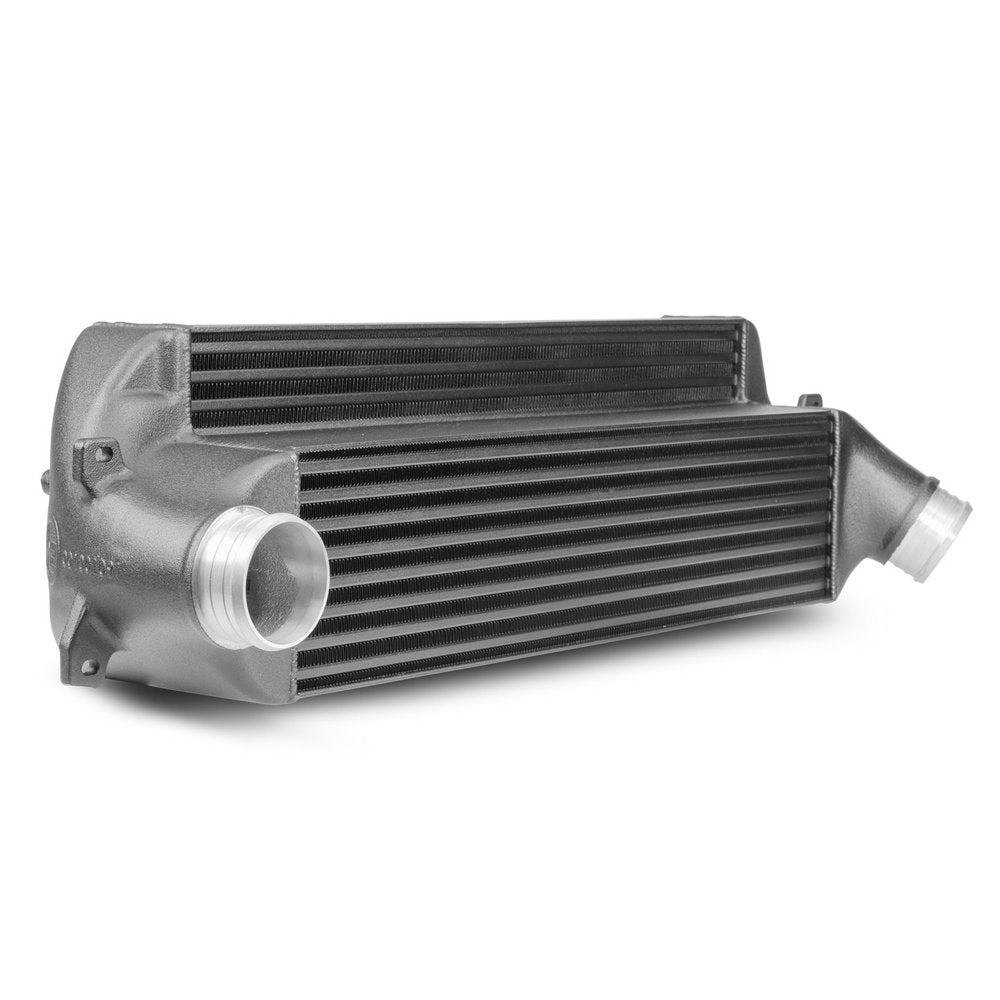

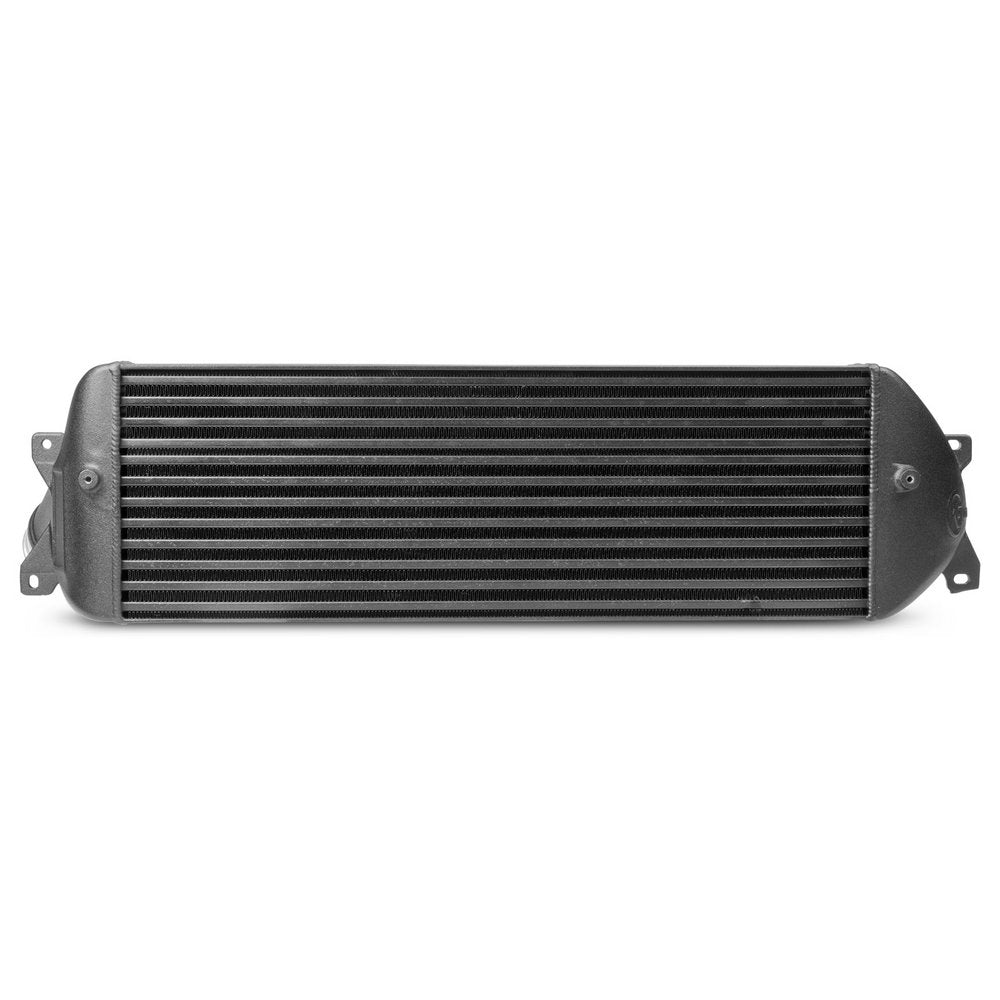

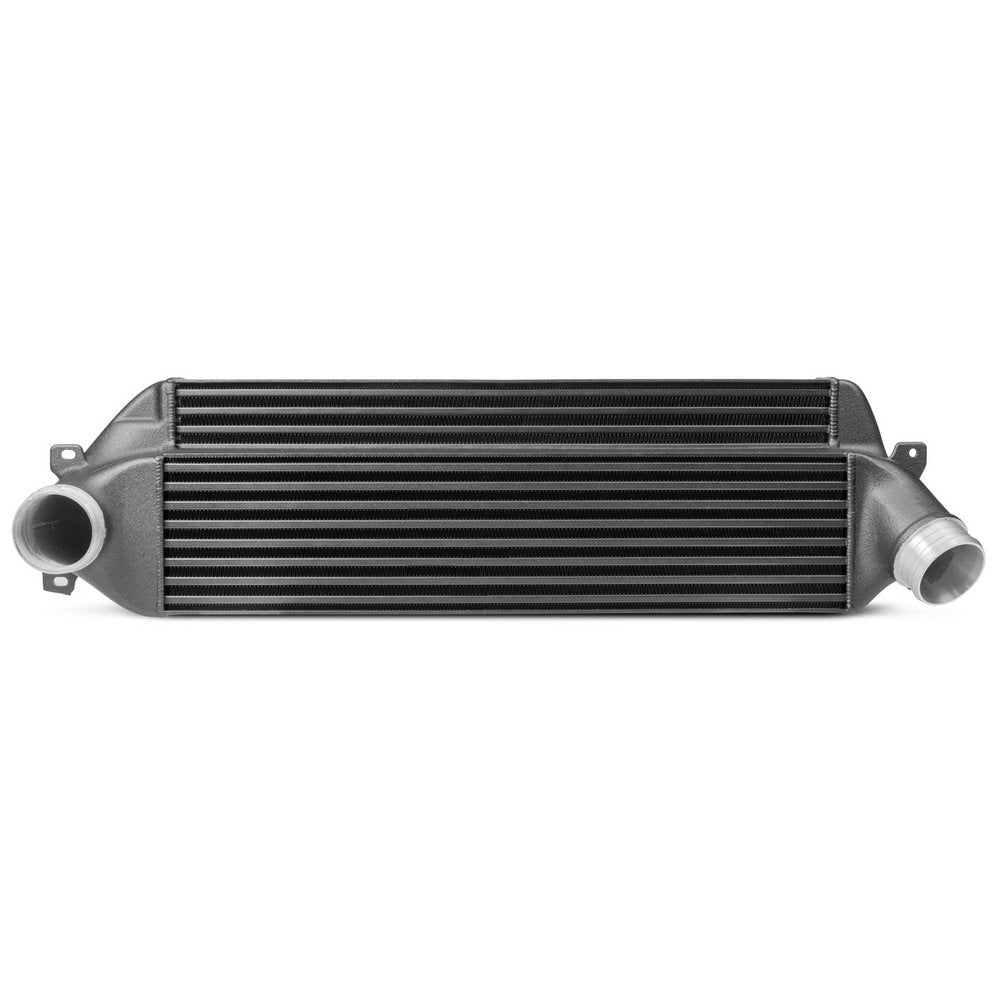

The Wagner Tuning high-performance charge air cooler has a new type of competition net (tube fin) with the dimensions
580 mm x 150 mm x 135.4 mm + 580 mm x 62 mm x 70 mm (stepped network: 14.3 liters), which was specially developed for the requirements of the Hyundai I30 N. This high-performance mesh offers a 44.3% larger inflow area and 101.4% more mesh volume compared to the original intercooler.
The cast aluminum end boxes were designed in CAD and optimized with the help of CFD simulations (for an ideal internal air flow). The result is excellent cooling properties with the lowest back pressure. In addition, the newly developed high-performance network allows the adjacent components, such as the water cooler, sufficient air flow through the use of a specially manufactured air baffle. So this kit is just right for racing. Optimal cooling of the charged air with a significant increase in performance!
An anti-corrosion coating with excellent thermal conductivity properties protects the Wagner Tuning intercooler from all environmental influences, as a result of which a permanent and optimal cooling effect can be guaranteed. The assembly takes place at the original attachment points and is easy to carry out (plug and play). All of our products are subject to constant quality monitoring.
Inlet and outlet diameter: Ø65mm
OEM intercooler:
V = 7.1L
A = 79360 mm²
Wagner Tuning intercooler:
V = 14.3L
A = 114492 mm²
W = 9.3kg

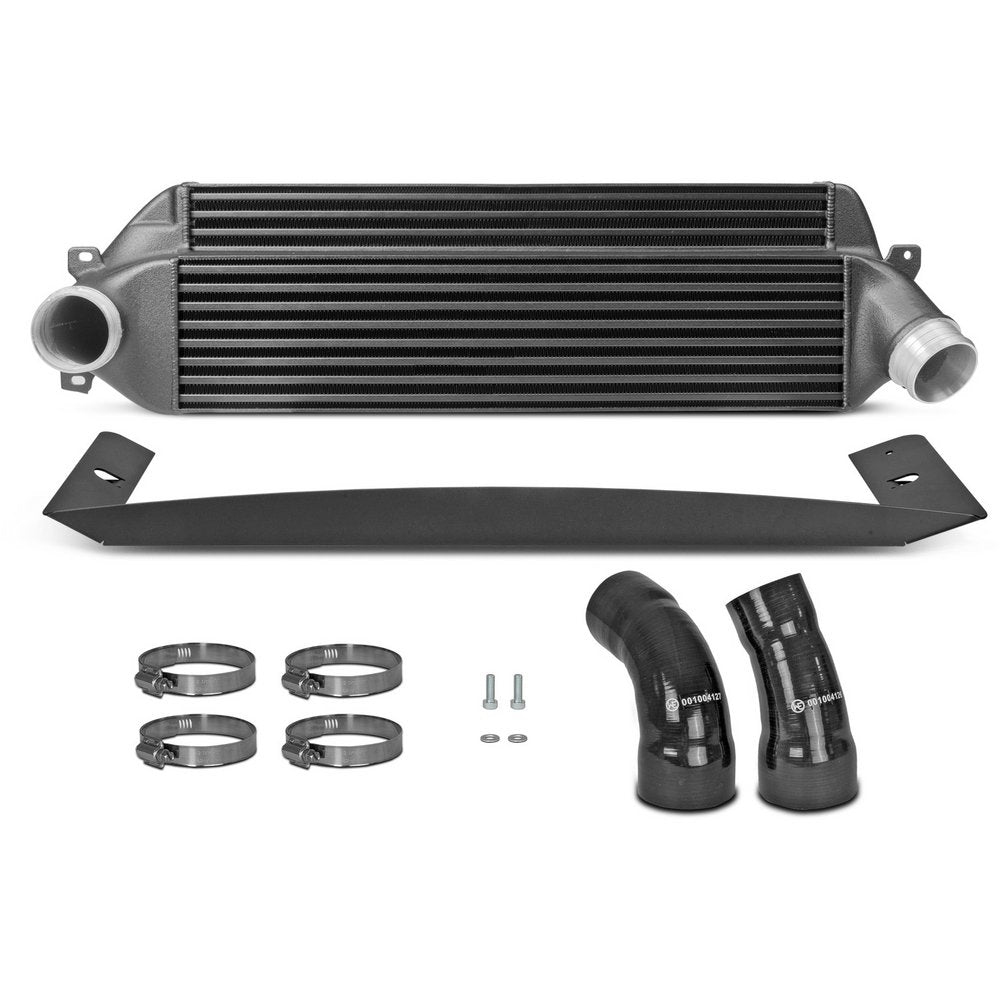

Kit Includes:
1 intercooler
2 silicone hoses 1
air baffle
1 assembly material
1 TÜV TGA + installation instructions
