Radium Engineering  |  SKU: 20-2796

Radium Engineering Hanger Dual Pump Add-on Fits Walbro GSS342 or AEM 50-1200

$254.04 AUD $291.00
Shipping calculated at checkout.

MASSIVE RANGE

Over 20,000 performance & automotive SKUs for European, JDM, American, Korean and more

NATIONWIDE FAST SHIPPING

Quick dispatch across Australia with reliable tracked delivery

AUSSIE SUPPORT & EXPERTISE

Local customer service and technical assistance from our team of enthusiasts

Part numbers 20-2796 and 20-2797 are supplementary add-ons to the fuel pump hanger discussed above.

NOTES:
1. Part number 20-2790 or 20-2792 are required to use these add-ons.
2. If a brushless pump was installed, a "dual pump add-on" CANNOT be used due to the extra brushless controller wires.

The architecture of this fuel tank is very unique. Because the opening is so small, 2 pumps cannot fit through at the same time.

The pump 2 assembly is placed in the tank first followed by the pump 1 assembly. An electrical plug and a SAE quick connector eliminate the need to perform tedious assembly before dropping the entire assembly into the tank. Both fuel pumps merge into the single 8AN ORB outlet of the fuel hat. And because of the integrated check valves, fuel pump staging is permitted.

FUEL PUMPS
Choosing the best fuel pump is based on the expected engine power output, fuel type (gasoline, E85, etc.), and fuel pressure.
P/N: 20-2796
**AEM 50-1000
**AEM 50-1200
**AEM 50-1220
**+AEM 50-1230
**+AEM 50-1235
*Walbro GSS342

P/N: 20-2797
*Walbro F90000267
*Walbro F90000274
*Walbro F90000285
*+Walbro F90000295

*Sock filters are included in this kit for these pumps.
**Sock filters are included by the fuel pump manufacture.
+These pumps do NOT feature a check valve.

FEATURES
-Gasoline, Methanol, and E85 Compliant
-Compatible with Various Pumps
-Included Fuel Pump Filter Sock
-Plug and Play Installation
-Bolt-On Stainless Pump Bracket

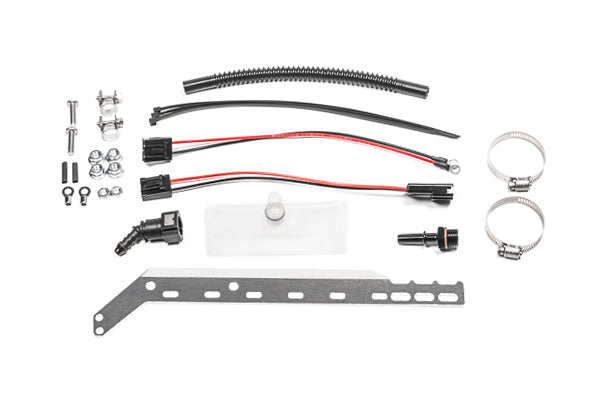

Radium P/N: 20-2796 shown above. Radium P/N: 20-2797 shown below.

FUEL HANGER PLUMBING KIT...COMING AUGUST 2024
COMPATIBILITY
90-05 Acura NSX (All models/trims/RHD/LHD)
OVERVIEW
The FUEL HANGER PLUMBING KIT, 90-05 NSX connects to the factory fuel lines.

A 6AN feed line is constructed to mate to the OEM fuel filter. Also, an adapter is provided to reuse the OEM return line.
INCLUDES
-6AN EFI Fuel Feed Hose, 3/8" ID
-6AN PushLok Hose End, 90deg (x2)
-M12 to 6AN Male Banjo Fitting
-M12 Crush Washer
-6AN Female to 5/16" Hose Barb
