Radium Engineering  |  SKU: 20-1332

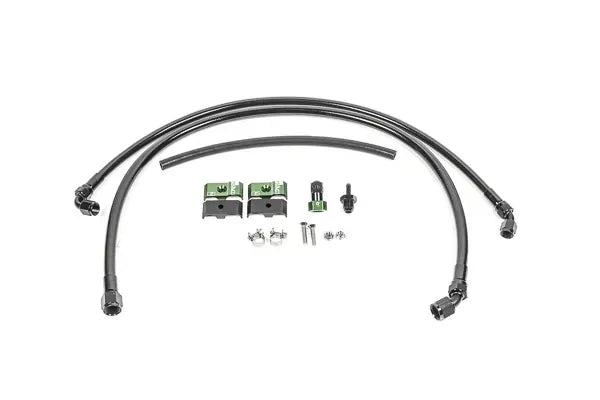

Radium Fuel Hanger Connection Kit, Mitsubishi EVO 6

$339.49 AUD $387.03
Shipping calculated at checkout.

MASSIVE RANGE

Over 20,000 performance & automotive SKUs for European, JDM, American, Korean and more

NATIONWIDE FAST SHIPPING

Quick dispatch across Australia with reliable tracked delivery

AUSSIE SUPPORT & EXPERTISE

Local customer service and technical assistance from our team of enthusiasts

20-1331 VEHICLE COMPATIBILITY
Mitsubishi Evolution VI

OVERVIEW
This kit provides all necessary connections from the top of the fuel tank to the OEM hard lines at the rear of the vehicle.
NOTE: Custom hoses and fittings will need to be purchased and constructed separately to run larger lines all the way to the engine and back.

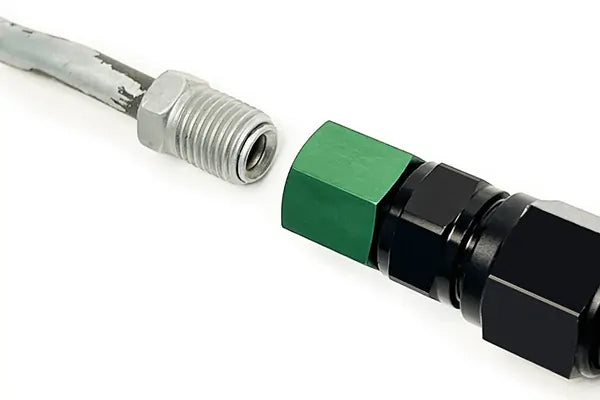

From the pump outlet, a long 8AN PTFE fuel line runs down underneath the RH side of the fuel tank. An SAE quick connect adapter is provided that connects to the OEM hard line, as shown below.

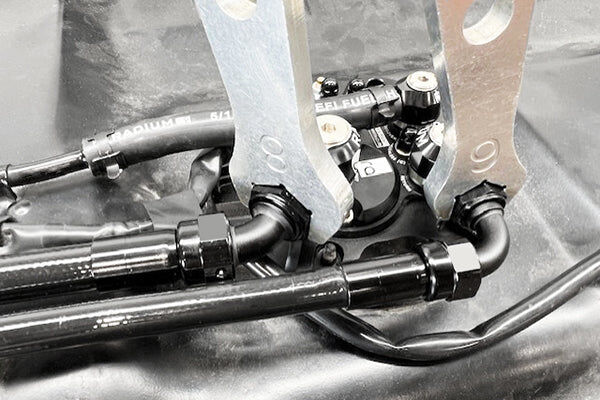

When returning fuel comes back from the OEM FPR, it travels through an OEM barbed hard line that terminates just underneath the fuel tank. A short rubber hose is provided that adapts to 6AN. From here, a 6AN PTFE hose routes across the tank to the return port on the pump hanger.

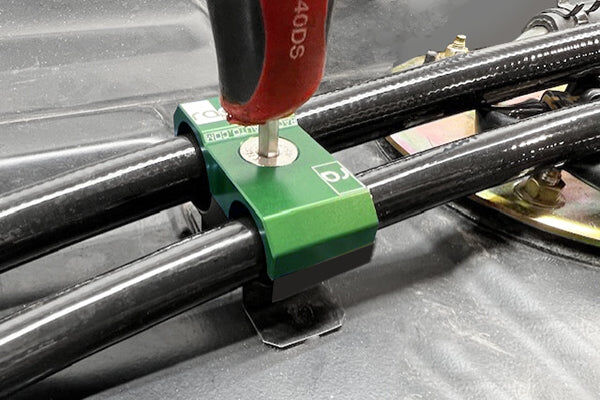

Two anodized aluminum clamps are provided to mount the PTFE fuel lines across the upper front portion of the fuel tank, as shown above.

FEATURES
-8AN PTFE Fuel Feed Hose
-6AN PTFE Fuel Return Hose
-SAE Quick Connect Adapter
-Stainless Steel EFI Clamps
-Billet Aluminum Clamps
-Misc Adapter Fittings
-4AN Rubber Hose
