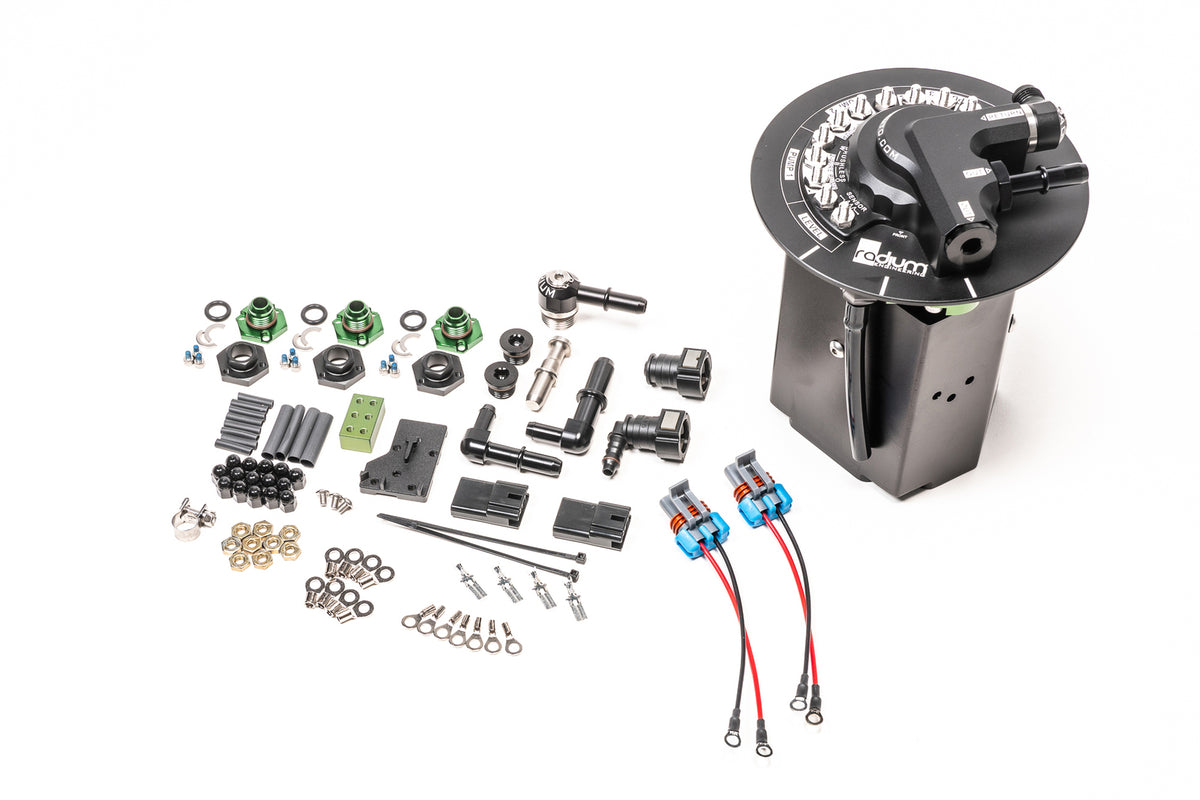

Radium Fuel Pump Hanger Suit Walbro F90000267/274/285 - Holden Commodore VE VF/Chevolet Camaro SS 10-15
Radium Fuel Pump Hanger Suit Walbro F90000267/274/285 - Holden Commodore VE VF/Chevolet Camaro SS 10-15 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Radium Fuel Pump Hanger Suit Walbro F90000267/274/285 - Holden Comm...
Important: Aftermarket Fuel Pressure Regulator and Post-Pump Fuel Filter are required

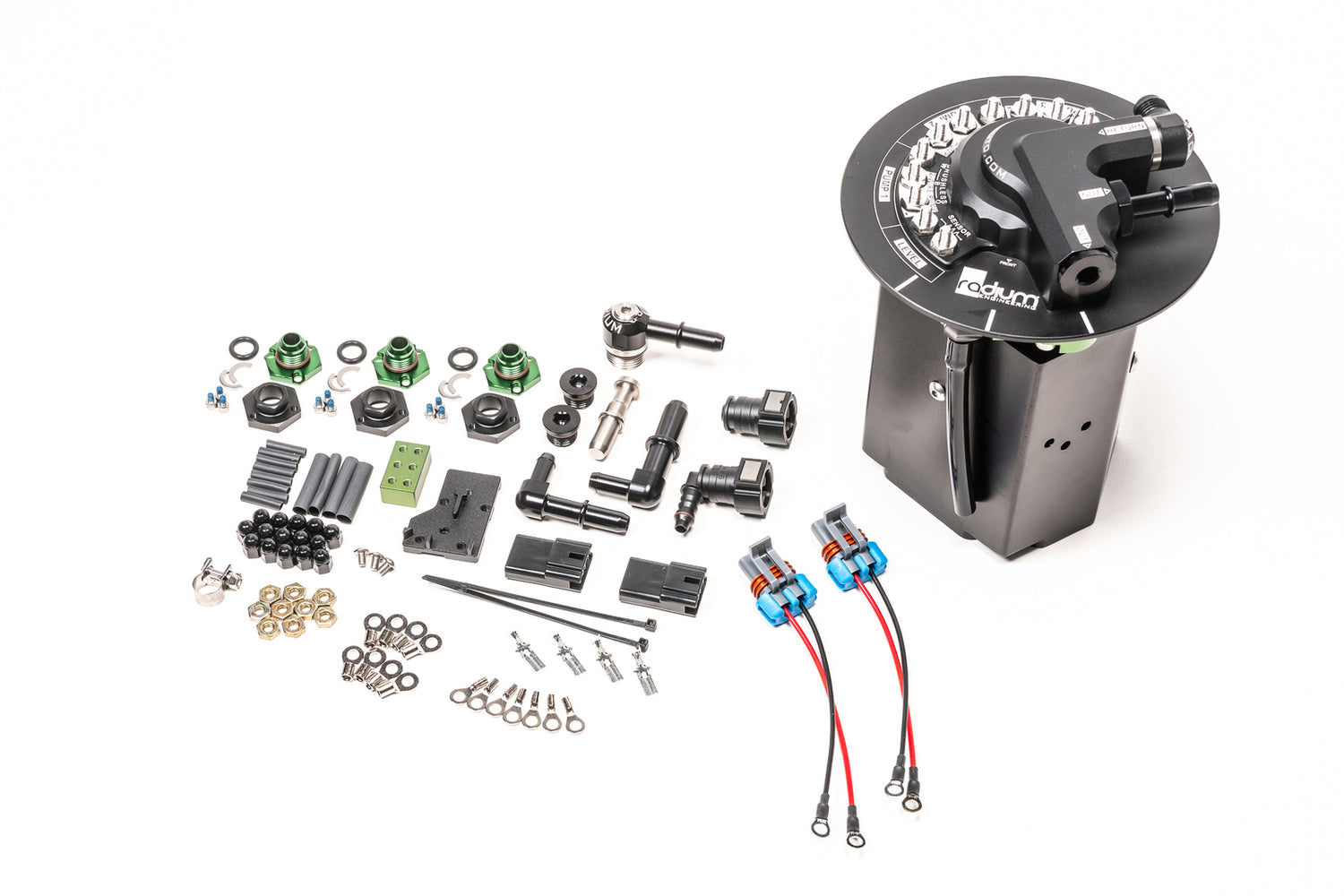

This fuel hanger completely replaces the factory in-tank fuel pump module and allows 1, 2, or 3 aftermarket pumps to be used, either the AEM 340lph 50-1220 or Deatschwerks DW440 brushless Bosch pumps. There will be enough components included to use 1, 2, or 3 fuel pumps. Depending on the setup, some parts will simply not be used.
NOTES ABOUT FUEL STARVATION
The 1-piece anodized aluminum collector box keeps fuel trapped around the pump inlet(s).
There are three 1-way fill valves incorporated in the bottom of the collector box that allows fuel in, but not out. Each 1-way fill valve flows 355 LPH.
The collector box is constantly replenished with fuel returning from the pressure regulator and from fuel coming from the jet pump crossover line.
NOTES ABOUT PORTS AND FITTINGS
There are 2 pump "OUT" ports that are both tapped with 3/4"-16 (8AN ORB) threads.
The first "OUT" port can be used to reconnect the factory fuel feed line. Because the OEM fuel feed line has an integrated fuel pressure sensor, this feature is critical for many applications. There are 2 different SAE quick connect fittings provided to adapt to the specific vehicle.
The second "OUT" port can be used to route another feed line for increased flow. This port comes preinstalled with an 8AN ORB plug but a spare 8AN ORB to 6AN Male fitting is provided.
The "RETURN" port is tapped with 3/4"-16 (8AN ORB) threads. Provided is an 8AN ORB to 6AN Male banjo fitting.
NOTES ABOUT THE VENTURI JET PUMP
The OEM venturi jet pump in the return line creates a restriction that can impact fuel pressure reliablity.
The siphon system has been replaced and redesigned to eliminate this return line restriction but still effectively scavenges fuel. This means higher flowing pumps can safely be used without fuel pressure issues.
Depending on fuel pressure, the venturi jet pump will consume 15-45 LPH. Take this fuel loss into consideration when sizing the fuel pumps.
To reconnect the internal OEM fuel crossover transfer line, 2 different SAE quick connect fittings are provided to cover all compatible vehicles.
If it is important for fuel pressure to hold steady after the engine is shut down, install one of these CHECK VALVES somewhere in the fuel system.
NOTES ABOUT FUEL FEED LINE
One of the "OUT" ports can be used to reconnect the factory fuel feed line. Because the OEM fuel feed line has an integrated fuel pressure sensor, this feature is critical for many applications.
There are 2 different SAE quick connect fittings provided to adapt to the specific vehicle.
NOTES ABOUT FUEL LEVEL SENSOR
To retain the OEM fuel level sensor, 2 different billet aluminum mounts are provided to cover all compatible vehicles.
NOTES ABOUT FUEL PRESSURE SENSOR
There is an OEM fuel pressure sensor integrated to the feed line just downstream of the pump. This fuel hanger was designed to keep this pressure sensor operational. Simply connect the OEM fuel line to 1 of the 2 pump "OUT" ports. Also, SAE quick connect plugs are provided to cap off this OEM fuel line after this sensor, if need be.
NOTES ABOUT FUEL PRESSURE
This system eliminates the OEM fuel pressure regulator inside the stock unit.
This system requires the use of an aftermarket fuel pressure regulator.
A fuel pressure regulator is included in the plumbing kit.
NOTES ABOUT FILTRATION
This system includes pre-pump filtration for all 3 pumps.
This system eliminates the OEM "post" pump filter. A low-micron aftermarket fuel filter should be installed downstream to protect the injectors from debris.
NOTES ABOUT WIRING
Single fuel pump installations can re-use the OEM fuel pump controller wiring.
It is recommended to upgrade the wiring to ensure the pump(s) are operating at their full potential.
Universal fuel pump wiring kits can be found separately. Select one for each aftermarket fuel pump used.
