Radium Engineering  |  SKU: 20-0940

Radium Fuel Pump Hanger - Toyota Chaser/Mark II/Cresta JZX90/JZX100

$932.16 AUD $1,054.39
Shipping calculated at checkout.

MASSIVE RANGE

Over 20,000 performance & automotive SKUs for European, JDM, American, Korean and more

NATIONWIDE FAST SHIPPING

Quick dispatch across Australia with reliable tracked delivery

AUSSIE SUPPORT & EXPERTISE

Local customer service and technical assistance from our team of enthusiasts

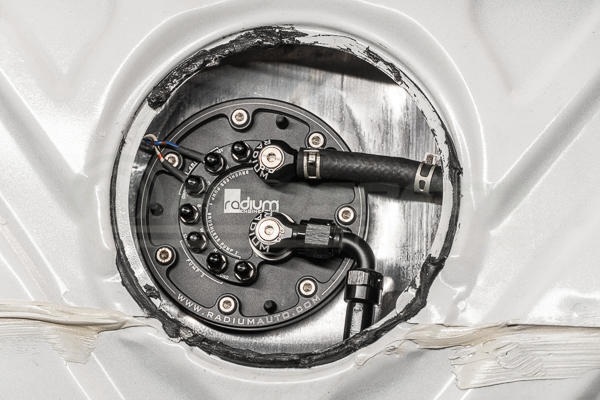

The Radium Engineering Fuel Pump Hanger is a drop-in aftermarket fuel pump solution for supplying the fuel required to maximize power gains.

PLUMBING

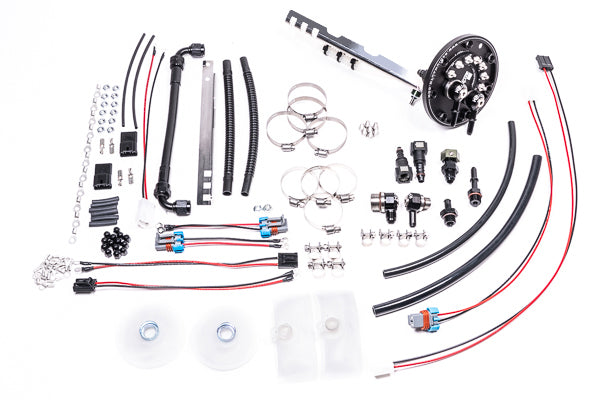

Multiple adapter fittings are provided for connecting back to the OEM fuel lines. If a second pump is installed, an SAE quick connector is provided that snaps into the underside of the fuel hat simplifying installation. For later model vehicles that use the inverted flare feed line, a replacement PTFE feed hose is provided, as shown below.

ELECTRICAL

The custom designed stainless electrical studs easily handle the high current demand that compact multi-pin bulkhead connectors lack. These serviceable connections are hermetically sealed and impervious to all standard and exotic fuels.

Non conductive anodized aluminum acorn nuts are provided to prevent any accidental short circuiting. Electrical hardware is included for the fuel pump(s). Furthermore, the in-tank wiring is insulated with high quality chemically resistant ETFE. Relay kits, such as 17-0031, are recommended to drive these new internal fuel pump(s).

PUMP COMPATIBILITY

This system supports 1 or 2 aftermarket fuel pumps (sold separately):

*Walbro F90000267
*Walbro F90000274
*Walbro F90000285
*Walbro F90000295
*Walbro GSS342
*AEM 50-1200
**Bosch BR540
**Deatschwerks DW400
**Deatschwerks DW440 (brushless)
**Protec 11928 (brushless)
**Fuelab 49614 (brushless)
*Ti Automotive BKS1001 (brushless)
*Sock filters are provided in this kit (20-0940) for these pumps.
**Sock filters are included from the fuel pump manufacture.

Features:

Drop-In Installation
Dual Pump Capable with Popular Pumps
Brushless Fuel Pump Compatibility
High Current Electrical Hardware
Anodized Aluminum Construction
Gasoline, Methanol, and Ethanol Compliant
Fuel Resistant Tubing and Wiring
Stainless Steel Hardware
Vehicle Fitment:

Toyota Chaser (X90)
Toyota Chaser (X100)
Toyota Mark II (X90)
Toyota Mark II (X100)
Toyota Cresta (X90)
Toyota Cresta (X100)
