Radium Catch Can Kit Fluid Lock Golf VW 20+
Radium Catch Can Kit Fluid Lock Golf VW 20+ is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
MASSIVE RANGE
Over 20,000 performance & automotive SKUs for European, JDM, American, Korean and more
NATIONWIDE FAST SHIPPING
Quick dispatch across Australia with reliable tracked delivery
AUSSIE SUPPORT & EXPERTISE
Local customer service and technical assistance from our team of enthusiasts
Radium Catch Can Kit Fluid Lock Golf VW 20+
Radium Catch Can Kit Fluid Lock Golf VW 20+
COMPATIBILITY
20+ VW Golf GTI
24+ VW Golf GTI 380
20+ VW Golf R
24+ VW Golf R333
2023 VW Golf R20

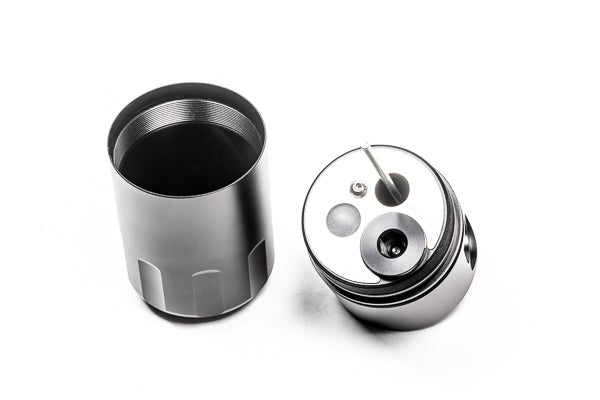

Radium Engineering catch cans feature large 10AN ORB ports, a 4AN ORB drain port, 2-step oil separation baffling, and an O-ring sealed dipstick. These kits include everything needed for a complete installation. The catch can draws out oil and water condensation from the crankcase gasses that would otherwise be drawn into the intake manifold. Furthermore, the closed system prevents unwanted oil vapors from entering into the cabin.
FEATURES
-Effectively raises the octane and increased engine performance from cleaner inlet air
-Prevents oil buildup in the intake or intercooler system walls, throttle body, intake manifold, etc.
-Excessive oil collection can be an indicator of a damaged engine.
-Lowers hydrocarbon emissions
-Capacity: 7 fluid ounces
20-0887-FL CATCH CAN KIT, CCV, 20+ VW GOLF, FLUID LOCK

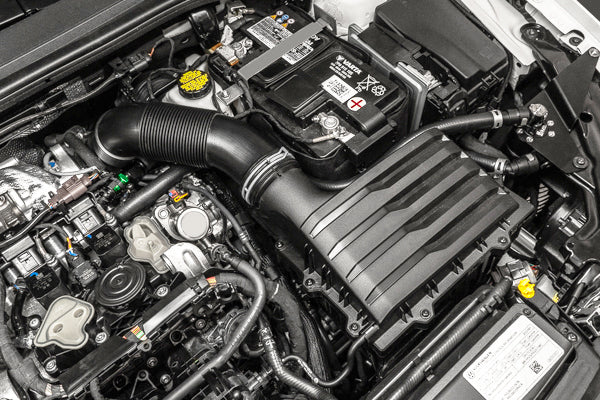

This catch can mounts using OEM holes and integrate perfectly with the surrounding components. The anodized aluminum catch can bracket mounts behind the LH headlight.

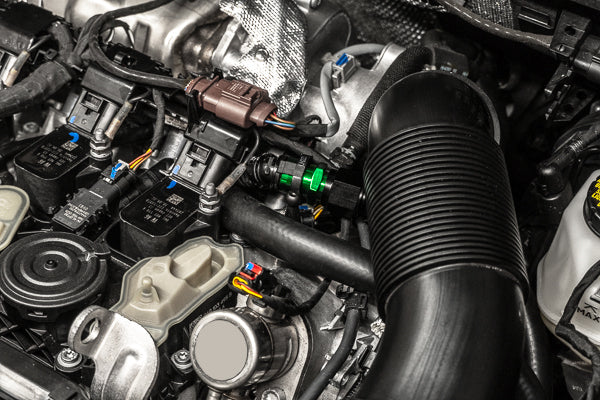

As shown below, SAE quick connect fittings are provided for both catch can ports.
No permanent modifications are required as the hoses connect to the factory fittings and connectors.

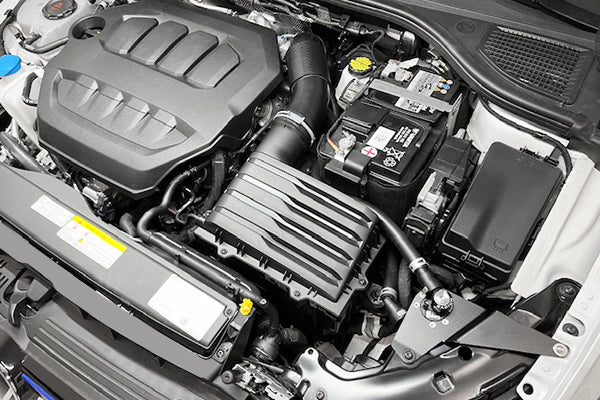

As shown below, the catch can kit also fits under the OEM engine cover.
To retain factory functionality, the CCV catch can runs inline between the crankcase vent (CCV) port and the turbo inlet pipe. At low loads, this catch can experiences atmospheric pressure. However, when the engine is at high load (WOT), the catch can will experience high flow out of the crankcase. This would normally lead to oil and sludge accumulation throughout the intake system.

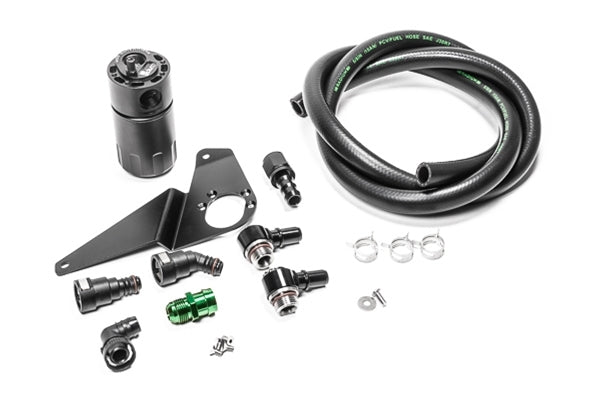

INCLUDES
-Baffled Fluid-Lock� oil catch can
-Anodized aluminum bracket
-Quick connect hose ends
-Quick connect fittings
-10AN (5/8") PCV hose
-10AN adapter fittings
-Stainless hardware
-Spring clamps
