Radium Top Feed Upgrade Fuel Rails - Subaru Liberty/Outback 00-03 (EZ30 H6)
Radium Top Feed Upgrade Fuel Rails - Subaru Liberty/Outback 00-03 (EZ30 H6) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Radium Top Feed Upgrade Fuel Rails - Subaru Liberty/Outback 00-03 (...
Manufactured with a large internal bore, the fuel rails can support all necessary engine power requirements. They are CNC machined from solid 6061 aluminum, black anodized, and laser etched for a high quality surface finish.
These H-6 fuel rails are for the original Subaru EZ30 "Phase-I" flat 6 engine. This engine is denoted by having a single exhaust port per bank. These engines also incorporate the Subaru air-assist fuel injection system. Each fuel rail has three 8AN ORB threaded ports (6 total). To reuse the OEM FPR, use Radium part # 20-0301.
FUEL INJECTOR FITMENT
OEM Injectors:
The Radium Engineering fuel rail features 11mm injector bores making it compatible with the factory Subaru EZ30 Phase-I "air-assist" fuel injectors. No modifications are needed. If preparing to use aftermarket fuel injectors, read below.
Aftermarket Injectors:

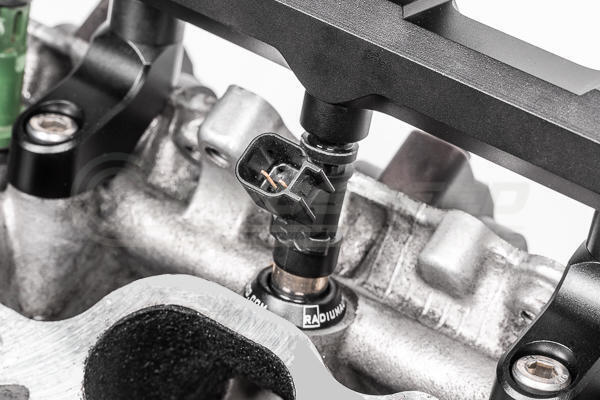

The Phase-I EZ30 uses air-assist emissions equipment. These engines use a unique OEM fuel injector that is not replicated in the aftermarket. In order to use universal aftermarket fuel injectors, these cylinder heads require the provided Radium injector seats. When these injector seats are installed into the air-assist cylinder heads, an aftermarket injector that is 48mm long with 11mm upper O-ring and 14mm lower O-ring must be used. The following universal injectors have been verified to be compatible. However there are others on the market that will work that are not listed here.
Injector Dynamics ID1050-XDS-48-11-14
Injector Dynamics ID1300-XDS-48-11-14
Injector Dynamics ID1700-XDS-48-11-14
Injector Dynamics ID2600-XDS-48-11-14

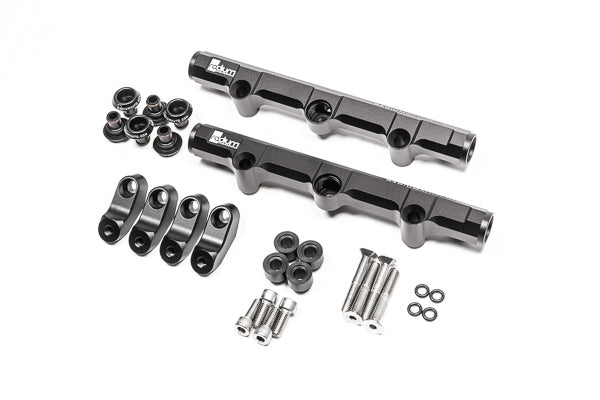

Kit Includes:
Black Anodized Laser Etched Aluminum Fuel Rails (x2)
Subaru Air Assist Injewctor Seats (x6)
Thermal Insulating Press-In Spacers, 11mm (x4)
Stainless Steel M8x1.25 Mounting Bolts (x8)
