Radium PCV Fluid Lock Catch Can Kit - Subaru WRX VB 22+
Radium Engineering catch cans feature large 10AN ORB ports, a 4AN ORB drain port, 2-step oil separation baffling, and an O-ring sealed dipstick. These kits mount using factory holes and integrate perfectly with the surrounding components. They do NOT vent to atmosphere (VTA), thus are emissions and track legal. Closed loop systems remove the oil and sludge from the PCV gasses before it is routed to the engine to be burned. A closed loop system also promotes negative crankcase pressure for optimal performance. Furthermore, closed systems prevent unwanted oil vapors from entering the cabin. The dipsticks built into the catch cans allow easy inspection of accumulated fluid. No cutting, drilling or permanent modifications are required.
The PCV catch can kit runs inline between the PCV valve and the intake manifold and promotes clean filtered air back into the engine. When the intake manifold pressure is close to or greater than atmospheric pressure, the PCV "check" valves close and, thus, this hoses experience no flow. Conversely, the PCV hoses will experience "metered" vacuum when the engine is idling, steady state cruising, and decelerating. This would normally draw unwanted crankcase vapor, unspent fuel, and oil sludge into the intake manifold immediately after a high load run.
The catch can mounts to threaded bosses on the ABS unit.

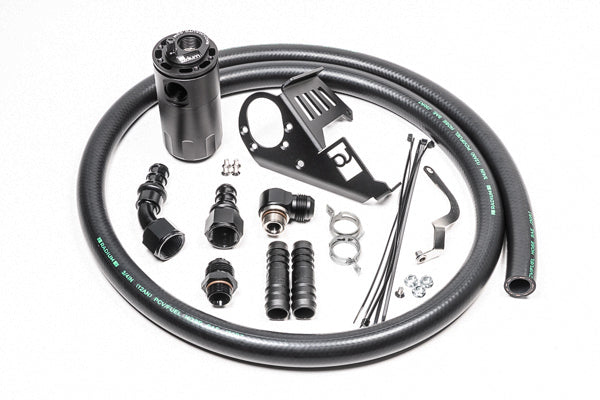

INCLUDES
Baffled oil catch can
WRX VB specific mounting bracket
12AN adapter fittings and hose ends
Stainless steel hardware
3/4" PCV hose
NOTES
The PCV catch can kit is compatible and recommended to be used with the CCV catch can kit. See 20-0755-FL
No extra inline check valve is required since Radium catch cans are pressure sealed.
Click here to download installation instructions (PDF)
Vehicle Fitment:
2022+ Subaru WRX VB
