Radium Fuel Pump Hanger - Nissan 180 SX, Silvia S13/Skyline R32 GTS, GTS-T (Pump Model: Walbro GSS342/AEM 50-1200)
Radium Fuel Pump Hanger - Nissan 180 SX, Silvia S13/Skyline R32 GTS, GTS-T (Pump Model: Walbro GSS342/AEM 50-1200) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
MASSIVE RANGE
Over 20,000 performance & automotive SKUs for European, JDM, American, Korean and more
NATIONWIDE FAST SHIPPING
Quick dispatch across Australia with reliable tracked delivery
AUSSIE SUPPORT & EXPERTISE
Local customer service and technical assistance from our team of enthusiasts
Radium Fuel Pump Hanger - Nissan 180 SX, Silvia S13/Skyline R32 GTS...

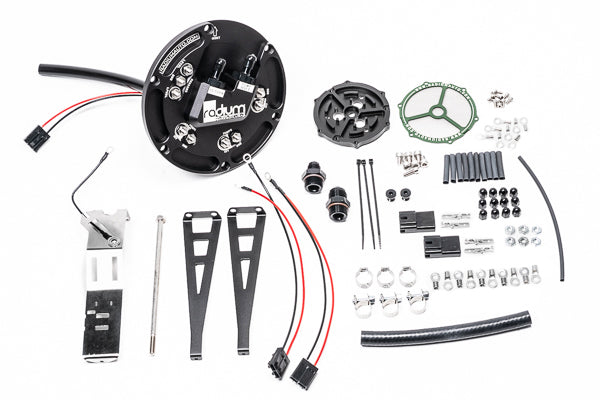

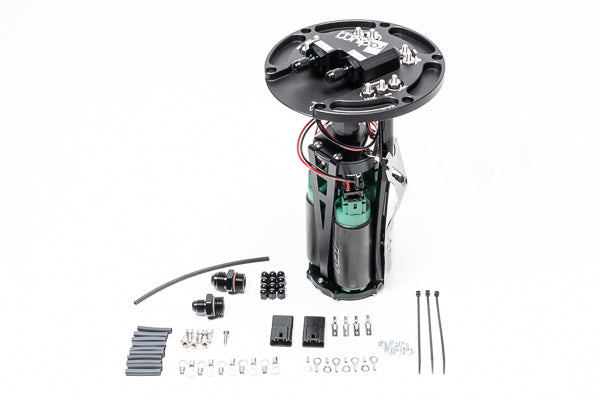

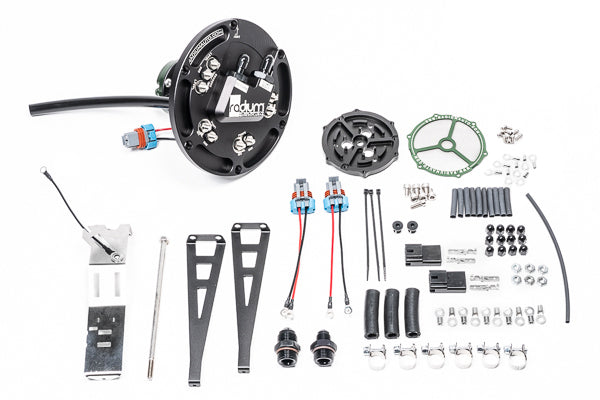

This Radium Engineering fuel pump hanger replaces the stock fuel pump module in the Nissan vehicles listed above. It can be configured with 1, 2, or 3 aftermarket fuel pumps to meet the fuel demands of various high performance engines. No cutting or modifying of the vehicle's sheet metal or fuel tank is required for installation.

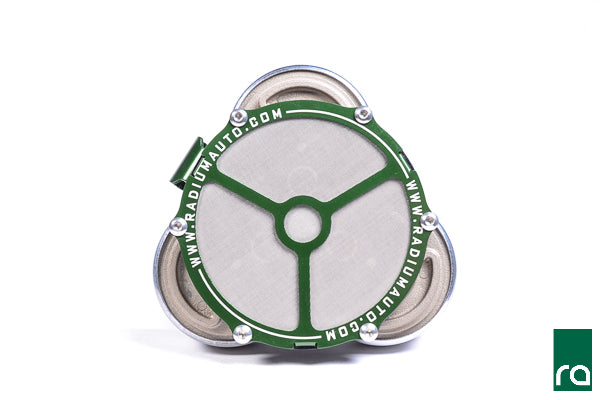

The fuel pumps are positioned in the factory collector bowl. Fuel is drawn in through the mesh filter located at the bottom of the assembly, shown below.
The functionality of the factory Nissan fuel level float and low fuel switch are retained.

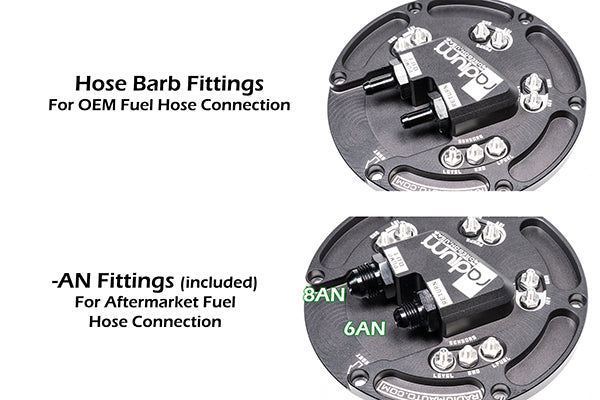

The fuel pump outlets merge into a single 8AN female port on the top plate. And because of the integrated check valves, fuel pump staging is permitted. The return port also uses a 8AN ORB female port on the top plate. Adapter fittings are included for easy connection to the factory fuel lines. Also included in all variations of the kit are adapter fittings for connecting aftermarket -AN style hoses. The fitting ports are machined low enough to clear the unibody sheet metal.
FUEL PUMP INFORMATION
There are many different combinations of fuel pumps available described below. Choosing the pump(s) is based on the expected engine power output and the fuel type (gasoline, E85, etc.). Use the information below to help make your selection.
This system supports the following fuel pumps:
Walbro F90000267 E85
Walbro F90000274 E85
Walbro F90000285 E85
Walbro GSS342 255lph
AEM 50-1200 E85
Note: If a "Pumps Not Included" option is selected, the kit will have enough parts to run 1, 2, or 3 fuel pumps but the user must supply their own compatible fuel pumps. Some assembly required.
ELECTRICAL
The custom designed stainless steel electrical studs easily handle the high current demand that compact multi-pin bulkhead connectors lack. These serviceable connections are hermetically sealed and impervious to all standard and exotic fuels. Non-conductive anodized aluminum acorn nuts are provided to prevent any accidental short circuiting.
Electrical hardware is included for the fuel pump(s) and sensors. Furthermore, the in-tank wiring is insulated with high quality chemically resistant PTFE.
Notes:
Single Walbro GSS342 (255LPH) fuel pump installations can re-use the OEM fuel pump wiring.
It is recommended to upgrade OEM wiring to ensure the pumps are receiving full power and operating at their full potential.
Universal fuel pump wiring kits can be found HERE. Select one for each aftermarket pump.
FUEL HANGER FEATURES
Drop-In Installation
Anodized Aluminum Construction
Merged 8AN ORB Female Pump-Out Port
Barbs and 6AN/8AN Fittings Included
8AN ORB Female Return Port
Permits 1-3 Aftermarket Pumps
Compatible with Various Pumps
High Current Electrical Hardware
Stainless Steel Hardware and Clamps
Gasoline, Methanol, and E85 Compliant
Vehicle Fitment:
Nissan S13 Silvia (All Trims)
Nissan S13 180SX (All Trims)
Nissan R32 Skyline GTS, GTS-T, GTS-4 (Excl GT-R)
