Radium Fuel Hanger Surge Tank Add-On - Nissan 200SX S14, S15/Skyline R33, R34 (Pump Model: Walbro F90000267/274/285/295/E5LM)
Radium Fuel Hanger Surge Tank Add-On - Nissan 200SX S14, S15/Skyline R33, R34 (Pump Model: Walbro F90000267/274/285/295/E5LM) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
MASSIVE RANGE
Over 20,000 performance & automotive SKUs for European, JDM, American, Korean and more
NATIONWIDE FAST SHIPPING
Quick dispatch across Australia with reliable tracked delivery
AUSSIE SUPPORT & EXPERTISE
Local customer service and technical assistance from our team of enthusiasts
Radium Fuel Hanger Surge Tank Add-On - Nissan 200SX S14, S15/Skylin...
This product is to be used with one of the Radium 20-063X fuel hangers. It is recommended to use a single pump hanger to feed the surge tank. The surge tank can then be equipped with one or two fuel pumps to feed the engine.
The Radium Engineering FHST (fuel hanger surge tank) add-on is the ultimate solution for fuel starvation issues. Due to the saddle-bag style OEM fuel tank and insufficient baffling in late model Nissans, fuel slosh is common when driven aggressively. Unstable pressure resulting in a lean fuel mixture can cause engine damage. A stand-alone surge tank is an excellent device for eliminating fuel starvation issues, but installation can be complex. This add-on is a fully functional fuel surge tank mounted inside the OEM tank.
Simple plug and play connections are all that is required to attach the 2 systems together. The FHST add-on utilizes most of the Radium 20-063X-0X fuel hanger parts (described above). The surge tank can hold 1 or 2 aftermarket pumps including brushless variations. With the addition of the fuel pump in the OEM location, there could be 2-3 pumps inside the gas tank (total). Even with all of the extra fuel pumps, the FHST system is very straight forward and relatively simple to install.
No grinding, bending, or modification of the vehicle is required. Furthermore, the system is compatible with all alternative fuels such as E85.
What keeps the surge tank full?
The surge tank fuel pump(s) are supplied with fuel from 4 different sources:
The high flow (low pressure) fuel pump located in the OEM location.
The fuel returning from the fuel pressure regulator (FPR).
The fuel transfer from the integrated venturi jet pump siphon.
The one-way fill valve on the bottom of the surge tank.

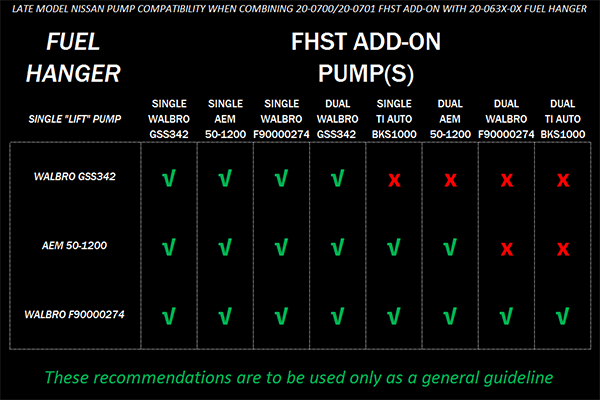

FUEL PUMP INFORMATION
Both brushed and brushless fuel pumps are compatible with the FHST Add-On. Fuel pumps are not provided but can be purchased from the links below.
Walbro F90000267 E85
Walbro F90000274 E85
Walbro F90000285 E85
Walbro GSS342 255lph
AEM 50-1200 E85
Ti Automotive E5LM (brushless)
ELECTRICAL

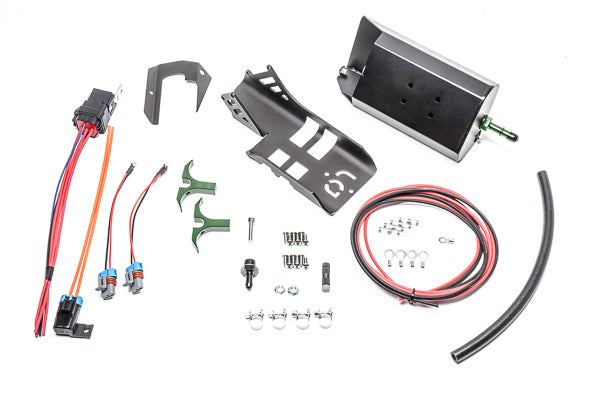

External high current fuel pump wiring is provided for installing one FHST pump (1 relay, 1 fuse, and all associated wiring and hardware). To wire in a second FHST pump, a second fuse and relay are required. Consider purchasing Radium 17-0031 DIY Wiring Kit.
There are 2 different FHST kits available. Each is specific to the fuel pump model to be installed. (20-0700/20-0701).
NOTE: Because the fuel pump supplying the FHST (in the original pump location) will now operate at very low pressure (high flow), the OEM external fuel pump wiring will be sufficient for this "lift" pump.
FHST ADD-ON FEATURES
Simple Integration into Fuel Hanger
Fuel Starvation Protection
Anodized Aluminum Construction
Permits 1 or 2 Surge Pumps
Brushless Fuel Pump Compatibility
High Current Electrical Hardware
Gasoline, Methanol, and Ethanol Compliant
Stainless Steel Hardware and Clamps
Vehicle Fitment:
Nissan S14 200SX/Silvia (All Trims)
Nissan S15 200SX/Silvia (All Trims)
Nissan R33 Skyline (All Trims)
Nissan R34 Skyline (All Trims)
