Radium Fuel Pump Hanger - Nissan 200SX S14, S15/Skyline R33, R34 (Pump Model: Walbro F90000267/274/285/295)
Radium Fuel Pump Hanger - Nissan 200SX S14, S15/Skyline R33, R34 (Pump Model: Walbro F90000267/274/285/295) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
MASSIVE RANGE
Over 20,000 performance & automotive SKUs for European, JDM, American, Korean and more
NATIONWIDE FAST SHIPPING
Quick dispatch across Australia with reliable tracked delivery
AUSSIE SUPPORT & EXPERTISE
Local customer service and technical assistance from our team of enthusiasts
Radium Fuel Pump Hanger - Nissan 200SX S14, S15/Skyline R33, R34 (P...
The Radium Engineering fuel pump hanger replaces the entire factory assembly. It can be configured with 1 or 2 aftermarket fuel pumps to meet the fuel demands of various high performance engines. Fuel pump options include Walbro (Ti Automotive) or AEM.
The functionality of the factory Nissan level sender, low fuel switch, and fuel temperature (OBD-II only) are retained. Adapter fittings are provided that permit direct connections for all factory fuel line variations (quick connect and hose barb). No extra fuel plumbing is required. As shown below, the adapter fittings can be changed for -AN style hoses as well (sold separately).
The OEM system uses a venturi jet pump to transfer fuel from the passive side of the tank to the active (pump) side of the tank. When using aftermarket high-flow pumps this venturi jet pump creates a restriction in the fuel return, resulting in unwanted backpressure and unmanageable fuel pressure. Radium Engineering has redesigned the siphon system to completely eliminate this restriction but still effectively scavenge fuel the same as factory. NOTE: If fuel pressure must hold steady after the engine is shut down, install one of these CHECK VALVES in the fuel system feed line.
FUEL PUMP INFORMATION

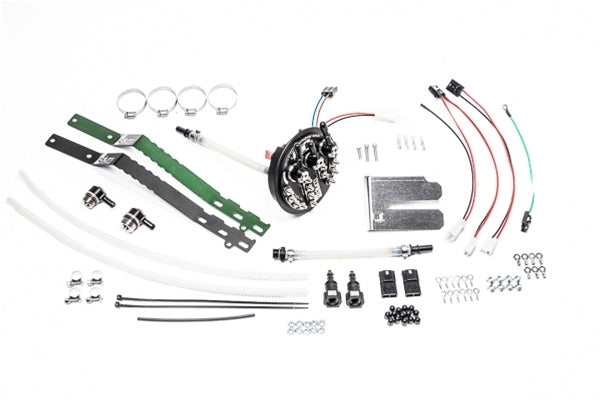

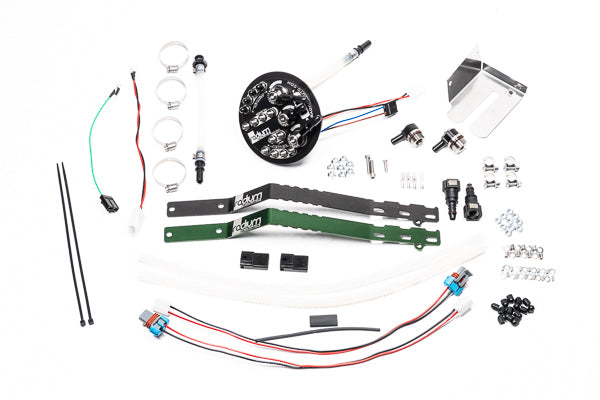

All kits come partially assembled with the final assembly performed by the technician during installation. Refer to the instructions for more details. The kit will have enough parts to run 1 or 2 fuel pumps and the user must supply their own compatible fuel pumps. If a "Pumps Included" option is selected, the kit will include the fuel pump(s)
NOTE: When the unit is purchased with one pump included, additional parts will be needed to install a second pump.
This system supports the following fuel pumps:
Walbro F90000267 E85
Walbro F90000274 E85
Walbro F90000285 E85
Walbro GSS342 255lph
AEM 50-1200 E85
Ti Automotive E5LM (brushless)
ELECTRICAL

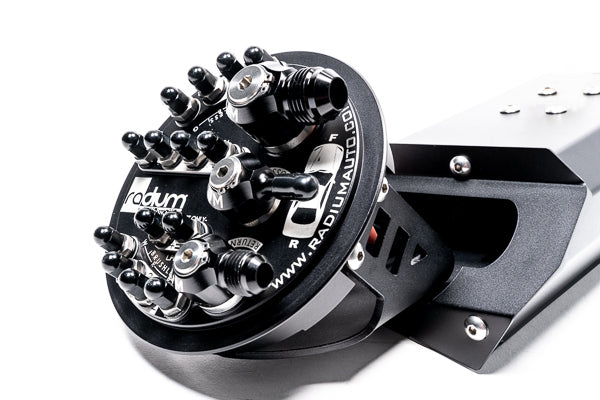

The custom designed stainless steel electrical studs easily handle the high current demand that compact multi-pin bulkhead connectors lack. These serviceable connections are hermetically sealed and impervious to all standard and exotic fuels. Non-conductive anodized aluminum acorn nuts are provided to prevent any accidental short circuiting. Enough studs are built in the top hat to accomodate brushless fuel pumps as well as the FHST add-on, described below.
Electrical hardware is included for the fuel pump(s) and sensors. Furthermore, the in-tank wiring is insulated with high quality chemically resistant PTFE.
Notes
Single fuel pump installations can re-use the OEM fuel pump controller wiring.
It is recommended to upgrade OEM wiring to ensure the pumps are receiving full power and operating at their full potential.
Universal fuel pump wiring kits can be found HERE. Select one for each aftermarket pump.
FUEL HANGER FEATURES
Drop-In Installation
Anodized Aluminum Construction
Merged 10AN ORB Female Pump-Out Port
Restriction-Free 8AN ORB Female Return Port
Permits 1 or 2 Fuel Pumps
Brushless Fuel Pump Compatibility
High Current Electrical Hardware
Integrated Venturi Jet Pump Siphon
Fluorosilicone Duckbill Return Valve
Stainless Steel Hardware and Clamps
Gasoline, Methanol, and E85 Compliant
LATE MODEL NISSAN FHST ADD-ON - SOLD SEPARATELY (20-070X)
This product is to be used with one of the fuel hangers above. It is recommended to use a single pump hanger to feed the surge tank. The surge tank can then be equipped with one or two fuel pumps to feed the engine.
The Radium Engineering FHST (fuel hanger surge tank) add-on is the ultimate solution for fuel starvation issues. Due to the saddle-bag style OEM fuel tank and insufficient baffling in late model Nissans, fuel slosh is common when driven aggressively. Unstable pressure resulting in a lean fuel mixture can cause engine damage. A stand-alone surge tank is an excellent device for eliminating fuel starvation issues, but installation can be complex. This add-on is a fully functional fuel surge tank mounted inside the OEM tank.
Vehicle Fitment:
Nissan S14 200SX/Silvia (All Trims)
Nissan S15 200SX/Silvia (All Trims)
Nissan R33 Skyline (All Trims)
Nissan R34 Skyline (All Trims)
