Radium Engineering  |  SKU: 20-0534-06

Radium Universal Check Valve- 6AN Kit

$101.84 AUD $114.46
Shipping calculated at checkout.

MASSIVE RANGE

Over 20,000 performance & automotive SKUs for European, JDM, American, Korean and more

NATIONWIDE FAST SHIPPING

Quick dispatch across Australia with reliable tracked delivery

AUSSIE SUPPORT & EXPERTISE

Local customer service and technical assistance from our team of enthusiasts

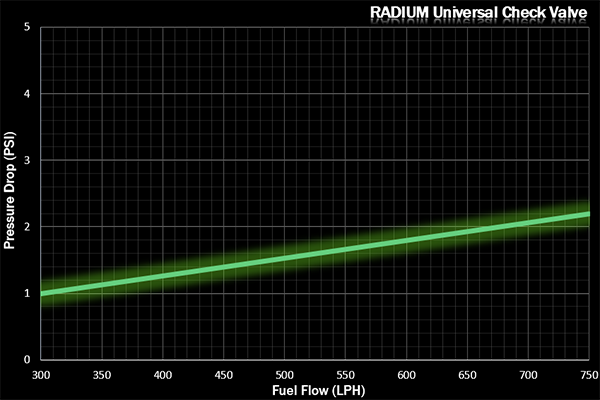

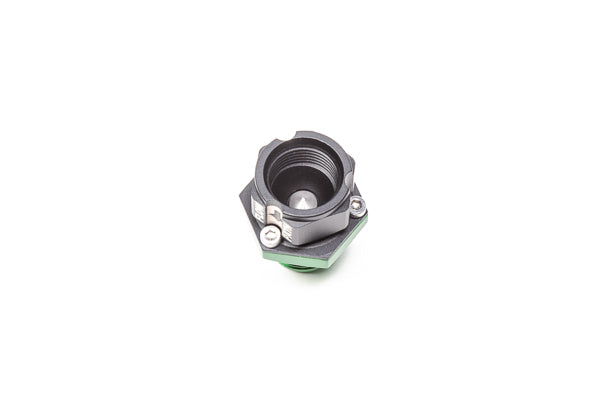

A 1-way check valve permits flow in 1 direction only. The Radium Enginering universal check valve features a lightweight anodized aluminum body with Viton seals and stainless steel hardware. As shown below, the internal plunger's aerodynamic shape warrants a smooth laminar stream.

All female -AN ports can accept 37 degree flare male fittings and/or ORB (O-ring boss) male fittings. The flow direction is laser etched on the side of the part. The check valve is compatible in multiple applications including gasoline, ethanol, methanol, diesel, water, coolant, oil, etc.

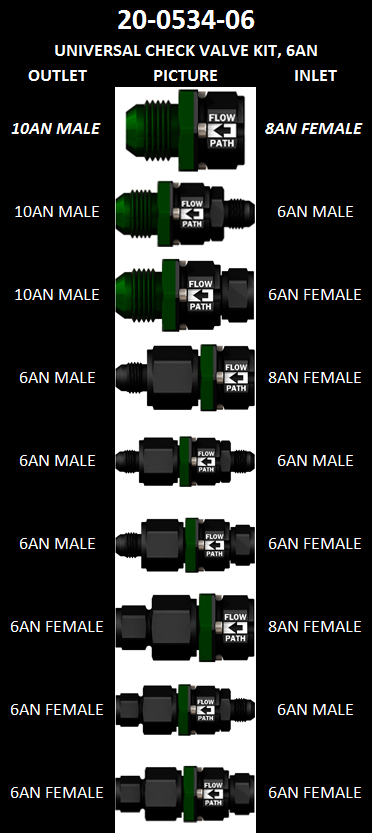

20-0534 UNIVERSAL CHECK VALVE

In it's native form without adapter fittings, the universal check valve uses a 10AN male outlet and a 8AN female inlet.

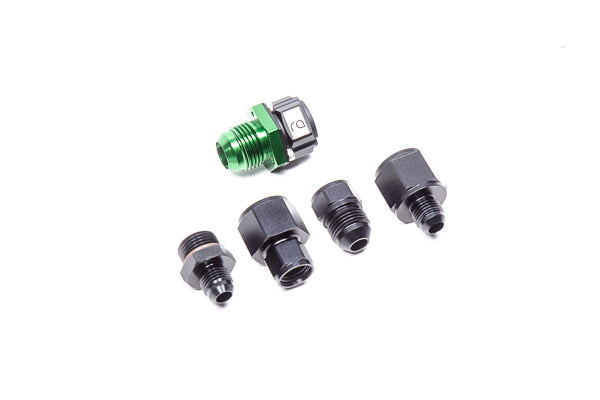

20-0534-06 UNIVERSAL CHECK VALVE KIT, 6AN

The 6AN kit includes the 20-0534 check valve body but adds all the necessary adapter fittings to convert both the inlet and the outlet to 6AN male and/or 6AN female.

20-0534-08 UNIVERSAL CHECK VALVE KIT, 8AN

The 8AN kit includes the 20-0534 check valve body but adds all the necessary adapter fittings to convert both the inlet and the outlet to 8AN male and/or 8AN female.

20-0534-10 UNIVERSAL CHECK VALVE KIT, 10AN

The 10AN kit includes the 20-0534 check valve body but adds all the necessary adapter fittings to convert both the inlet and the outlet to 10AN male and/or 10AN female.

SPECIFICATIONS

Body Seal: FKM Viton
Plunger Seal: FKM Viton
Hardware: Stainless Steel
Spring Material: Stainless Steel
Plunger Material: Stainless Steel
Body Material: Anodized Aluminum
Check Valve Type: Spring-Loaded Piston
Large Hex: 30mm (or 1-3/16")
Length, No Adapters: 1.72" (43.6mm)
Cracking Pressure: 0.3 psi @ 70F
Max Operating Pressure: 1000+psi @ 70F
Backflow Holding Pressure: 1000+psi @ 70F
